Spray Drying Equipment / Lab Spray Dryer for Wholesale

because the material sprayed out only when sprayed into the mist size particles are subjected to high temperatures, it is only an instantaneous heat, to keep these active materials after drying to maintain its active ingredients are not damaged.

Technical Feature

  • New
  • Spray Drying Equipment
  • Henan, China (Mainland)
  • HONEST
  • HT-RY-1500
  • 220v/380v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~4

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
HONEST
Model Number
HT-RY-1500
Voltage
220v/380v
Power(W)
15kw
Dimension(L*W*H)
700*505*1500mm
Weight
110kg
Certification
TUV SGS
Warranty
2 Years
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Spray Dryer
Application
Spray Dryer
Heating source
Electricity
Usage
Spray Dryer
Material
Stainless Steel
Drying Time
1.0-1.5s
Max Inlet Amount
2000ml
Min Inlet Amount
30ml

DETAIL DESCRIPTION

Spray Drying Equipment  / Lab Spray Dryer for Wholesale



Product Description





Spray dryer is mainly used in universities, research institutes and food medicine chemical laboratory production of trace particles of powder, for all solutions such as emulsion, suspension has a broad spectrum of applicability for drying of heat-sensitive material such as biological Products, biological pesticides, enzyme preparation, etc., because the material sprayed out only when sprayed into the mist size particles are subjected to high temperatures, it is only an instantaneous heat, to keep these active materials after drying to maintain its active ingredients are not damaged.



Product Feature



1.Imported nozzle, high efficiency

2.Color LCD touch screen parameter display: Inlet temperature / outlet temperature / peristaltic pump speed / air volume / needle frequency.

3.Automatic control: one-touch boot, set the spray process parameters, the temperature reaches the predetermined temperature, peristaltic pump start-up, the touch screen displays the running animation, clear running process; just press the stop button when the shutdown, the machine automatically turn off safely.

4.Manual control: If you need to adjust the process parameters in the experimental process, you can easily switch to the manual state, the whole process of dynamic color touch screen display.

5.Turn off protection: it could be turn off only press the stop button, the machine immediately stop running outside the fan, to ensure that equipment will not be due to misoperation (forced off the fan) and cause the heating part of the burn.

6.Spray, drying and collection systems are made of transparent, high-quality borosilicate heat-resistant glass, allowing the drying process to proceed in a pollution-free environment.

7.JBuilt-in imported oil-free air compressor, dusting diameter was normal distribution, mobility is very good, the noise is very low, less than 60db.

8.Two-fluid spray atomization structure, the whole machine is made of high-quality stainless steel, compact design, no ancillary equipment.

9.Dry temperature control on the design of real-time control PID temperature control technology, the whole temperature control temperature accuracy, heating temperature control accuracy ± 1 ℃.

10.In order to maintain the purity of the sample, equipped with air inlet filter.





Technical Parameters





Model

HT-RY-1500

Power Supply

220v/50-60HZ

Diameter of Nozzle

0.5/0.7/0.75/1.0/1.5/2.0mm

(can be customized)

Water Evaporation Capacity

1500-2000ml/h

Drying Time

1.0-1.5s

Max Inlet Amount

2000ml

Min Inlet Amount

30ml

Inlet Temperature

30°-280°

Outlet Temperature

30°-140°

Weight

110kg

Size

700*505*1500mm

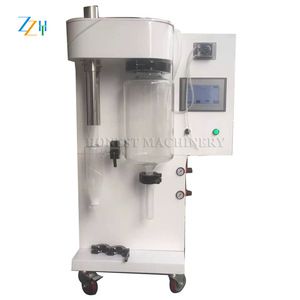

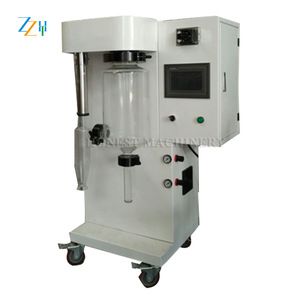

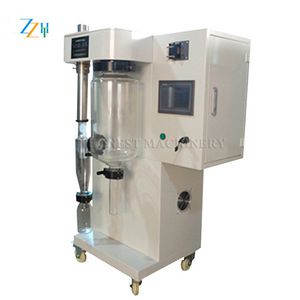

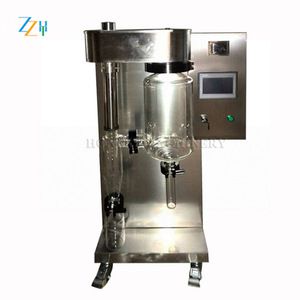

Product Pictures





Certifications







Our Customers











Contact Us



If you need further information, please contact us freely, we will do our best to cooperate with you.
