Stainless Steel High Speed Spray Dryer Price

Stainless Steel High Speed Spray Dryer Price  1. Machine Introduction:Small-sized Spray Dryer Introduction The small-sized spray dryer is designed and manufactured by absorbing international advanced technology,  whose design is compact and can be

Technical Feature

  • Qingdao, China
  • 150sets/Months
  • L/C, T/T, Western Union, Paypal, Money Gram
  • Convective
  • Powder
  • Pressure Atomization
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~3

PRIMARY PARAMETERS

Model NO.
HT-RY-1500
Voltage
220V
Power
15kw
Certification
TUV SGS
Warranty
2 Years
Structure
Spraying Drier
Operational Method
Continuous
Operation Pressure
Vacuum Dryer
Drying Medium
Air
Appearance of Dried Sample
Bulk
Movement Way
Spraying
Trademark
HONEST
Transport Package
Fumigation-Free Wooden Case
Specification
700*505*1500mm
Origin
China

DETAIL DESCRIPTION

Stainless Steel High Speed Spray Dryer Price


 1. Machine Introduction:

Small-sized Spray Dryer Introduction The small-sized spray dryer is designed and manufactured by absorbing international advanced technology,  whose design is compact and can be moved. The major components and electrical parts are imported from famous brands. It can be used without any auxiliary equipment, and the machine is a whole, portable, self-contained one.  Moreover, it also adopts PLC controller and touch-screen display. It is mainly for processing the fluid of high liquidity.

1.Spray, drying chamber and collecting devices all adopt transparent high-quality glass, which is a kind of high-temp resisting, high-borosilicate glass material, to provide stable environment without pollution. All glass components are easy to disassemble and clean.

2.Visual process of spray drying experiment , easy to control and detect and solve problems timely.

3.Built-in imported oil-free air compressor; powder particles diameter is normally distributed with good liquidity and low noise which is less than 60 db, according with national standards for laboratory.

4.Two-fluid spray of atomized structure, made of stainless steel 316.

5.Adopt PID for the temperature controller with ±1ºC heating temperature control accuracy.

6.The feeding amount can be adjustable by peristaltic pump.

7.Jet device can automatically dredge (needle) and frequency can be adjusted. when the nozzle is blocked , the machine can automatically remove the obstacles in order to ensure the continuity of the experiment.

8. Automatic and manual modes, PLC control, color touch-screen display, all the parameters have a liquid crystal display (LCD).

9. With protection function, the heater will not work without the fan working.

10. Uniform granularity of the finished products. More than 95% of the died powder has the same particle size range.

11. When connected to the outer electric brake, the machine can be used without any auxiliary equipment.

The spray dryer is mainly for food, biology, beverage, chemical, medicine, etc for lab-use; widely used for all kinds of solutions such as emulsion and suspension liquids; and also suitable for drying heat-sensitive materials such as biological products, bio-pesticides, enzymes, etc.

Can be used to dry spices and pigments, polymer and resins, milk and egg products, plant and vegetable extracts, oxide, pharmaceutical synthesis, thermal plastic material, bone and tooth powder, aromatic agent, fragrances, blood products, biochemical products, dyes, soap and detergents, food adhesive,etc. 3.Applicable to these fields: colleges and universities, research institutes and micro-enterprise about laboratories development and production of micro-particles powder in food, biology, beverage, chemical, materials, pharmaceutical and other aspects.



2. Technical Parameters:

Model

HT-RY-1500

Power Supply

220v/50-60HZ

Diameter of Nozzle

0.5/0.7/0.75/1.0/1.5/2.0mm

(can be customized)

Water Evaporation Capacity

1500-2000ml/h

Drying Time

1.0-1.5s

Max Inlet Amount

2000ml

Min Inlet Amount

30ml

Inlet Temperature

30°-280°

Outlet Temperature

30°-140°

Weight

110kg

Size

700*505*1500mm

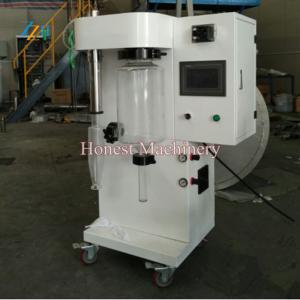

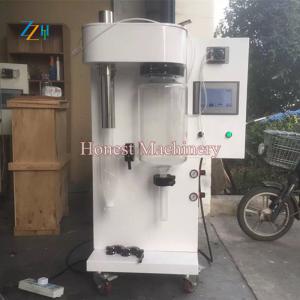

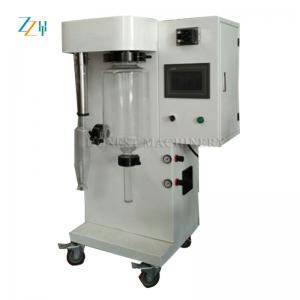

3.Machine Photos:

Stainless Steel High Speed Spray Dryer Price


4.Company Certificate:
Stainless Steel High Speed Spray Dryer Price



5.Packing&Delivery:
Stainless Steel High Speed Spray Dryer Price


6.Our Customer:
Stainless Steel High Speed Spray Dryer Price


7.Contact Information:

If you need further information, please contact us freely, we will do our best to cooperate with you.
