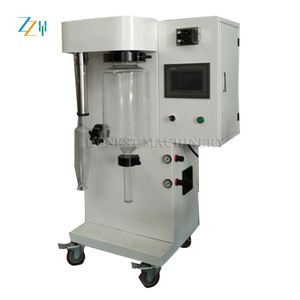

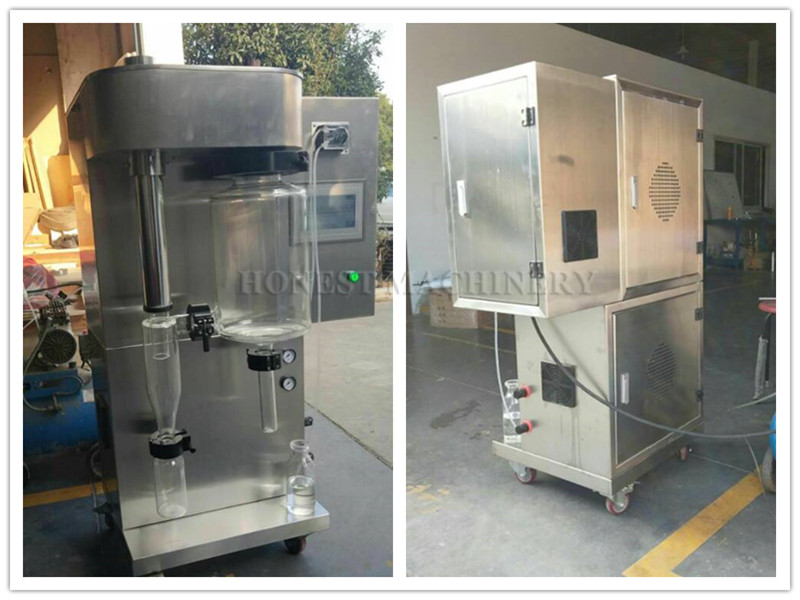

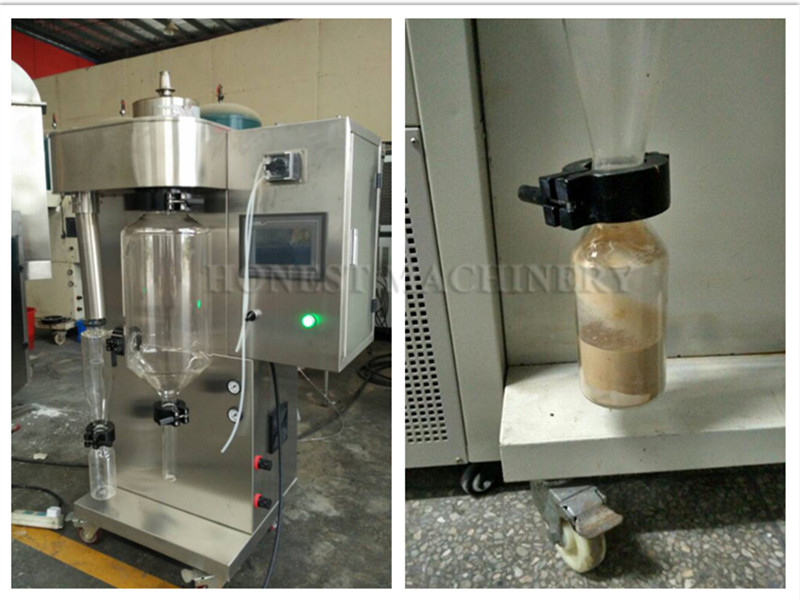

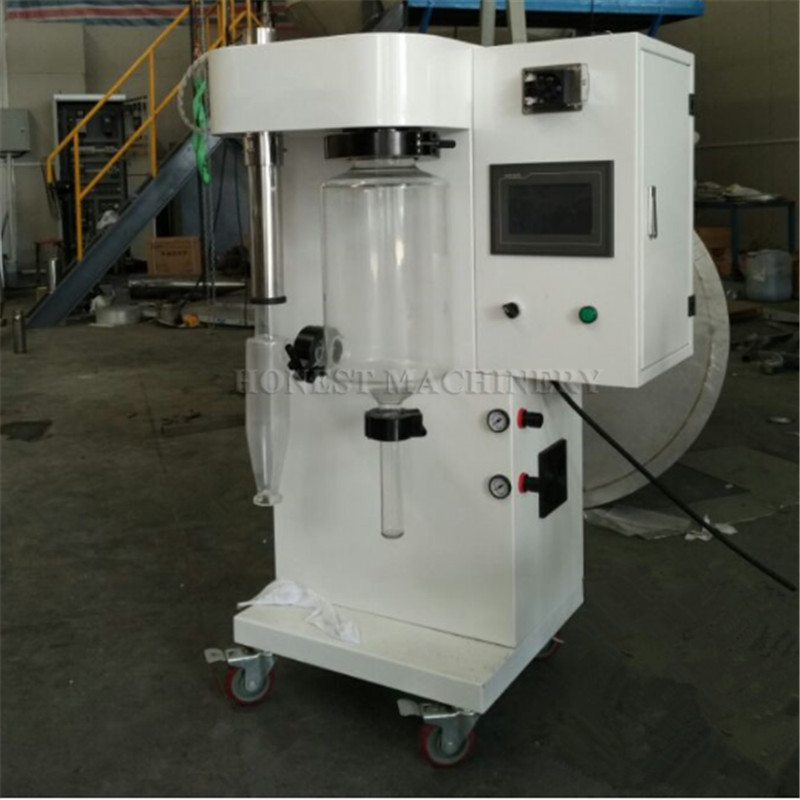

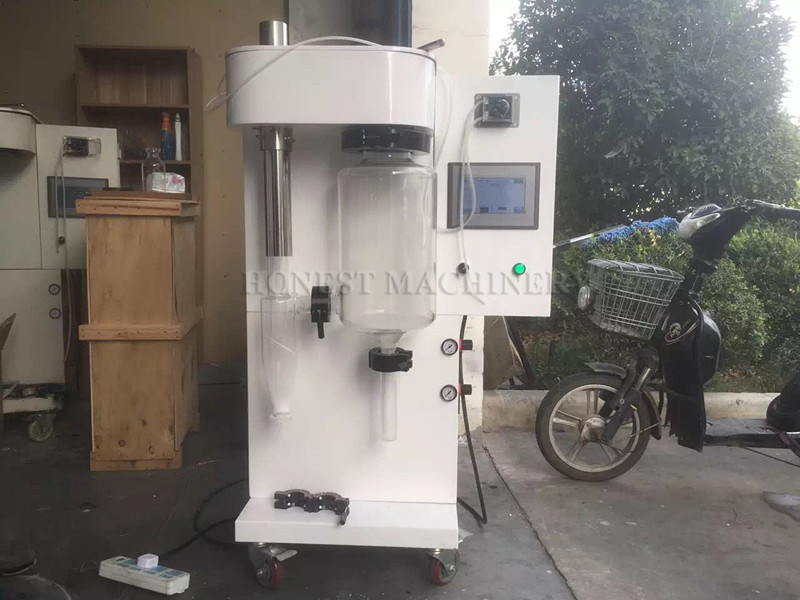

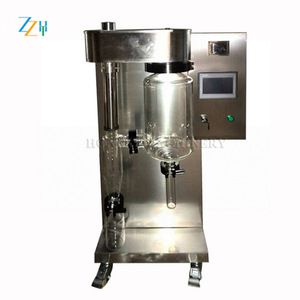

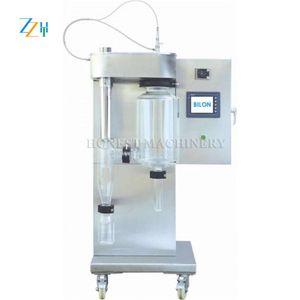

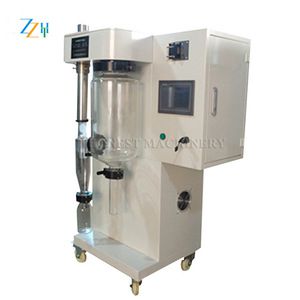

Stainless Steel Mini Spray Dryer / Milk Spray Drying Machine / Price for Spray Dryer
Price for Spray Dryer is mainly used in universities, research institutes and food medicine chemical laboratory production of trace particles of powder, for all solutions such as emulsion, suspension has a broad spectrum of applicability for drying of heat-sensitive material such as biological Products, biological pesticides, enzyme preparation, etc., because the material sprayed out only when sprayed into the mist size particles are subjected to high temperatures, it is only an instantaneous heat, to keep these active materials after drying to maintain its active ingredients are not damaged.
1.Imported nozzle, high efficiency

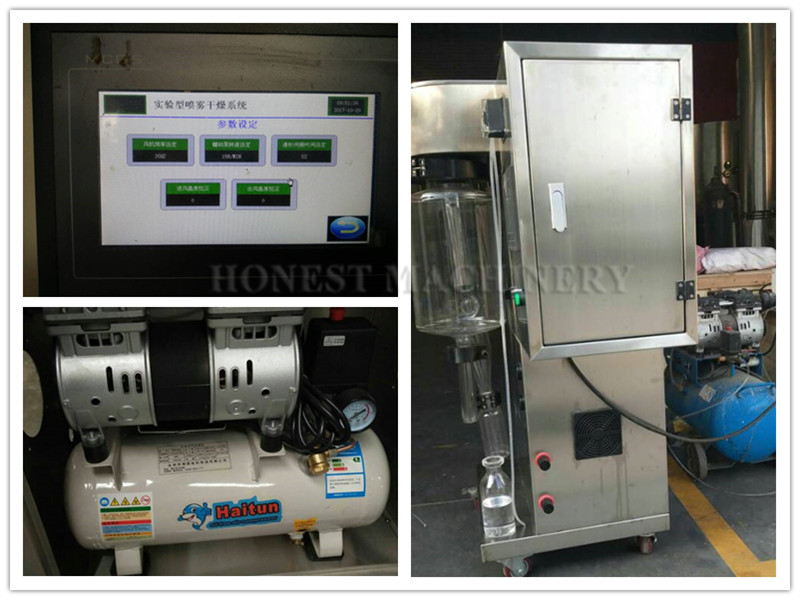

2.Color LCD touch screen parameter display: Inlet temperature / outlet temperature / peristaltic pump speed / air volume / needle frequency.
3.Automatic control: one-touch boot, set the spray process parameters, the temperature reaches the predetermined temperature, peristaltic pump start-up, the touch screen displays the running animation, clear running process; just press the stop button when the shutdown, the machine automatically turn off safely.
4.Manual control: If you need to adjust the process parameters in the experimental process, you can easily switch to the manual state, the whole process of dynamic color touch screen display.
5.Turn off protection: it could be turn off only press the stop button, the machine immediately stop running outside the fan, to ensure that equipment will not be due to misoperation (forced off the fan) and cause the heating part of the burn.
6.Spray, drying and collection systems are made of transparent, high-quality borosilicate heat-resistant glass, allowing the drying process to proceed in a pollution-free environment.
7.JBuilt-in imported oil-free air compressor, dusting diameter was normal distribution, mobility is very good, the noise is very low, less than 60db.
8.Two-fluid spray atomization structure, the whole machine is made of high-quality stainless steel, compact design, no ancillary equipment.
9.Dry temperature control on the design of real-time control PID temperature control technology, the whole temperature control temperature accuracy, heating temperature control accuracy ± 1 ℃.
10.In order to maintain the purity of the sample, equipped with air inlet filter.
Model | HT-RY-1500 |
Power Supply | 220v/50-60HZ |
Diameter of Nozzle | 0.5/0.7/0.75/1.0/1.5/2.0mm (can be customized) |
Water Evaporation Capacity | 1500-2000ml/h |
Drying Time | 1.0-1.5s |
Max Inlet Amount | 2000ml |
Min Inlet Amount | 30ml |
Inlet Temperature | 30°-280° |
Outlet Temperature | 30°-140° |
Weight | 110kg |
Size | 700*505*1500mm |
If you need further information, please contact us freely, we will do our best to cooperate with you.
