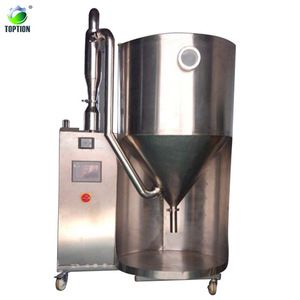

Spray Drying Equipment | Spray Dried milk/coffee Powder TP-S50 Centrifugal Spray Dry machine with atomizer 5L/H for pilot pla

Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.

Technical Feature

  • New
  • Spray Drying Equipment
  • Shaanxi, China (Mainland)
  • TOPTION
  • TP-S50
  • 220V/380v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$8~9

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Shaanxi, China (Mainland)
Brand Name
TOPTION
Model Number
TP-S50
Voltage
220V/380v
Power(W)
3.5KW/10kw
Dimension(L*W*H)
1800*930*2200mm
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Lab Spray Dryer
Max capacity
5000ML
speed of squirt pump
5000
Temperature range of Inlet air
140u00b0C -300u00b0C adjustable
Temperature range of outlet air
80u00b0C -90u00b0C
Precision of temperature
u00b1 1 u00b0C
drying time
1h~1.5h
Spray system
centrifugal nozzle
Spray direction
downwards co-current
max mositure evaporation
5L

DETAIL DESCRIPTION

Product Description

Spray Drying Equipment | Spray Dried milk/coffee Powder TP-S50 Centrifugal Spray Dry machine with atomizer 5L/H for pilot plant

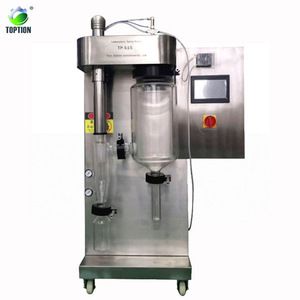

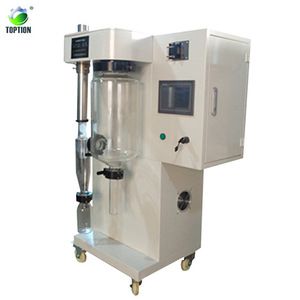

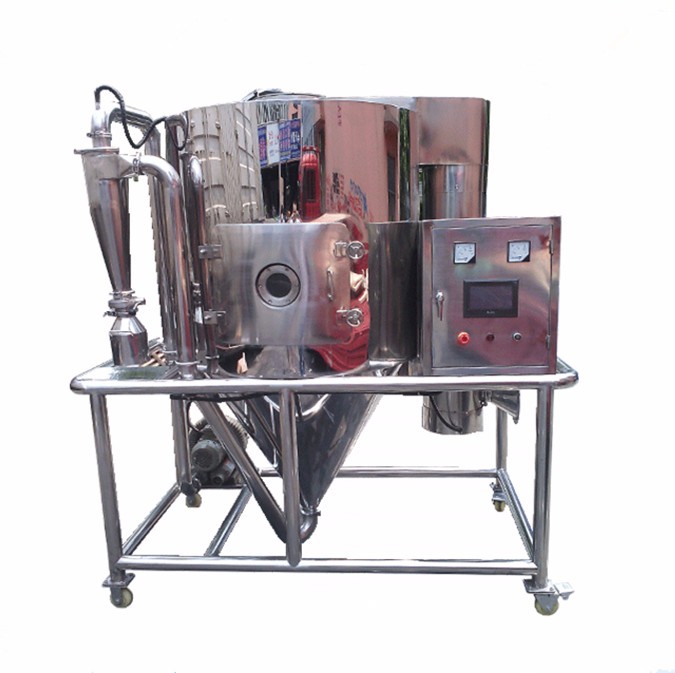

Introduction of TP-S50 spray dryer

Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.
TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.

Features of TP-S50 spray dryer

1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
4. With jet cleaner (stylet), its frequency can be automatically adjusted.
5. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
6. Use PID controller, the accuracy of heating temperature is around±1°C.
7. A filter has been equipped to the inlet unit to prevent the sample from contamination.
8. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
9. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
10. Innovative tower wall purging device, improves the material recycling rate.

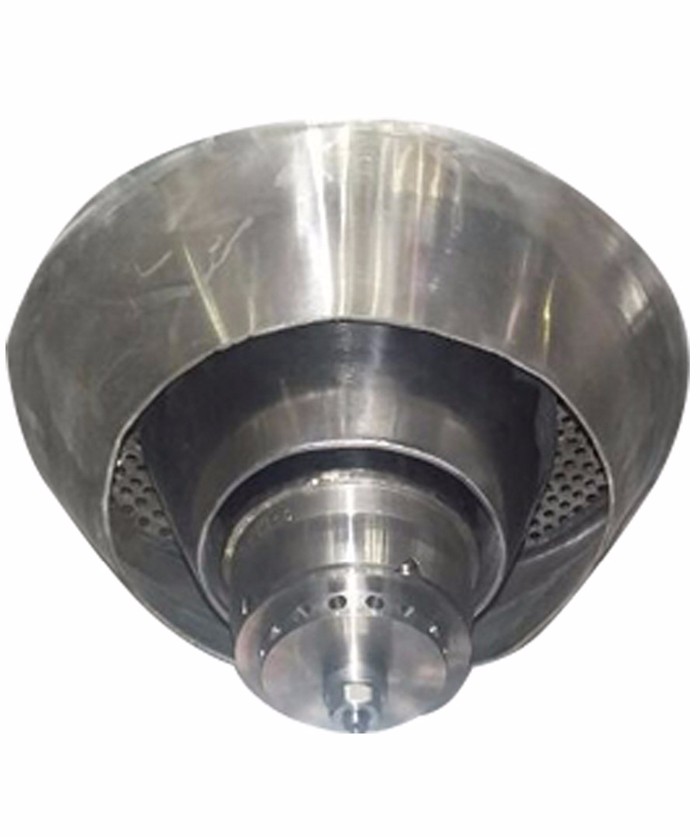

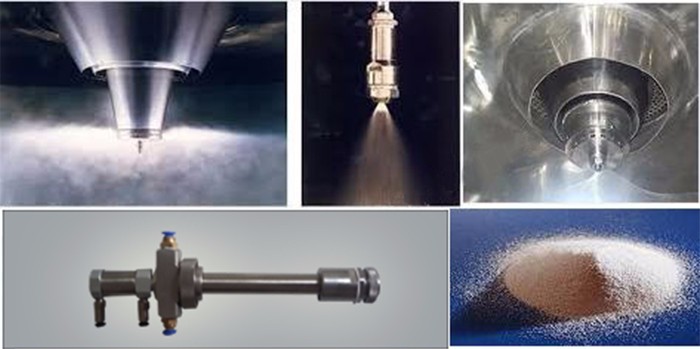

centrifugal nozzle

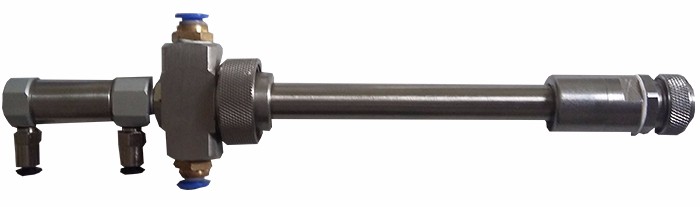

two fluid nozzle

Benefits of TP-S50 spray dryer

1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

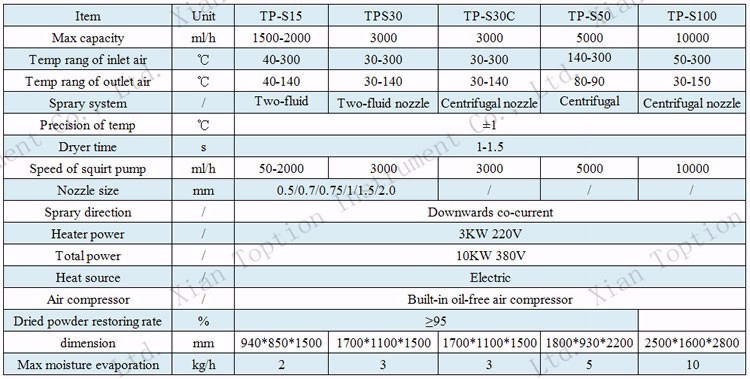

Technical parameters of TP-S50 spray dryer

Certifications

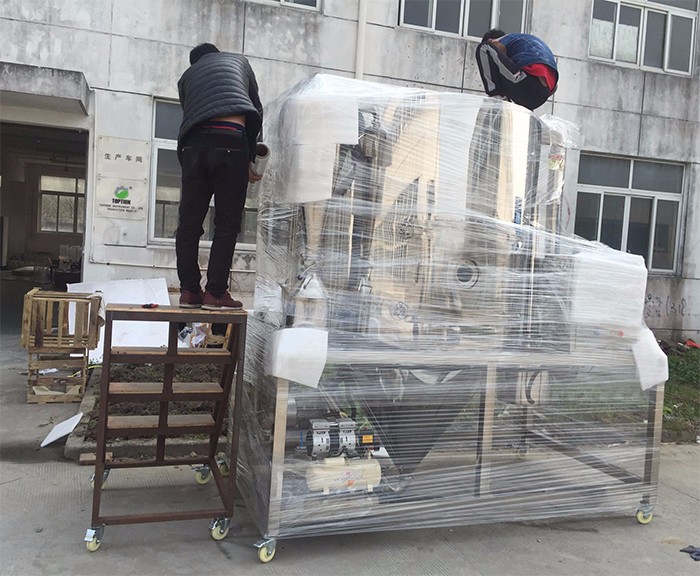

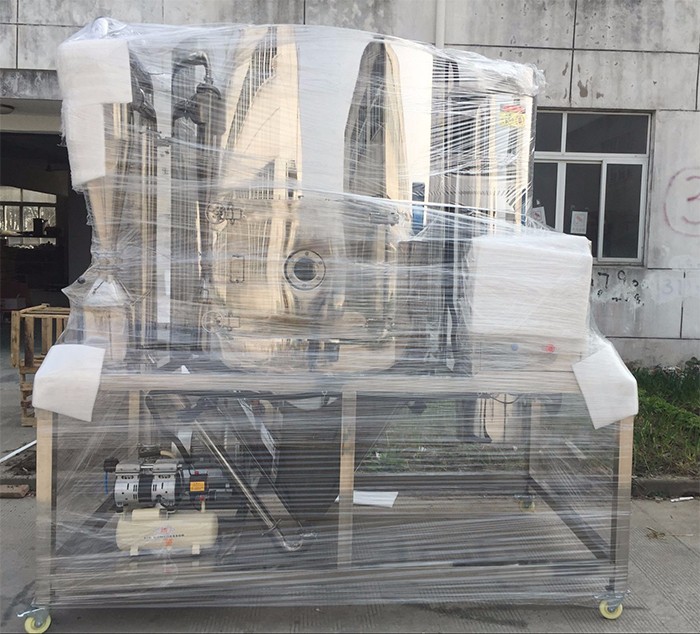

Packing & Delivery
Our Company
Contact Me

TOPTION INSTRUMENT CO.,LTD
Add:HeCheng,TaiBai Road,YanTa District,XI'AN CHINA
Name:Sheila Mao
Tel:0086-88763980
Email: sheila at toptionlab.com
Web: www.toptionlab.com
WhatsApp&Skype&Wechat: 0086-15102994812

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

2. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…

3. When I receive it after pay?
Dear customer, normal models can be delivered with 7-9 days, please contact us to check transport time to your address.

4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.

5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.

6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.

7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
