Spray drying equipment milk powder mini spray dryer

such as  emulsion, suspending liquid, liquor and so on.

Technical Feature

  • New
  • Spray Drying Equipment
  • China (Mainland)
  • TOPTION
  • TP-S30
  • 220V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~10

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
China (Mainland)
Brand Name
TOPTION
Model Number
TP-S30
Voltage
220V
Power(W)
10kw
Dimension(L*W*H)
1700*1100*150mm
Weight
TBA
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Max capacity
3000ml
Temperature range of inlet air
40u2103 ~ 300u2103
Temperature range of outlet air
40u2103 ~ 140u2103
Spray system
Two-fluid nozzle
Precision of temp
u00b11u2103
Dryer time
1.0 ~ 1.5s
Speed of squirt pump
3000ml/h
Nozzle size
0.5/0.7/0.75/1.0/1.5/2.0 mm
Spray direction
Downwards co-current
Dried powder restoring rate
u226595%

DETAIL DESCRIPTION

Product Description

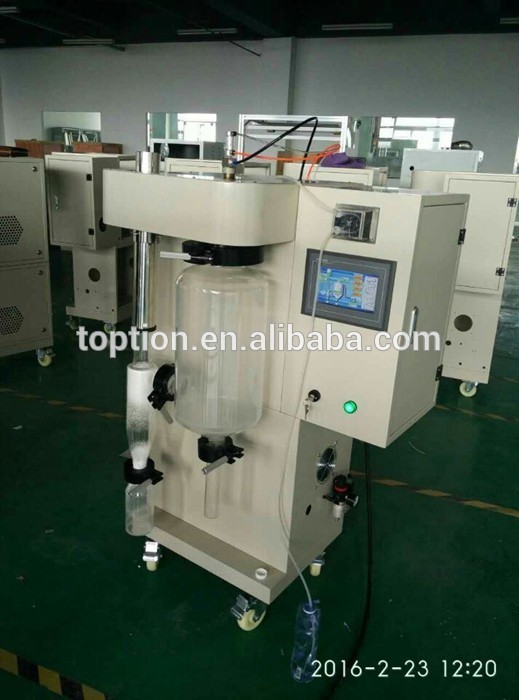

Hot sale TP-S30 mini spray dryer& spray dryer machine&spray drying equipment :

This  Lab spray dryer haStainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as  emulsion, suspending liquid, liquor and so on.


It is  widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Detailed Images

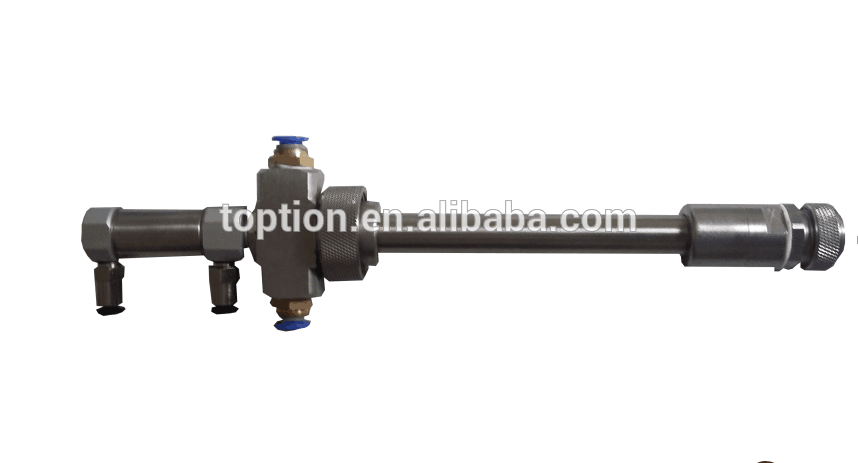

Two-fluid nozzle

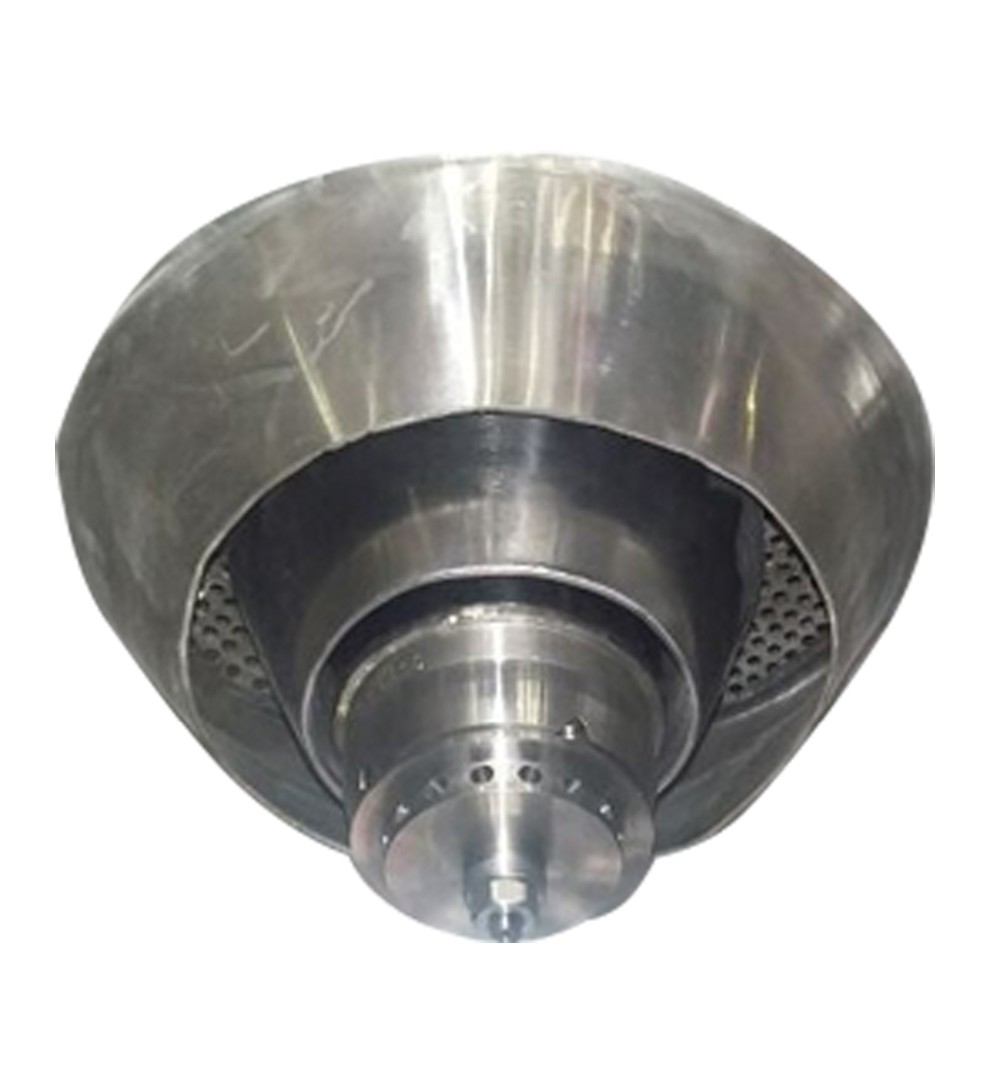

  Centrifugal

Key features:

1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

Technical prameter
Item
Unit
TP-S15
TP-S30
TP-S30C
TP-S50
TP-S100
Max capacity
ml/h
1500-2000
3000
3000
5000
10000
Temperature range of inlet air

40℃ ~ 300℃

30℃ ~ 300℃

30℃ ~ 300℃
140°C ~ 300°C Adjustable

50°C ~ 300°C
Temperature range of outlet air
40℃ ~ 140℃
30℃ ~ 140℃
30℃ ~ 140℃
80°C ~ 90°C
30°C ~ 150°C
Temperature range of outlet air
40℃ ~ 140℃
30℃ ~ 140℃
30℃ ~ 140℃
80°C ~ 90°C
30°C ~ 150°C
Spray system
/
Two-fluid nozzle
Two-fluid nozzle
Centrifugal nozzle
Centrifugal nozzle
Centrifugal nozzle
Precision of temp
±1
Dryer time
S
1.0 ~ 1.5
Speed of squirt pump
ml/h
50 ~ 2000
3000
3000
5000
10000
Nozzle size
mm
0.5/0.7/0.75/1.0/1.5/2.0
Spray direction
/
Downwards co-current
Heater Power
/
3KW 220V
Total power
/
10KW 380V
Heat source
/
Electric
Air compressor
/
Built-in oil-free air compressor
Dried powder restoring rate
%
≥95
≥98
Dimension
mm
940*850*
1500
1700*1100*
150
1700*1100*
150
1800*930*
2200
2500*1600*
2800
Maximum moisture evaporation
Kg/h
2
3
3
5
10

Note:

The bold font part is the Techincal Parameters of TP-S30, the other are the homologous products's parameters , you can refer to this table to choose the suitable product for you.

Application

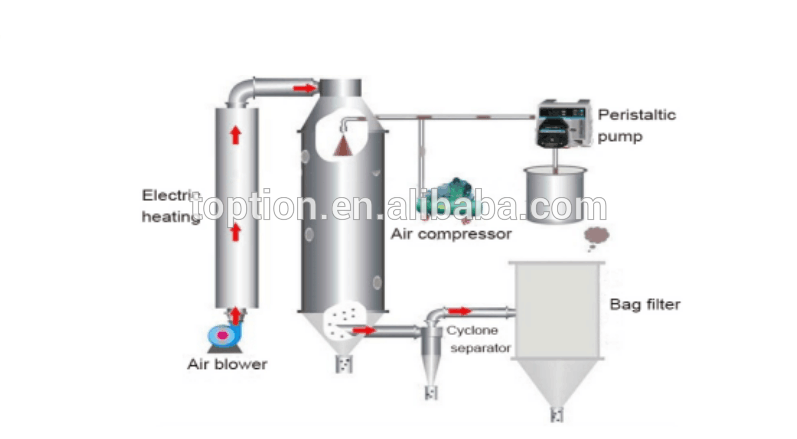

Working principle and Working Process:

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.

Products show:

                Dried  strawberry

                 Dried egg

                              Dried milk

Related Products

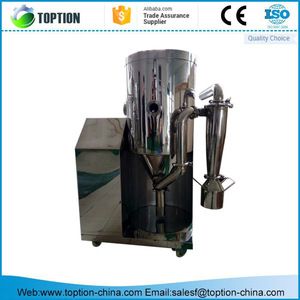

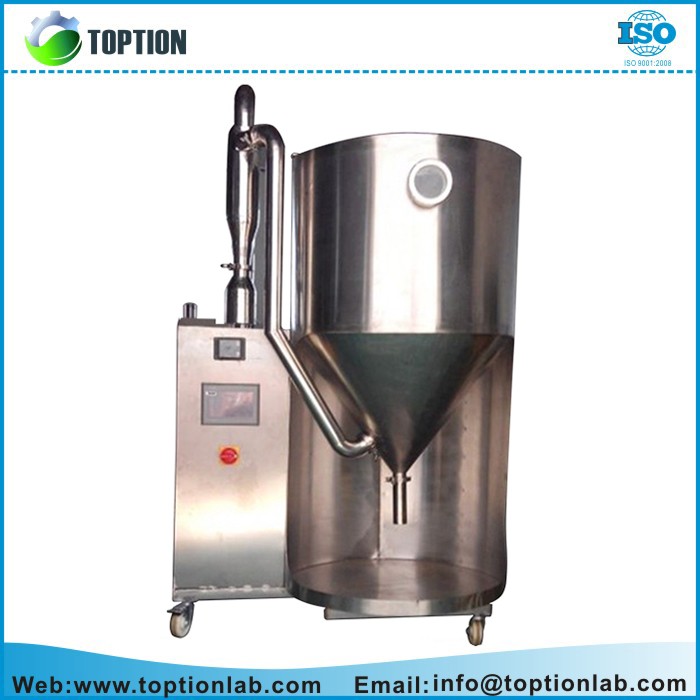

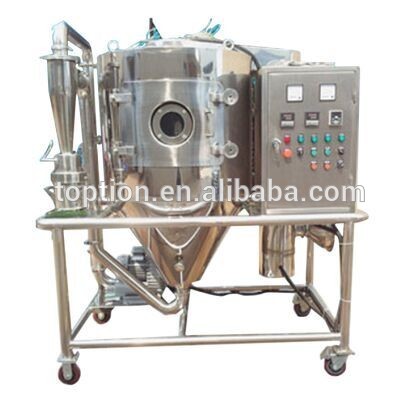

Pilot-scal centrifuge spray dryer

Our certification

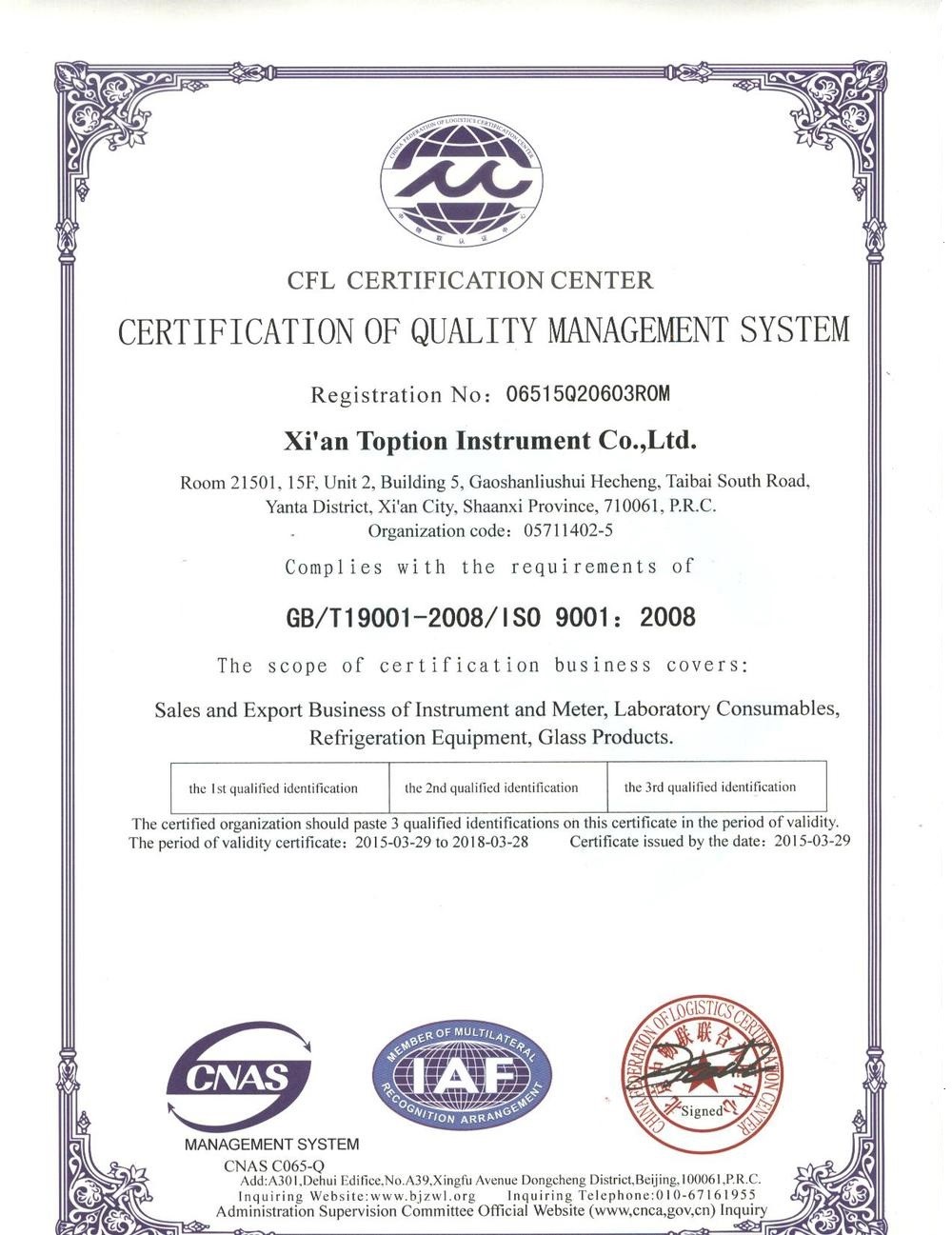

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and our spray  dryer have passed CE certification,the quality can be assured.

Packing & Delivery

Packing:
-Standard wooden case.
-Both neutral and customized packaging can be available.

Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.

Our Service

Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)

After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

FAQ

Q: What is your MOQ?
A:1 set.

Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.

For more details about lab instruments, please feel free to contact us~
