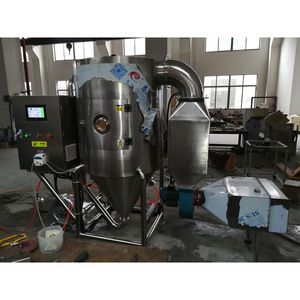

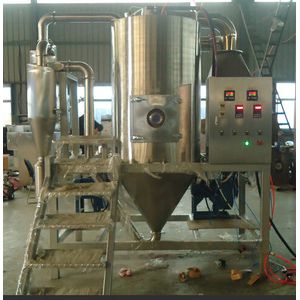

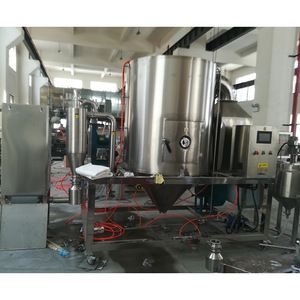

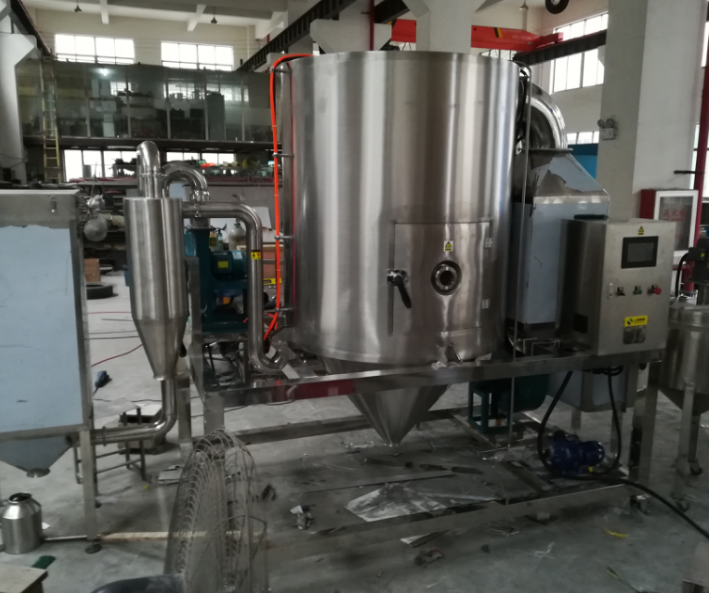

Lpg Model Gelatin Spray Dryer, Spray Drying Machine/Equipment

The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry.

Technical Feature

  • New
  • Spray Drying Equipment, Spray Drying Equipment
  • Shanghai, China (Mainland)
  • HZ CHINA
  • LPG Series
  • 380V 50Hz Three phase, 380V 50Hz Three phase (Optional)
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment, Spray Drying Equipment
Place of Origin
Shanghai, China (Mainland)
Brand Name
HZ CHINA
Model Number
LPG Series
Voltage
380V 50Hz Three phase, 380V 50Hz Three phase (Optional)
Power(W)
9-99Kw, 9-99Kw (base on capacity)
Dimension(L*W*H)
2380*1370*1690mm, 1100mm-14000mm (based on capacity)
Weight
300kg-9000kg, 300kg-9000kg (based on capacity)
Certification
ISO9001, CE,SGS,ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Outlet Temperature
80-90u2103
Inlet Temperature
140-350u2103(Auto Controled)
Item
High Speed Centrifugal Srpray Dryer
Material Consist
Stainless Steel 304 (316 is available)

DETAIL DESCRIPTION

Product Description



The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent, emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products, residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.



Functions



1.Rapid drying speed, which just takes 5-15 seconds.
2.Suitable for thermo-sensitive material and keep the origin state.
3.Simple processing and easy operation, which is suitable for continuous production.
4.The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity.
5.Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.



Technical Data



Model

5

25

50

100

150

200-2000

Inlet temperature

350°C

Outlet temperature

80-90°C

Max. evaporation(kg/h)

5

25

50

100

150

200-2000

Centrifugal spraying nozzle transmission mode

compressed air transmission

mechanical transmission

Rotation speed (r.p.m)

25000

22000

21500

18000

18000

15000

Spray disc diameter

50mm

100mm

120mm

140mm

150mm

180-340mm

thermal source

electricity

electricity

electricity + steam, fuel, oil, fuelgas

solved by user

Max. electric heating power (kw)

8

31.5

60

81

99



Overall dimension

1.8*0.93*2.2

3*2.7*4.26

3.7*3.2*5.1

4.6*4.2*6

5.5*4.5*7

optional

Powder recollection (%)

95

95

95

95

95

95
