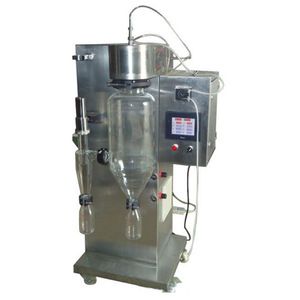

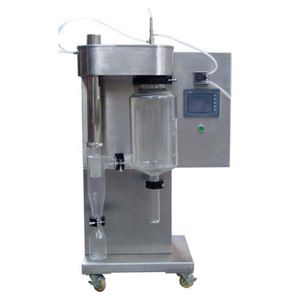

Technical parameters
(1) the maximum moisture evaporation rate: 10L/H
(2) the air inlet temperature: 30 ℃ -300 ℃
(3) out of the wind temperature: 30 ℃ -120 ℃
(4): heating temperature control precision is ± 1 ℃
(5) the drying time: 1.0-1.5S
(6) the peristaltic pump feeding range: 50-20L/H
(7) drying air flow: 0-5.5M3/Min, the maximum pressure 686Pa
(8) spray gas flow: 0-4.2M3/H, spray pressure 2-8Bar
(9): spray system with (2.5-5MM) two fluid nozzle
(10) jet (needle): 0-20S can automatically adjust
(11) the electric heater power: 36KW AC380V three-phase grounding
(12) spray / hot air flows: the same direction, downward
(13) the air compressor power: 5.5KW, maximum gas production of 9 cubic meters / hour:
(14) the air compressor working pressure: 2-8Bar
(15) heater power: 36KW 380V
(16) the power: 34.88KW 380V
(17) the nozzle diameter: 2.5-5MM
(18) jet dredging, adjustable
(19) size: 160CM * 100CM * 189CM (length * width * height)
(20) weight: 396KG
The main parts list:
Name brand quantity unit
1 stainless steel drying room 1400mmx880mm Shanghai 1
2 stainless steel cyclone separator of Shanghai 1
3 stainless steel sample collection bottle 10L Shanghai 1
4 sample collection tube 63MM Shanghai 1
5 transfusion silicone tube 2 meters Shanghai
The 6 connector sealing ring 2 in Shanghai
7 two fluid spray gun SUS304 1 sets of Shanghai
8 kcal hoop Shanghai 2
9 aluminum wave paper exhaust pipe 2 meters Shanghai
10 air compressor Shanghai 1
11 blower Guangdong 1
12 touch screen Taiwan brand 1
13 PLC Taiwan 1 sets of brand
14 input module Taiwan brand 1
The 15 output module Taiwan brand 1
The 162 converter of Taiwan brand 1
18 Schneider 1 sets of miniature circuit breaker
19 Schneider 1 sets of double control switch
20 solid state relay Zhuo Yi 1
21 pressure regulating valve Shanghai 2
22 PT100 Japan 2
23 ceramic heater 27KW Shanghai 1
24 stainless steel square tubes 50*50mm Shanghai
25 casters with brakes, Shanghai 4
26 stainless steel material SUS304 Shanghai
27 miniature circuit breaker Schneider
