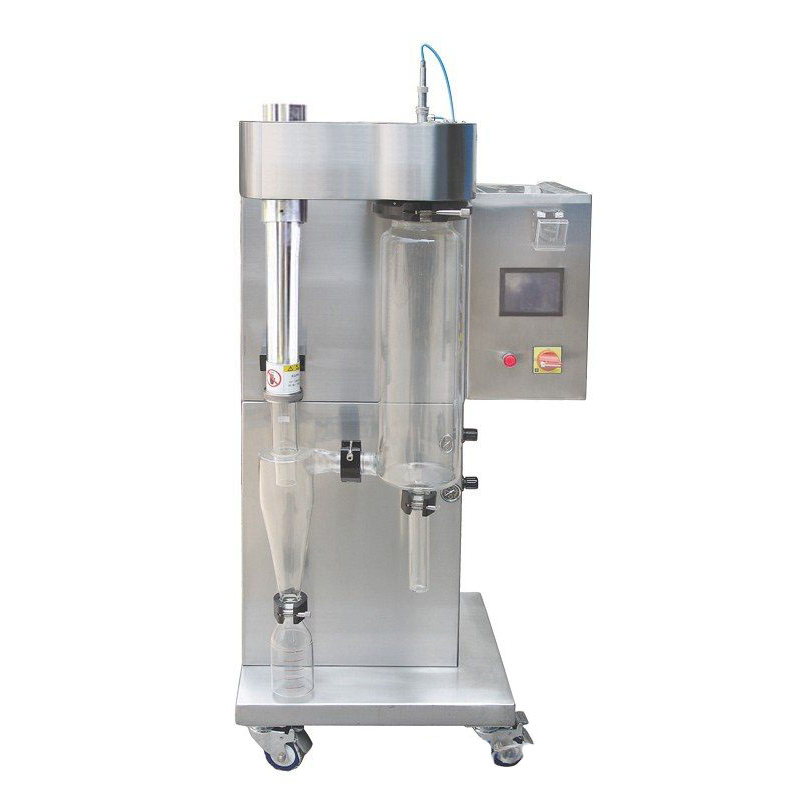

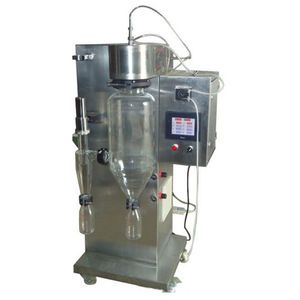

Laboratory spray dryer

Lab spray dryer is the company introduce and absorb the international advanced technology, in the domestic manufacturing; Main components and electrical appliances are imported.The compact design, this machine can be mobile, self-contained, no need of auxiliary facilities,. Electricity can be used. Using PLC control, touch screen display, Chinese and English operation interface.

Mainly applicable to universities, Research Institute and the food, beverage, chemical, biological, materials, pharmaceutical companies such as laboratory R&D, and production of powder particles, for all solutions such as emulsion, suspending liquid with wide applicability, suitable for hot sensitive material such as biological products, biological pesticides, enzyme and etc, Because of when the feed just like atomized particle then it is subjected to high temperature, so just instant heating, It can maintain the active material still keep the active ingredients are not destroyed after drying.

Lab spray dryer applications:

Beverages, spices and pigments, milk and egg products, plants and vegetable extract, pharmaceutical synthesis, thermal plastic, polymer and resin, aromatic, blood products, pottery and super conductor, biochemical products, dyes, soaps and detergents, food adhesives, bone powder, oxide and so on.

Lab spray dryer Features:

1 Special for lab research, Feedings can be adjusted by a peristaltic pump, Min 20-30ml liquid to finish one test.

2 Spray chamber, cyclone separator, receiving tank are all made of borosilicate glass which can resist strong acid/alkali, high temperature and transparent.It can work in a no-pollution and stable environment. All glass is easy to clean and very simple to assemble and disassemble.

3 The spray drying process is visible for monitoring the whole lab process.

4 The air compressor is no oil and don’t pollute compress air. Powder particles shows normal distribution, good fluidity. The sound is lower than 60db, In accordance with the standard of national laboratory noise standard.

5  Inlet/outlet temperature is accurate controlled by PID.

6 Using two fluid spray structure and It make by high precision 316 stainless steel. The atomization uniformity.

7  Jet device automatic dredging, and frequency can be adjustable, when nozzle is blocked, can be automatically eliminated to ensure lab continuity.

8  After drying the product powder, particle uniformity, 95% above are in the same particle size range.

9 Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency, Automatic and manual dual mode. English/Chinese operation interface.

10  If the blower does not start, then the heater does not start, thereby having protection function

11  Electricity can be used, without any other auxiliary facilities.

Spray drying technical parameters:

Maximum evaporation rate: 1500-2000ML/H

Inlet air temperature : 40℃ -300 ℃

Out air temperature : 40℃ -140 ℃

Heating temperature control precision: ± 1 ℃:

Drying time: 1.0-1.5S

Peristaltic pump feed range: 50-2000ML/H

The drying air flow rate: 0-5.5M3 /Min, Maximum wind pressure: 686Pa

Spray gas flow: 0-4.2M3 /H, 2-8Bar spray pressure

Spray system: ( 0.5--2.5MM ) with a two fluid nozzle

Jet ( needle ): 0-20S can be adjusted automatically

Spray / hot air flow:  downwards co-current

Heater power: 3KW 220V

Machine power: 3.8KW 220V

Outline dimensions:1450MM×650MM×550MM(H×L×W)
Weight:110KG
