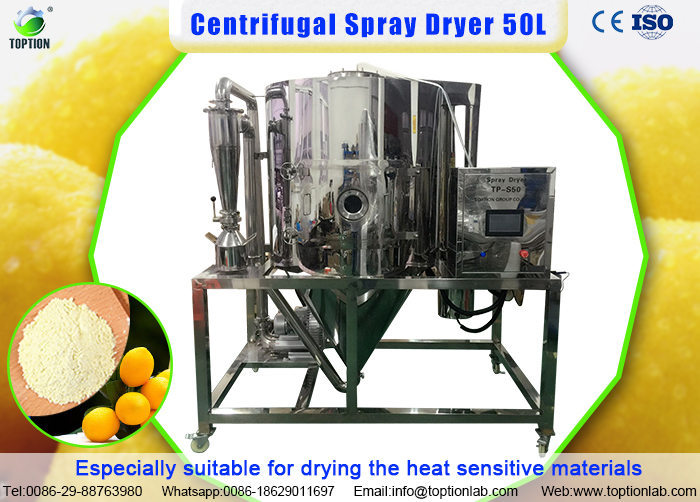

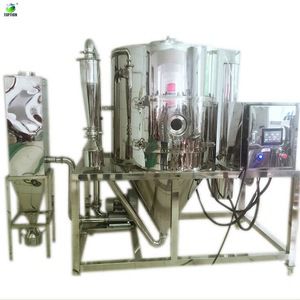

TP-S50 5L spray dryer milk drying machine with low price

PRIMARY PARAMETERS

Condition

New

Type

Spray Drying Equipment, Roller Crusher

Place of Origin

Shaanxi, China (Mainland)

Brand Name

TOPTION

Model Number

TP-S50

Voltage

220

Power(W)

10KW

Dimension(L*W*H)

1225*2225*2500

Weight

585kg

Certification

ISO CE

Warranty

12 Months

After-sales Service Provided

No overseas service provided

Max capacity

5000ml/h

Temperature range of inlet air

140u00b0C ~ 300u00b0C Adjustable

Temperature range of outlet air

80u00b0C ~ 90u00b0C

Precision of temperature

u00b11u2103

Dryer time

1.0 ~ 1.5S

Speed of squirt pump

5000ml/h

Spray system

Centrifugal nozzle

Centrifugal spray rotation type

Compressed air rotation

Application

Biochemistry, Microbiology, Pharmaceutical Chemistry

DETAIL DESCRIPTION

Product Description

TP-S50 5L spray dryer milk drying machine with low price

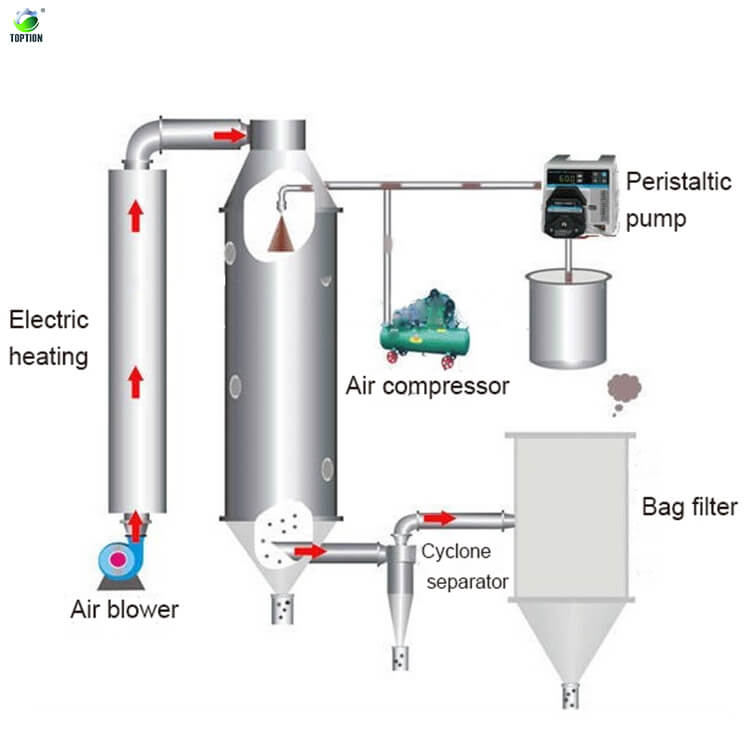

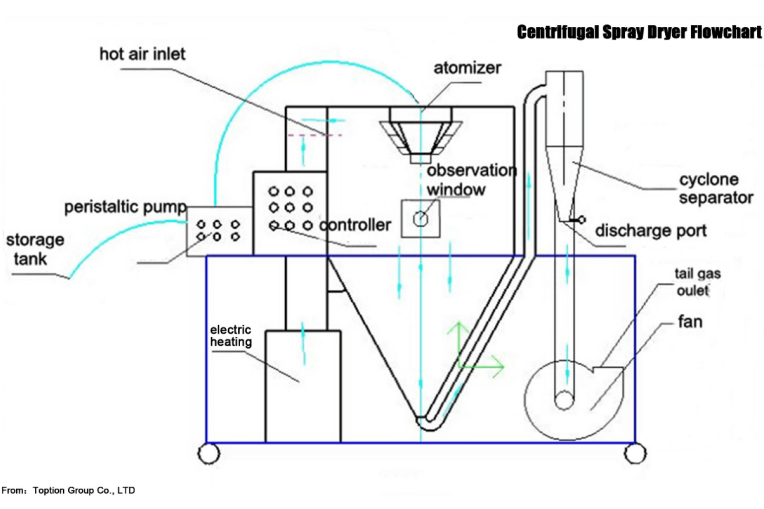

Working principle:

Air through the filter and heating devices come into the hot air distributor which is at the top of drying chamber, the hot air distributor produce hot air, then hot air come into drying chamber evenly and move spiraling, at the same time, delivery liquid material to the centrifugal spray head which is equipped at the top of drying chamber, the liquid material is sprayed as fog droplet, so as to increase the contraction surface area of liquid material and hot air, moisture to evaporate quickly, dry products within a very short time. Coarser product is collected by collection barrel which is at the bottom of dryer, waste gas discharged by centrifugal fan.

Technical parameters:

Item	Unit	TP-S50
Max capacity	ml/h	5000
Temperature range of inlet air	℃	140°C ~ 300°C
Adjustable
Temperature range of outlet air	℃	80°C ~ 90°C
Precision of temperature	℃	±1
Dryer time	S	1.0 ~ 1.5
Speed of squirt pump	ml/h	5000
Spray system	/	Centrifugal nozzle
Spray direction	/	Downwards co-current
Electrical heating power	kw	9
Heat source	/	Electric
Total power	/	10KW 380V
Stainless steel tank diameter	mm	800
Dried powder restoring rate	%	≥92
Centrifugal spray rotation type		Compressed air rotation
Rotate speed	rpm	25000
Diameter of spray tray	mm	50

Characteristic:

1. Quickly drying speed. Liquid material after centrifugal spraying, the surface area will increased greatly, in high temperature air flow, the moment will evaporate 95~98% of moisture content, so drying time will be about at ten seconds.

2. Adopt parallel flow pattern of spray drying, during drying process, the temperature of the liquid droplet is not high, which promise high quality products. In the spray drying chamber, liquid droplet and hot air flow with same direction, although the temperature of hot air is some higher, but as hot air immediately contact with the spray liquid droplet after it come into drying chamber, the temperature of drying chamber is dip down, so will not make the dry material overheating, and suitable for drying of thermal sensitive material, the temperature of discharge product depends on the exhaust temperature, and lower than exhaust temperature.

3. Wide applied area. According to the material properties, can use hot air drying, and also could use the cold wind model. Large batch materials with big different features all could be produced by this machine, common applied in: polymers and resins、dyes、color pigment、ceramic、 glass、 in addition to atrazine、 pesticides、 carbohydrates、 milk egg products、 rou acids、slaughterhouse byproducts、blood and fish products of detergent and surface dirt、fertilizer、organic compound 、inorganic compound classes, etc.

4. Due to the drying process is completed in an instant, the product of the approximate spherical can basically keep droplets shape, so the product is good dispersion 、fluidity and solubility.

5. Production process is simple, convenient operation and easy control. Spray dryer is used for the solvent whose moisture content is 40~60%, for special material even the moisture content as high as 90%, also could be dried as powder products at one time. Most products don’t need crushing and screening after drying, so reduce the production process, simplify technological process and promise the purity of product. For the product particle size、precision an moisture, within a certain range, can change to adjust the operating conditions, control and management is very easy.

6. In order to protect the material away from pollution and extend the device service life, all parts contacting with material all adopt 1Cr18Ni9Ti stainless steel materials. In order to make operation easily, the control system use integration operation, which means that install every part’s indicating device and on/off device all in control cabinet.

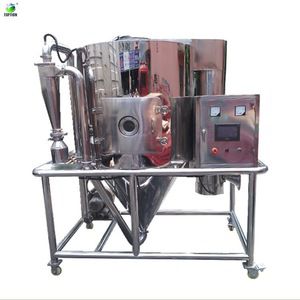

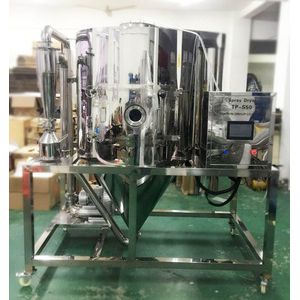

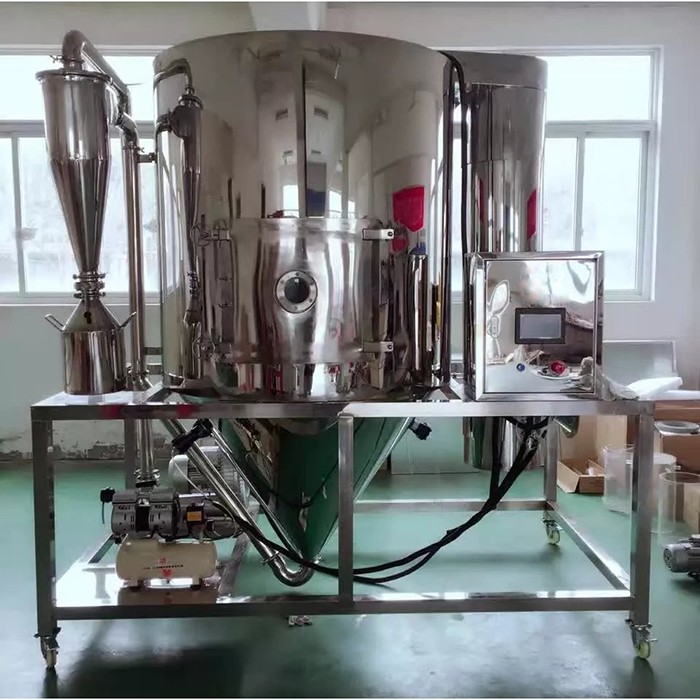

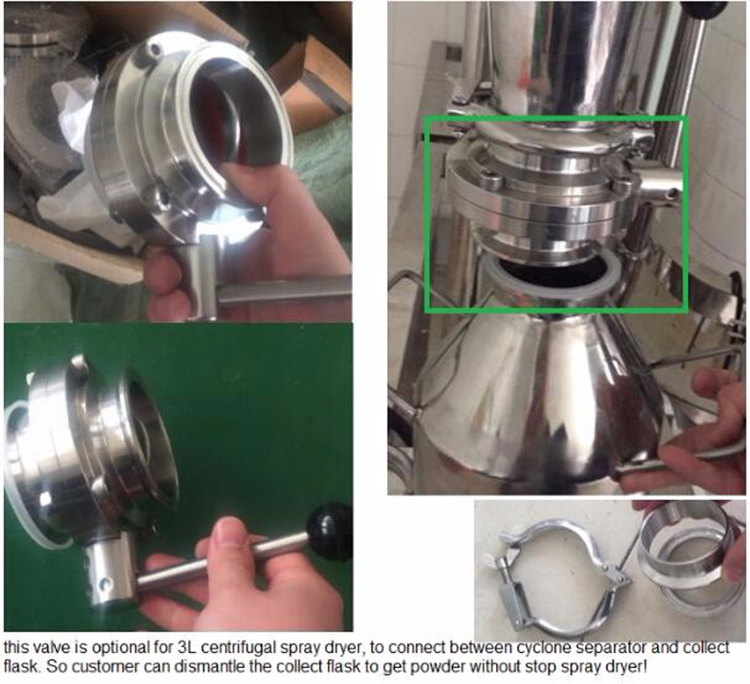

Detailed Images

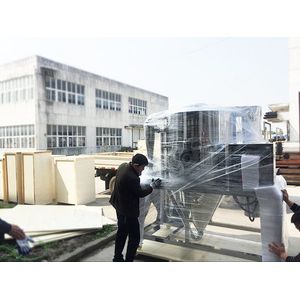

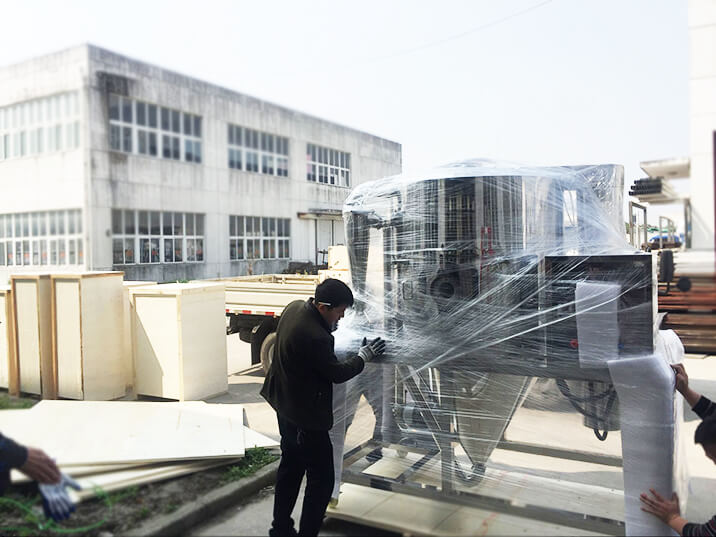

Packing & Delivery

Our Company

TOPTION is professional lab solution provider,and all devoted to provide the best solutions & products for global customers, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of products have passed CE certification,the quality can be assured.
