Product Application
A lot fields where the production of a free powder sample is required.
SP-1500 laboratory spray dryer has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.
It gets widely used with the excellent quality,lower price,and get good feedback from customers!
Main Features
1,Special for lab research, Min 20-30ml liquid to finish one test

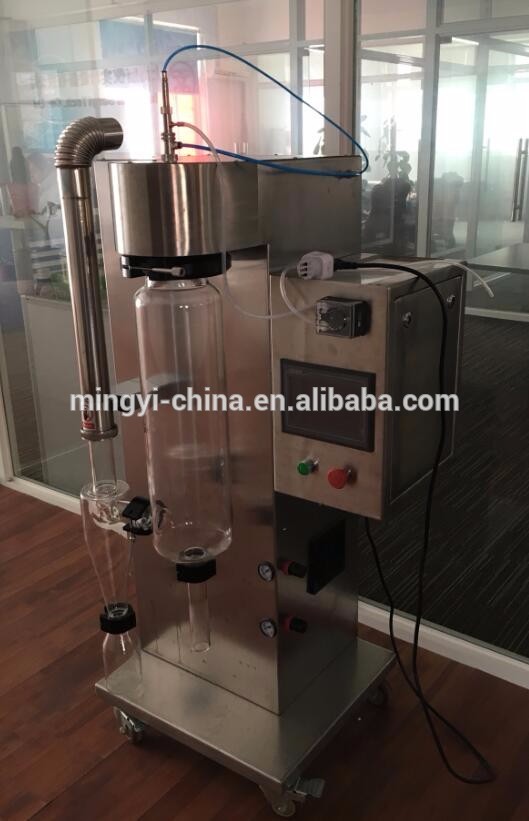

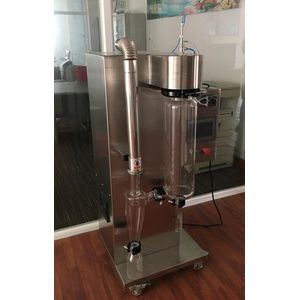

2,All borosilicate glass for easy visual monitoring of process status.
3,Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4,Easy to clean and very simple to assemble and break down.
5,The air compressor is no oil and don’t pollute compress air. The sound is low than 50db and following the GMP understands.
6,inlet/outlet temperature is accurate controlled by PID
7,The unit is self contained and supplied complete and ready for immediate operation.
8,Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
9,Product feeding with RS2559605 rotary pump, capacity is adjustable
10,Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
Specification:
Max capacity: 1500ml/h-2000ml/h
Temperature range of Inlet air: 30℃ -280℃
Temperature range of outlet air: 40℃ -120℃
Precision of temperature: ± 1 ℃
Dryer time: 1.0-1.5 S
Speed of squirmy pump: 30-2000ml/h,
Consume of dryer air: 0-330m3 /h, max pressure: 686Pa
Consume of spray air: 0-4.2m3 /h, spray pressure: 2-5bar
Spray system: 2 liquid nozzles with standard 0.7mm jet and options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction: downwards co-current
Power: 3.5KW 220V
Dimensions: 650×500×1550 ( mm ) L x W x H
Machine Parts

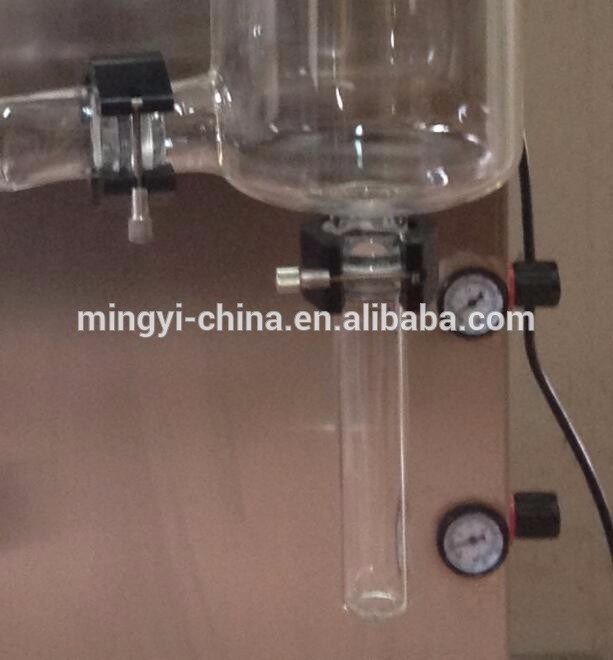

Name: Glass part
Brand: MINGYI
Original: China

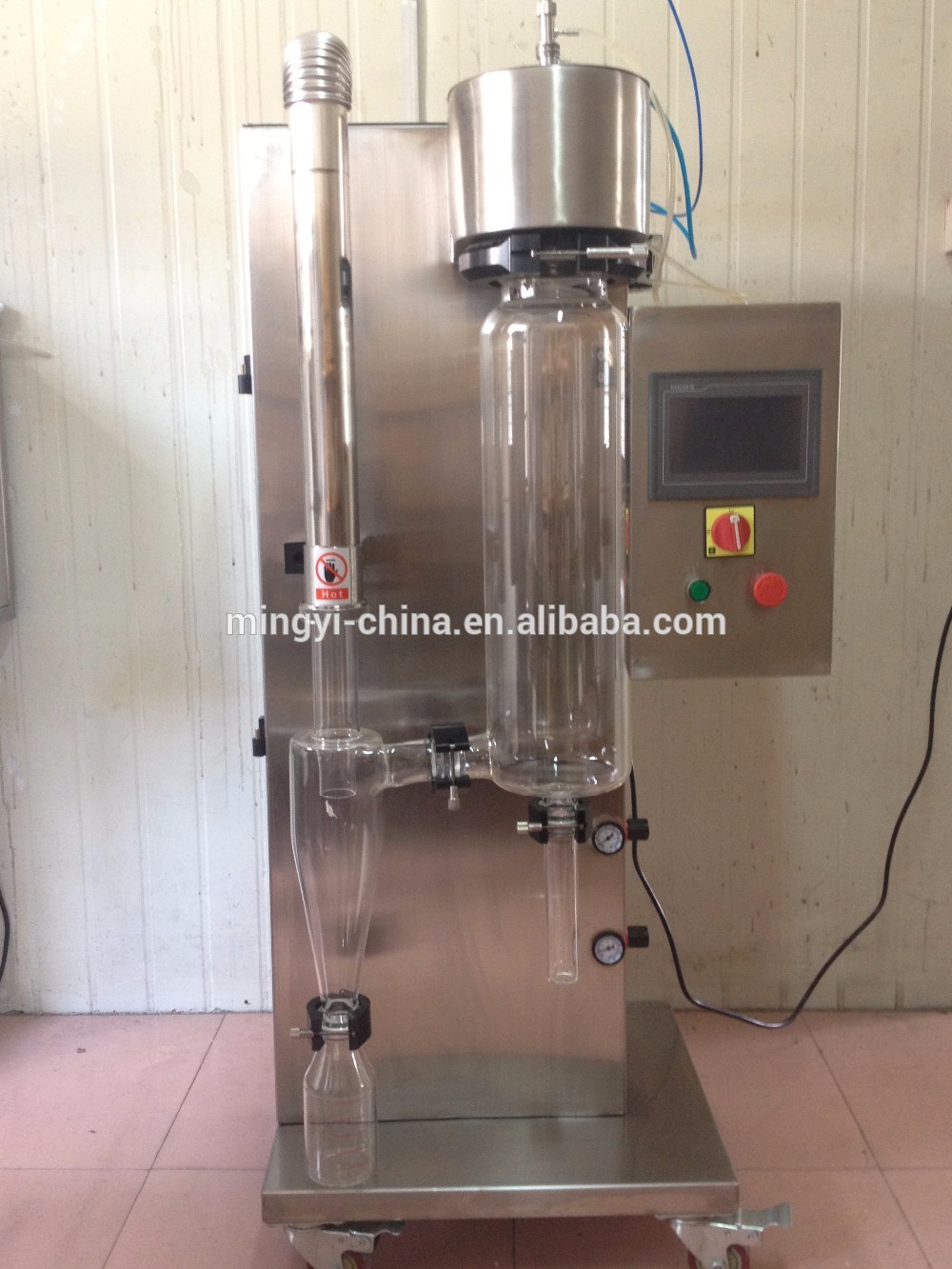

Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.

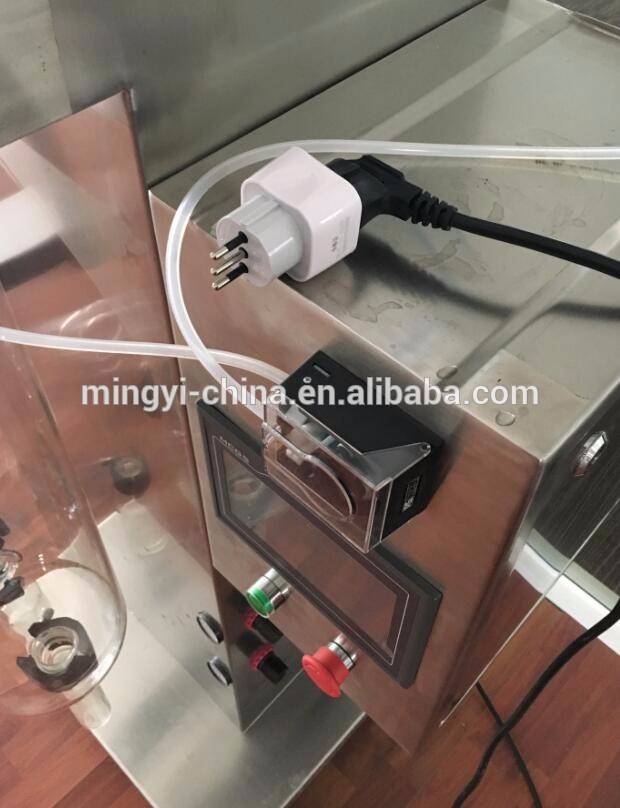

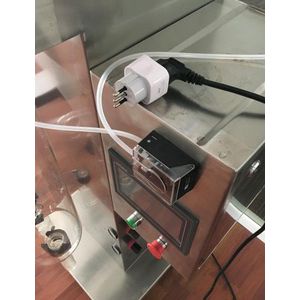

All kinds plug,voltage can customize as your request.
Spray dryer suits for almost all kind liquid,here is the finished photo,
Pre-Sales Service
* Inquiry and consulting support.
* 24h online service
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*2 years warranty

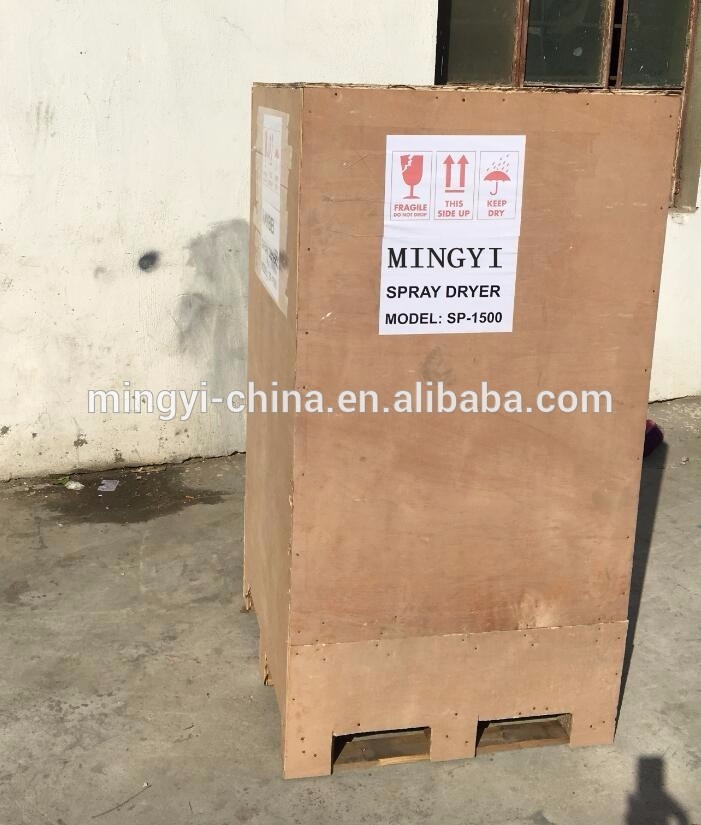

| Packaging | |
| Size | 660(L) *510 (W) * 1650 (D) |
| Weight | 145kg |

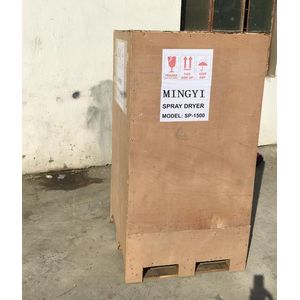

| Packaging Details | All exported spray dryer machine are packed with standard exporting wooden case to make sure the machine safe! |
