Product Application

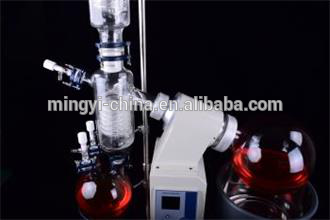

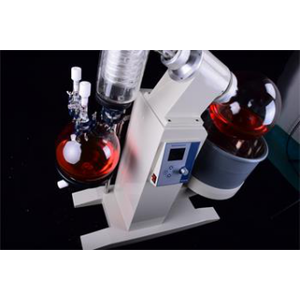

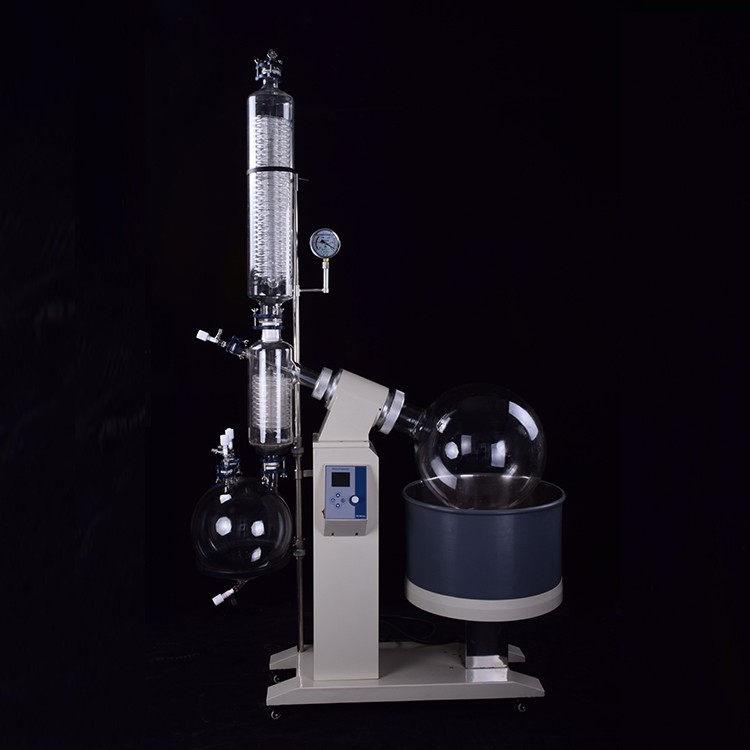

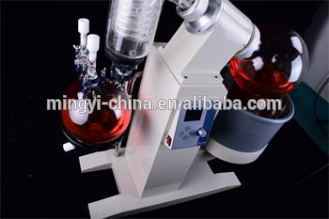

Features of 10L upgraded rotor evaporator:
• The main body adopts stainless steel + aluminum alloy, the structure is reasonable, the materials pay attention.
• Glass parts are made of high borosilicate glass (GG-17), high temperature, anti-corrosion.
• Sealing system adopts imported fluorine rubber and Teflon bi-directional combination seal, corrosion-resistant long life, to maintain high vacuum.
• Vacuum pressure gauge shows real-time vacuum, oily table with anti-vibration characteristics.
• Upright three-layer serpentine coil condenser, main cold + cold double condenser, to ensure high recovery rate.
• Continuous feeding is available for customers. Valve-type feed valve is fitted with tetrafluoroethylene tubing.
• The collection bottle is equipped with a discharge material to facilitate the collection and discharge of the evaporated extract.
• Check valve control, continuous discharge, the machine in the working state, can be vacuum switch.
.All valves are equipped with the latest one hand wheel valve, good sealing, the operation is more simple and convenient
• Microcomputer power switch control.
• LCD full screen display, temperature, speed dual digital display, bath thermostat control, PT100 sensor fast and accurate delivery temperature.
• DC brushless motor, rotating stable, no spark, slow increase force.
• Boom electric lift, lift part of the use of slowdown power motor, the lifting process more stable.
• The pot is made of high quality 304 stainless steel, durable and durable, and the outer layer of the pot is coated with silicone layer.
• Over-temperature safety protection, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically turn off the power.
• Anti-dry function, the machine will automatically power off when the water level of the heating pot is lower than that of the heating pipe.
• If the machine is suddenly powered off during the machine's work, the machine will automatically stop heating when the power is turned on again.
Technical parameters:
Power supply voltage: 220V / 50HZ (can be customized export all kinds of voltage and plug)
Rotating motor power: 60W
Lifting motor power: 40W
Heating power: 6KW
Vacuum degree: 0.098Mpa
Rotating bottle capacity: 10000ml Φ280mm / Φ95mm flange
Collection of bottle capacity: 5000ml Φ230mm / Φ50mm flange
Rotation speed: 0-120rpm / min
Temperature range: 0-400 ℃
Temperature control accuracy: ± 1 ℃
Glass temperature range: -80-250 ℃
Bath up stroke: 0-180 (mm)
Condenser size: the main cold Φ130 × 640H (mm) pay cold Φ130 × 410H (mm)
Feeding valve: Φ35 flange mouth
Vent valve: Φ35 flange * 2
Discharge valve: ¢ 10mm glass side discharge mouth
Bath size capacity: Φ350 × 220H (mm) about 21L
Packing size: 1070L × 520W × 1210H (mm) about 0.67m3
Package Weight: 95KG
Machine Parts

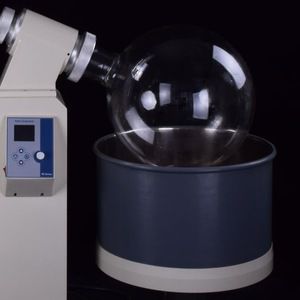

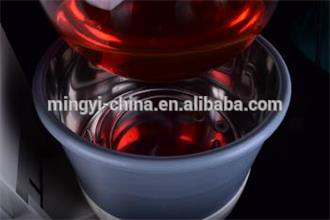

Name: Heating bath
Brand: MINGYI
Original: China
1.Pot gall bladder with high-quality 304 stainless steel, corrosion and durable, pot gallbladder outer layer coated silicone layer, high temperature use more secure
Main Features
Name: Main structure
Brand: MINGYI
Original: China
2.The main body of the use of stainless steel + aluminum alloy, reasonable structure, materials stress.
Machine Parts

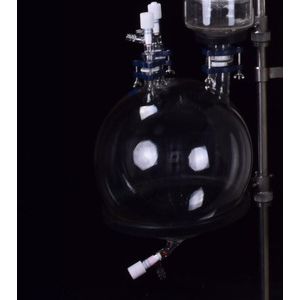

Name: Glass ware
Brand: MINGYI
Original: China
3.Glass parts are all high borosilicate glass (GG-17), high temperature, anti-corrosion
Main Features

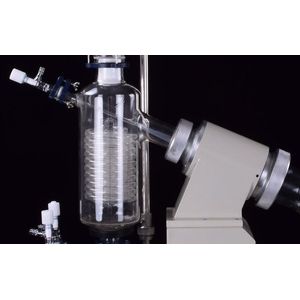

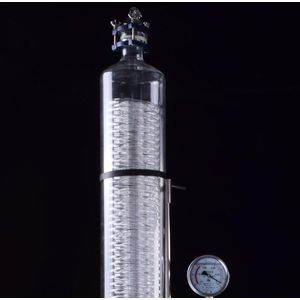

Name: Condenser
Brand: MINGYI
Original: China
4.Vertical three-tier serpentine coil condenser, the main cold + cold double condenser to ensure high recovery rate.
Pre-Sales Service
* All inquires will be replied in 5mins working time,and 1h max off working time!
* Professional exporting experience from product to transporting to save your time and cost!
* Excellent production capaicty,we can delivery in 3 days after you place order!
After-Sales Service
* 1 year quality warranty,life long time technical support!
* Excellent after service,whole process follow up!
*Welcome to visit our factory anytime!
| Packaging | |
| Size | 1070L × 520W × 1210H |
| Weight | 102kg |

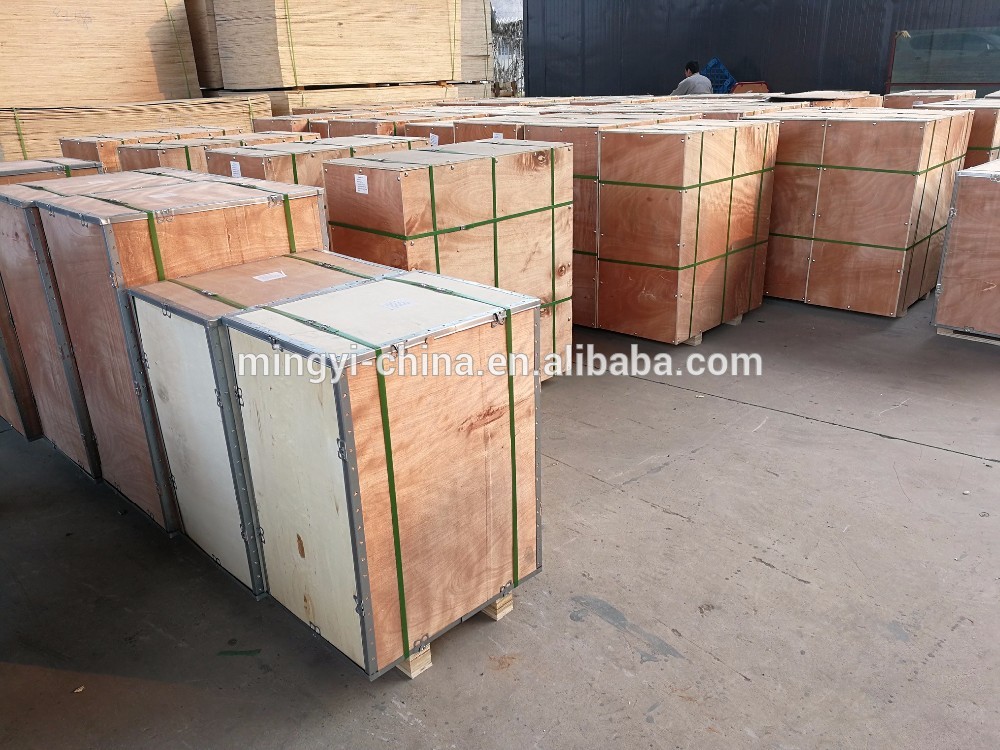

| Packaging Details | All of our alcohol distiller rotovap are packed with exported standard wooden case to make sure the glass wares and machine safe! |

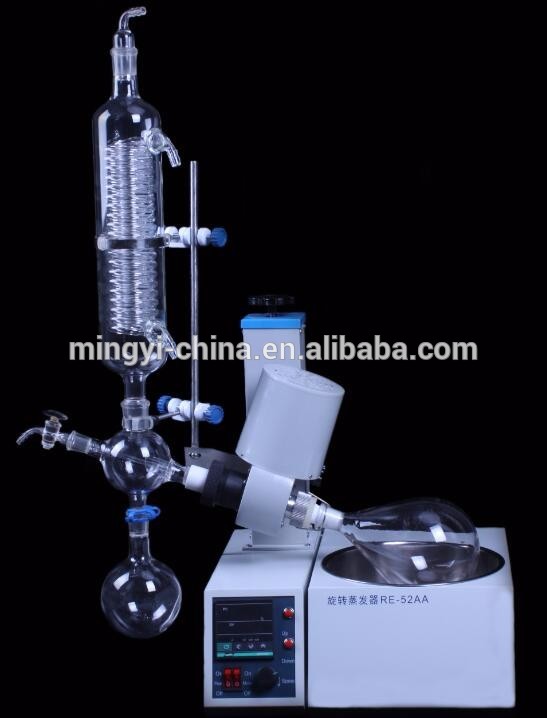

RE-52 series
100% Response Rate
RE-2002 20L alcohol distiller
99.8% Response Rate
RE-501 series
99.8% Response Rate

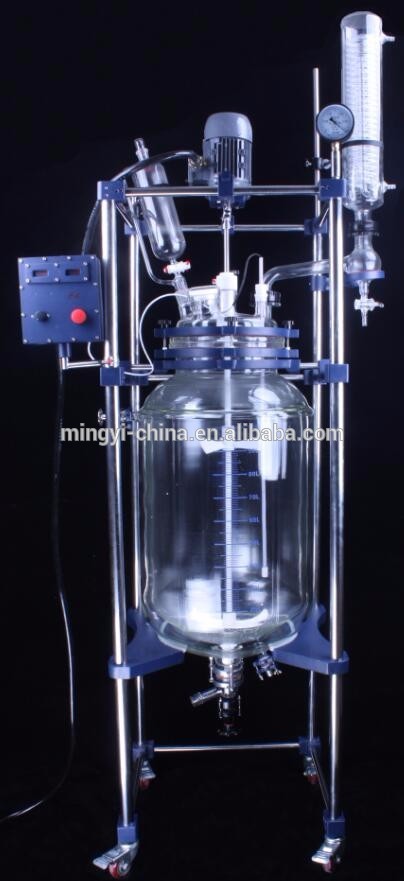

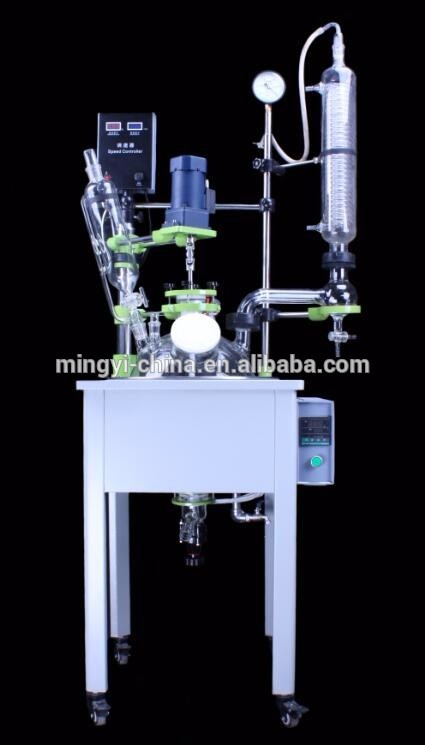

If any needs of alcohol distiller rotary evaporator/rotovap,glass reactor series,welcome to contact me any time!
