Excellent quality multiple effect evaporator :
Product Description :

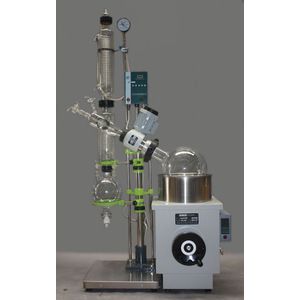

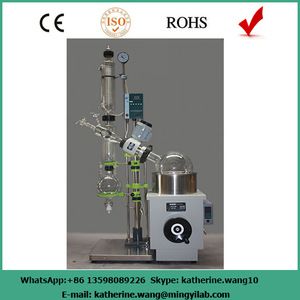

Rotary evaporator is mainly used in pharmaceutical, chemical and bio-pharmaceutical industry concentration, crystallization, drying, separation and solvent recovery. The principle is: under vacuum conditions, constant temperature heating, the rotating bottle constant speed rotation, a large area thin film material is formed in the sidewall, efficient and evaporated. The high efficiency glass solvent vapor condenser cooling, the recovery in the collection bottle, greatly improving the efficiency of evaporation, especially selected for high temperature easily decomposed denatured concentrated purification of biological products.
Features :
1,Using tetrafluoroethylene + fluorine rubber seal seal, can maintain a high vacuum. Gas-liquid separation, no reflux.
2, Vice- efficient double condenser, to ensure a high recovery rate.
3, Rotating bottle nut connections for easy loading and unloading.
4, Under the RE-1002 type collection bottle mouth discharge valve, solvent recovery is very fast.
5, Continuous feed.
6, Vacuum system installed vacuum gauge, low-boiling materials can adjust the best working vacuum.
7, Water bath electronic temperature control, and up and down.
8, Reasonable structure, material stress. Mechanical structure extensive use of stainless steel and aluminum parts. Heat resistant glass pieces all borosilicate glass. Imports of electrical key pieces.
Rubber seal all wearing parts with a new national standard, user-friendly purchasing replacement, import key parts.
Technical parameters :
Basic parameter | Model | RE-1002 |
Glass material | GG-17 | |
Holder material | Stainless steel | |
Pot material | Spray corrosion 490*430*540mm | |
Pot guts Material | Stainless steel 350*220mm | |
Plate size | 474*474mm | |
Rotary bottle volume | 10L ¢95 flanged | |
Collective bottle volume | 5L ¢50 flanged | |
Vacuum | 0.098Mpa | |
Rotary power | 120W | |
Rotary speed | 0-110rpm | |
Heating power | 3KW | |
Bath temp. range | 0-400℃ | |
Temp. control accuracy | ±1℃ | |
Voltage(V/Hz) | 220V/50Hz | |
Lifting stroke | 180mm | |
Size (mm*mm*mm) | 970*480*1950mm | |
Packing size(mm*mm*mm) | 1350*350*400 1280*570*660 0.67m2 | |
Gross weight(KG) | 100 | |
Function | Speed mode | Frequency Control |
Speed display | Digital display6 | |
Temp. control mode | K type sensor digital display | |
Temp. control | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical efficiency three reflux condenser, main condenser 120 * 640, 135 * 470 pay cold | |
Continuous collection | Valve control | |
Lifting mode | Manual lifting bath pot | |
Temperature measuring device | 19# standard port | |
Continuous feed | 34 # standard port feed valve | |
Discharge mode | Tetrafluoroethylene discharge valve, ¢ 50 flanged | |
Vacuum display | Vacuum table | |
Optional | Lifting mode | Automatic lifting |
Collective mode | Double collective bottle | |
Explosion proof | Proof inverter, explosion-proof motor EX120W | |
Frame portion | Spray or spray tetrafluoroethylene | |
Bath material | 304 stainless steel |

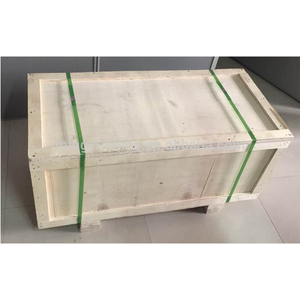

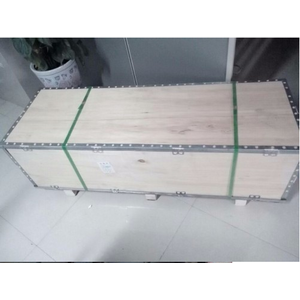

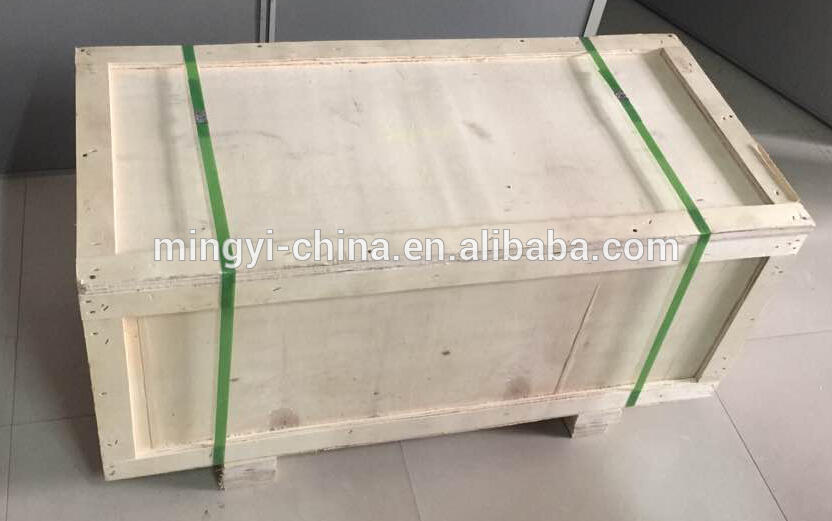

Packaging Figure

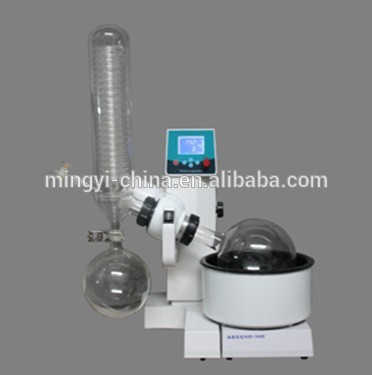

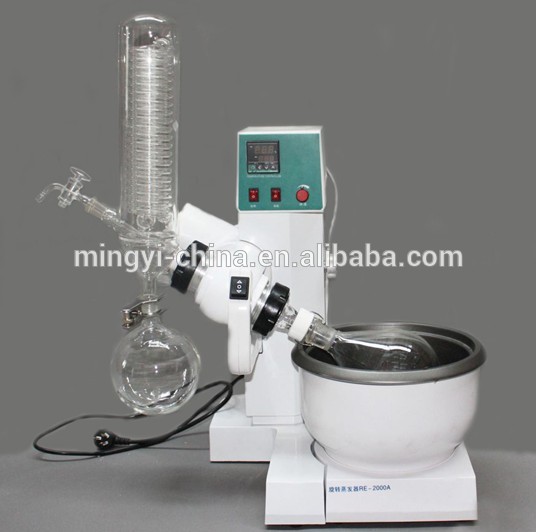

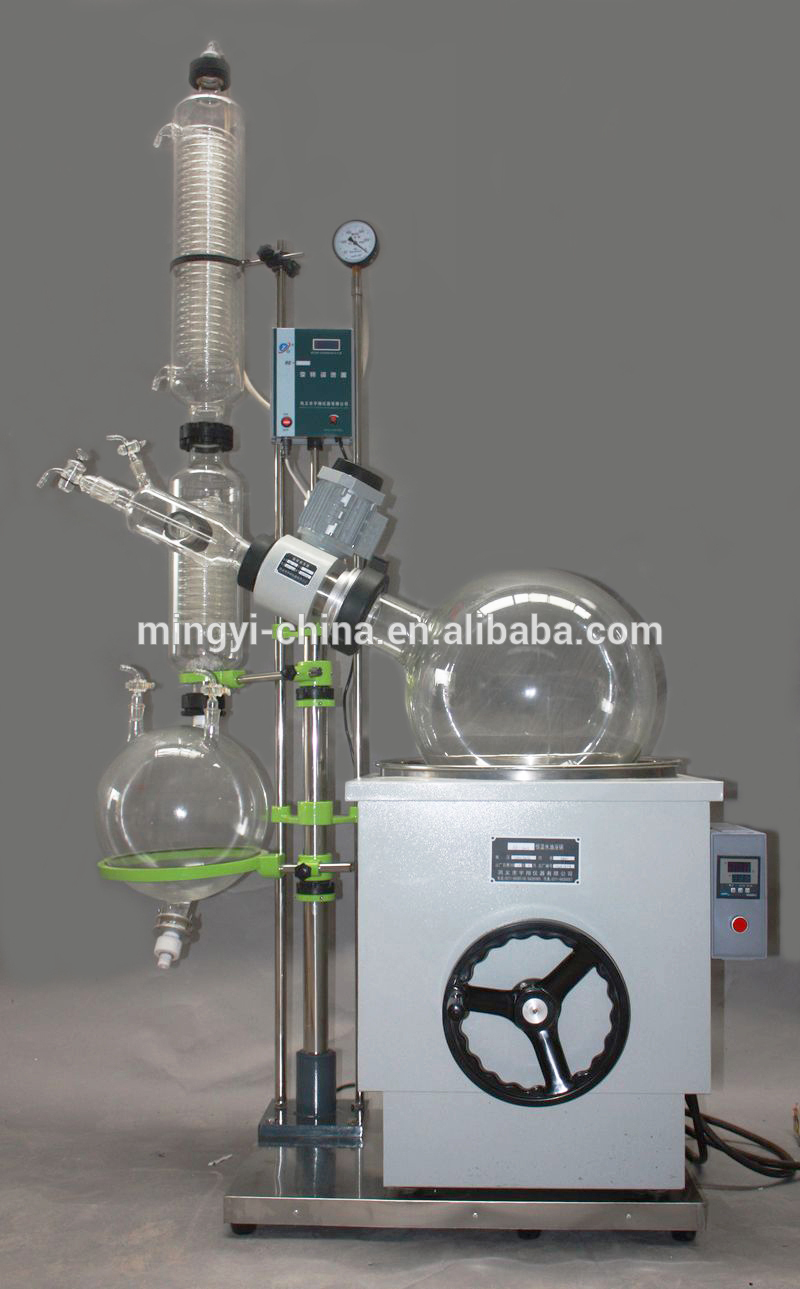

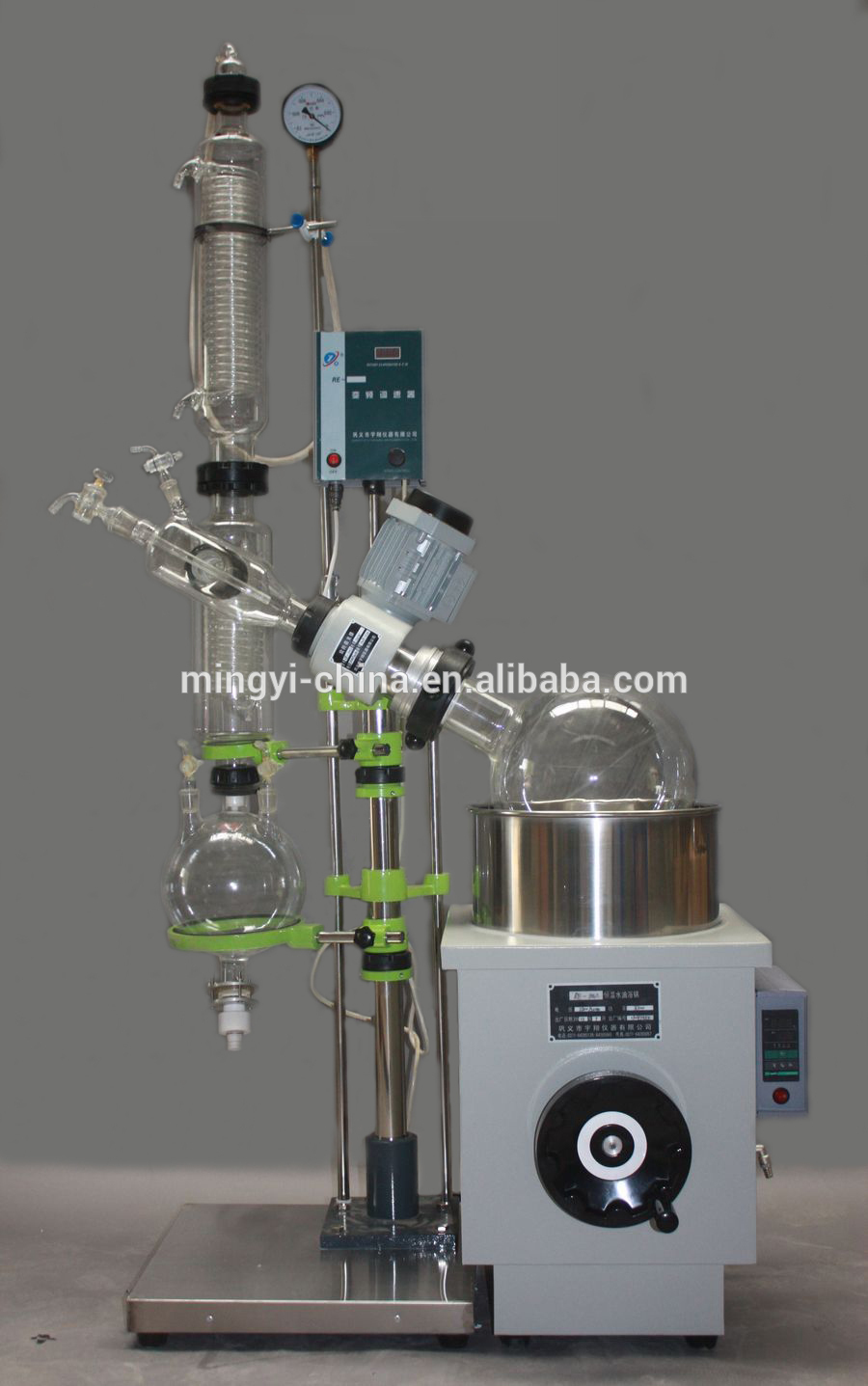

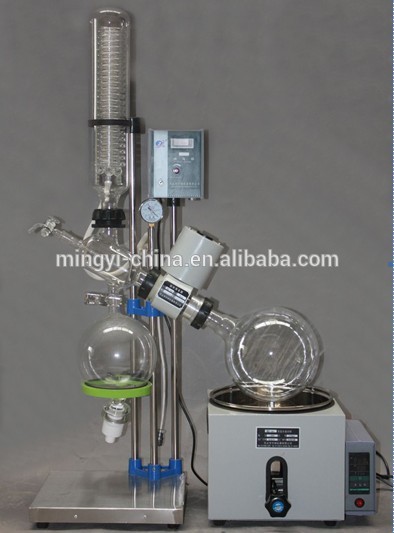

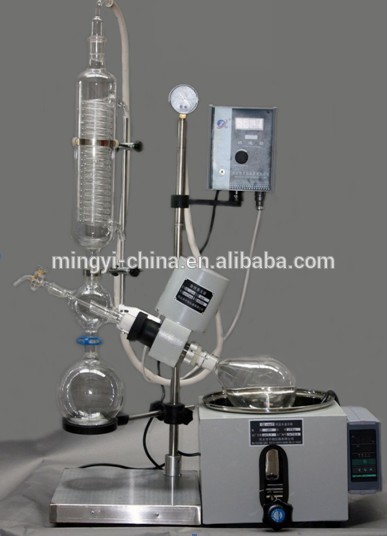

What other types we can offer :
