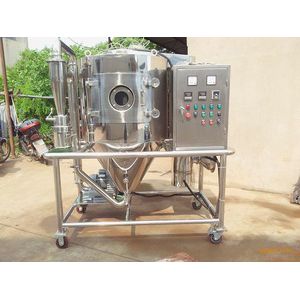

LPG Series Spray Dryer for coconut milk powder

is a technology most widely used in the liquid technology shaping and in the drying industry.

Technical Feature

  • New
  • Spray Drying Equipment
  • Liaoning, China (Mainland)
  • Reyes
  • LPG
  • Customized
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~120

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Liaoning, China (Mainland)
Brand Name
Reyes
Model Number
LPG
Voltage
Customized
Power(W)
18KW
Dimension(L*W*H)
1060x1200x2200mm
Weight
1400KG
Certification
CE GMP
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Discharge method
Cyclone separator
Application
Milk / Egg Yolk / Egg yellow
Used Area
Pharmaceutical , Foodstuff , lab
Inlet air temperature
140~350C adjustable
Outlet air temperature
80~90C

DETAIL DESCRIPTION

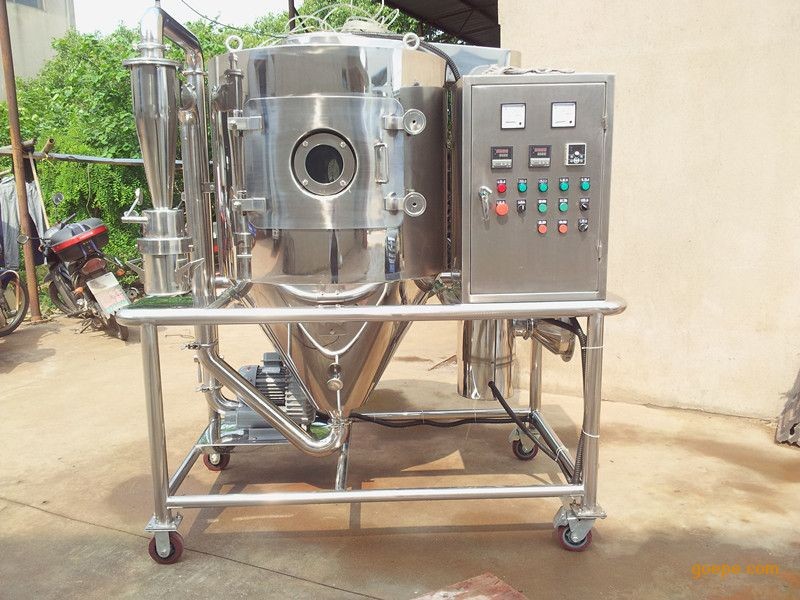

LPG  Sereis High Speed Centrifugal

                             Spray Dryer Machine

Spray Dryer Machine is a technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

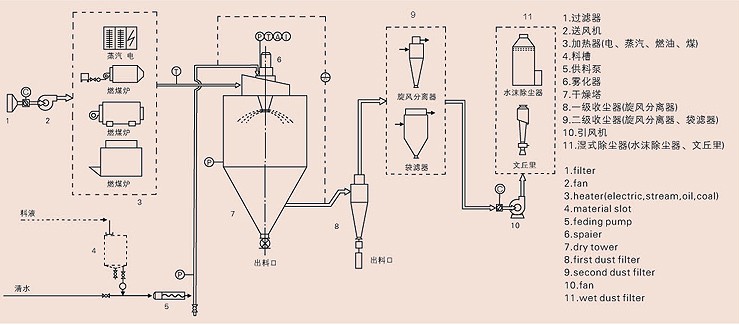

Working Theory











water



                  feed pump-------- →centrifugal spray atomizer



slurry                                                       ↓







              high-efficiency air filter → drying chamber



                ↑                                              ↓



               Electrical heater                  cyclone  → finish product



                ↑                                              ↓



          Steam exchanger                    suction fan



                ↑                                              ↓



            blower                               spray dust catcher



               ↑                                              ↓



      Elementary and middle            exhaust emission



        efficiency air filter







Original liquid would be feed by Peristaltic Pump frm vessel, and become spray with help of High Speed Atomizer, the atomizer would be driven by Compressed Air. Atomizing Disc diameter can be reac 25000 rpm at most. Peristaltic Pump can be adjusted and stable, which can ensure Feeding Stably and Control Temperature effectively.



The new air would be filtered by Pre-filter and Mid-filter, then start to be heated by Electricity, until inlet air temp. reach above 300C(Depend on actual need). At this moment, the heater air would be enter the spray chamber uniformly, with the help of Spirl-type Hot-ait Distributor on the cover. After hot air touch with Spray Dryer materials, water can be evaporated very fast, fine and dryer powder can be collected by cylone separator.












Machine Advantages











1. Atomizer is the most important accessory in spray drying machine, it is used for changing LIQUID status into SPRAY status at a high speed rotation motions, usually can reach 18000~25000 rpm, Our company has adopt Chinese Speciallized Supplier, can ensure customers for 2 years warranty period.







2. LPG Spray Dryer have adopt quick connection, easy to maintain, top tight fittings







After-dried Products







Company Information

    Dalian Reyes Machinery Co.Ltd . is a profesional manufacture and suplier of decanter centrifuge ,tubular centrifuge and many kinds of separator centrifuge .

   We have a well-experienced team to manufacture separator machine ,packing machine ,mixing machine ,dry ice prodution ,all kinds of dryers and so on .With rich experience in separator equipment and a number of professional engineers . Reyes Group Stack centrifuge technology can provide customer the best Made-in-China centrifuge and separator .

  In past  years , we have made a great achievements due to our good credit and service . We have established long-term business relationship with many customers .

  In Reyes , you can get your desired products  with best price and high quality . We welcome your requires ,and we will do our best to help you to choose products .



Packaging & Shipping





Our Services

The technical and after-sale services are listed as follows:

1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 2 years’ warranty and life maintenance.
4. 24-hour hot line: 86-13804282806. Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support. Hot line: 86-13804282806

The technical and after-sale services are listed as follows:

Contact person: Helen zhu

Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.
