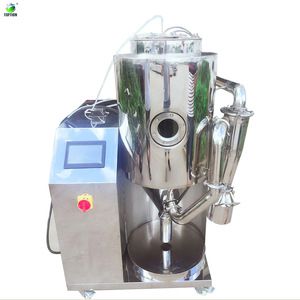

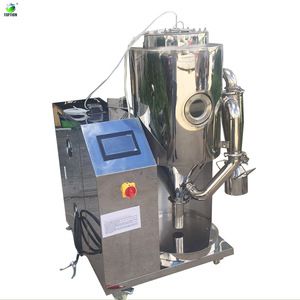

TP-S30 biology two-fluid laboratory spray dryer price 3L with centrifugal nozzle

3l dryer machine with two-fluid spray customization assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting.

Technical Feature

  • New
  • Spray Drying Equipment
  • Shaanxi, China (Mainland)
  • TOPTION
  • TP-S30
  • 220V 50HZ
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$8~9

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Shaanxi, China (Mainland)
Brand Name
TOPTION
Model Number
TP-S30
Voltage
220V 50HZ
Power(W)
6kw
Dimension(L*W*H)
880*980*1550mm
Weight
250kg
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product name
two-fluid laboratory spray dryer price 3L
Max capacity
3000ml/h
Temperature range of inlet air
30u00b0C ~ 300u00b0C adjustable
Temperature range of outlet air
30u00b0C ~ 140u00b0C
Precision of temperature
u00b11u00b0C
Spray system
Centrifugal nozzle/ two fluid nozzle, base on your needs
Spray direction
Downwards co-current
Total power
6KW 220V
Dried powder restoring rate
u226592 (Maltodextrin>92)
Maximum moisture evaporation
3kg/h

DETAIL DESCRIPTION

TP-S30 biology two-fluid laboratory spray dryer price 3L with centrifugal nozzle

Product Description





Introduction for China TP-S30 3L spray dryer machine two-fluid and centrifugal spray

3l dryer machine with two-fluid spray customization is the latest type of TOPTION which adopts advanced international technology and spare parts.

3l dryer machine with two-fluid spray customization assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.



Parameters for Spray Drying Machine 3L Dryer Machine with Two-Fluid Spray Customization
Item
Unit
TP-S30 3l dryer machine with two-fluid spray customization
Max capacity
ml/h
3000
Temperature range of inlet air
30°C ~ 300°C
Adjustable

Yes
Temperature range of outlet air
30°C ~ 140°C
Precision of temperature
±1
Dryer time
S
1.0 ~ 1.5
Speed of squirt pump
ml/h
3000
Spray system
/
Centrifugal nozzle/ two fluid nozzle, base on your needs
Spray direction
/
Downwards co-current
Heat source
/
Electric
Total power
/
6KW 220V
Dried powder restoring rate
%
≥95
Atomizer speed
rpm
40000
Dimemsion
mm
880*980*1550mm
Remark

Standard is with High Speed Centrifugal Nozzle;
Two Liquid nozzle is optional
SS316L Material is optional

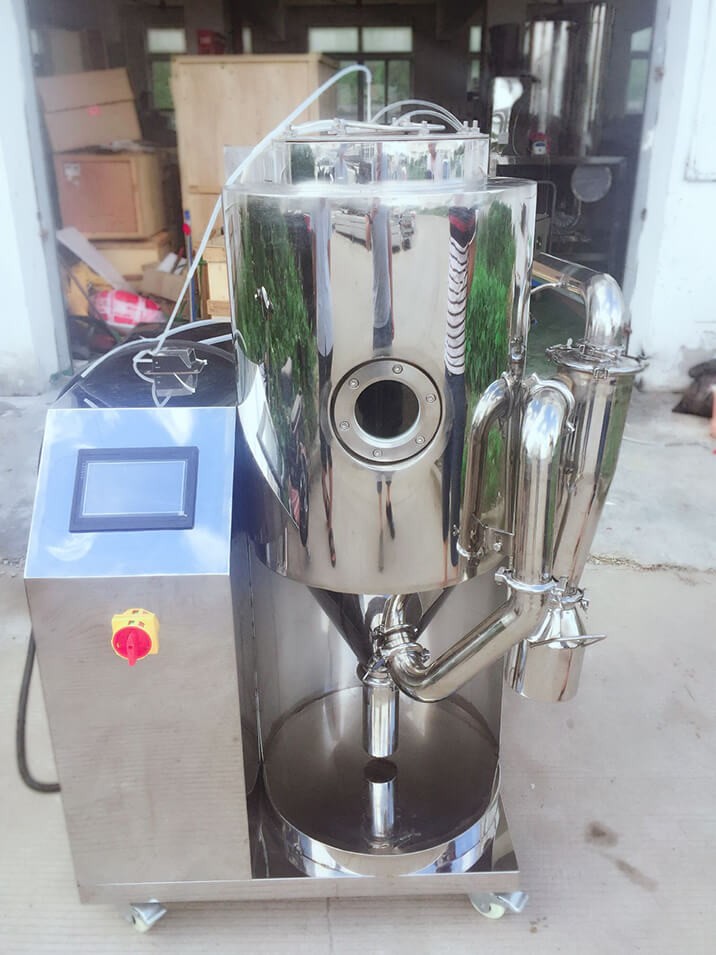

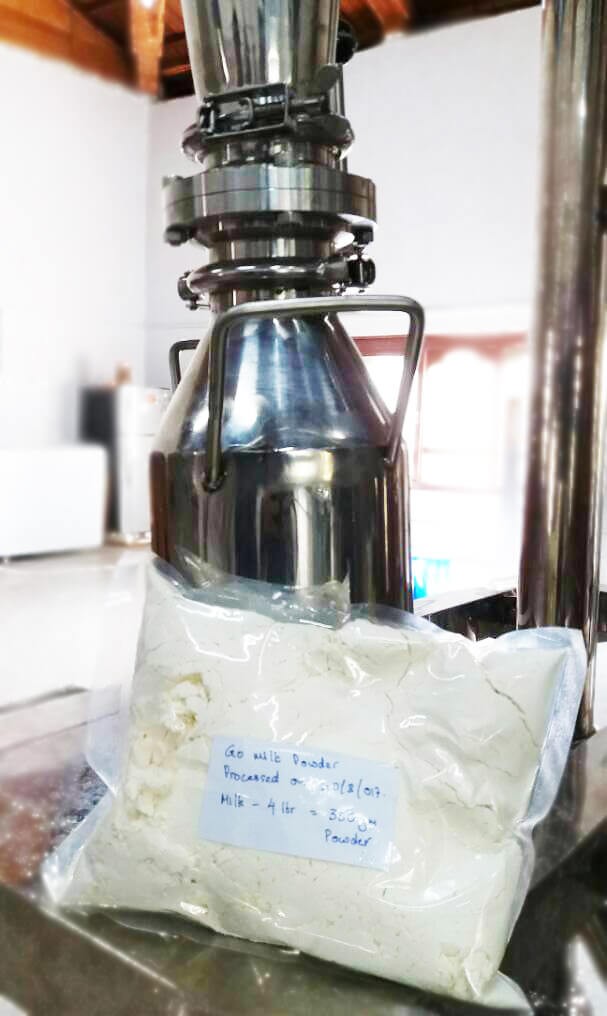

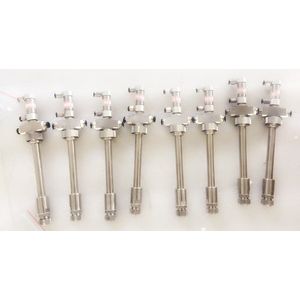

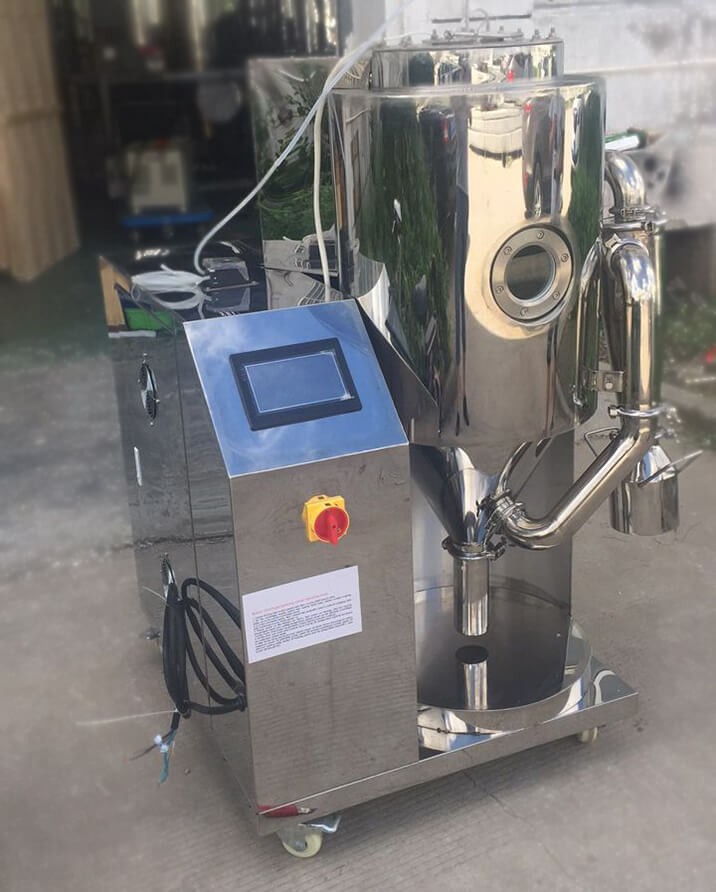

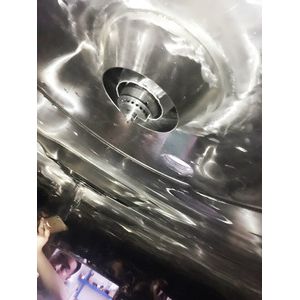

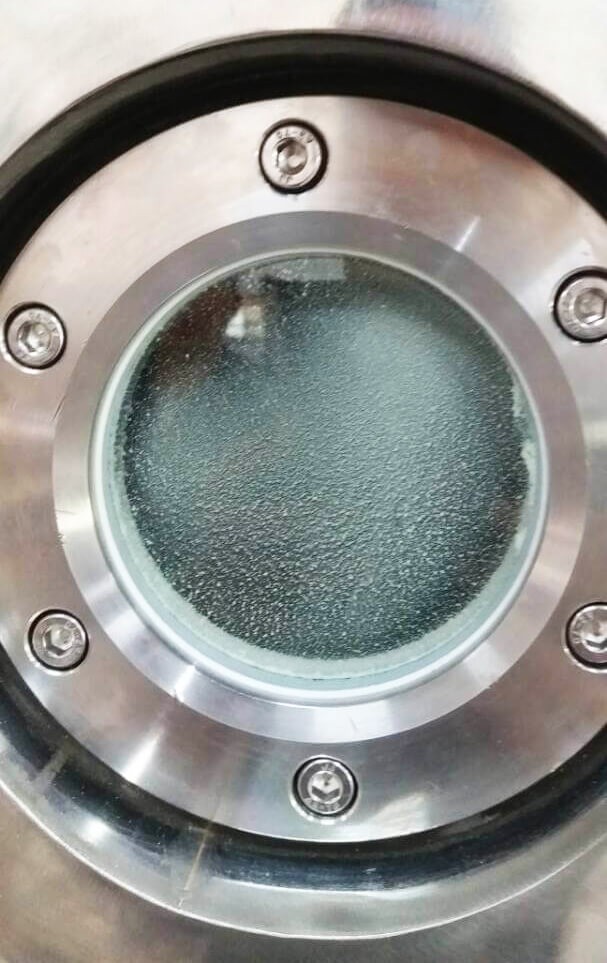

Detailed Images
