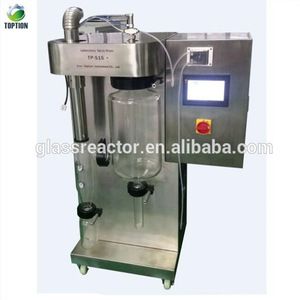

TOPTION 1500-2000ml/h mini spray drying machine low price spray dryer

Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesive

Technical Feature

  • New
  • Spray Drying Equipment
  • Shaanxi, China (Mainland)
  • TOPTION
  • TP-S15
  • 220V 50HZ
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Shaanxi, China (Mainland)
Brand Name
TOPTION
Model Number
TP-S15
Voltage
220V 50HZ
Power(W)
4500W
Dimension(L*W*H)
880x810x1460mm
Weight
180kg
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product name
TP-S15 mini spray dryer machine
Max capacity
1500-2000ml/h
Temperature range of inlet air
40u2103 ~ 300u2103 Adjustable
Temperature range of outlet air
80u00b0C ~ 90u00b0C
Spray system
Two-fluid nozzle
Precision of temp
u00b11u00b0C
Dryer time
1.0 ~ 1.5S
Speed of squirt pump
1500-2000ml/h
Spray direction
Downwards co-current
Dried powder restoring rate
u226592% (Maltodextrin>92)

DETAIL DESCRIPTION

Product Description

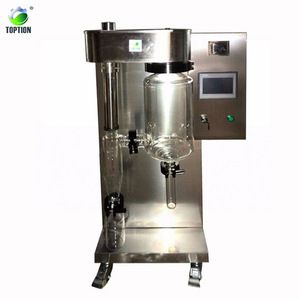

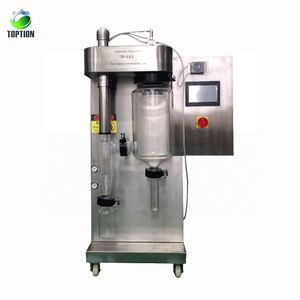

TOPTION 1500-2000ml/h mini spray drying machine low price spray dryer

TP-S15 spray dryer 2L

Applications:


  Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.



Advantages:


1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.



Parameters of TOPTION 1500-2000ml/h mini spray drying machine low price spray dryer



Item

TP-S15

Max capacity

1500-2000ml/h

Temperature range of inlet air

40℃ ~ 300℃ Adjustable

Temperature range of outlet air

80°C ~ 90°C

Spray system

Two-fluid nozzle

Precision of temp

±1℃

Dryer time

1.0 ~ 1.5S

Speed of squirt pump

50 ~ 2000ml/h

Nozzle size

0.5/0.7/0.75/1.0/1.5/2.0 mm

Spray direction

Downwards co-current

Heater Power

3500W

Total power

4500W  220V

Heat source

Electric

Air compressor

Built-in oil-free air compressor

Dried powder restoring rate

≥92 %(Maltodextrin>92)

Dimension

940*850*1500mm

Maximum moisture evaporaton

2Kg/h

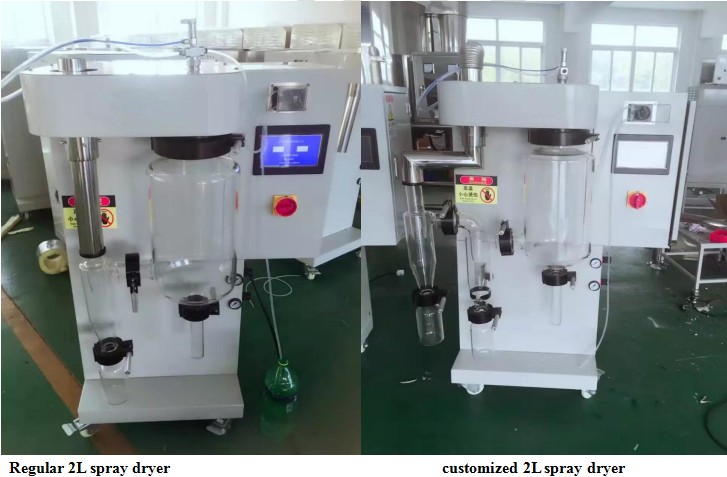

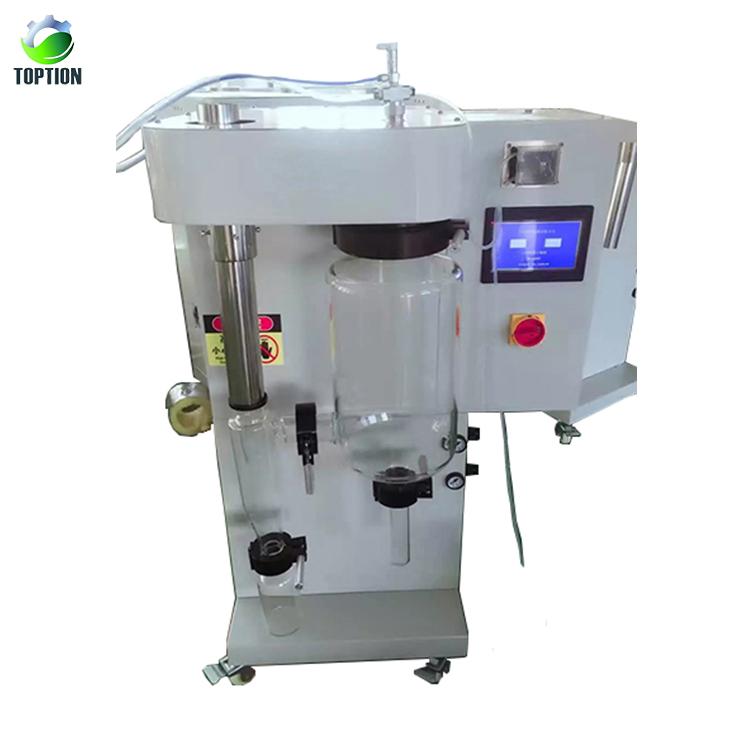

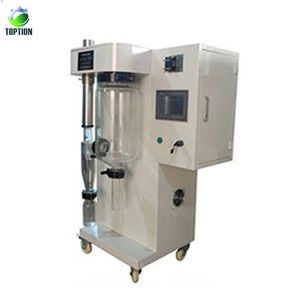

Detailed Images

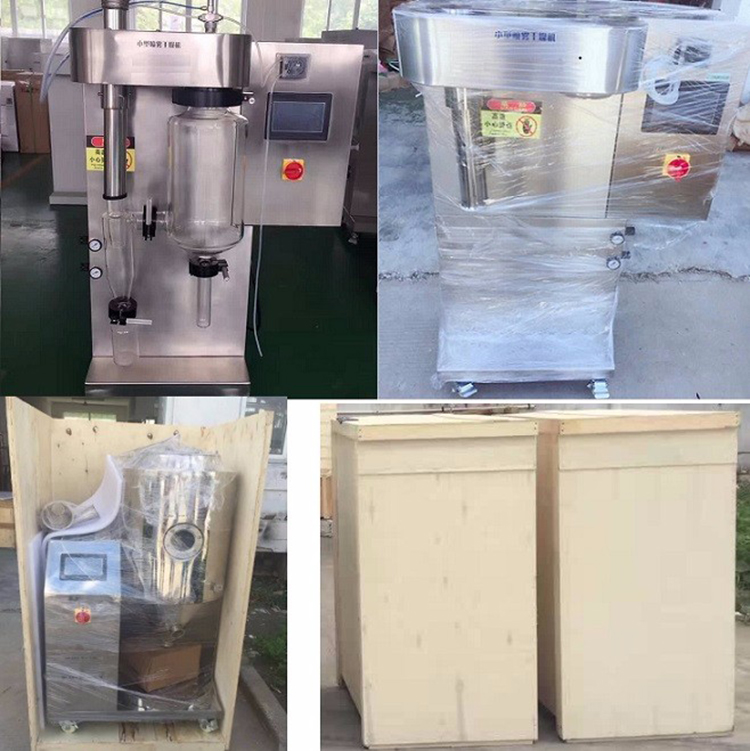

Packing
