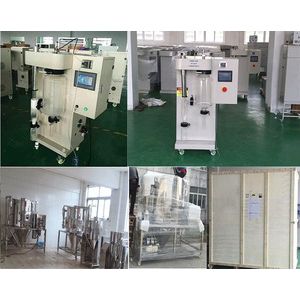

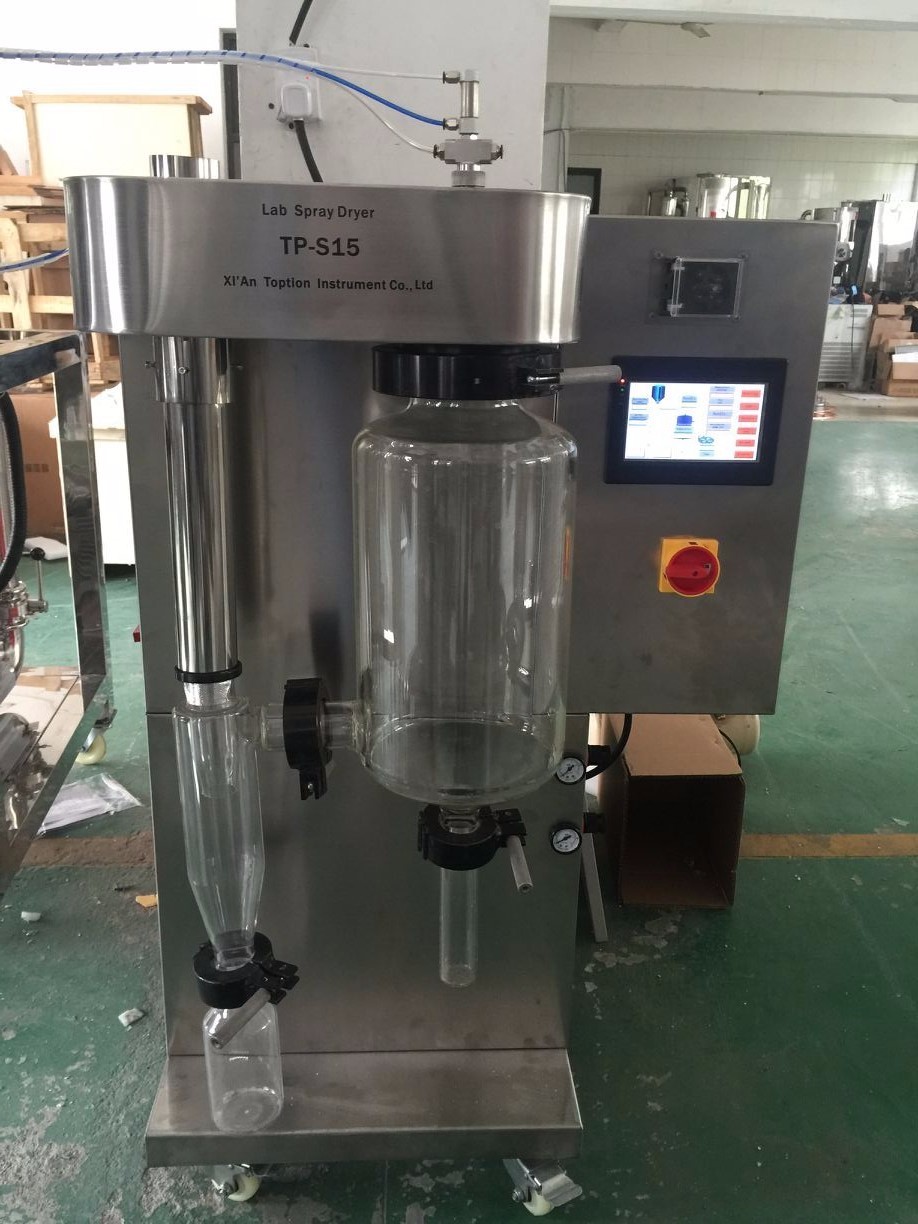

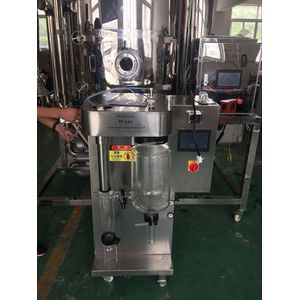

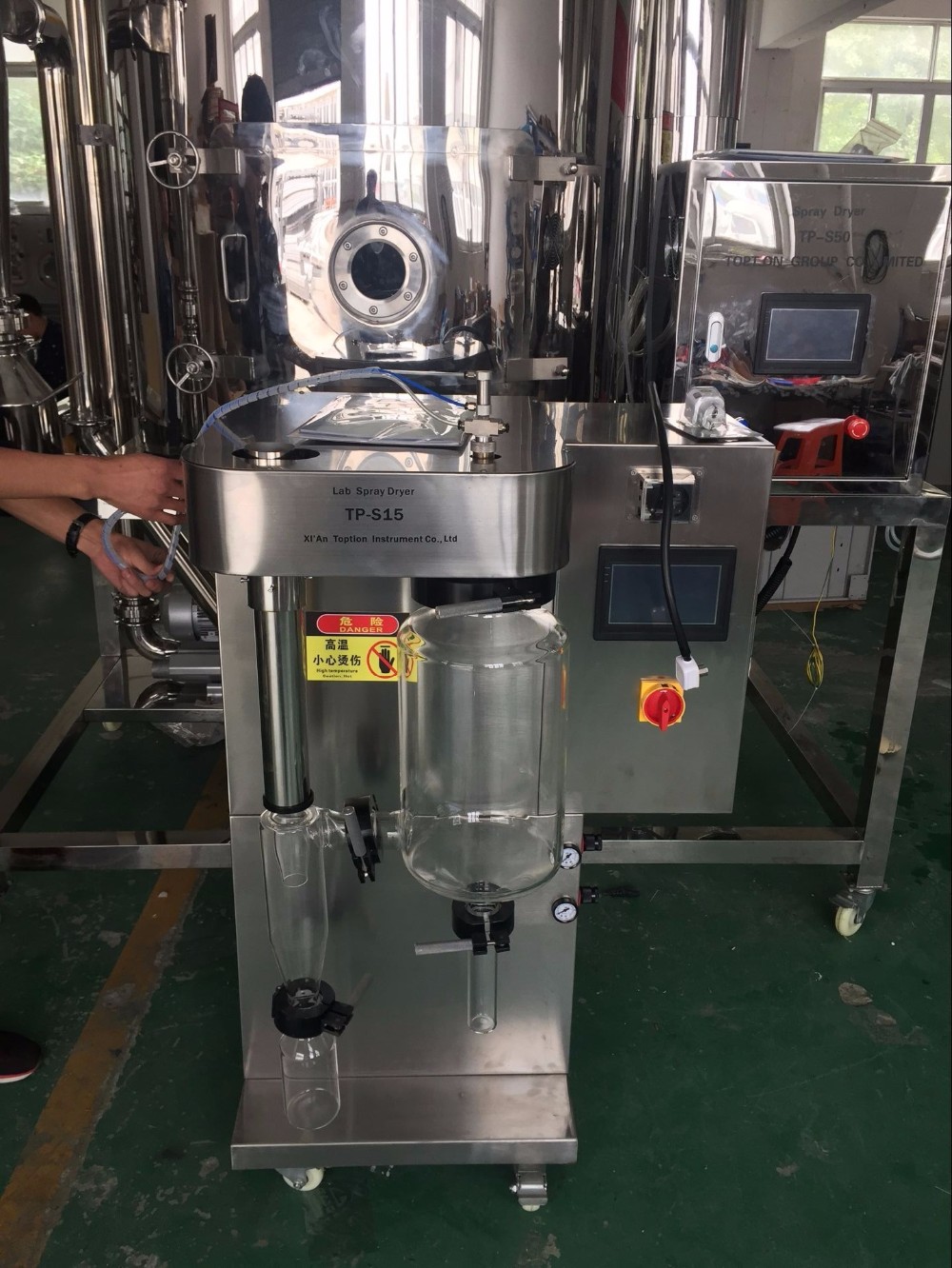

China CE approved Lab spray dryer :
This Lab spray dryer has polyester powder coated shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Key features:
1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Item | Unit | TP-S15 | TP-S30 | TP-S30C | TP-S50 | TP-S100 |
Max capacity | ml/h | 1500-2000 | 3000 | 3000 | 5000 | 10000 |
Temperature range of inlet air | ℃ | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 30℃ ~ 300℃ | 140°C ~ 300°C Adjustable | 50°C ~ 300°C |
Temperature range of outlet air | ℃ | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 30℃ ~ 140℃ | 80°C ~ 90°C | 30°C ~ 150°C |
Temperature range of outlet air | ℃ | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 30℃ ~ 140℃ | 80°C ~ 90°C | 30°C ~ 150°C |
Spray system | / | Two-fluid nozzle | Two-fluid nozzle | Centrifugal nozzle | Centrifugal nozzle | Centrifugal nozzle |
Precision of temp | ℃ | ±1 | ||||
Dryer time | S | 1.0 ~ 1.5 | ||||
Speed of squirt pump | ml/h | 50 ~ 2000 | 3000 | 3000 | 5000 | 10000 |
Nozzle size | mm | 0.5/0.7/0.75/1.0/1.5/2.0 | | | | |
Spray direction | / | Downwards co-current | ||||
Heater Power | / | 3KW 220V | ||||
Total power | / | 10KW 380V | ||||
Heat source | / | Electric | ||||
Air compressor | / | Built-in oil-free air compressor | ||||
Dried powder restoring rate | % | ≥95 | ≥98 | |||
Dimension | mm | 940*850* 1500 | 1700*1100* 150 | 1700*1100* 150 | 1800*930* 2200 | 2500*1600* 2800 |
Maximum moisture evaporation | Kg/h | 2 | 3 | 3 | 5 | 10 |
Note:
The bold font part is the Techincal Parameters of TP-S15, the other are the homologous products's parameters , you can refer to this table to choose the suitable product for you.
Working principle and Working Process:
Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
TOPTION has passed the “ISO9001:2008 Quality Management System”certification and our spray dryer have passed CE certification,the quality can be assured.
Packing:
-Standard wooden case.
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.
Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)
After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
FAQ |
Q: What is your MOQ?
A:1 set.
Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.
Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
For more details about lab instruments, please feel free to contact us~
