Liquorice roots extract powder Spray Dryer/spray drier machine/milk spray drying machine/spray dryer
1.Machine introduction of Liquorice roots extract powder Spray Dryer/spray drier machine/milk spray drying machine/spray dryer :
Laboratory table top spray dryer is the latest type of Bioland which adopts advanced international technology and spare parts.

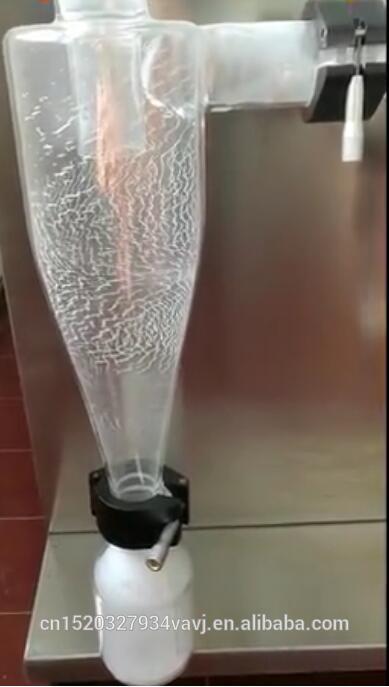

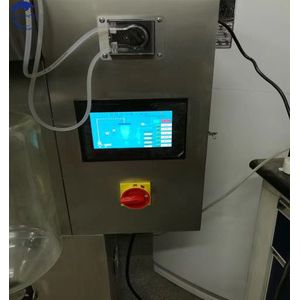

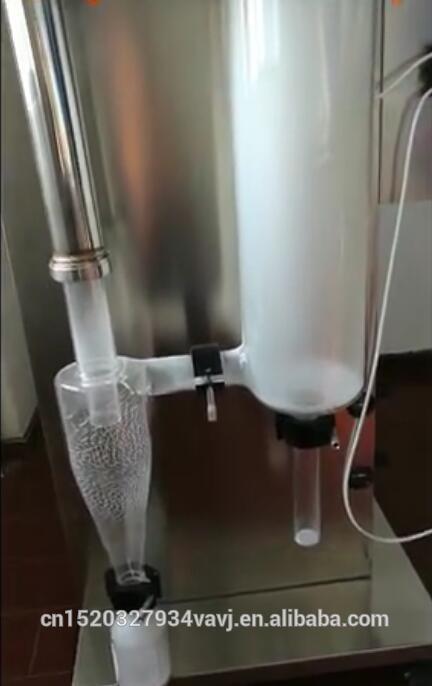

Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
2.Machine Application of Liquorice roots extract powder Spray Dryer/spray drier machine/milk spray drying machine/spray dryer :
1.The spray dryer is mainly for food, biology, beverage, chemical, medicine, etc for lab-use; widely used for all kinds of solutions such as emulsion and suspension liquids; and also suitable for drying heat-sensitive materials such as biological products, bio-pesticides, enzymes, etc.
2.Can be used to dry spices and pigments, polymer and resins, milk and egg products, plant and vegetable extracts, oxide, pharmaceutical synthesis, thermal plastic material, bone and tooth powder, aromatic agent, fragrances, blood products, biochemical products, dyes, soap and detergents, food adhesive,etc.
3.Applicable to these fields: colleges and universities, research institutes and micro-enterprise about laboratories development and production of micro-particles powder in food, biology, beverage, chemical, materials, pharmaceutical and other aspects.
3.Technical parameters of Liquorice roots extract powder Spray Dryer/spray drier machine/milk spray drying machine/spray dryer :
Model | BL-015 |
Power Supply | 220v/50-60HZ |

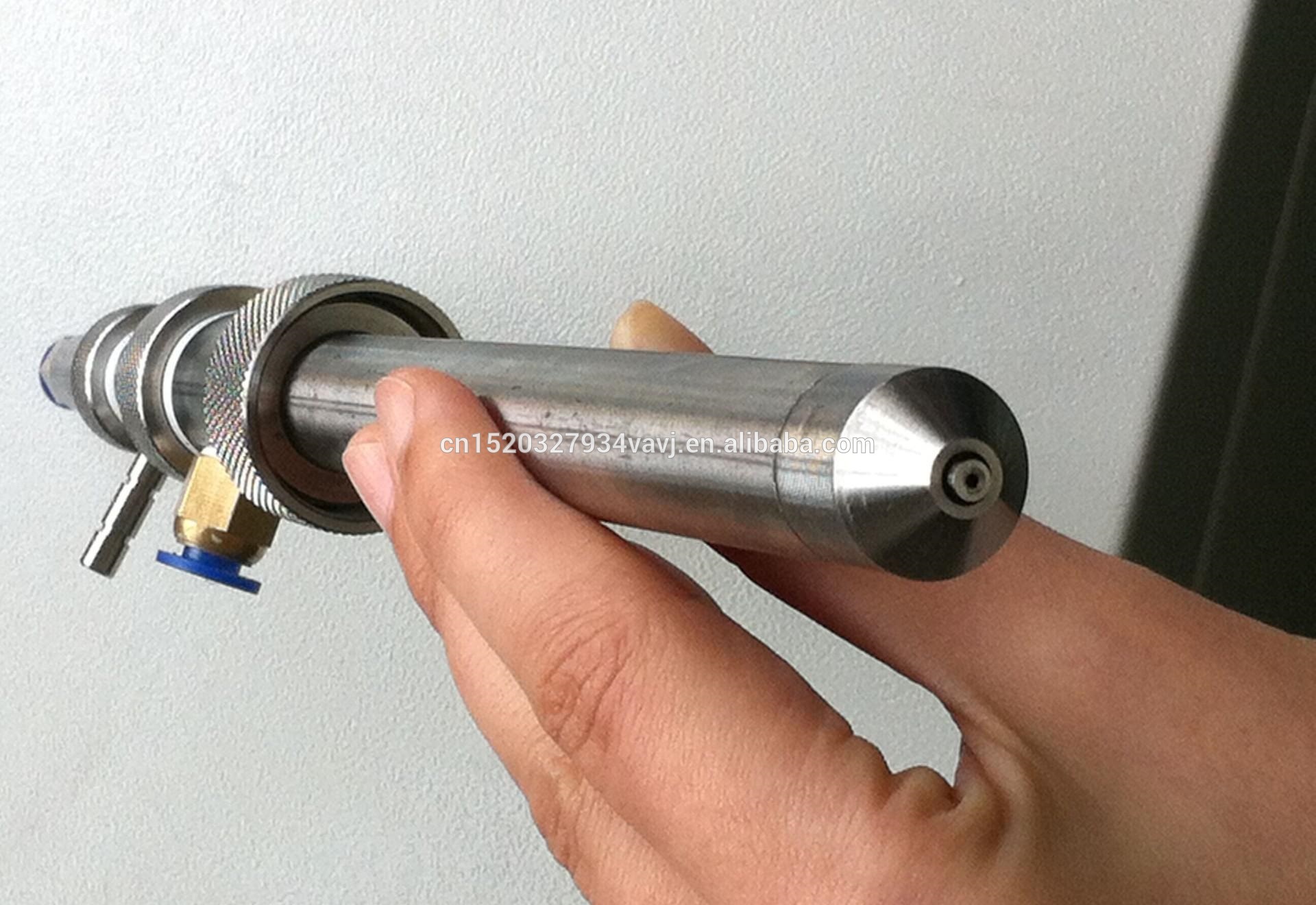

Diameter of Nozzle | 0.5/0.7/0.75/1.0/1.5/2.0mm (can be customized) |
Water Evaporation Capacity | 1500-2000ml/h |
Drying Time | 1.0-1.5s |
Max Inlet Amount | 2000ml |
Min Inlet Amount | 30ml |
Inlet Temperature | 30°-280° |
Outlet Temperature | 30°-140° |
Weight | 110kg |
Size | 700*505*1500mm |
4.Working Principle of Liquorice roots extract powder Spray Dryer/spray drier machine/milk spray drying machine/spray dryer :

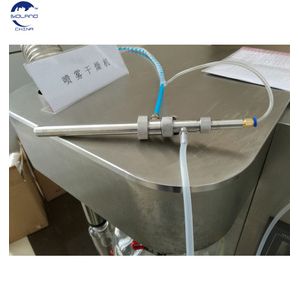

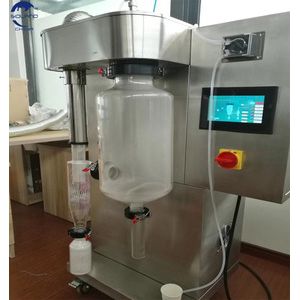

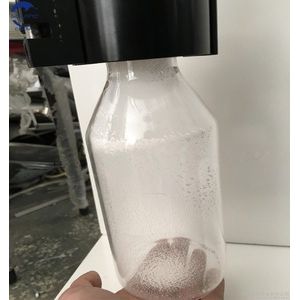

5.Real Pictures Shows of Liquorice roots extract powder Spray Dryer/spray drier machine/milk spray drying machine/spray dryer

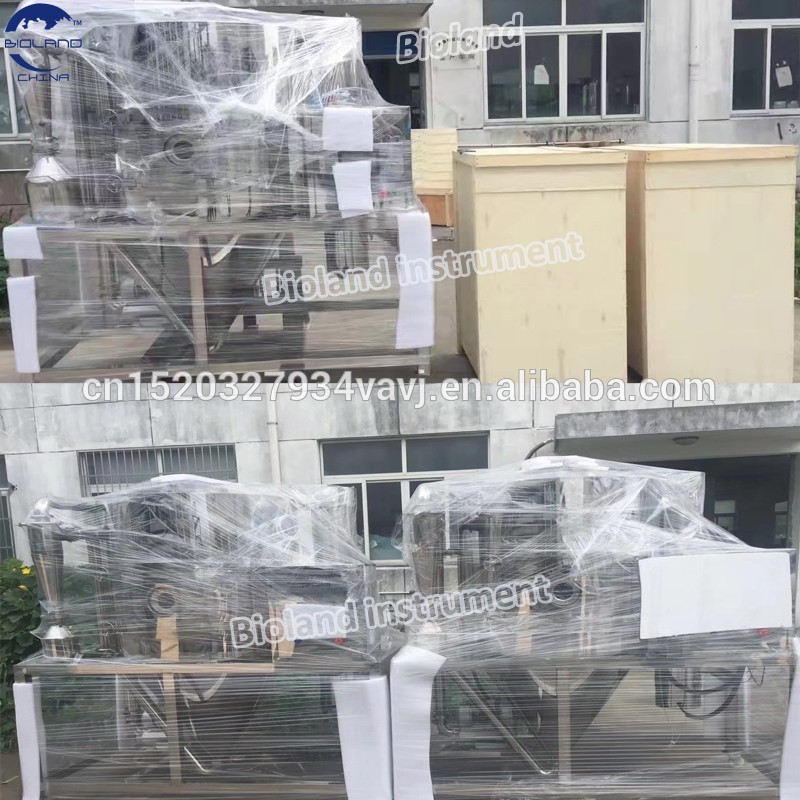

Packing Details: Standard export packing and neutral packing if needed, carton box, wooden case or upon request, packing carefully.
Shipping Method: Air / Sea / Express.
BIOLAND Laboratory spray dryer according to different spray drying nozzle could classify as two-fluid spray dryer and centrifugal spray dryer, if you use it it in laboratory or small scale product, suggest choose two-fluid spray drying machine, its capacity is 1500ml/h to 3000ml/h, if you need 3000ml/h, 5000ml/h, 10000ml/h and larger capacity please choose centrifugal spray drying equipment.
widely used Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others...any interests, please contact us ,thanks!!
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union,Paypal ,Alibaba Trade Assurance.…
3. When I receive it after pay?
Dear customer, normal models can be delivered with 7-9 days, please contact us to check transport time to your address.
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
