Spray drying is a method of producing a dry powder from a liquid or slurry by rapidly drying with a hot gas. This is the preferred method of drying of many thermally-sensitive materials such as foods and pharmaceuticals. A consistent particle size distribution is a reason for spray drying some industrial products such as catalysts.
Model | BL-S10L spray drying | Voltage | 380V |
Max capacity | 10L/HOUR | Application | rice protein, corn syrup, molasses, honey, dairy |
Temperature range of inlet air | 50°C ~ 300°C | Temperature range of outlet air | 30°C ~ 150°C |
Spray system | Centrifugal nozzle | Warranty | One year |
Dryer time | 1.0 ~ 1.5s | Dried powder restoring rate | ≥98 |
Air compressor | Built-in oil-free air compressor | Maximum moisture evaporation | 10kg/hour |

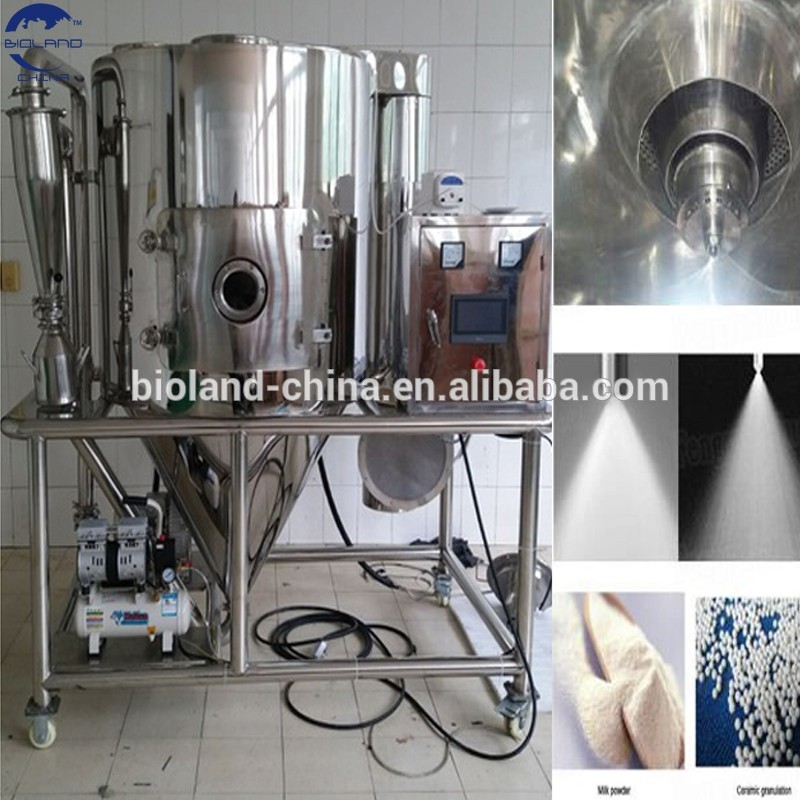

Specifications of high quality dry powder industrial Spray Drying equipment
The three stages that occurs in a spray drying before drying is accomplished includes.
1.Atomization
2.Spray-air mixing and moisture evaporation.
3.Dry product separation from the exit air.

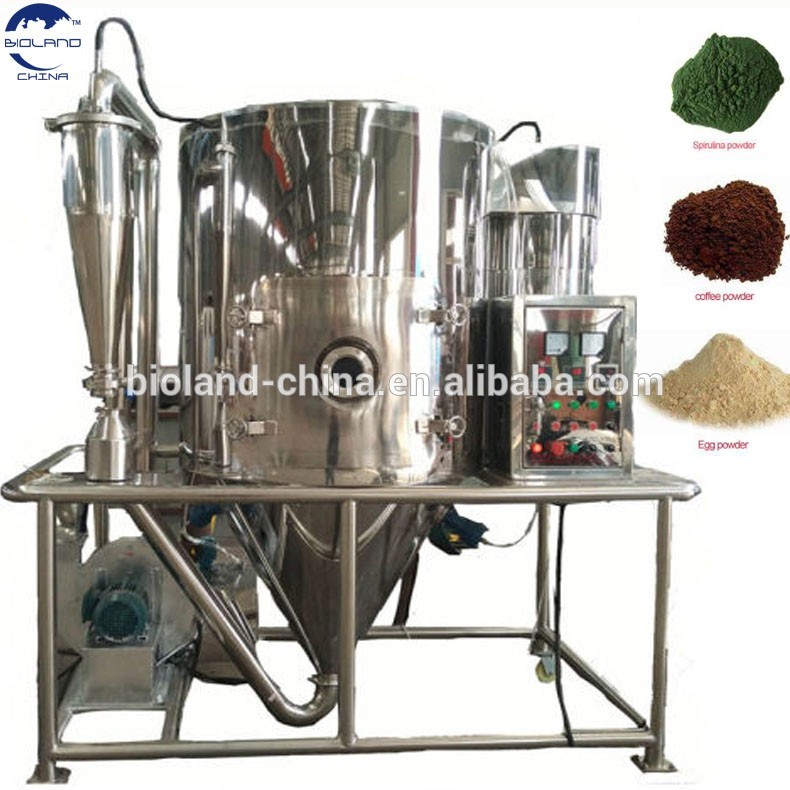

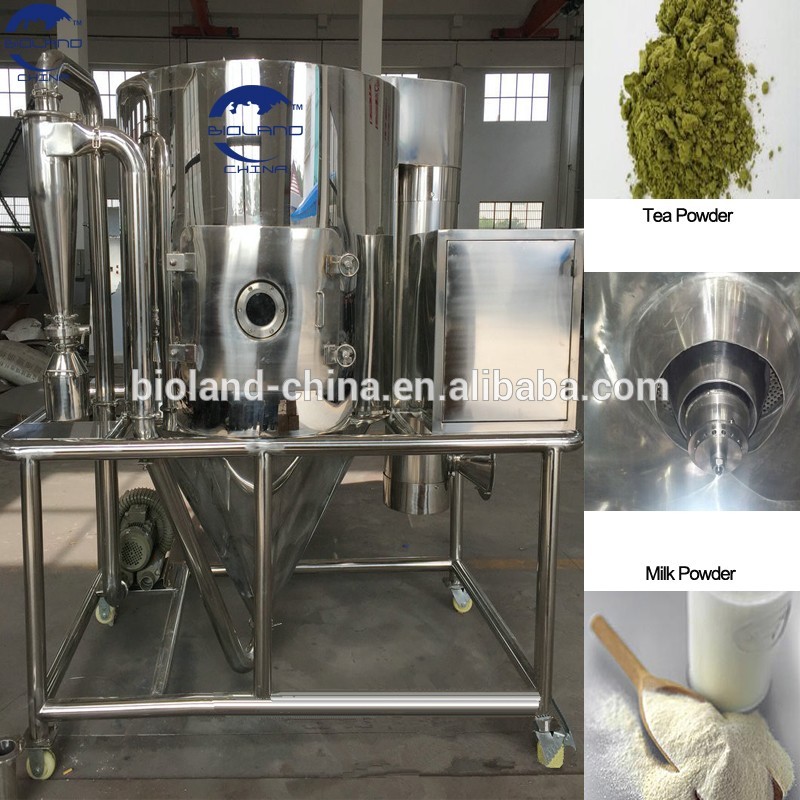

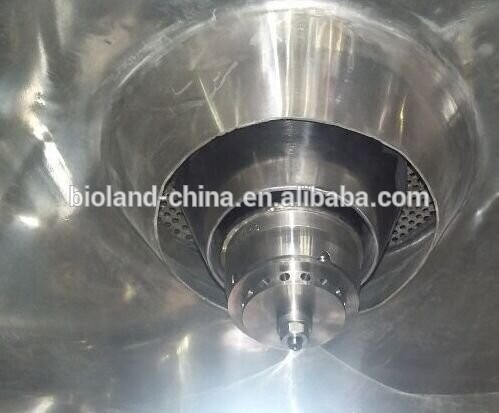

Features of china liquid Centrifugal atomization /dry powder spray drying machine
1.Its dry speed is very quick. In general, it needs 5~15 seconds. It has feature of momentary dry.
2.Because raw material can be dried momentarily. Especially, it is suitable for drying thermal sensitive raw materials. It can maintain color, smell and smell of raw material.
3.Its operation is stable and simple. Its regulation and control is very convenient. It is easy to realize continuous operation.
4.The distribution, fluidity and solubility of product are good.
Pharmaceutical uses of high quality dry powder industrial Spray Drying equipment
Spray dryer is used in drying pharmaceuticals like penicillin, blood products, enzymes, vaccines etc.
It is used in the production of excipient and co-processed excipient with increased flowability, compatibility and tablet disintegration.
To improve drug compressibility and reduce capping tendencies in crystals.
It is equally used in the preparation of matrix microcapsule containing drugs substances and a biodegradable polymer in order to obtain controlled drug release formulation.
It is employed in enhancing solubility and dissolution rates of poorly soluble drugs by formation of pharmaceutical complexes or via the development of solid dispersion thus increasing bioavailability.
It is used in the production of dry powder formulation/dry powder aerosol and thermoabile materials.
Apart from its applications in the pharmaceutical industries, spray dryeing also find use in;
Chemical industries e.g. phenol-formaldehyde resin, catalysts, PVC emulsion type, amino acids etc.
Ceramic industries e.g. aluminium oxide, carbides, iron oxides, kaoline etc.
Dye stuffs and pigments e.g. chrome yellow, food colour, titanium dioxide, paint pigments etc.
Fertilizer production e.g. nitrates, ammonium salts, phosphates etc.
Detergent and surface active agents e.g. detergent enzymes, bleach powders, emulsifying agents etc.
Food industries e.g. milk, whey, egg, soya protein etc.
Fruits and vegetables e.g. banana, tomatoes, coconut milk etc.
Beverage e.g. coffee, tea etc.
Biochemical industries e.g. algea, fodder antibiotics, yeast extracts, enzymes etc.
Environmental pollution control e.g. flue gas desulfurization, black liquor from paper-making etc.

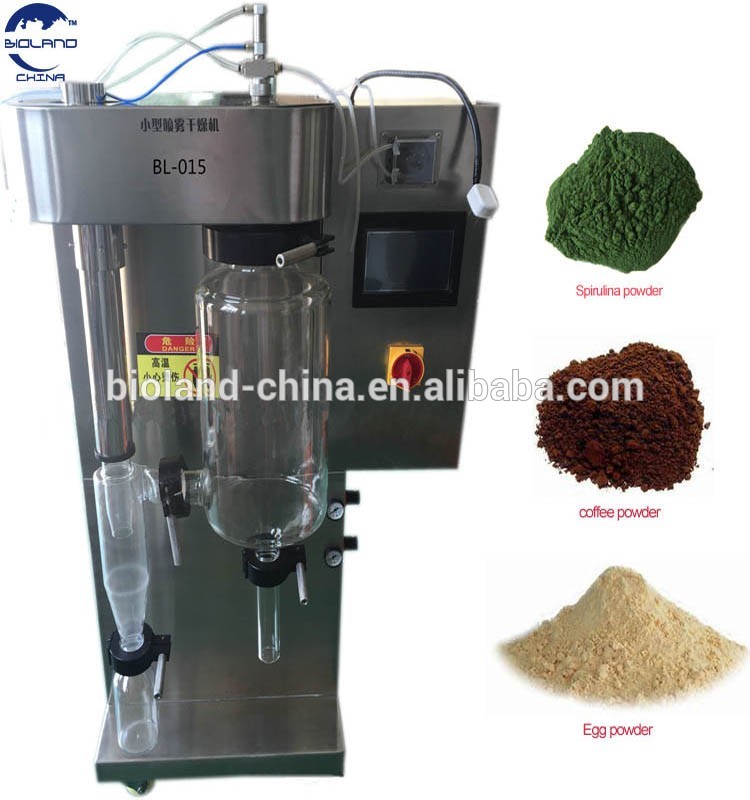

BIOLAND Laboratory spray dryer according to different spray drying nozzle could classify as two-fluid spray drying and centrifugal spray drying, if you use it it in laboratory or small scale product, suggest choose two-fluid spray drying machineand its capacity is 1500ml/h to 3000ml/h, if you need 3000ml/h, 5000ml/h, 10000ml/h and larger capacity please choose centrifugal spray drying equipment. welcome to join us!!!
