Mini Spray Dryer Description
The Mini Spray Dryer (lab spray dryer) is the result of 10 years continuous development ,is your choice for the quick and gentle drying to powder of liquid material. The impressive features of the Spray Dryer include its efficient performance with very short set-up times,an effective integrated nozzle cleaning mechanism and a high degree of flexibility thanks to the different cylinder geometries. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .
Main Characters of mini Spray dryer
- Color Touch Screen,Fast setup and cleaning times
- Scale up to pilot or industrial scale possible.

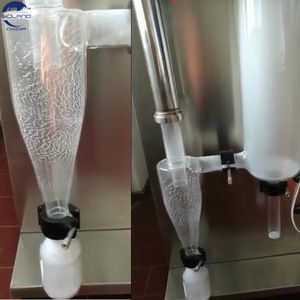

- Visible process due to glass assembly
- Adjustable particle size (1 – 25 microns)
Technical parameters of 2L mini Labratory Spray Dryer
| Model | BL-015 |
| Max capacity | 1500-2000ml/h |
| Temperature range of Inlet air | 40°C -300°C |
| Temperature range of outlet air | 40°C -140°C |
| Precision of temperature | ± 1 °C |
| Dryer time | 1.0-1.5 S |
| Speed of squirt pump | 50-2000ml/h |
| Spray system | Two- fluid nozzle (0.75/1.0/1.5/2.0/2.5mm) |
| Spray direction | downwards co-current |
| Heater power | 3KW 220V |
| Total power | 10KW 380V |
| Heat source | Electric |
| Air compressor | Built-in oil-free air compressor |
| Dried powder restoring rate | ≥95% |
| Net weight | 140kg
|
| Overall dimension | 940*850*1500mm |
Wide range of applications of mini spray dryer
mini Spray dryer (lab spray dryer) can be used in a wide range of applications where the production of a free-flowing powder sample is required.This technique has successfully processed materials in the following areas:
- Oxide • Blood • Polymers and Resins
- Beverages • Flavours & Colourings
- Milk & Egg Products • Plant & Vegetable Extracts
- Pharmaceuticals • Heat Sensitive Materials
- Plastics • Perfumes • Dyestuffs
- Ceramics & Advanced Materials
- Soaps & Detergents •Textiles
- Foodstuffs • Adhesives
- Bones, Teeth & Tooth Amalgam and many others
BIOLAND Laboratory spray dryer according to different spray drying nozzle could classify as two-fluid spray dryer and centrifugal spray dryer, if you use it it in laboratory or small scale product, suggest choose two-fluid spray drying machineand its capacity is 1500ml/h to 3000ml/h, if you need 3000ml/h, 5000ml/h, 10000ml/h and larger capacity please choose centrifugal spray drying equipment.
