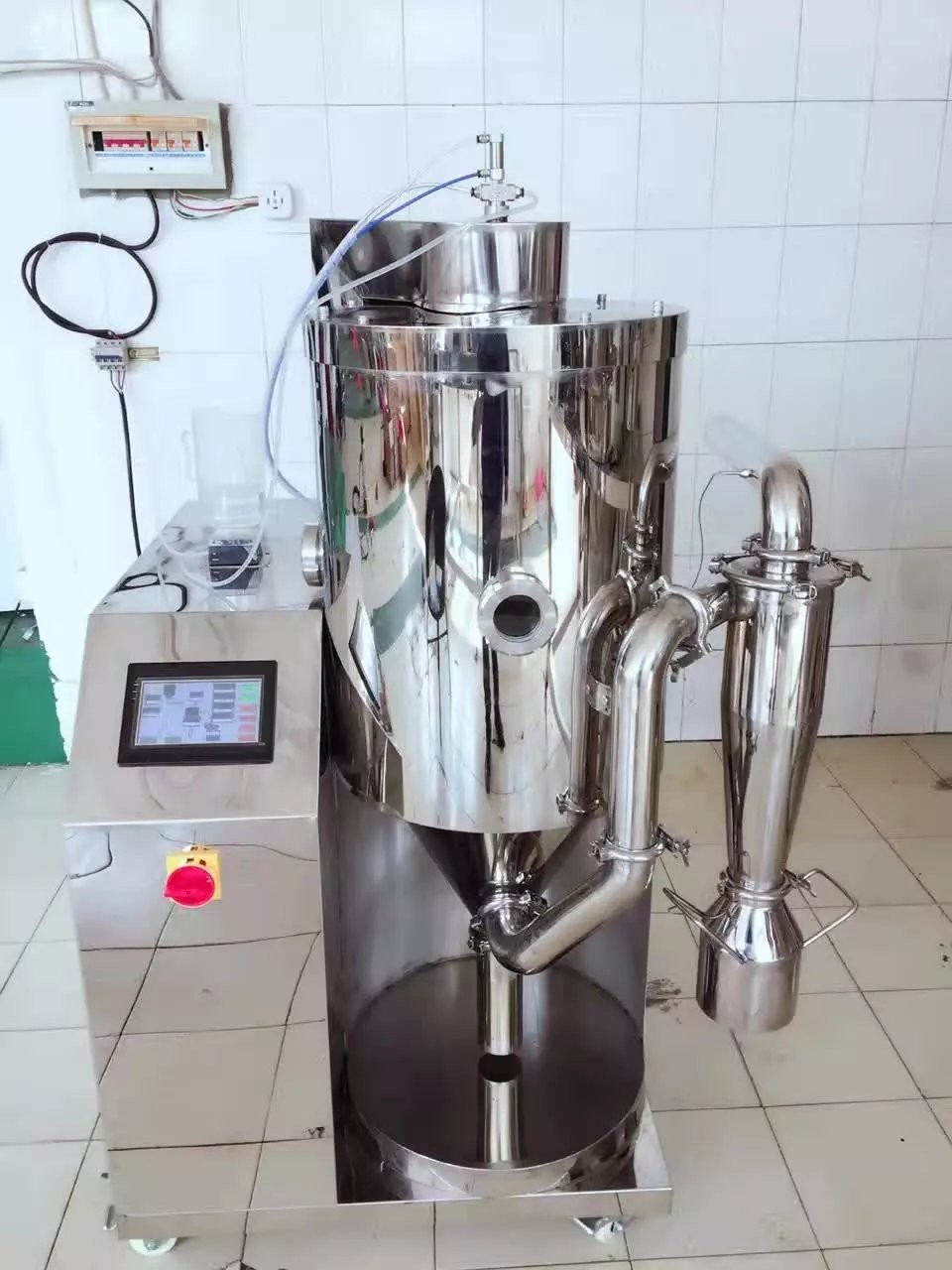

3L/H Spray Dryer Brief Introduction
1. Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.
2. TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
Application
1.Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs.
2.Most solutions and supernsions can be spray dried providing.
3.Food, biology, material, pharmacy, university, and R&D institute.
4.Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Centrifugal Type Two-fluid Type
Advantage
1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
| Technical Specification | |||
| Model | Unit | TP-S30 | TP-S30C |
| Max capacity | ml/h | 3000 | 3000 |
| Temperature range of inlet air | ℃ | 30℃ ~ 300℃ | 30℃ ~ 300℃ |
| Temperature range of outlet air | ℃ | 30℃ ~ 140℃ | 30℃ ~ 140℃ |
| Spray system | / | Two-fluid nozzle | Centrifugal nozzle |
| Precision of temp | ℃ | ±1 | |
| Dryer time | S | 1.0 ~ 1.5 | |
| Speed of squirt pump | ml/h | 3000 | 3000 |
| Spray direction | / | Downwards co-current | |
| Heater Power | / | 3KW 220V | |
| Total power | / | 10KW 380V | |
| Heat source | / | Electric | |
| Air compressor | / | Built-in oil-free air compressor | |
| Dried powder restoring rate | % | ≥95 | |
| Dimension | mm | 1700*1100*150 | 1700*1100*150 |
| Maximum moisture evaporation | Kg/h | 3 | 3 |
TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.
TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of our products have passed CE certification,the quality can be assured.
Packaging and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.
Pre-Sales Service
1.Inquiry and consulting support.
2.Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)
After-Sales Service
1.One year warranty for the products described here.
2.Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service:If you encounter problems when using our products,please contact us by telephone or e-mail,we will be ready to provide consulting,maintenance and other services immediately.
Q: What is your MOQ of the spray dryer?
A:1 set.
Q: How long is your delivery time of spray dryer?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.
Q: How to choose suitable spray dryer?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.
Q: How to solve the equipment trouble during using ?
A:Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
