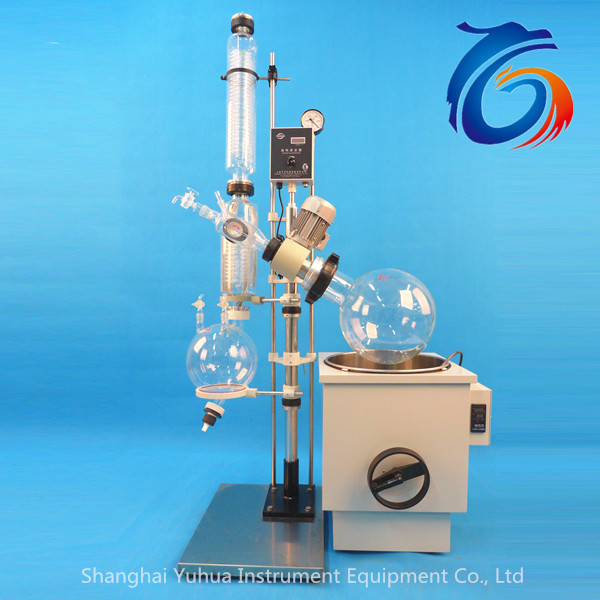

50L Triple effect rotary evaporator |
| Rotary evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the liquid material to get your target solvent.
It's widely used in the process like Concentration, Refining, Separation, Crystallization, etc. Rotary Evaporator is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades. |
| Main Features | |
| 1 | Heat-resistant high borosilicate glass, with good performance. |
| 2 | Teflon and rubber composite sealing,ultimate vacuum reached pump vacuum rate 133Mpa. |

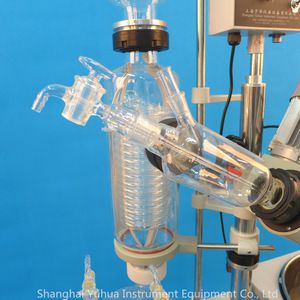

| 3 | Efficient double condenser pipe,prevent the evaporate condensate liquid reflux |
| 4 | System vacuum does not drop during discharging shift. Sample received keeps consistent quality |

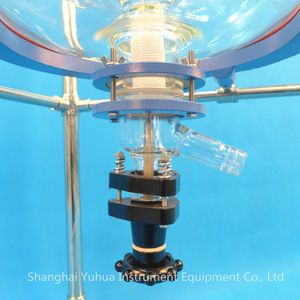

| 5 | PTFE valve, anti-corrosion.PTFE no-liquid -accumulation discharging valve, no-dead-angle reaction, complete |
| 6 | Ex-motor optional |

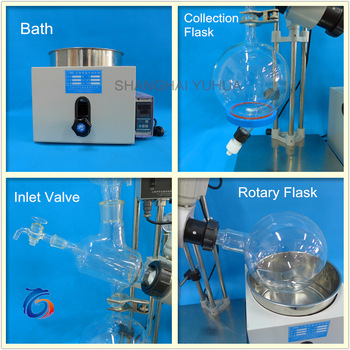

| Model | RE-205 | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-3002 | RE-5002 |
| Rotary flask(L) | 0.5-2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Receiving flask(L) | 1 | 2 | 3 | 5 | 10 | 20 | 20 |
| Evaporating speed(H2O) | 1.2L/h | 1.5L/h | 2L/h | 3L/h | 5L/h | 7L/h | 9L/h |
| Discharge | Optional | PTFE (Teflon) Bottom Discharge Valve | |||||
| Motor power (W) | 40 | 180 | 250 | ||||
| Rotation speed (rpm) | 0~150 | 3~110 | 3~90 | ||||

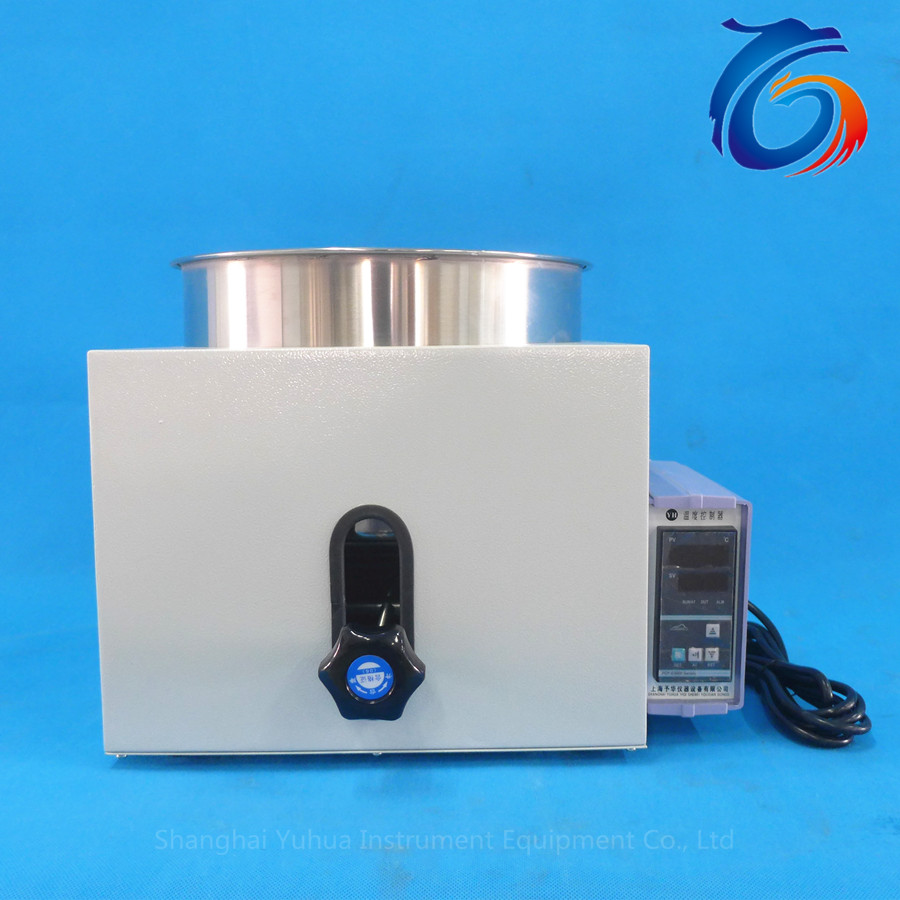

| Bath power (kw) | 1 | 1.5 | 3 | 6 | |||
| Power | 220V, 50/60Hz | ||||||
| Bath temp range | Water: RT~90°C Oil: RT~200°C | ||||||
| Glass Material | GG-17 (3.3) High Borosilicate Glass | ||||||
| Reachable Vacuum Rate | <133Pa (1.33mbar, 1 Torr) |

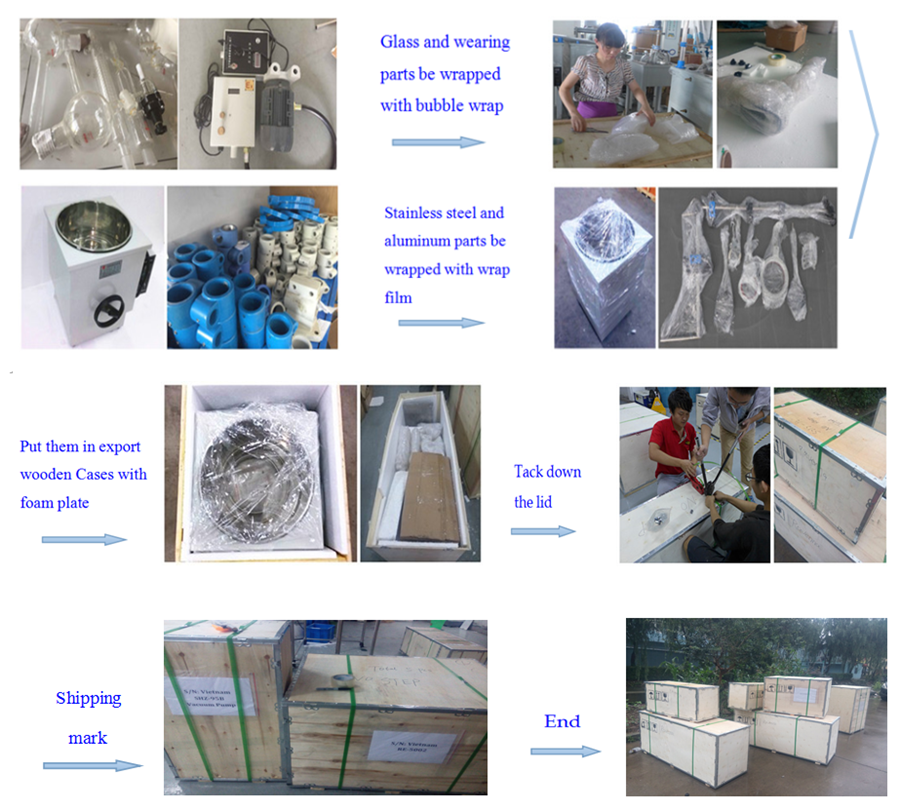

Packing:
-Treated wood case or carton case.
-Both neutral and customized packaging can be available.
-Meet your national packaging standards.
Shipping:
Depends on the dimensions of the package and your requirements, we can deliver the goods by air, by sea, by train or by express.By sea: More than 60kg or big quantity;Safe,cheap but slow;
Usually 11-30 days to North America; 30-45 days to Middle of South America;
40-60 days to South America; 15-28 days to South Africa;
25-33 days to Europe; 30-45 days to East Europe;
35-45 days to North Europe; 28-35 days to Mediterranean countries;
28-40 days to Middle East countries; 7-20 days to Southeast Asia countries;
By air to airport:
Suit for big product or quantity but urgent a lot. Usually 7-10 days arrive.
Some direct flight can arrive at 3-5 days.
By Express delivery DHL,FedEx,TNT:
Suit for small or not too heavy and very urgent
Why Choose us?
- With more than 10 years experiences.
- Professional engineers and workers.
- Experienced OEM service made to customer specification
- Compliance with the advanced world standards and requirements.
- Highest quality in the most cost effective way and prompt delivery.
- Dedicated customer service and technical support.
About Us
Shanghai Yuhua is one famous professional Chinese manufacturer of lab and pilot apparatus applied in biochemical , pharmaceutical, fine chemical and research field.

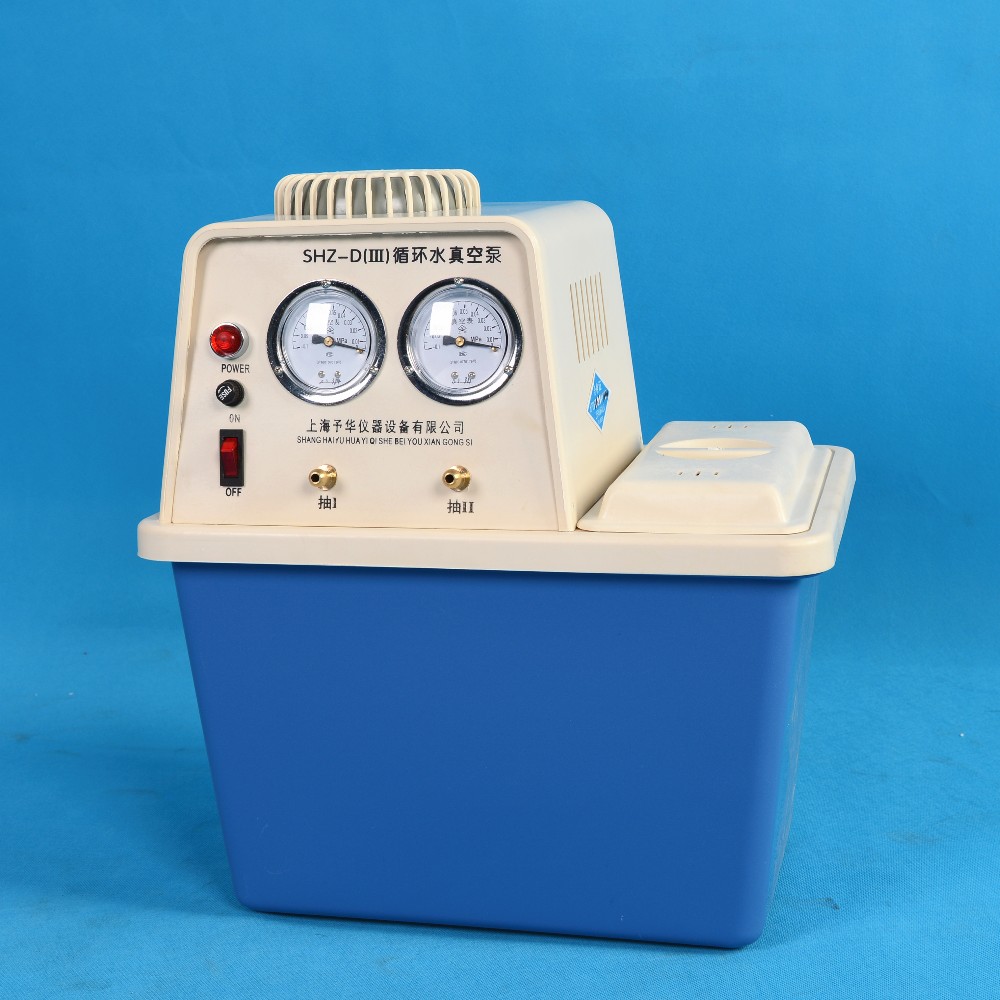

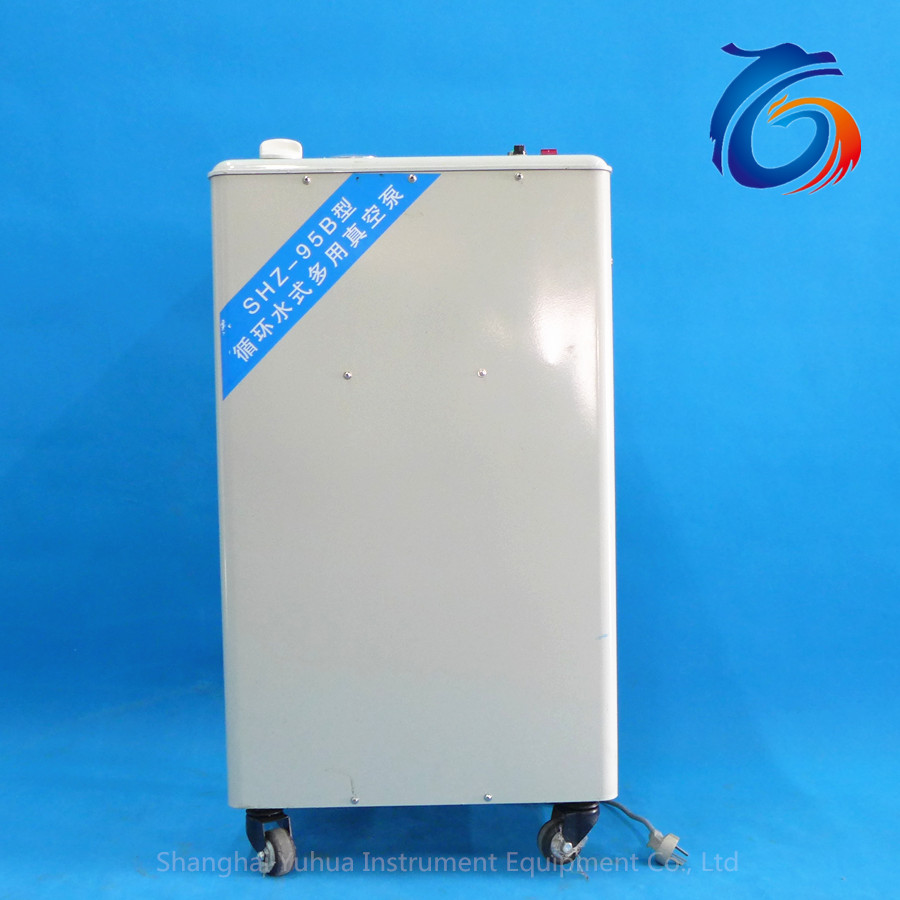

Main products are Rotary Evaporators, Glass reactors , Vacuum Pumps and Heating & Cooling circulators, etc.
Yuhua products have been exported to more than 20countries such as USA, Canada, UK, Poland, Australia, Korea, Israel, etc.
We believe that Yuhua will be your loyal friends!
