OVERVIEW
It's the ideal tools for lab applications including:
• Concentration of solutions;
• Reclamation of solvents;
• Vacuum drying of wet solids;
• Essential oil extractor;
• Efficient and gentle removal of solvents from samples.
| TECHNICAL DATE | |
| Model | RE-1020 Rotary Evaporator |

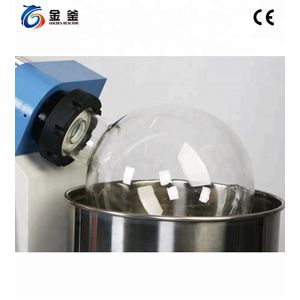

| Rotary flask | 20L Φ125mm, The solution volume is generally not more than 50% of the rotary flask. |

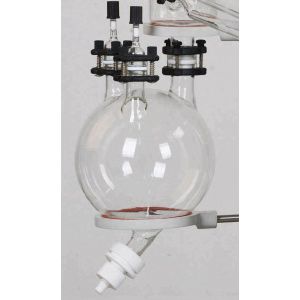

| Collection flask | 10L with discharge valve |
| Rotary speed | 20～120r/min |
| Rotary Motor | 250W |
| Condenser | Main condenser+assistant condenser,Efficient reflux |
| Heating bath | 3kw, Stainless steel water bath |
| Temp. range | Water: RT~99℃ Oil: RT~200℃, ±0.2℃ |
| Attainable vacuum | ≤399.9Pa（3mmHg） |
| Evaporative power | H2O≥5L/h, Alcohol≥11L/h |
| Lift type | Electric Lift |
| Lifting stroke | 0～200mm |
| Voltage | 220V/50Hz, 110V/60Hz |
Some problem often occurs when first time use the rotary evaporator to evaporates
the solvent.
☹ Slow evaporation rate
☹ Low receiving rate while evaporating is good
☹ Vacuum pump being corroded
☹ Sudden slovent bumping
☹ Harmful gas spill
☹ Sealing component being corroded
How to solve these question?

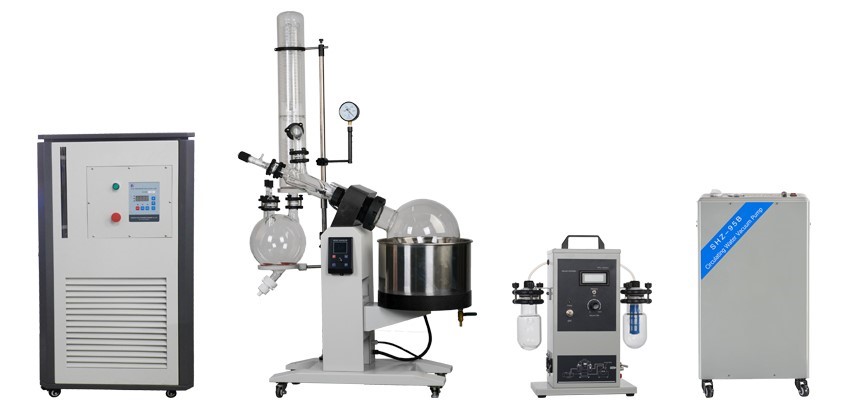

Match a Chiller and Anti-corrosion vacuum pump to working together; Valuable and sensitive materials can also be used with vacuum controller to hold at a proper vacuum rate.
The chiller can let the vapor rapid condensation and recovery, reduce wasting and improve the working
efficiency; The vacuum pump can reduce the boiling point to increase the evaporation rate, also can let
more vapor are full of all condenser, so that the chiller has a better cooling effect.
☢If your material is highly corrosive, please inform us when selecting the type. We will match
the anti-corrosive sealing parts for you.
We can give the best lab solution for you.
Packing
-Export Wood Case
Main parts: 1080*580*1220mm
Glass parts: 1130*700*550mm
G.W: 135kg
Shipping
-We can ship goods by sea, bu air, by train, smaller
goods or spare parts will be shipped by express.
-You can choose to use your own forwarder.
1. The period, scope and condition of the warranty.
①We offer 1 years warranty on the date of shipping from China. During the warranty time, because
of manufacturing&quality problem, we offer replacement, maintenance service.
②The damage caused by the transportation problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free
in the warranty period.
3.How to shipping the replacement parts?
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.

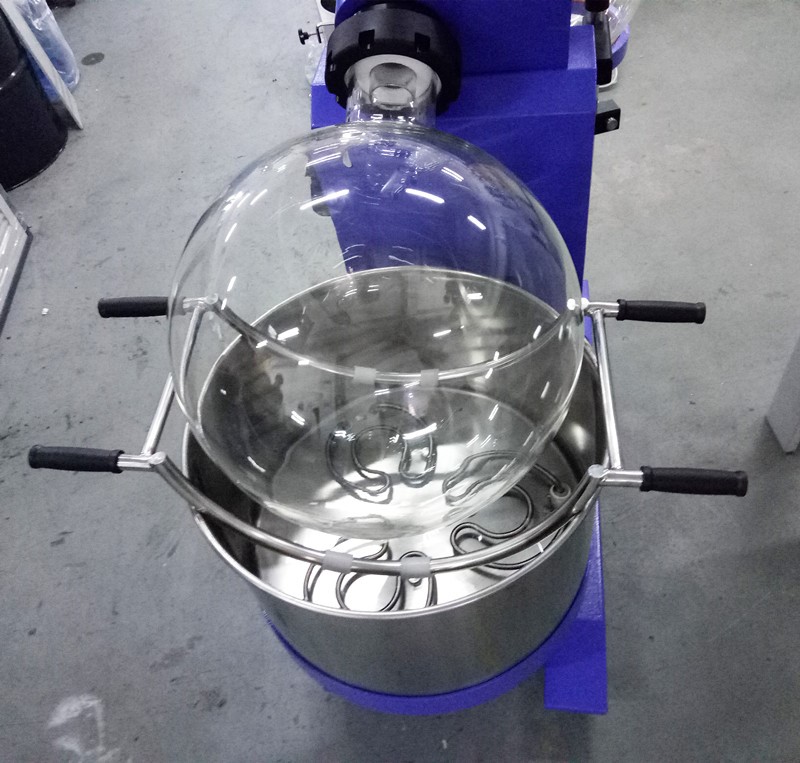

Insulator Cradle

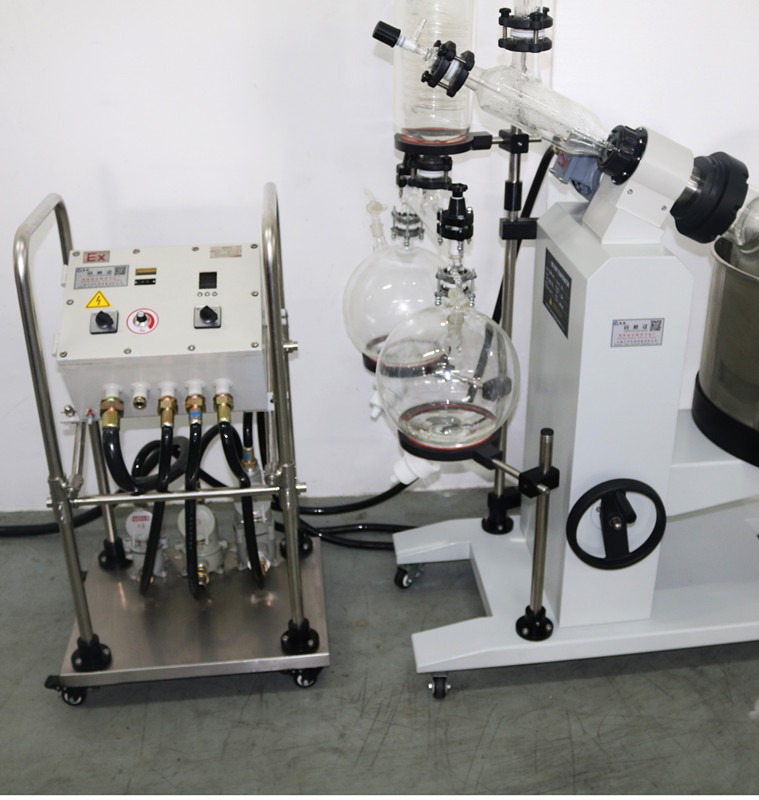

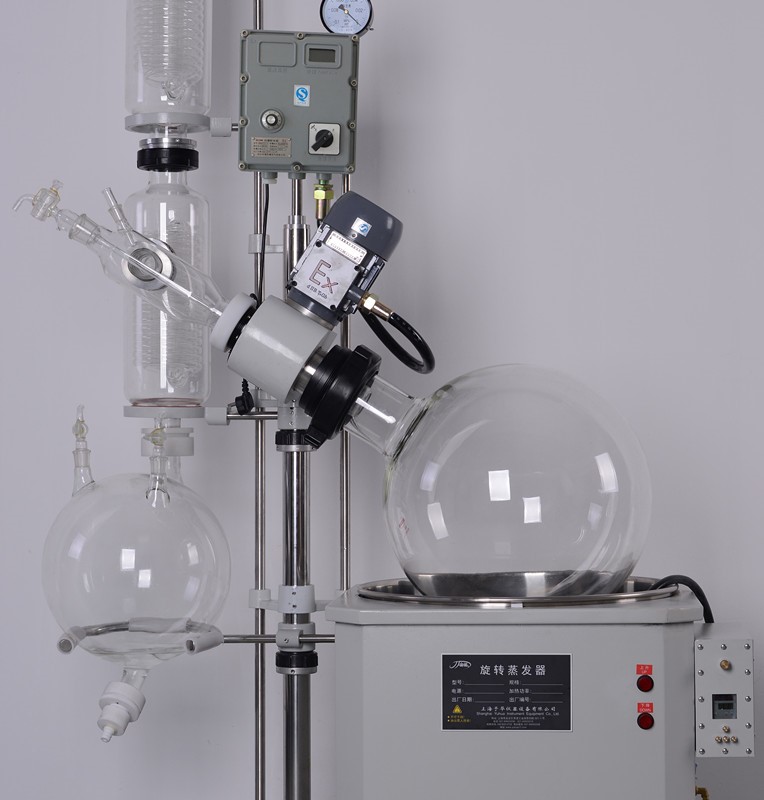

Ex-proof System
With Two Receiving Flask
Shanghai Yuhua Instrument Equipment Co., Ltd is the professional manufacturer, was
established in 2008, in Shanghai, China, with more than 10 years development, we accumulated rich customer groups and huge amount of product application experiences. With rich experience and feedback from customers, we have manufactured series equipment, and widely used in Laboratory, Medical and other Pilot Plant.
Our main products are Rotary Evaporator, Glass Reactor, and its related Heating and Cooling Circulators.
Business License and Product CE Certificate

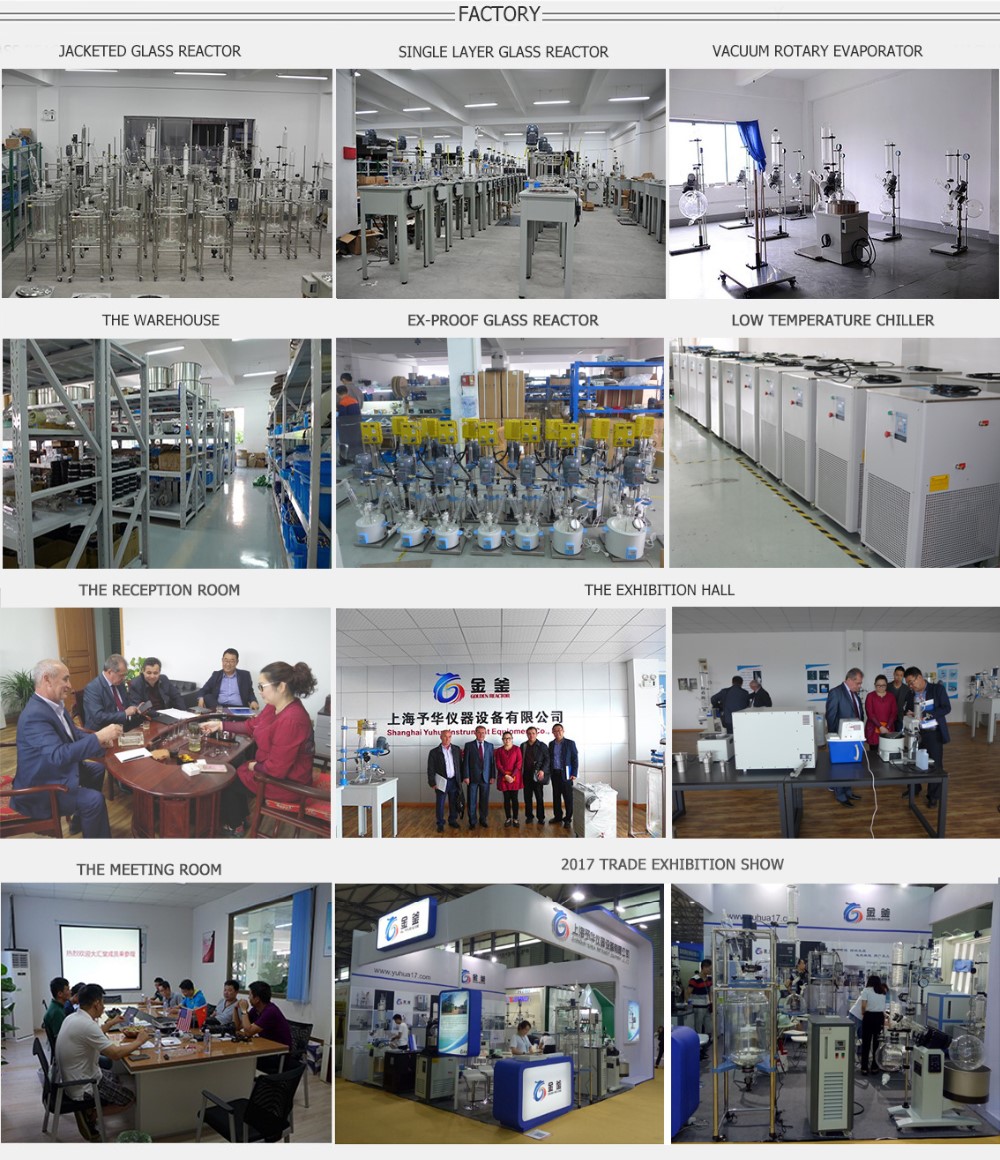

Our Factory and Exhibition
