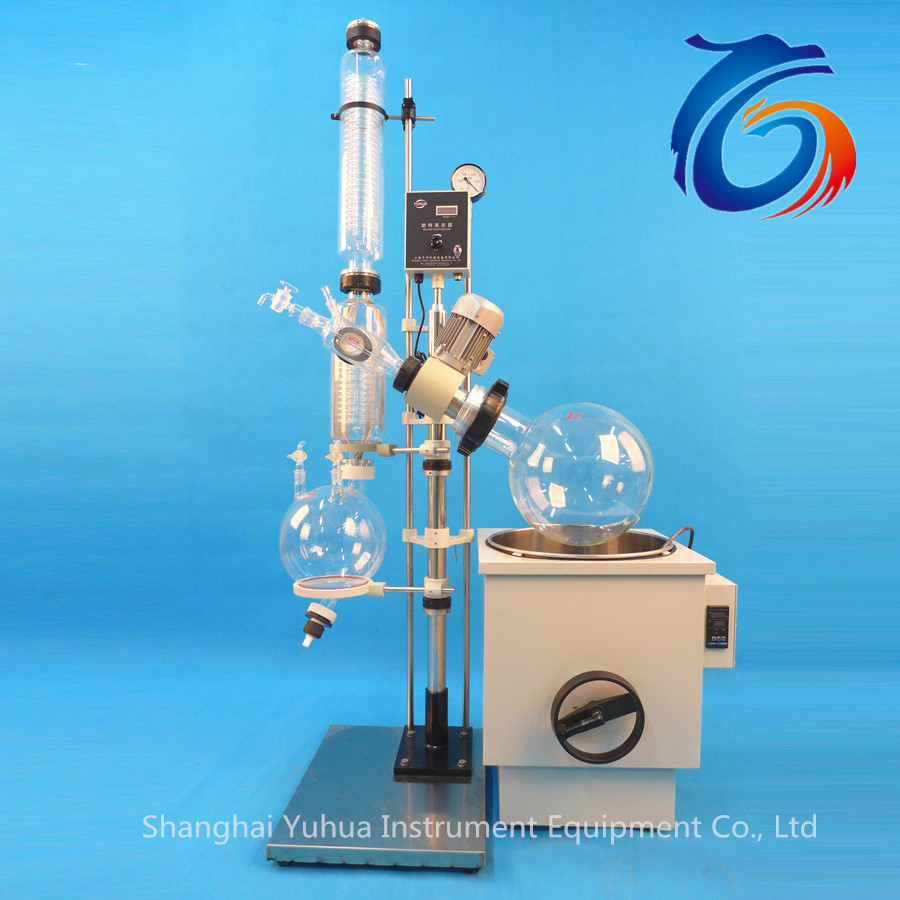

Hot Low Price Multiple Effect Falling Film Evaporator
Evaporator is under normal/negative pressure,with constant heating,
use the different boiling poinof the liquid materialto get your target
solvent .
Evaporator widely used in the processlike Concentration,Refining, Separation,Crystallization, etc.
Evaporator is mainly applied in Biochemical,Pharmaceutical & Fine-Chemical Trades.
Features of Multiple Effect Falling Film Evaporator
1. GG-17 (3.3) high borosilicate glass, with good performance
2. Excellent sealing performance, Ultimate vacuum reached pump vacuum rate 133pa
3. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional PTFE
(Teflon)discharge, no pollution to solvent
4. System vacuum does not drop during discharging shift. Sample received keeps consistent
quality.

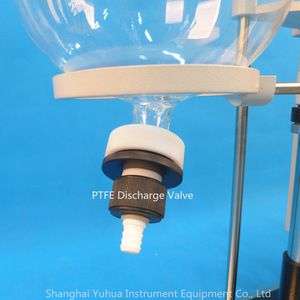

5. PTFE (Teflon) no-liquid -accumulation discharging valve, no-dead-angle reaction, complete
PTFE valve, anti-corrosion.
6. Ex-motor optional
Technical parameters of Multiple Effect Falling Film Evaporator
Model | RE-205 | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-3002 | RE-5002 |
Rotary flask(L) | 0.5-2 | 3 | 5 | 10 | 20 | 30 | 50 |
Receiving flask(L) | 1 | 2 | 3 | 5 | 10 | 20 | 20 |
Evaporating Speed (H2O) | 1.2L/h | 1.5L/h | 2L/h | 3L/h | 5L/h | 7L/h | 9L/h |
Discharge | Optional | PTFE (Teflon) Bottom Discharge Valve | |||||
Motor power (W) | 40 | 180 | 250 | ||||
Rotation speed (rpm) | 0~150 | 3~110 | 3~90 | ||||
Bath power (kw) | 1 | 1.5 | 3 | 6 | |||
Power | 220V, 50/60Hz | ||||||
Bath temp range | Water: RT~90°C Oil: RT~200°C | ||||||
Glass Material | GG-17 (3.3) High Borosilicate Glass | ||||||
Reachable Vacuum Rate | <133Pa (1.33mbar, 1 Torr) |

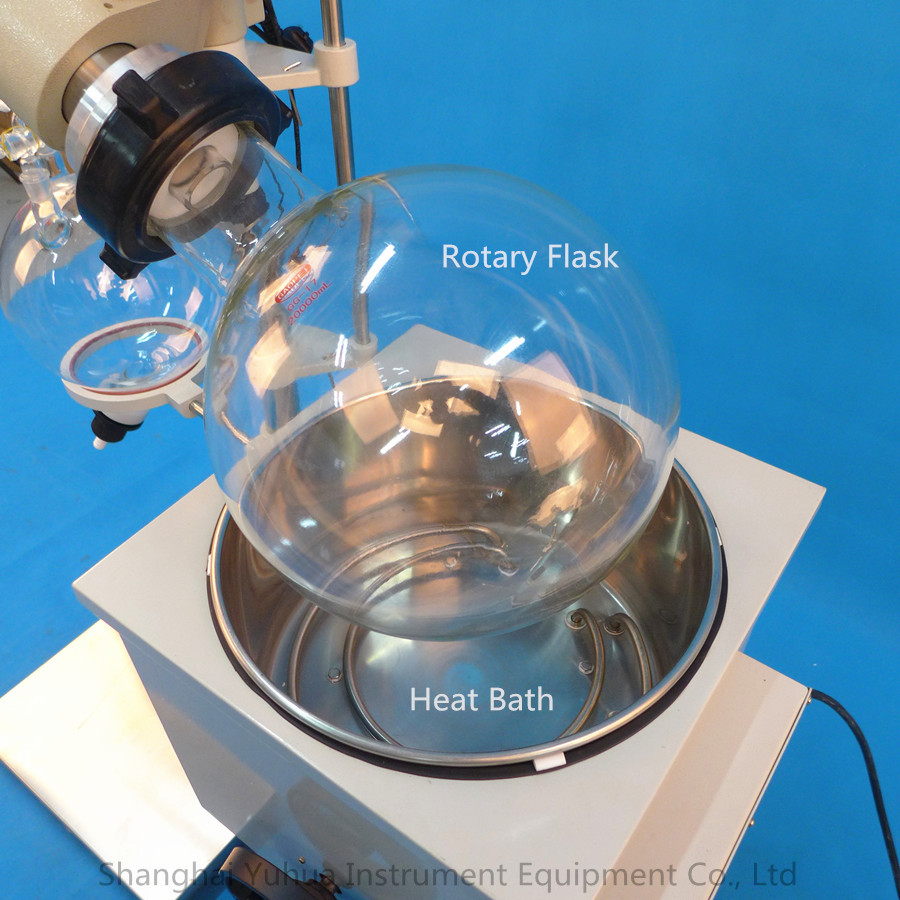

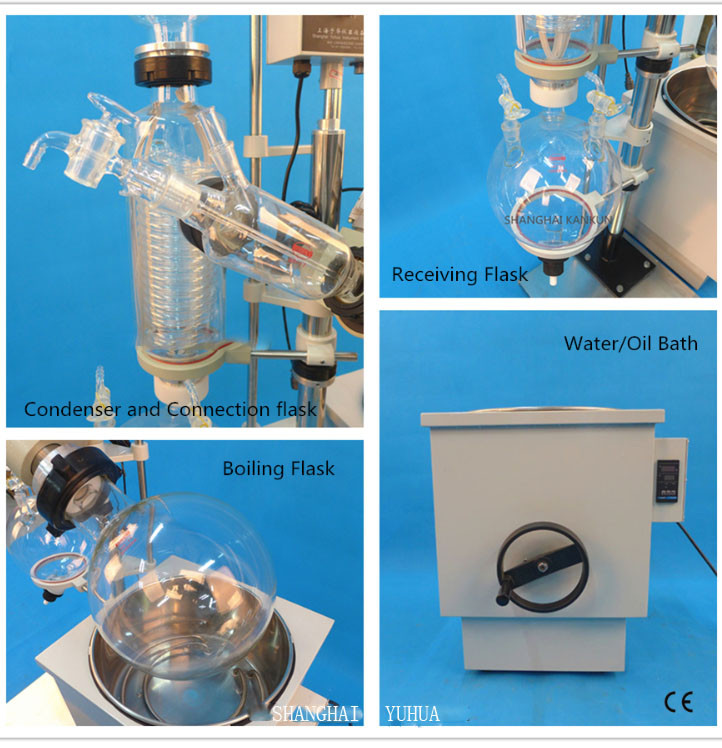

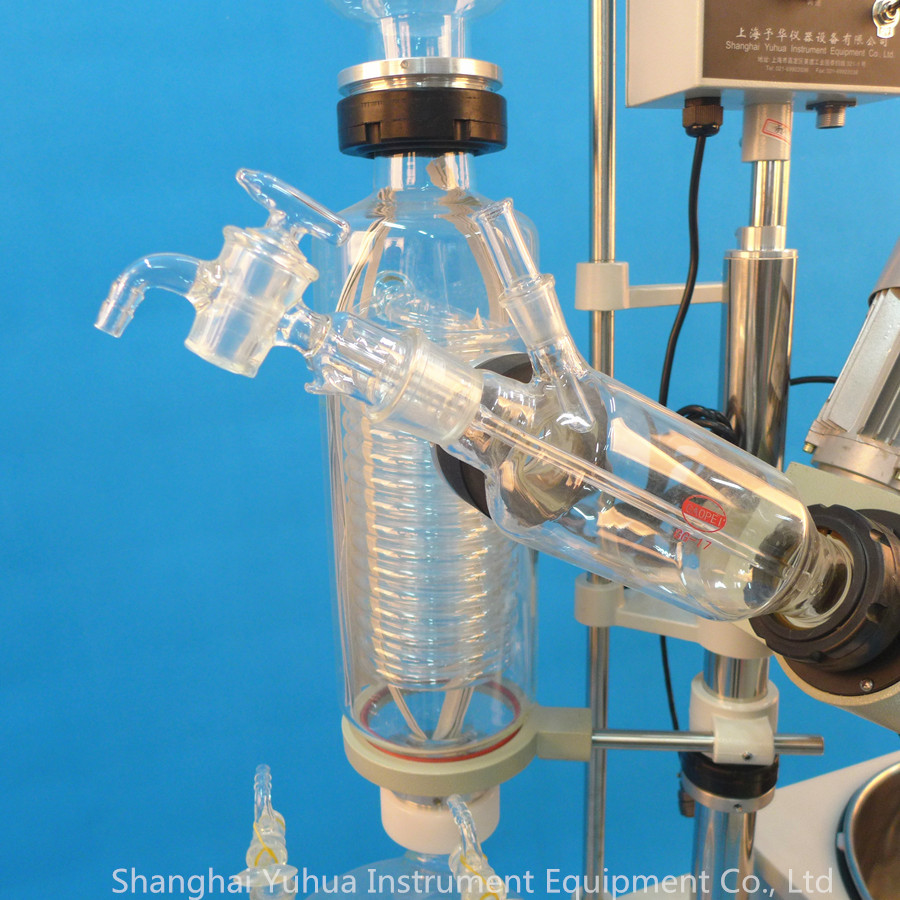

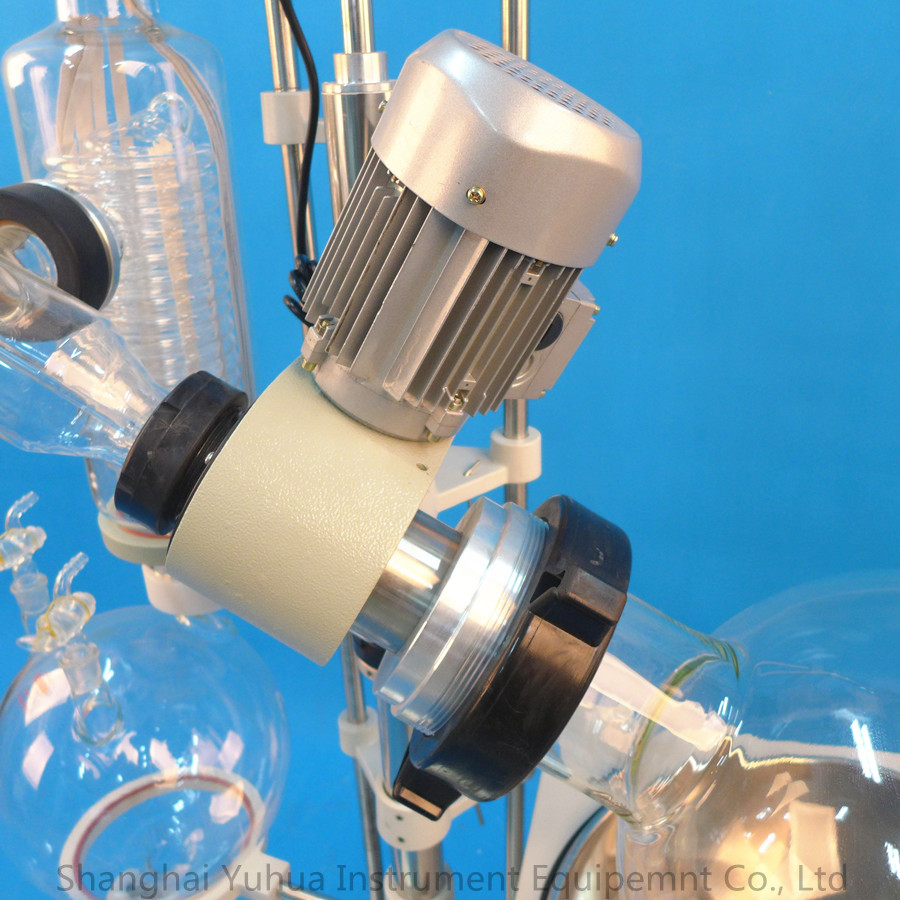

Details of Multiple Effect Falling Film Evaporator

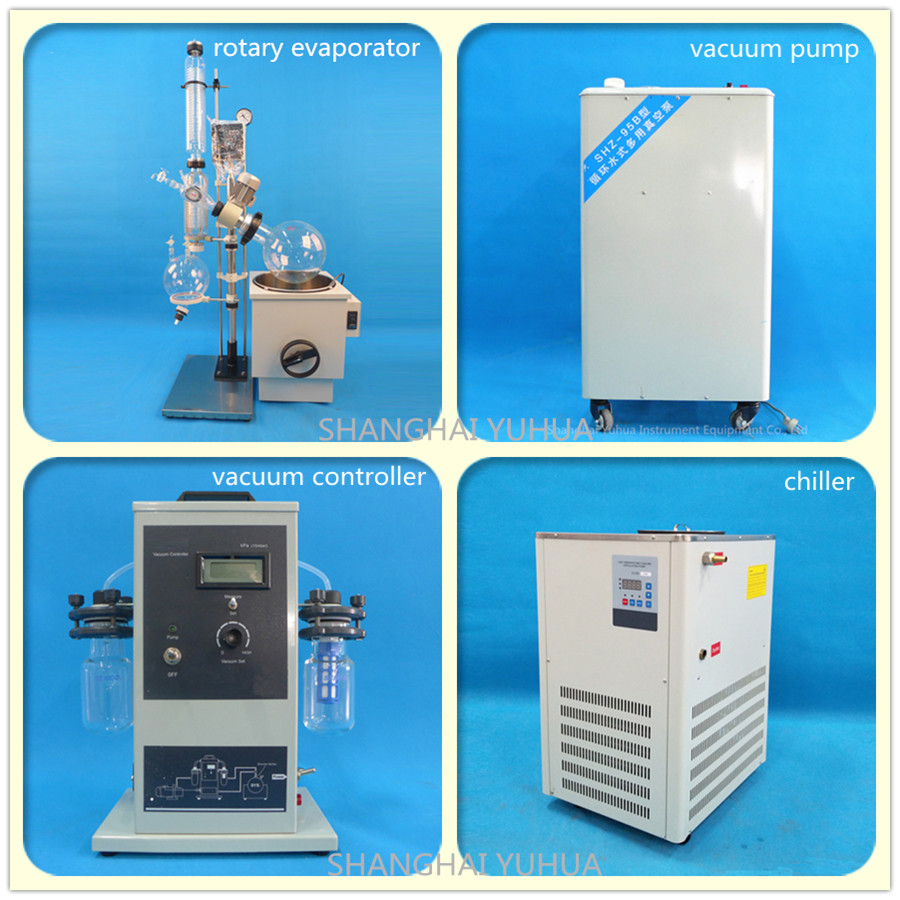

Matched equipment of Multiple Effect Falling Film Evaporator
Packing
-Wooden case or carton case
-Both neutral and customized packaging can be available
Shipping
Warranty
- One year from the deliver date
- Provide lifetime service for whole equipments
Customized Service
- According to your requirements and practical application
- Find the best solution
- Beautiful and practical
Also OEM Servic is available.
Shanghai Yuhua Instrument Equipment Co., Ltd was established in 2008, with more than 7 years development, we accumulated rich customer groups and huge amount of product application experiences.
