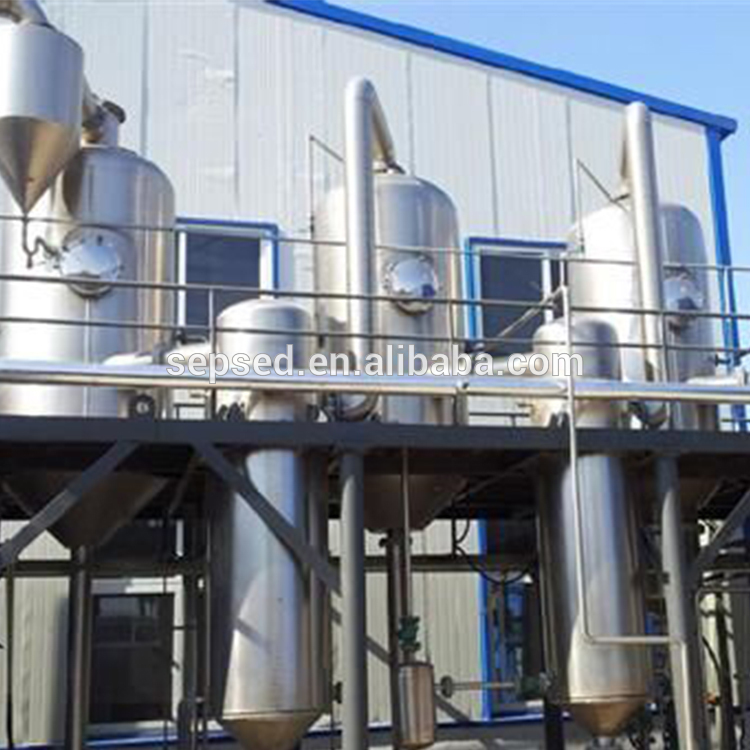

China Factory MVR Evaporator for Milk/Gloucose/Organic Acid/Xylose Processing Machine
The characteristics of MVR evaporator:
1.Energy saving: high thermal efficiency, energy saving, lower energy consumption, the energy consumption of 1t water evaporation is about 1/5 to 1/3 of conventional evaporator.
2.Environmental protection: completely get rid of dependence on steam boiler, the mechanical vapor recompression evaporator could be start-up by electricity.
3.Without boiler ,Don't need to burn coal ,A small amount of steam ,A small amount of cooling water.
The operation cost is low: due to low energy consumption, the operating cost of the whole evaporator is only 1/3 to 1/2 of traditional evaporator.
4.Small area: the system has high dense mechanical structure, so the cover area is less than 50% of traditional evaporator.
5.Mild evaporation: low temperature evaporation, the heat transfer temperature difference is low, so the system is not easy to scale.
6.High degree of automation: high degree of automation, simple operation, easy to operate.
MVR and triple effect evaporation equipment running cost compare:
| Name | MVR evaporator | Triple-effect evaporator |
| Steam consumption cost | 0.6(material pre-heating steam consumption)t/h×180RMB/t=108RMB/h | [4.0+0.6(material pre-heating steam consumption)]t/h×180RMB/t=828RMB/h |
| Electric charge | 500kw/h×0.80RMB/kw=400RMB/h | 160kw/h×0.80RMB/kw=128RMB/h |
| Recovery of condensed water | 10.6t/h×3RMB/t=32RMB/h | 14.6t/h×3RMB/t=44RMB/h |
| Operation cost per hour | 108+400-32=476RMB/h | 828+128-44=912RMB/h |
| Annual operating cost | 476RMB/h×24h×300day=3427200RMB | 912RMB/h×24h×300day=6566400RMB |
| Annual operating cost difference:6566400-3427200=3139200RMB=$469034.35 |
Application:
The environmental protection industry
1 Industrial Wastewater
2 environmental protection salt containing wastewater
3 landfill leachate Chemical industry
1 pharmaceutical wastewater
2 the production of salt containing wastewater
3 chemical products concentrated or crystallization
The food industry
Sugar, milk, extraction of glucose and amino acids concentration etc.
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
Flexible and multiply shipping methods for on-time shipment:
* We have good cooperation with many internationl express companies such as DHL/ UPS/ FedEx/ TNT
and other, as well as large shipping companies to provide air shipping and sea shipping.
* We can also arrange global shipment as clients' requirement.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
