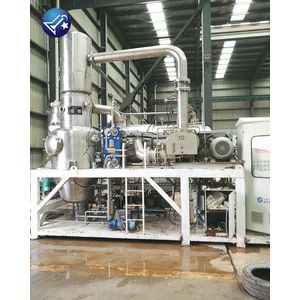

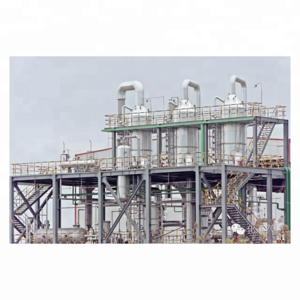

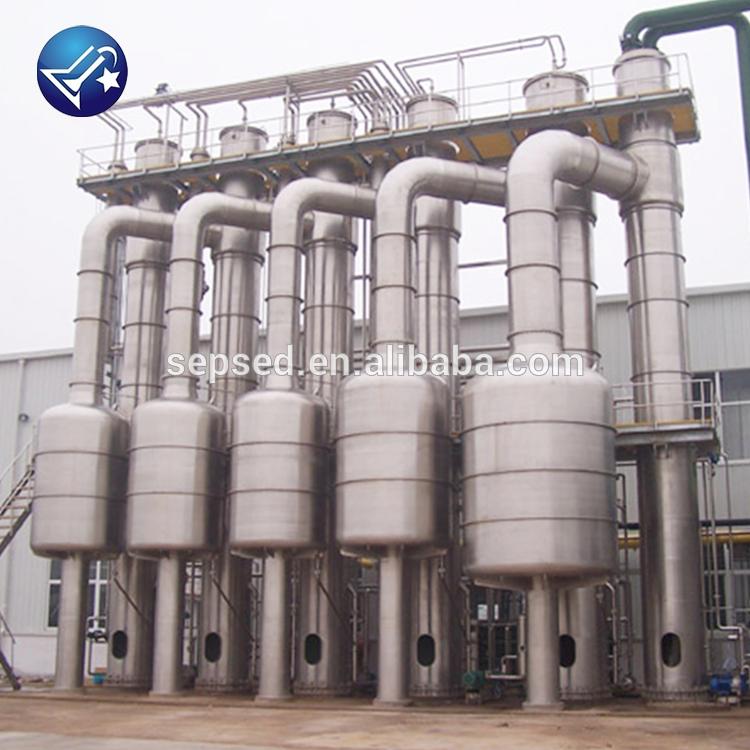

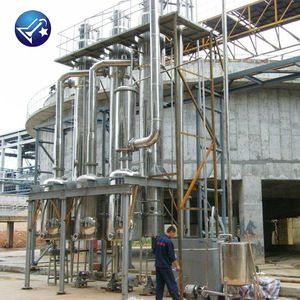

Industrial Liquid Concentration Triple-effect Falling Film Evaporator
Main Para meters
1.Single Effect Falling Film Evaporator
| Parameters | QGHG-500 | QGHG-1000 | QGHG-1500 | QGHG-2000 | QGHG-3000 |
| Evaporation Capacity (kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Steam Press (Mpa) | <0.25 | ||||
| Vacuum Degree (Mpa) | 0.08 | ||||
| Concentration Ratio | 1.2~1.3 | ||||
| Dimensions (mm) | 2000*1000*3000 | 2200*1200*3300 | 2500*1300*3500 | 4600*2350*50000 | 5500*2800*5000 |
2.Double Multi-Effect Fallig Film Evaporator
| Model | QCHG-30 | QGHG-600 | QGHG-700 | QGHG-1250 | QGHG-2000 | QGHG-2500 | QGHG-3000 |
Moisture Evaporation (kg/h) | 30 | 600 | 700 | 1250 | 2000 | 2500 | 3000 |
| Material Disposal Quantity | 40 | 800 | 900 | 1700 | 2700 | 3300 | 4000 |
| Steam Cost (kg/h) | 17 | 410 | 280 | 500 | 800 | 1000 | 1200 |
| Cooling Water Cost (T/h) | 17 | 7.2 | 5 | 9 | 14 | 18 | 21 |
| Dimension (m) | 5*2*8 | 5*2.5*8.5 | 5.5*3*8.5 | 5.5*3*8.5 | 5.5*3*8.5 | 5.5*4*11 | 7.2*4*12 |
The above information can be customized according to customer requirements.
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
Flexible and multiply shipping methods for on-time shipment:
* We have good cooperation with many internationl express companies such as DHL/ UPS/ FedEx/ TNT
and other, as well as large shipping companies to provide air shipping and sea shipping.
* We can also arrange global shipment as clients' requirement.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
