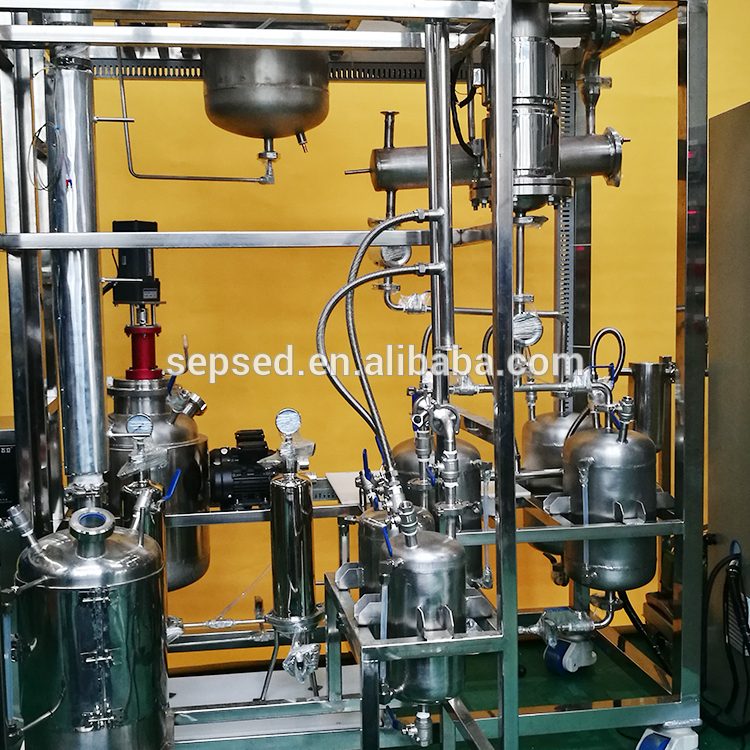

Efficient Stainless Steel Thin Film Evaporator For Drink
About the thin film evaporator
The thin film evaporator is a type of evaporator, characterized by heating the liquid material along the wall, film of liquid flow and heat transfer and evaporation, the advantages of the unit is high efficiency heat transfer, fast evaporation rate, short remaining time of material, therefore particularly suitable for heat-sensitive material evaporation.
Product parameters(lab)
| Model | TFEB-5 | TBES-5 |
| Temperature | Room temp~300℃(Electric heating included ) | |
| Diameter | 75(mm) | 89(mm) |
| Heat Exchange HTA | 0.055 (m2) | 0.055(m2) |
| Feed amount | 500~2000 ( ml/h) | 500~2000( ml/h) |
| Rotation speed | 80-390rpm | 80-390rpm |
| Film system | Self-Clean Roll Filming System | |
| Vacuity | 0. 1mbar~3500mbar(depend on the nature of material and vacuum pump)(vacuum pump not included) |
Product parameters(Production scale
| Model | Diameter(mm) | Evaporation area(m2) | material | Vacuity(pa) |
| TFEB-10 | 100 | 0.1 | Glass | 0.1~3500 |
| TFEB-20 | 200 | 0.2 | Glass | 0.1~3500 |
| TFES-10 | 100 | 0.1 | Stainless steel | 0.1~3500 |
| TFES-20 | 200 | 0.2 | Stainless steel | 0.1~3500 |
| TFES-50 | 300 | 0.5 | Stainless steel | 0.1~3500 |
| TFES-100 | 350 | 1 | Stainless steel | 0.1~3500 |
| Other requirements of the processing capacity can be customized according to your requirements, vacuum requirements depends on the material properties and vacuum system selection. |
Features of thin film evaporator
1. Vacuum pressure drop is small
2. Low operating temperature
3. Heating time is short
4. High evaporation strength
5. Large elasticity of operation
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
Flexible and multiply shipping methods for on-time shipment:
* We have good cooperation with many internationl express companies such as DHL/ UPS/ FedEx/ TNT
and other, as well as large shipping companies to provide air shipping and sea shipping.
* We can also arrange global shipment as clients' requirement.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
