Laboratory Thin Film 10L Rotary Evaporator
The 2017-new Rotary Evaporator features a simple and reliable modular design .It has large capacity, large aperture rotating evaporating bottle and the evaporation area is large, placed in a water bath. Rotary heating let the solution has a effective diffusion of evaporation. Quality control by effison, quality is life.
Main Features of 10L Rotary Evaporator:
1）All the wetted components are made of high quality boro 3.3 glass and PTFE, for excellent corrosion resistance.
High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
2）Modular and straight-forward structure for extremely easy maintenance.
3）High torque motor, high precision worm-gear gearbox and hand lift components for years of quiet and reliable operations.
4）Easy and straight forward operation of speed and temperature controller.
5）1-year hassle-free warranty and life-long parts and phone support.
6）Heavy-duty SS304 support frame and epoxy-coated water/bath enclosure guarantees vibration-free operation.
7）2-stage triple-coil condenser design (0.9 m^2 total cooling surface) with outstanding cooling efficiency.
8）1-way check valve automatically turns off when draining the receiving flask. The pressure inside evaporator won't be changed during draining.
9）The VFD speed controller keeps the motor's torque at its maximum even during low speed range.
10）Various options and accessories are available (vacuum pump, chiller, vacuum controller, cold trap, etc)
| Model | R-1005 | R-1010 | R-1020 | R-1030 | R-1050 | |
| Rotary Flask(L) | 5 | 10 | 20 | 30 | 50 | |
| Receiving Flask(L) | 3 | 5 | 10 | 20 | 20 | |
| Host governor | Stepless speed regulation. | |||||
| Rotating Speed(rpm) | 0-120rpm | |||||
| Rotating Power(W) | 250W | |||||
| Bath | Stainless Steel, Water: RT~99℃, Oil: RT~180℃ | |||||
| Temperature precision | ±1℃ PID intelligence temperature control | |||||
| Vacuum Degree | ＜133Pa | |||||
| Evaporating Capability (L/Hour) | Water | 2 | 3.2 | 5 | 5 | 9 |
| Ethanol | 4 | 6.5 | 11 | 11 | 19 | |
| Lift | Electric Lift | |||||
| Power | 220V/50HZ(Explosion proof optional) | |||||
| Glass Material | High quality Borosilicate glass 3.3 | |||||
| External Dimension(mm) | 835*400*1090 | 990*550*1655 | 1165*600*1775 | 1345*770*2140 | 1345*770*2140 |
Condenser.
High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
Rotary flask.
All the wetted components are made of high quality boro 3.3 glass and PTFE, for excellent corrosion resistance.
Sealing Style: PTFE + Viton Material.
LCD Digital Display.
LCD digital display control panel of rotation speed of rotary flask as well as temperature controller
Rotary Evaporator:
The 2017-new Rotary Evaporator features a simple and reliable modular design . Quality control by Effison, quality is life. Trust us, choose us. We will provide you the best Rotary Evaporator and service.
Welcome to ask any questions about our high quality 10L Rotary Evaporator.
Packaging Details: Carefully packed in wood crates.
Delivery Detail: Shipped in 7 working days after payment.
Vacuum Pump
91.8% Response Rate

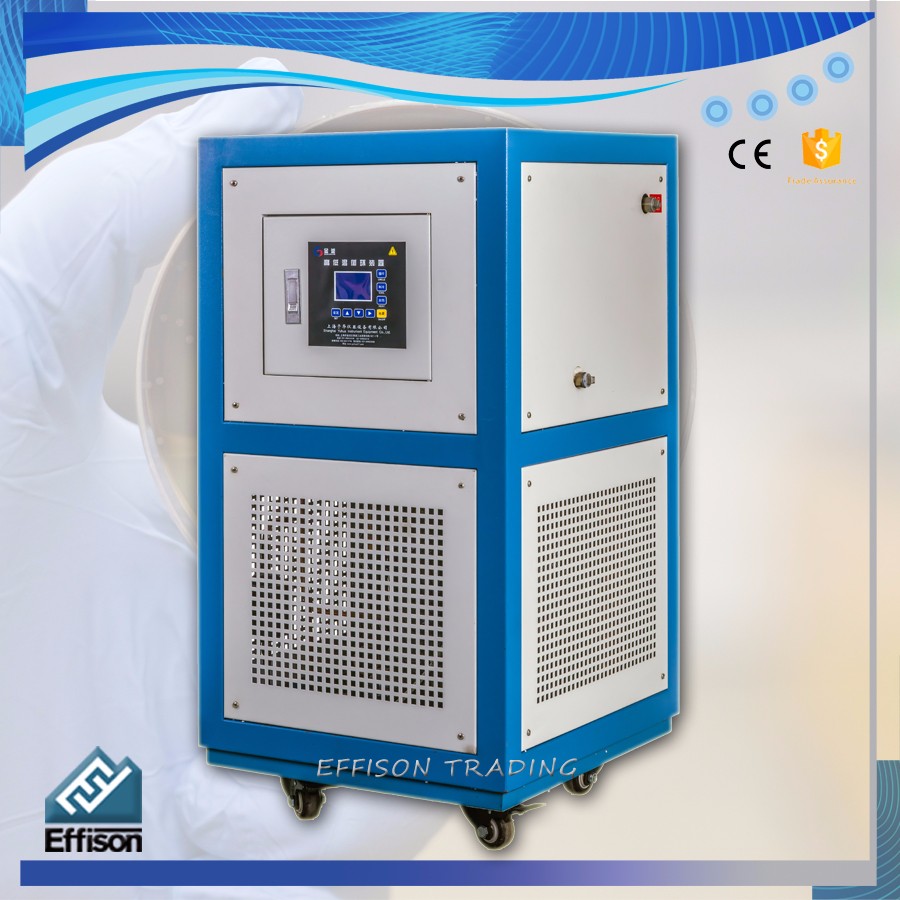

Heating and Cooling Circulator
91.8% Response Rate

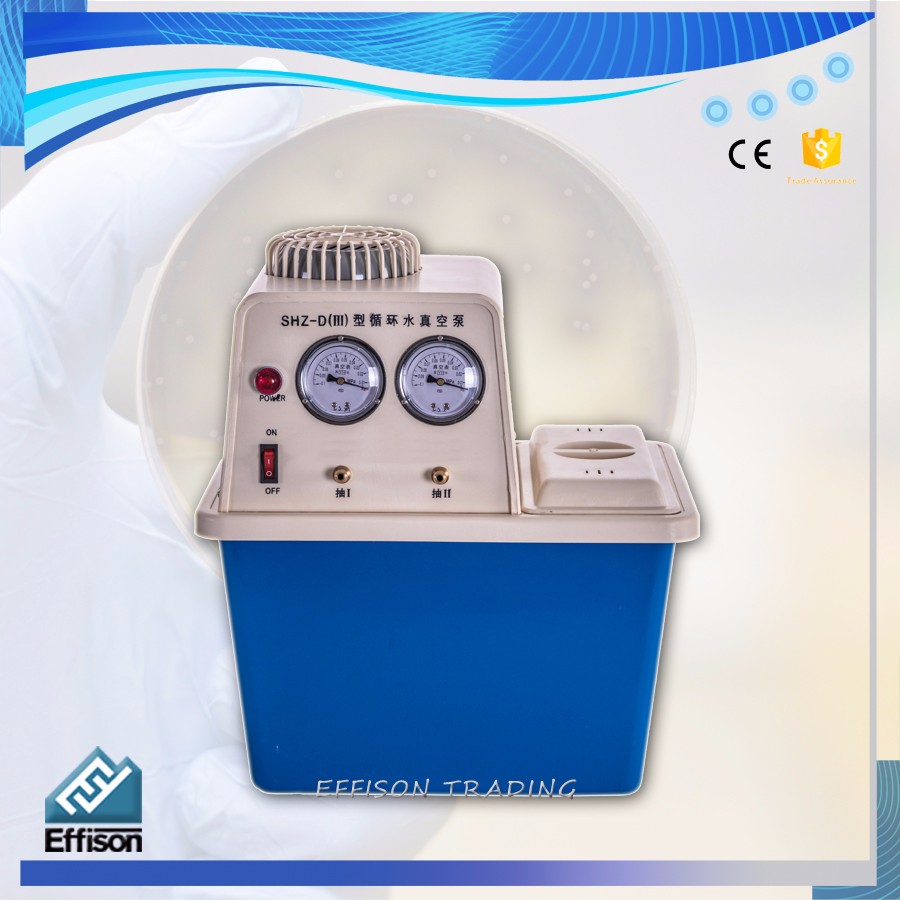

Water Circulation Vacuum Pump
