Cold Alcohol Recirculation Low Temperature Recirculating Chiller
Low temperature recirculating chiller is mainly used to provide low temperature recirculating liquid for rotary evaporators and jacketed reactors, also widely used in low temperature test.

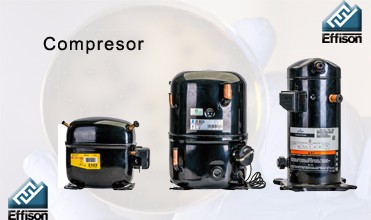

Compressor
Using of Copeland, Danfoss or other international famous brand

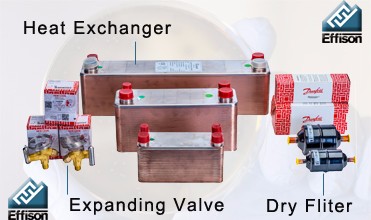

Main Parts

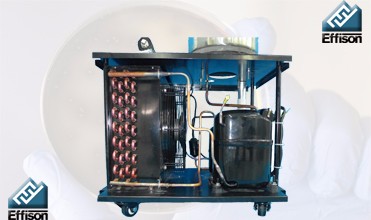

Structure
Professional tube connection
Temperature protection
No leak, no mist and vapor
No freeze
Main Features of low temperature recirculating chiler
--- Digital display and control of temperature, easy to operate.
--- Bigger cooling capacity and faster cooling speed
--- Closed circulation system (heating exchanger), no oil mist and water vapor.
--- Main parts like compressor expansion valve, etc, using of international famous brand (Copeland, Danfoss) with high reliability.
--- With self-diagnosis function, freezer overload protection, high pressure switch, overload relay, thermal protection device, to further assure the operation safety.
--- Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental.
Specifications of low temperature recirculating chiller
| Model | DLSB-5/30 | DLSB-10/30 | DLSB-20/30 | DLSB-30/30 |
| Volume (L) | 5 | 10 | 20 | 30 |
| Temperature Range (℃) | -30~room temperature | |||
| Constant temp accuracy (℃) | ±2 | |||
| Lowest temp with zero load | -30℃ | |||
| Temperature Sensor | PT100 | |||
| Cooling Capacity（W） | 400~1240 | 420~1650 | 653~2272 | 992~5015 |
| Flow (L/min) | 20L/min | |||
| Lift (m) | 6 | |||
| Environmental temp (℃) | 5~25 | |||
| Environmental humidity (RH) | 60%~80% | |||
| Voltage | 220V~240V, 60Hz | |||
| Diameter (mm) | 480*360*600 | 480*360*700 | 520*440*860 | 680*530*960 |
| Weight (kg) | 45 | 85 | 85 | 100 |
For low temperature recirculating chiller, it is maily used to provide lower temperature for jacketed glass reactor, rotary evaporator.

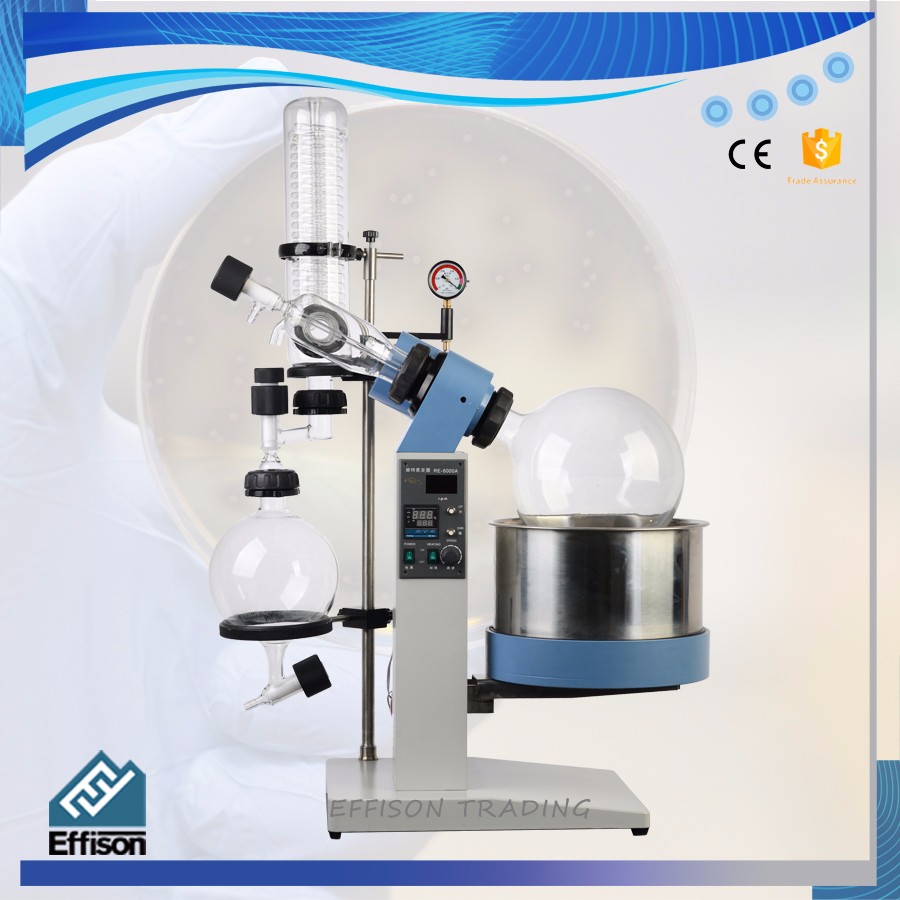

Small Rotary Evaporator
91.8% Response Rate

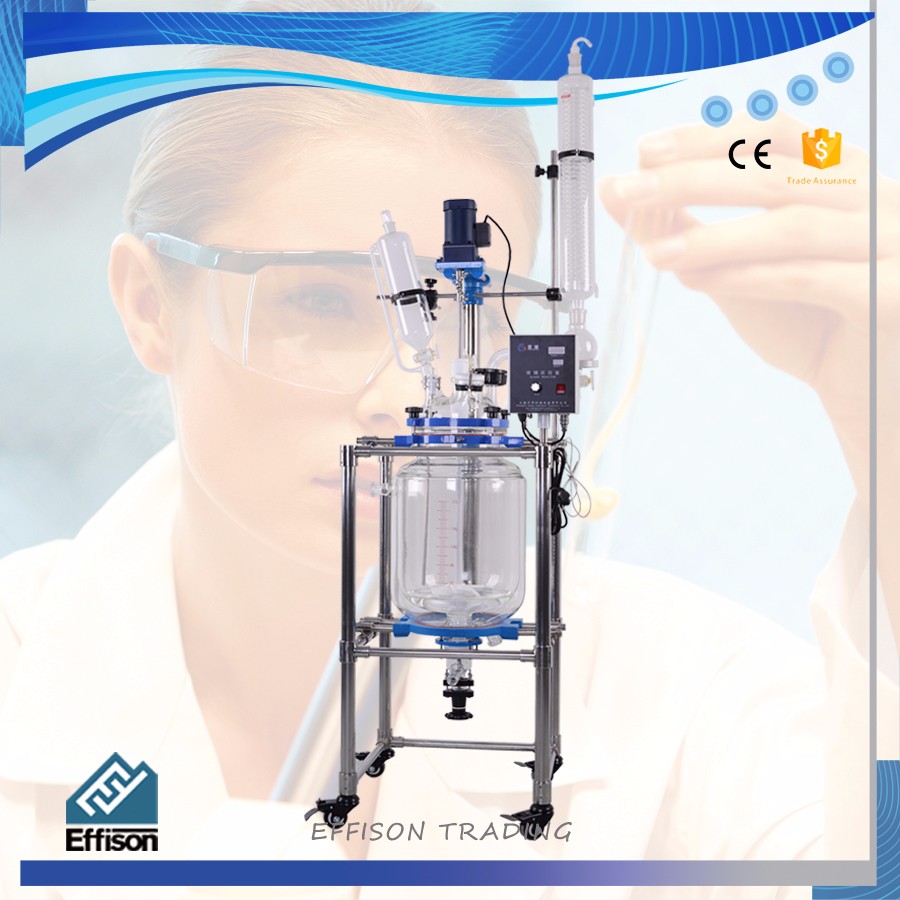

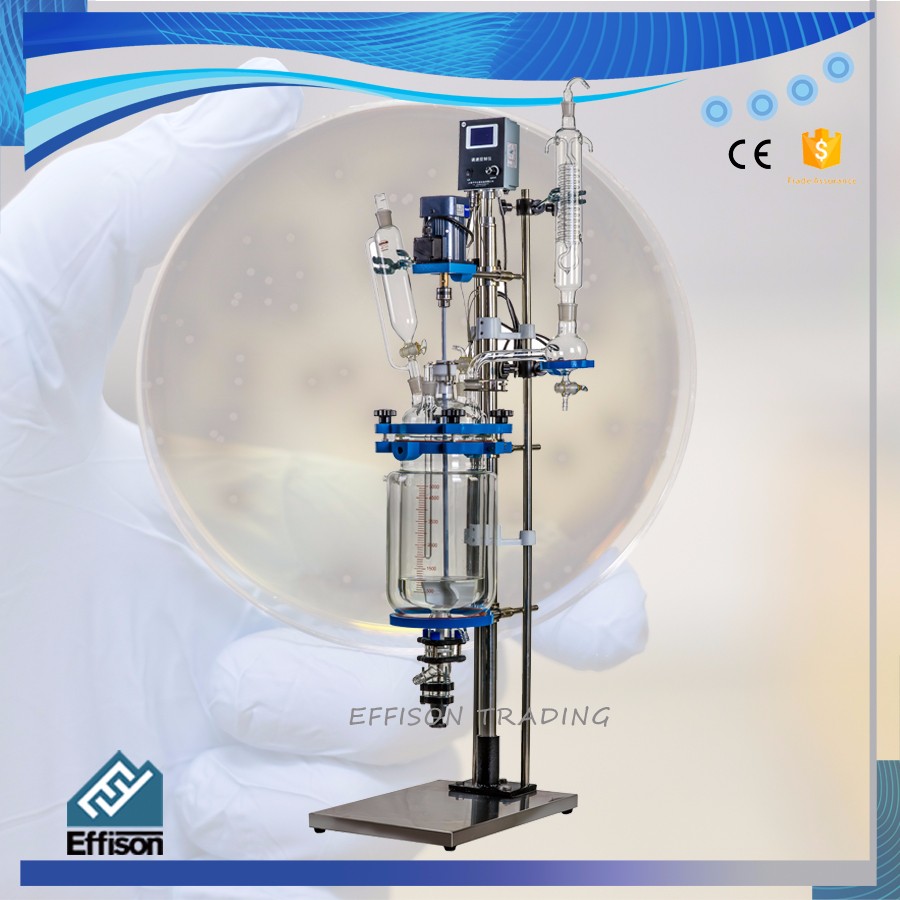

Jacketed Glass Reactor
91.8% Response Rate

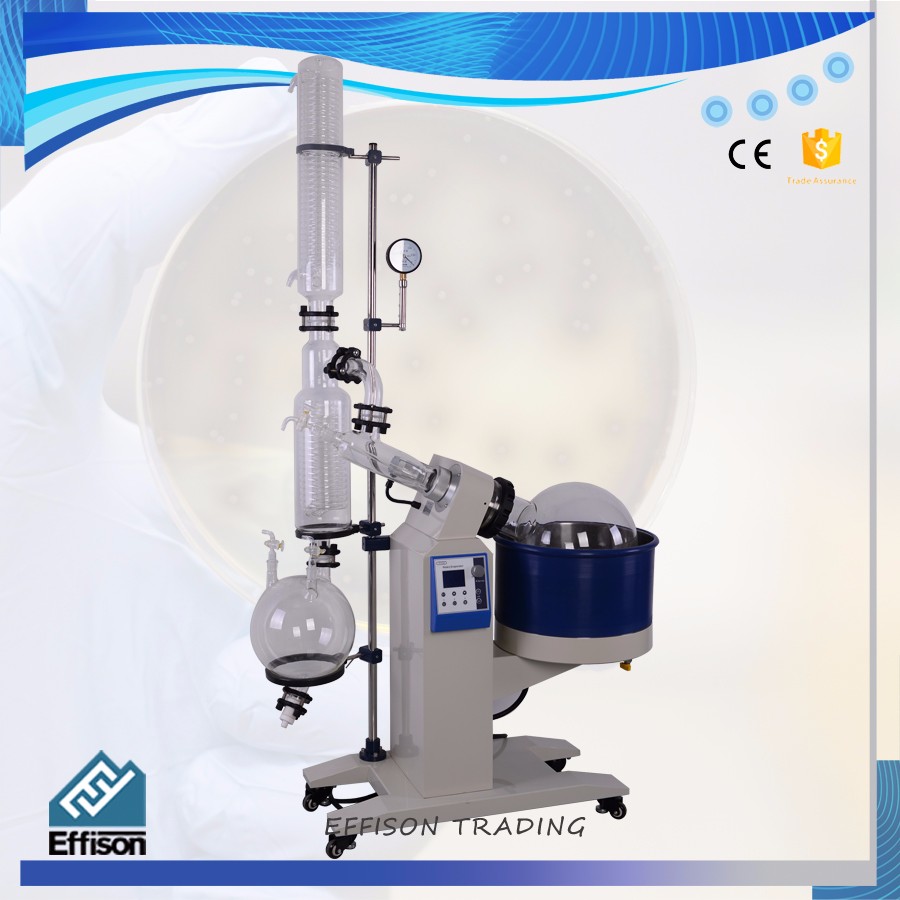

10L~50L Rotary Evaporator
91.8% Response Rate
10L, 20L, 50L Rotary Evaporator

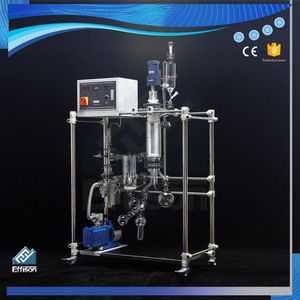

5L, 10L, 20L, Short Path Distiller
New Type 5L rotary Evaporator

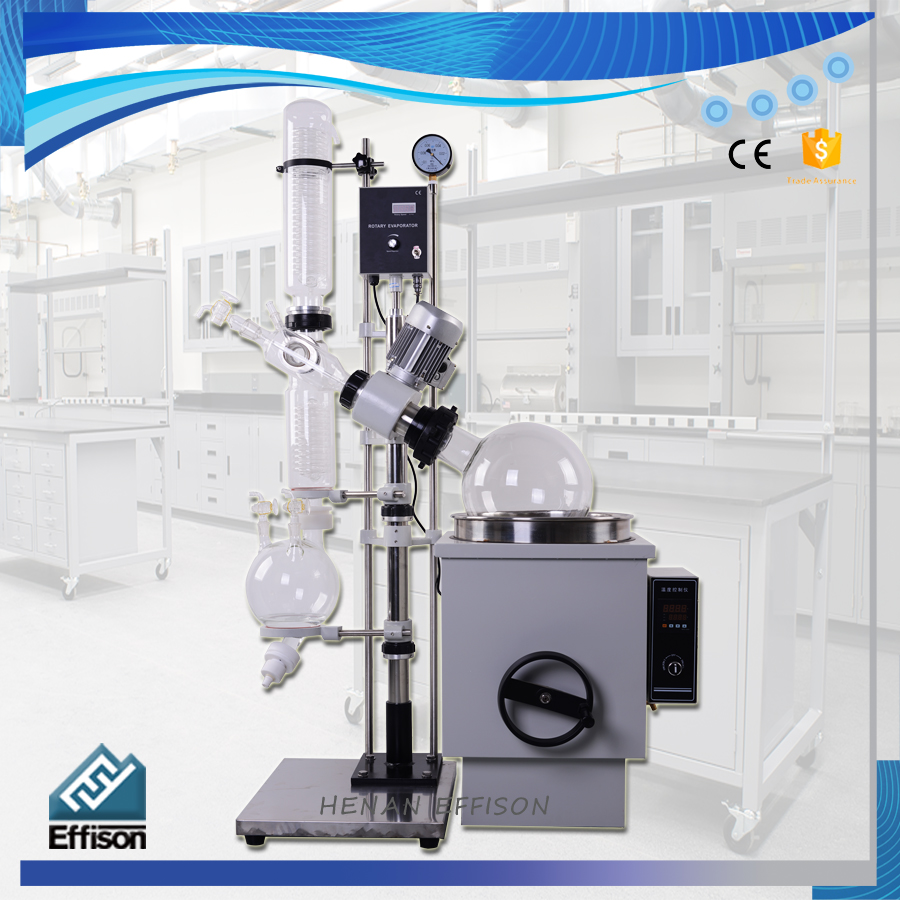

10L, 20L, 50L Rotary Evaporator
1L, 2L, 3L, 5L Glass Reactor

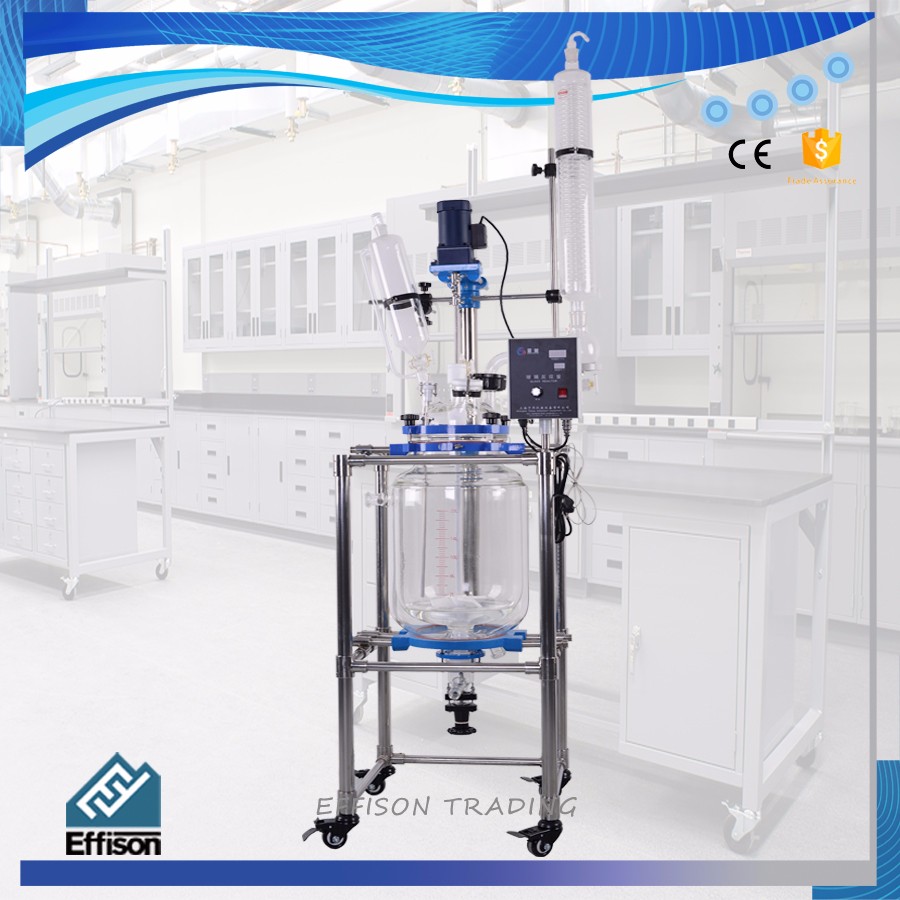

10L~100L Glass Reactor
1. Depends on different goods, the package will use carton case or fumigated wooden case.
2. Acooding to your schedule and budget, we can ship the goods by air, by sea, by express, or by train.
3. If there's any broken during the shipment, we will send you new parts for free.
4. Different countries has different requirements for customer clearance, if you know it, pls tell us.
NO.1 How to choose suitable equipment?
You tell us your work flow and requirement,for example:capacity,temperature range,pressure,power supply,etc.,we will recommend you suitable equipment according to your requirements.
NO.2 How long is your date of delivery?
Within 5 working days after payment confirmed,customized products need 10~15 days.
NO.3 How to solve the equipment trouble during using
Please send us email of the problem,pictures or a small video will be much better,we will find the problem and help you to solve it.
NO.4 Will you provide service beyond the warranty?
Yes,we provide lifetime service for our products,but it won't be free beyond the warranty period.
NO.5 How to transport the product?
By sea:More than 60kg or big quantity,safe,cheap but slow;
By air to airport:Suit for big product or quantity but urgent a lot.3~10 days;
By Express delivery such as DHL,FedEx; TNT:Suit for small or not too heavy and very urgent product.
If you have any questions about the low temperature recirculating chiller, pls feel free to contact us!
