FBL Laboratory Instrument Vacuum Thin Film Rotary Evaporator

functions by subjecting a mixture to heat which removes the volatile components fast by the action of vacuum & rotation.

Technical Feature

  • New
  • Distillation
  • Electric
  • Wiped Film
  • Guangdong, China (Mainland)
  • FBL
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~3

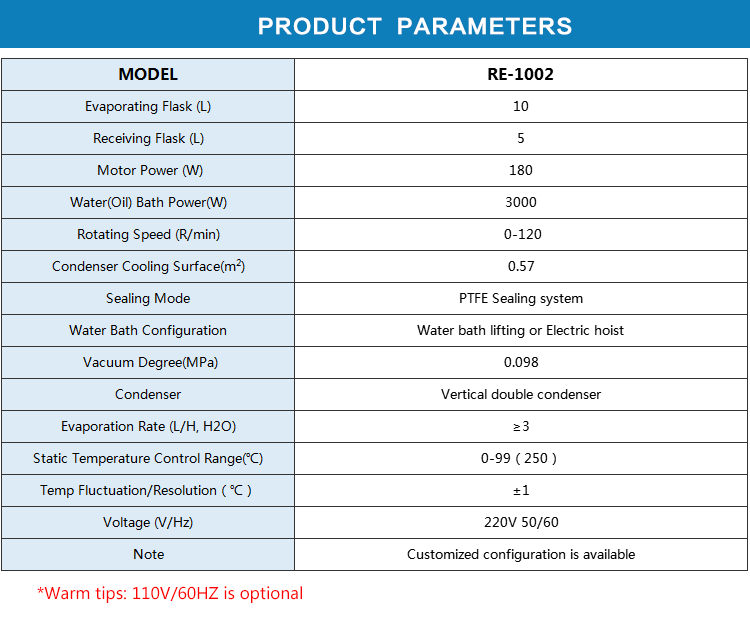

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Wiped Film
Place of Origin
Guangdong, China (Mainland)
Brand Name
FBL
Model Number
RE-1002
Voltage
220V 50/60
Power(W)
180W
Dimension(L*W*H)
1450*500*480 mm
Weight
N.W.120KG
Certification
ISO9001
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Evaporating Flask (L)
10
Receiving Flask (L)
5
Rotating Speed (R/min)
0-120
Evaporation Speed (L/H2O)
>3L/h
Water(Oil) Bath Power(kw)
3
Temperature Control Range
0-99(250)u2103
Temp Fluctuation/Resolution
u00b11/1u2103
Condenser
Vertical Double Condenser
Note
Customized configuration is available
Product name
FBL Laboratory Instrument Vacuum Thin Film Rotary Evaporator

DETAIL DESCRIPTION

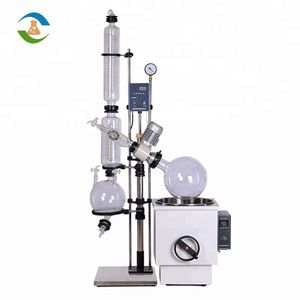

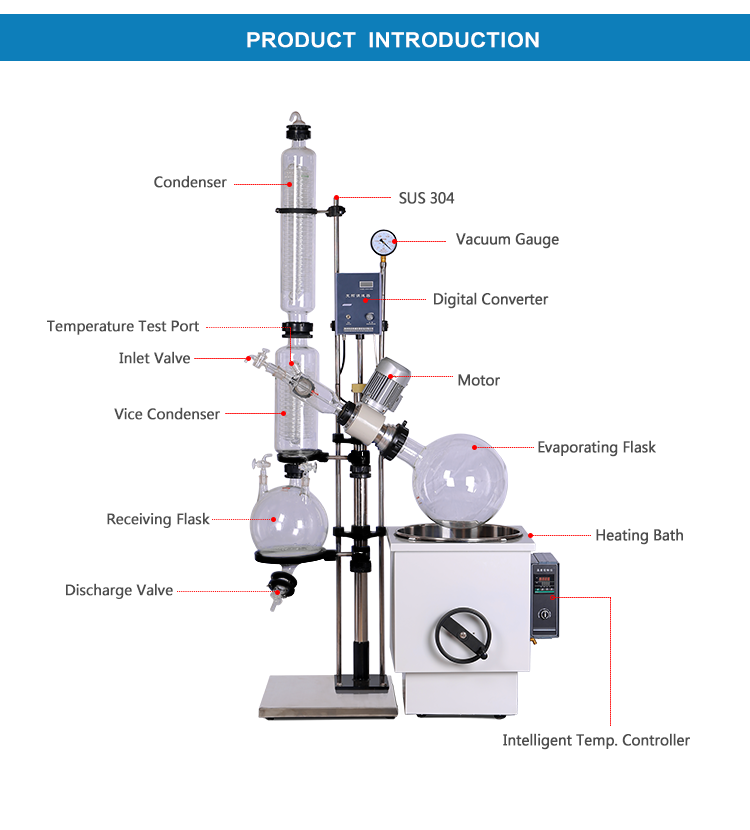

          FBL Laboratory Instrument Vacuum Thin Film Rotary Evaporator

Product Description
The rotary evaporator functions by subjecting a mixture to heat which removes the volatile components fast by the action of vacuum & rotation. The volatile components are condensed & collected. By this way, Temperature sensitive materials(such as beta carotene) can remove solvents from the mixture without damaging the product. Rotary evaporator is faster and easier than steam distillation which needs more time and labor, so it is widely used for condensation, crystallization, separation, recovery in laboratory experiment and pilot production and has become one of the necessary basic instruments in the chemical industry, pharmaceutical industry, universities and research laboratories and other units etc.

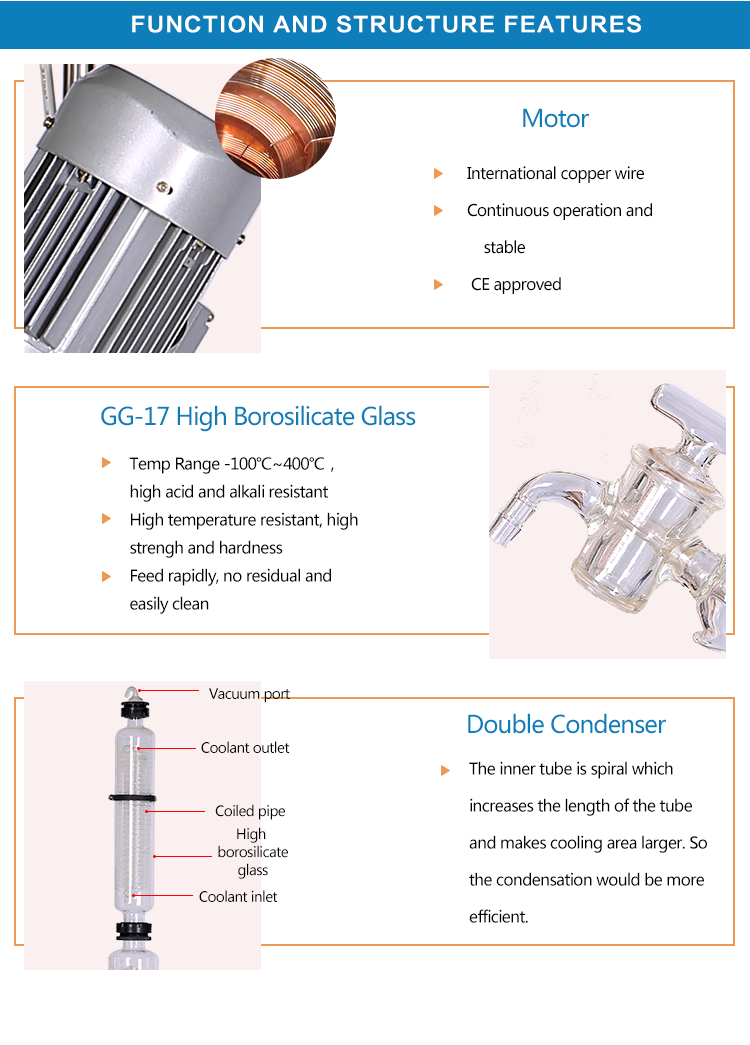

Features of FBL Laboratory Instrument Vacuum Thin Film Rotary Evaporator:

1. Advanced EL gas-tight system keeps high vacuum degree. Gas-liquid separator, no reflux.

2. Double condenser, collection rate over 95%.

3. The rotating flask is easy to install and setup.

4. Continuous feed are available. (Inlet Valve)

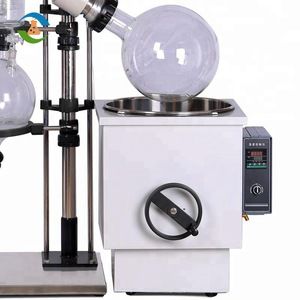

5. Water bath, intelligent PID temp. controller, can be lifted up and down.

6. Built-in transmission system, frequency conversion speed regulation, stable and reliable speed.

7. Explosion-proof system is optional.

8. 110 V/60Hz can be customized.



Acillary Equipment



Circulating Water Vacuum Pump: (click for more details): Provide a vacuum source
Recirculating Cooling Chiller: (click for more details) :  Used for Condensation

Packing and Delivery

Packaging:
-Carton or plywood case
-Both neutral and customized packing are available

Shipping:
-Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.

Company Information

Guangzhou Fan Bo Lun Import and Export Trade CO.,LTD. is a professional laboratory equipment supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities.We are a reliable laboratory equipment manufacturer with a history of more than 30 years for China domestic trade, so we can assure the stable good quality and professional service to our valued customers from the worldwide.



Main Products List:
Rotary Evaporator, Jacketed Glass Reactor, Single Layer Glass Reactor, Circulating Water Vacuum Pump, Vacuum Drying Oven, Blast Drying Oven, High-pressure Reaction Kettle, Freeze Dryer(Lyophilizer), Low Temperature Reaction Bath (Slot),Low Temperature Cooling Fluid Circulating Pump(Cooling Chiller), Water/Oil Bath, Magnetic Heating Stirrer, Hydrothermal Synthesis Reactor, Heating Mantle, Lift Platform,Ultronic Cleaner, Mircowave Reactor,Ultronic Homogenizer,etc.



After-Sales Service


FAQ

1.What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for normal models and 5-10 working days for customized model.
3.Can you accept OEM or ODM?
Yes, we can
4 How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model.
