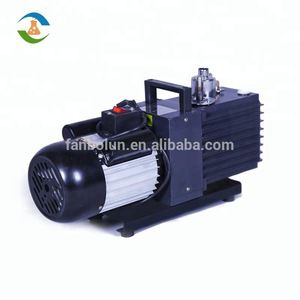

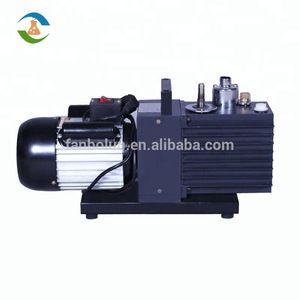

Two Stage 2XZ-2 Rotary Vane Vacuum Pump

PRIMARY PARAMETERS

Place of Origin

Guangdong, China (Mainland)

Brand Name

FBL

Model Number

2XZ-2

Theory

Rotary Pump

Structure

Piston Pump

Usage

Air Pump

Power

Electric

Standard or Nonstandard

Standard

Fuel

electric

Pressure

Low Pressure

Application

rotary vane vacuum pump

Product name

Two Stage 2XZ-2 Rotary Vane Vacuum Pump

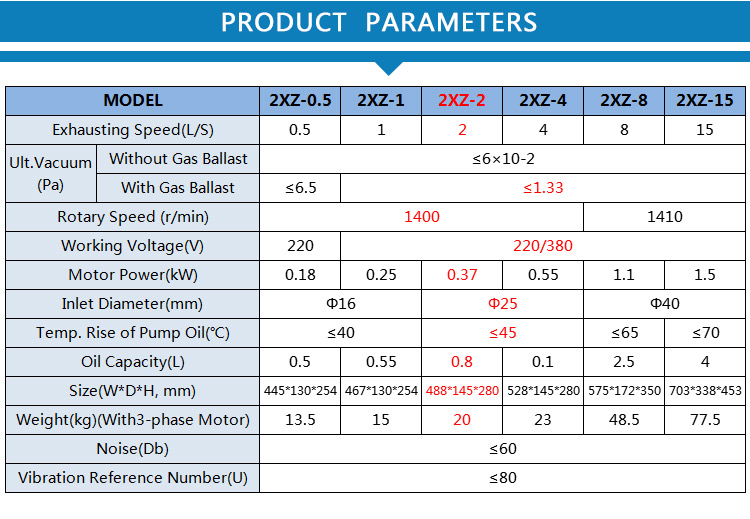

Exhausting speed(L/S)

Rotary speed(r/min)

1400

Voltage (V)

220

Motor power(KW)

0.37

Inlet dia.(mm)

Oil capacity(L)

0.8

Temp. rise of oil pump(u2103)

u226445

Size(W*D*H,mm)

488*145*280

Noise(db)

u226460

DETAIL DESCRIPTION

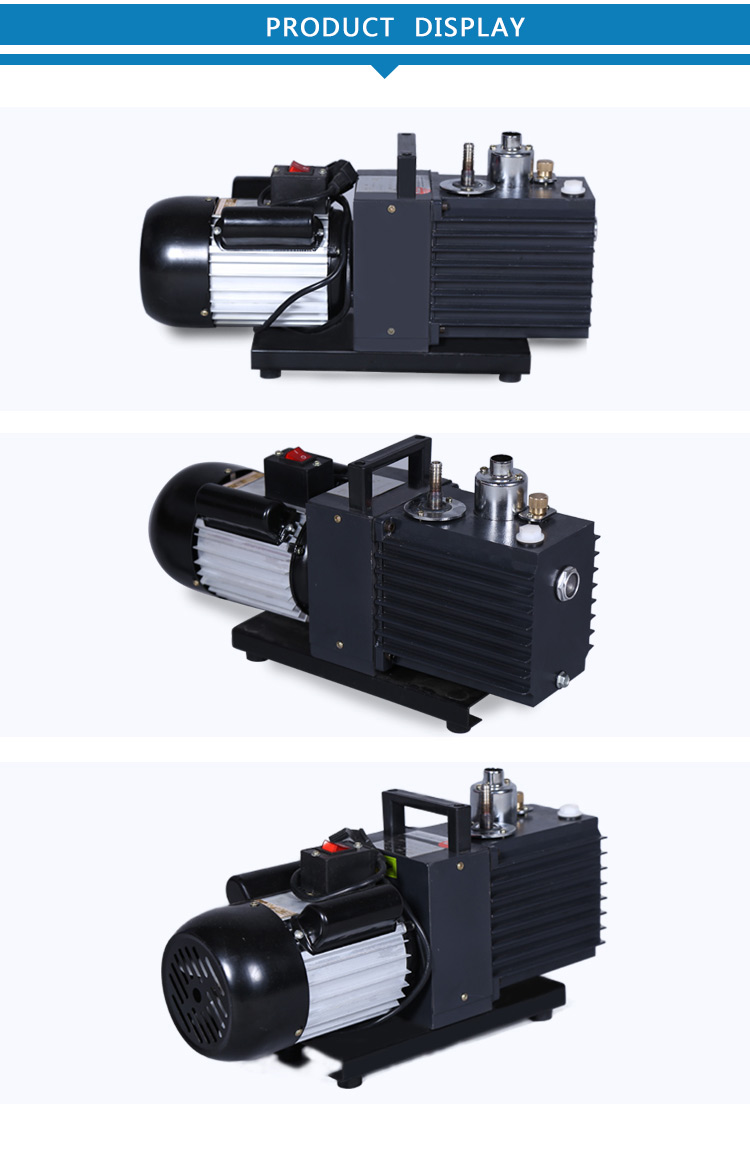

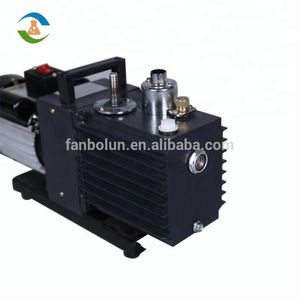

Two Stage 2XZ-2 Rotary Vane Vacuum Pump

Product Description

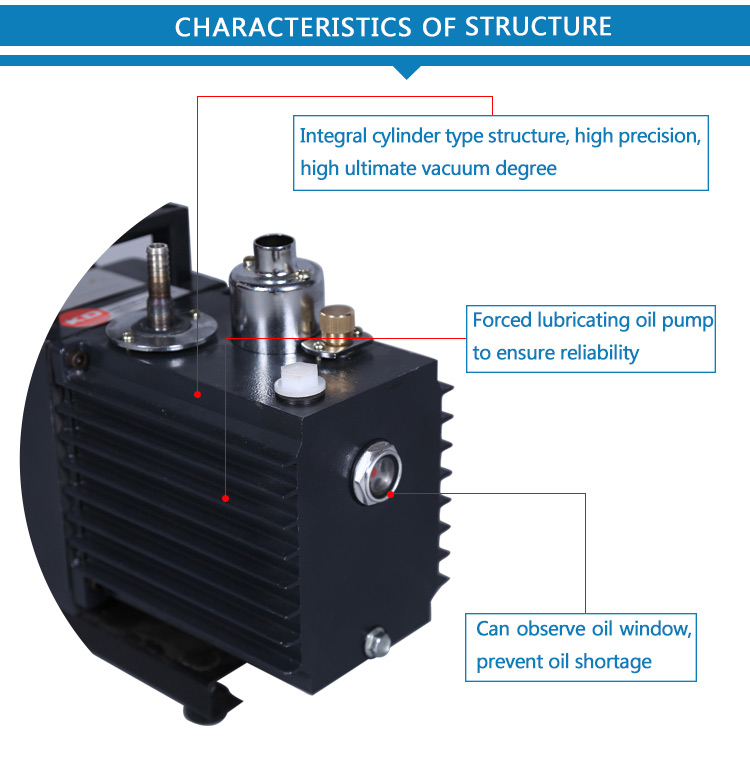

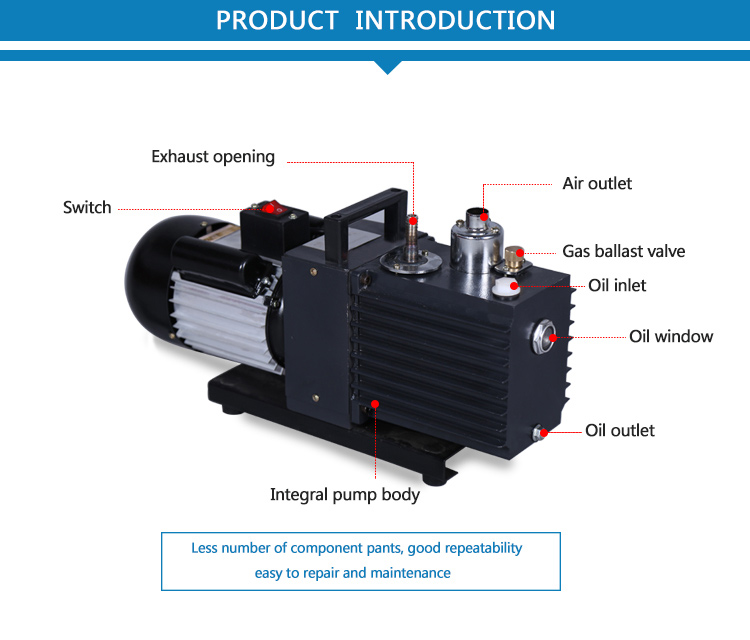

2xz-2 rotary vane vacuum pump is mainly composed of pump body, rotor, rotary vane, end cover, spring, etc. Installing a rotor in rotary vane pump cavity, the outer circumference of the rotor is tangent to the inner surface of the pump chamber, the rotor slot inner is fitted with two rotary vane with springs. When it is rotating,centrifugal force and the spring tension makes the top of rotary vane keep contact with pump chamber wall, the rotating rotor drives the rotary vane to slide along the inner wall of the pump cavity.

Features of Two Stage 2XZ-2 Rotary Vane Vacuum Pump:

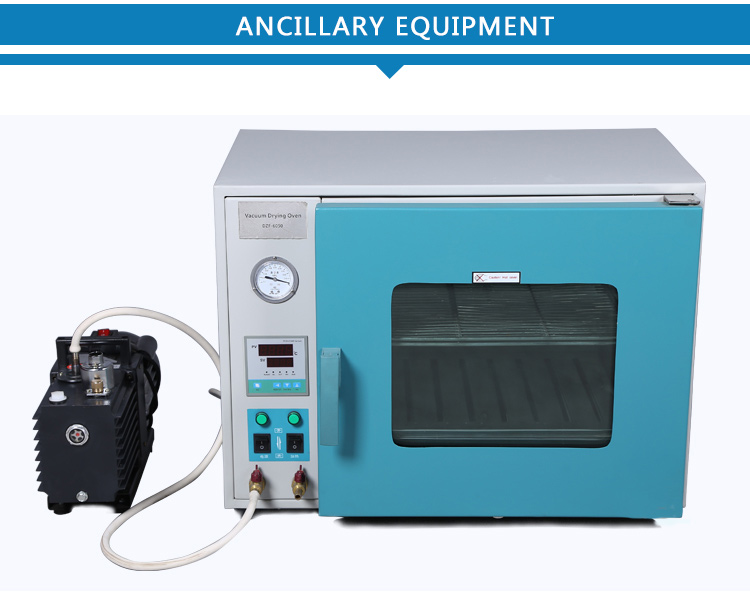

1. The 2XZ series rotary vane vacuum pump belongs to two stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.

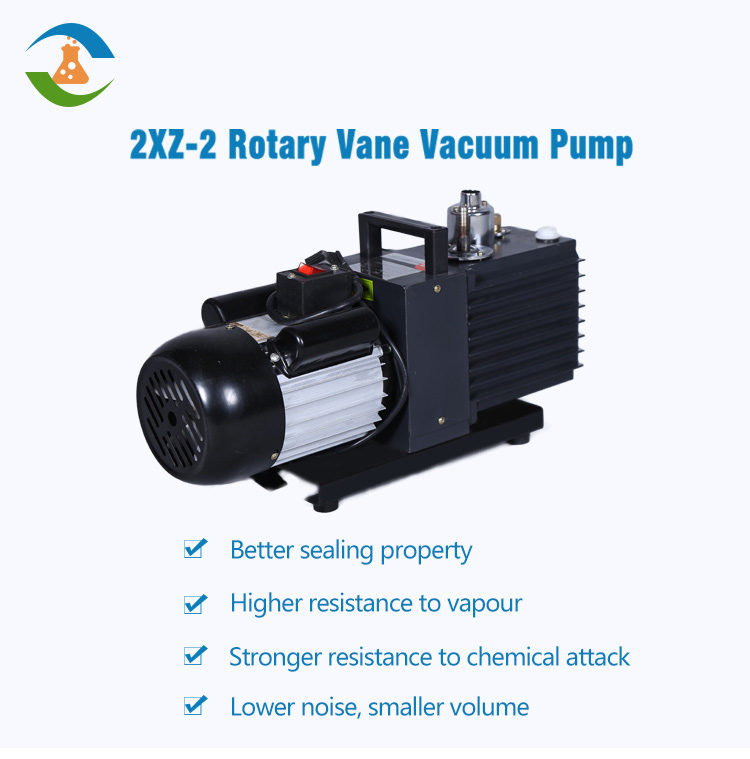

2. It has the advantages of small size, light weight, low noise, convenient for using and more.
3. The 2XZ series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.

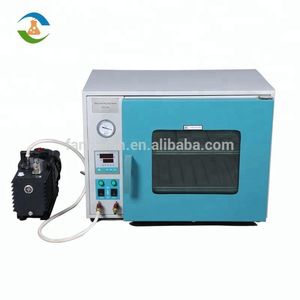

4. 2XZ series rotary vane vacuum pump can be used independently ,which also can be as booster pump, diffusion pump , molecular pump and titanium pump's pre-pump. Also used as electronic devices produce, vacuum drying, filtration ,welding, metal smelting, etc.

******Welcome to Contact Us for More Details and Latest Price******

Company Information

Guangzhou Fan Bo Lun Import and Export Trade CO.,LTD. Is a collection research and development, production, sales, experimental instruments and equipment of private enterprise, with solid strength, reasonable prices, excellent service and many enterprises established long-term relations of cooperati. first-class highly professional team,technical team,facilities and a meticulous quality control system,committed to be the respected leading enterprise in chemical instruments provide more efficient,energy saving.Good quality, customer trust, we always follow the principle of service.
Our flagship product
rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), rotary vane vacuum pump, hydrothermal synthesis reactor, etc.

Certifications

Packaging & Shipping

Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.

After-Sales Service

FAQ

1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for normal models and 5-10 working days for customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model.
