Multiple Effect Industrial Rotary Evaporator Price
The rotary evaporator is heated by water/oil bath to form thin film under the negative pressure condition, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, solvent recovery and so on. And reflux extraction can be avaliable for parts evaporator models. It is one of the necessary basic instruments in the chemical industry, pharmaceutical industry, universities and research laboratories and other units etc., while it is also the main means for concentrated extracts in producing and analysis experiments.
FBL rotary evaporator is the essence of domestic and foreign similar products, and sets our company successful practical experience. We have developed 10 liters, 20 liters, 50 liters large capacity rotary evaporator. And the equipment’s design follows efficient, practical, economic principles to meet customer's requirements maximally.
| Features of Rotary Evaporator | |
| 1 | Advanced EL gas-tight system keeps high vacuum degree. Gas-liquid separator, no reflux |

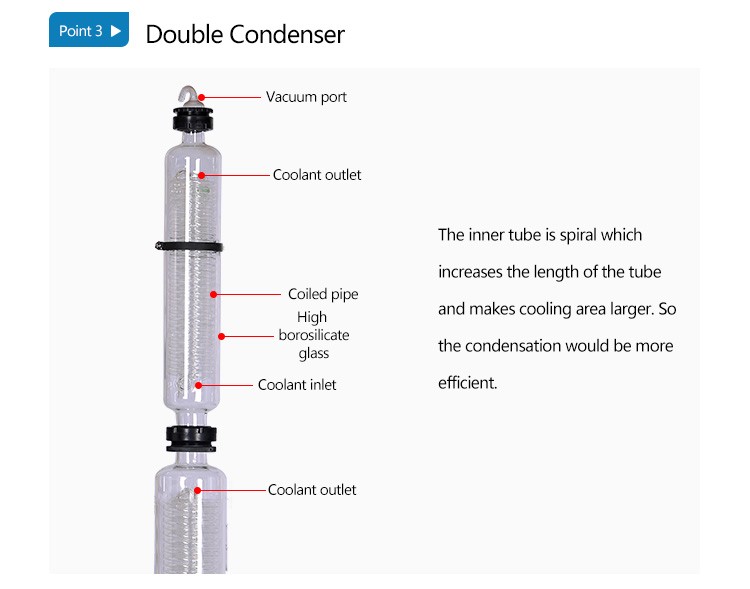

| 2 | Double condenser, collection rate over 95% |
| 3 | The rotating flask is easy to install and setup |
| 4 | Continuous feed are available. (Inlet Valve) |

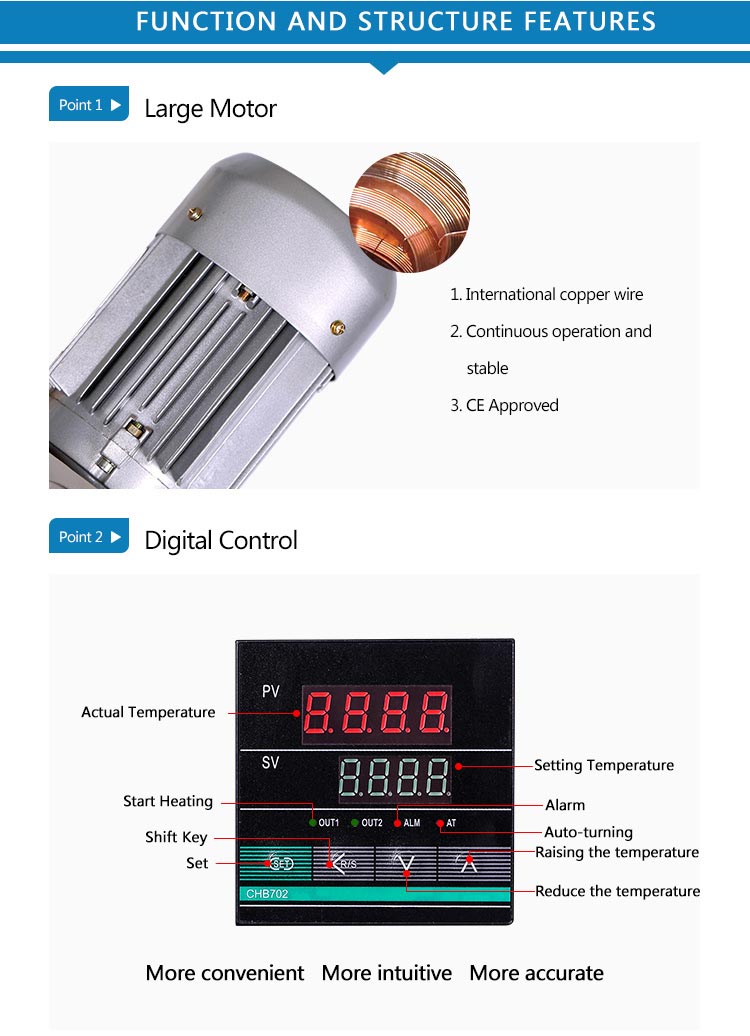

| 5 | Water bath, intelligent PID temp. controller, can be lifted up and down |
| 6 | Built-in transmission system, frequency conversion speed regulation, stable and reliable speed |
| 7 | Explosion-proof system is optional |
| 8 | 110 V/60Hz can be customized |
| Technical Parameters of All Models Rotary Evaporators | ||||||||

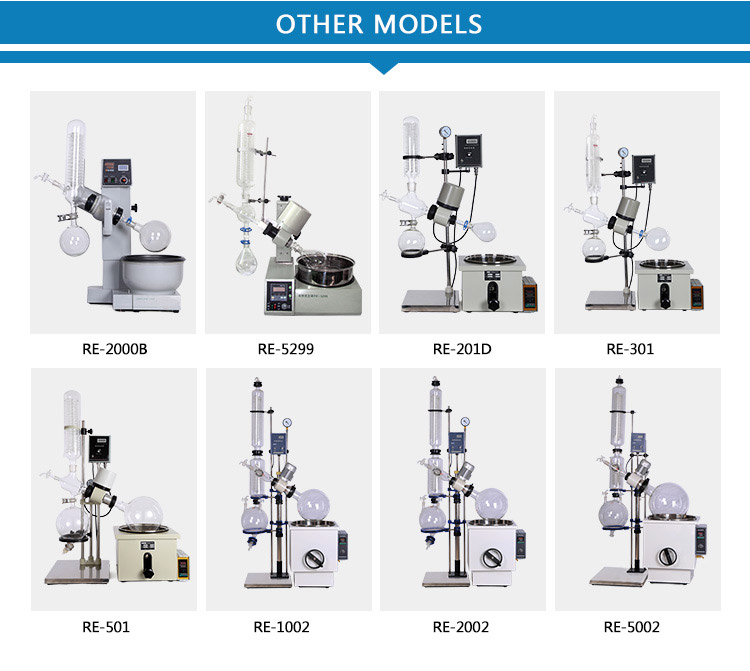

| Model | RE-2000B | RE-5299 | RE-201D | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-5002 |
| Evaporating Flask (L) | 2L 29#conical ground joint | 1/24#(0.25-2L) | 2 | 3 | 5 | 10 | 20 | 50 |
| Receiving Flask (L) | 1L Ball grinding mouth | 0.25-1L/24# | 1 | 2 | 2 | 5 | 10 | 20 |
| Rotating Motor (W) | 40 | 30 | 40(Stepless speed regulation) | 180 | 250 | |||
| Rotating Speed(R/min) | Digital Display 0-120 | 0~120 | 0~90 | |||||
| Water(Oil) Bath Power(W) | 1500 | 1500 | 1200 | 1500 | 3000 | 5000 | 7000/9000 | |
| Temperature Control Range | RT~99℃ | Intelligent digital/RT-399℃ | 0-99(250)℃ | |||||
| Temperature Fluctuation(℃) | ±1 | |||||||
| Evaporation Rate(H2O) | ≥1L/h | ≥1.5L/h | >3L/h | >5L/h | >9L/h | |||
| Condenser | The double backflow integration standard condenser | The double backflow integration standard condenser | ||||||
| Lifting Mode | Motor Automatic Lifting | Automatic Lifting | Water(Oil) Bath Mannal Lifting | Automatic Lifting | Water Bath Lifting or Electric Hoist | |||
| LifingHeight(mm) | 0~140 | 0~150 | 0~120 | 0~220 | ||||
| Voltage (V/Hz) | 220V 50/60 | 220V 50/60 380V 50/60 | ||||||
| Sealing Mode | PTFE, Fluoro Rubber Sealing |
Click

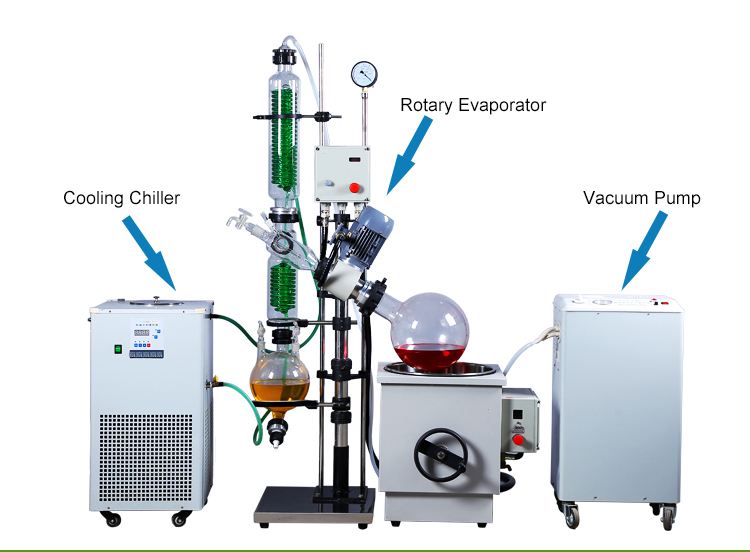

Refrigerated Circulator: used for condensation and reducing waste of materials.
ClickCirculating Water Vacuum Pump: used to provide a vacuum source.
******Welcome to Contact Us for More Details and Latest Price******
Guangzhou Fan Bo Lun Import and Export Trade CO.,LTD. is a professional laboratory equipment supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities.We are a reliable laboratory equipment manufacturer with a history of more than 30 years for China domestic trade, so we can assure the stable good quality and professional service to our valued customers from the worldwide.
Main Products List:
Rotary Evaporator, Jacketed Glass Reactor, Single Layer Glass Reactor, Circulating Water Vacuum Pump, Vacuum Drying Oven, Blast Drying Oven, High-pressure Reaction Kettle, Freeze Dryer(Lyophilizer), Low Temperature Reaction Bath (Slot),Low Temperature Cooling Fluid Circulating Pump(Cooling Chiller), Water/Oil Bath, Magnetic Heating Stirrer, Hydrothermal Synthesis Reactor, Heating Mantle, Lift Platform,Ultronic Cleaner, Mircowave Reactor,Ultronic Homogenizer,etc.
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.
1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for normal models and 5-10 working days for customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model.
