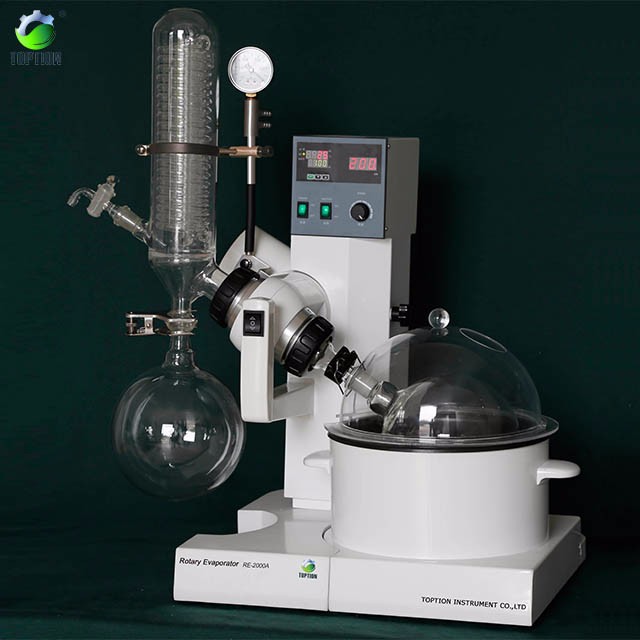

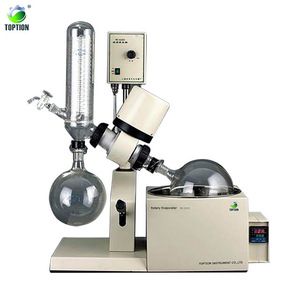

2017 New Digital Thin Film Short Path Disttilation Rotary Vacuum Evaporator For Cbd Oil Extraction 0.5l,1l,2l

PRIMARY PARAMETERS

Condition

New

Application

Distillation

Power Source

Electric

Process

Rotary

Place of Origin

Shaanxi, China (Mainland)

Brand Name

TOPTION

Model Number

RE-2000A

Voltage

220V/50HZ

Power(W)

1.5Kw

Dimension(L*W*H)

66*42*83cm

Weight

45KG

Certification

ISO 9001

Warranty

One Year

After-sales Service Provided

Engineers available to service machinery overseas

Rotating Flask(L)

2L+1L

Optional Rotating Flask(L)

0.1L, 0.25L, 0.5L

Receiving Flask(L)

Lifting Type

Auto lifting

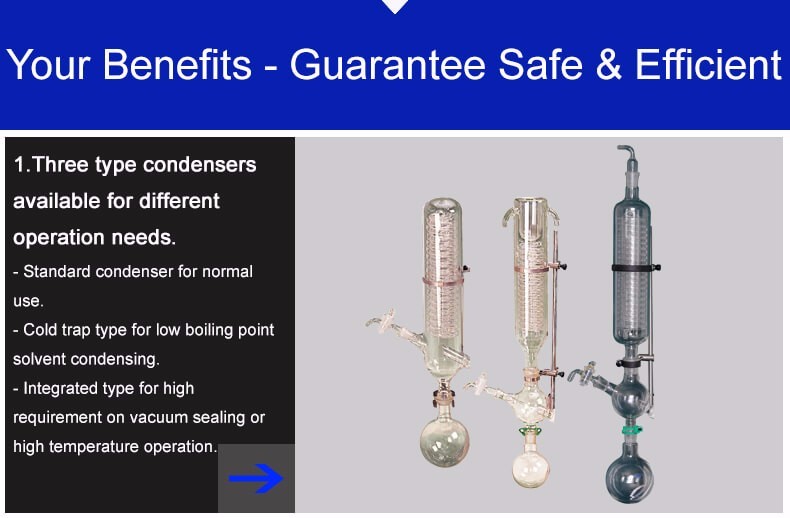

Condenser

Vertical

Rotation Speed (rpm)

20-200

Max Evaporating Speed (H2O)

1.2L/H

Reachable Vacuum Rate

<133Pa (1.33mbar, 1 Torr)

Bath Power (kw)

1.5KW

Staic Temp. Control Range & Wave (u2103)

RT-99u00b12

DETAIL DESCRIPTION

Product Description

Model	RE-52A	RE-52AA	RE-2000A	RE-3000A	RE-5203	RE-5203A	RE-5205	RE-5000
Rotating Flask(L)	0.5L	0.5L	2L + 1L	3L + 2L	3L	3L	5L	5L
Optional Rotating Flask(L)	0.1L, 0.25L, 1L or 2L	0.1L, 0.25L, 1L or 2L	0.1L, 0.25L, 0.5L	0.5L, 1L	2L, 1L	2L, 1L	3L, 2L, 1L	3L, 2L, 1L
Receiving Flask(L)	0.5L	0.5L	1L	2L , 1L	1L	1L	3L	3L
Lifting Type	Hand lifting	Auto lifting	Auto lifting	Auto lifting	Hand lifting	Auto lifting	Hand lifting	Auto lifting
Rotation Speed (rpm)	0-150	0-150	20-200	20-200	0-150	0-150	0-150	0-110
Condenser	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
Max Evaporating Speed (H2O)	1.2L/H	1.2L/H	1.2L/H	1.5L/H	1.5L/H	1.5L/H	2L/H	2L/H
Reachable Vacuum Rate	＜133Pa (1.33mbar, 1 Torr)
Bath Power	1.1KW	1.1KW	1.5KW	1.5KW	1.5KW	1.5KW	2.2KW	2.2KW
Staic Temp. Control Range & Wave (℃)	RT-99±2	RT-99(150)±0.2
Power	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz

Detailed Images

1. High evaporation, high recovery, conversion and use of advanced electronic speed control to ensure stable operation of the motor.
2. Bath list the pot, reduce breakage, evaporation of low boiling point, the collection bottles can be immersed in an ice bath to reduce the secondary evaporation.
3. Collection bottle milling port connection, can be easily removable, sealing the fine.
4. High temperature long- lasting sealing, dynamic sealing system to ensure high temperature corrosion resistance and long list, particularly good air tightness.
5. Japanese technology AC induction motor, variable speed, no brush no spark, can work effectively for a long time.
6. Chassis, bath pot, main bar, stainless steel shaft made of high quality, attractive appearance corrosion.
7. Intelligent temperature control, water and oil bath dual-use, more widely used. Temperature. fluctuation is only 0.2 degree, evaporation is more stable, not easily washed material.
8. Whole series modular design, scalability, easy instabllation and maintenance.
9. According to user needs, electrical part can be produced with explosion-proof configuration.

Warranty

Unless otherwise specified, our products are covered by a 1-year warranty from the date of purchase. We will replace any failed components at no charge to the customers for parts or shipping.

Note: Consumable components (like glass components, gaskets or vacuum seals) are not covered in the 1-year warranty.

Certifications

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of our products have passed CE certification,the quality can be assured.

Packing & Delivery

*We ship worldwide. please contact us for quote on shipping.

*We ship via DHL or UPS from our warehouse. Please provide your phone number for successful delivery.

*We are able to ship most of our standard products within 5 business days. Please contact us about lead time for customization.

*If your package has clearly visible damages during shipment, please take photos for both the packaging and damaged product, have the driver document all damages, and contact us as soon as possible. We will file a claim with the shipping company. Please contact us within 7 days if any internal damages or malfunctions are found while you open the package and operate the product, we will send replacement for the damaged items.
