Industrial price pilot short path thin film evaporator

of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids.

Technical Feature

  • New
  • Pharmaceutical Processing
  • Electric
  • Wiped Film
  • Shanghai, China (Mainland)
  • YHCHEM
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~35

PRIMARY PARAMETERS

Condition
New
Application
Pharmaceutical Processing
Power Source
Electric
Process
Wiped Film
Place of Origin
Shanghai, China (Mainland)
Brand Name
YHCHEM
Voltage
220V/50HZ
Power(W)
120W
Dimension(L*W*H)
1100*500*1750
Weight
160kg
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Effective evaporation area (m2)
0.15
Condensation area (m2)
0.2
Barrel diameter(mm)
100
Constant pressure feeding funnel volume
2L
Feed rate(g/h)
750~1500
Maximum speed (rpm)
500
Glass Material
High Borosilicate Glass 3.3
Fram material
SUS304
Discharge valve material
PTFE
Product name
price thin film evaporator

DETAIL DESCRIPTION

Industrial price pilot short path thin film evaporator



Product Description

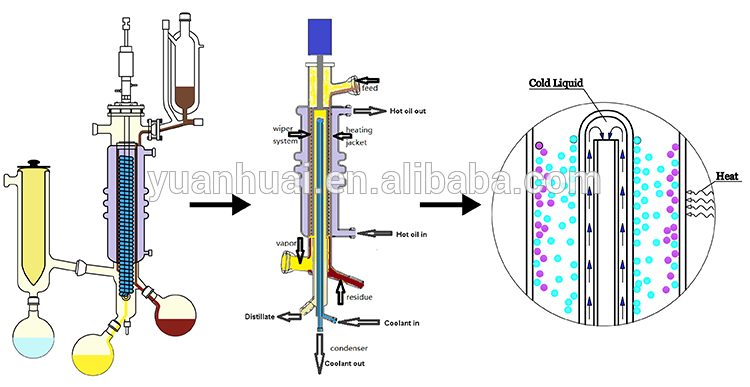

Principle for molecular distillation:

YHCHEM molecular distillation, also called molecular distiller, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids.



Typical application fileds:



Technical specifications:

ModelYMD-080YMD-100YMD-150YMD-200
Barrel diameter (mm)80100150200
Feeding rate (g/hr)500~750750~15001500~30003000~5000
Feeding flask volume (L)1.5225
Effective evaporation area (m2)0.10.150.240.35
Motor power120120120200
Maximum speed (rpm)500500500500
Distillate receiving flask (L) 1235
Residue receiving flask (L)1235
Operation temperatureUp to 200C
Power supply220V/50-60Hz



Technical drawing

Strong Technical support:

YHCHEM owns a 5~10 people R&D team, can do customization for our clients



Buying guides

For each model of molecular distillation, standard model include:

#1 Main glass evaporation barrel

#2 Jacketed feeding flask

#3 Dry ice cold trap

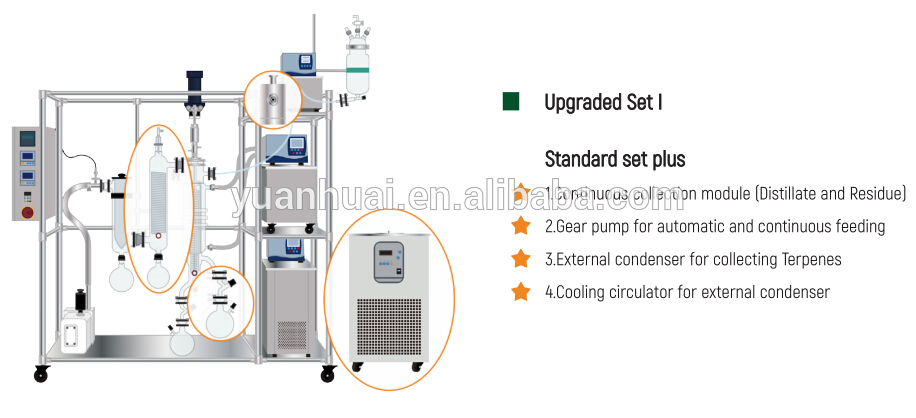

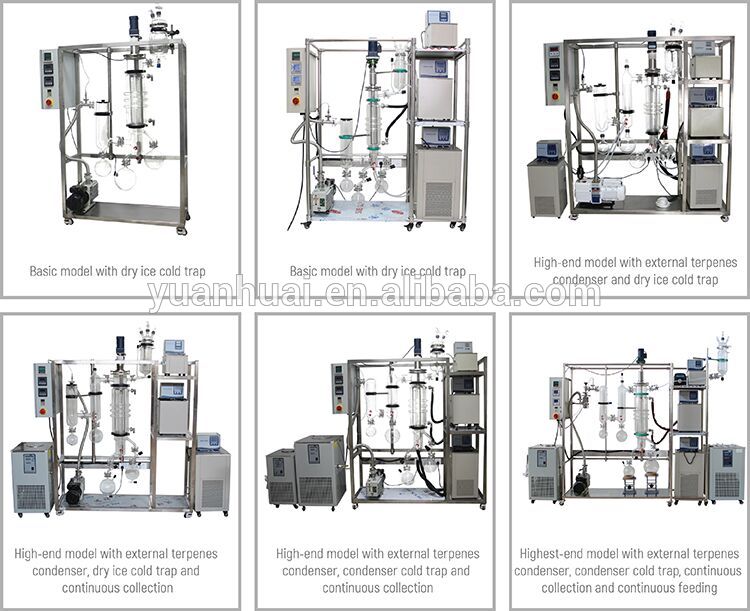

For upgraded model, there will be optional parts as below:

#1 Continuous collection module (Distillate and Residue)

#2 Gear pump for automatic and continuous feeding
#3 .External condenser for collecting Terpenes
#4 Cooling coils cold trap
#5 Diffusion pump

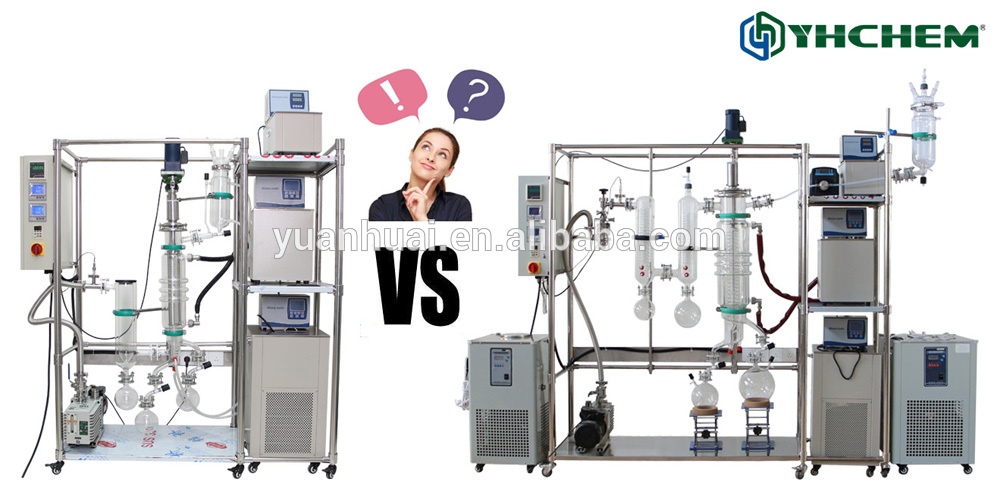

Choose which optional parts please think below questions:

#1 What is your budget

#2 Do you want to have an more automative model?

#3 Do you need to collect terpens?

#4 Are you tired of buying dry ice every day?

#5 Do you want to achieve more vacuum in the molecular system?



Detailed Images

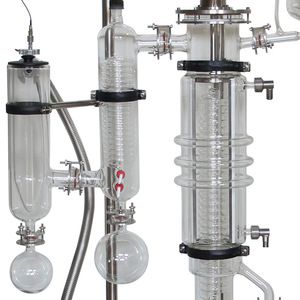

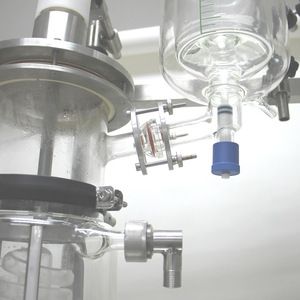

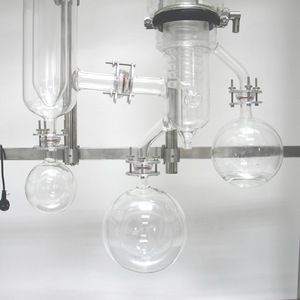

Main glass parts display

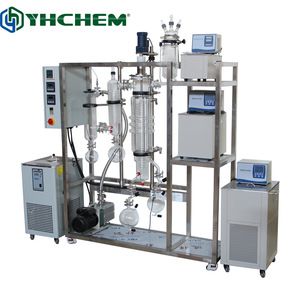

Structure display

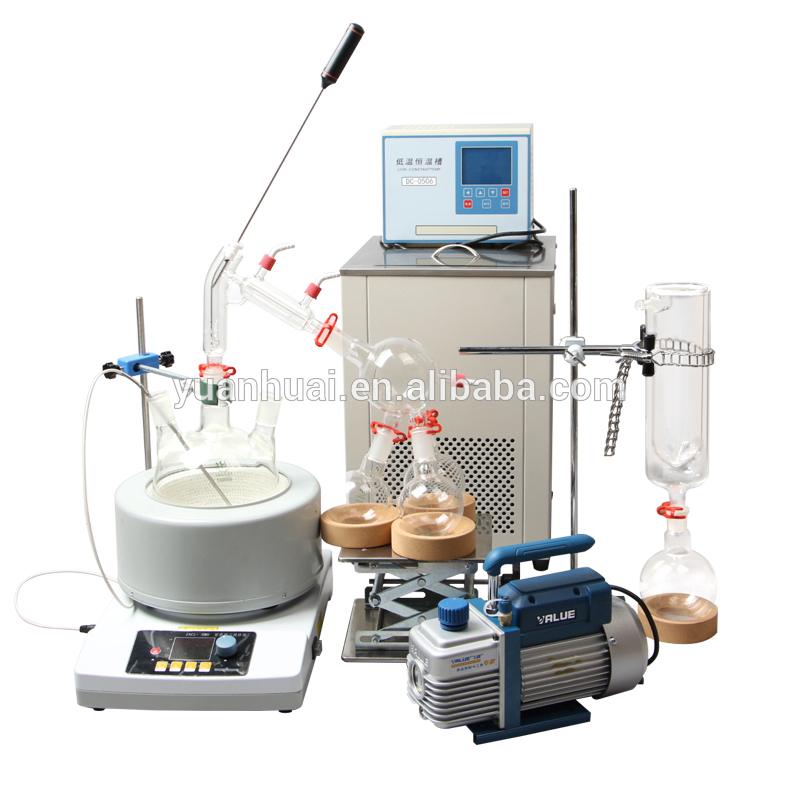

Supporting equipments
