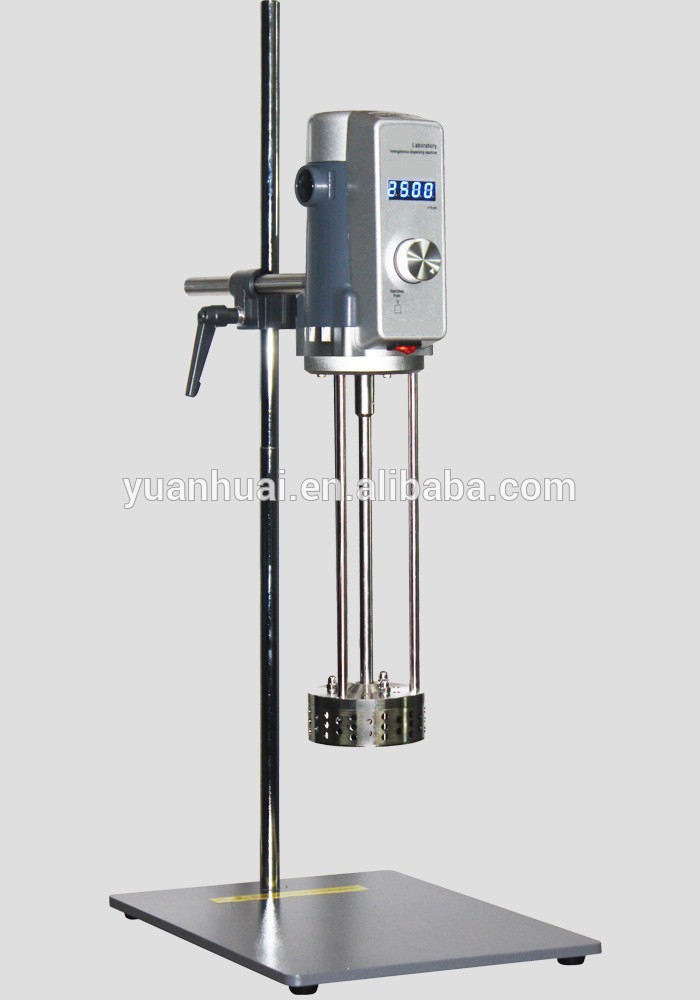

Emulsion machine high shear homogenizer for liquid experiment
The application of high shear homogenizer
The high shear homogenizer adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and high viscosity liquid mixing, crushing particle materials in liquid medium shear emulsification.The high shear homogenizer is widely used in the lab experimentation, to test or develop new product. With small size, high quality ,easy to operate.
Main features of high shear homogenizer
1) Thedrive system is stable and reliable
2) The dispersing emulsifier with high shear effect
3) Can handle a wide range of viscosity
4) Stepless speed regulation
5) With five different specifications of the work head
6) Speed digital display
Technical specifications of high shear homogenizer
| Rated voltage | AC220 V |
| Rated frequency | 50/60 Hz |
| Input power | 850 W |
| Output power | 500 W |
| Rated torque | 178.0 N.cm |
| Working system | S1 (continuous) |
| Operation control mode | Combination control knob |
| Speed adjustment range | 2000~13000 rpm |
| Speed control type | stepless |
| Timing control range | 1~1000 min |
| Speed digital display | ×10 rpm LED |
| Dynamic speed detection function | Yes |
| Speed memory function | Yes |
| Overload protection function | Yes |
| Working head maximum torque | 172.0 N.cm |
| The maximum linear velocity of the rotor | 22 m/s |
| Work head material | Stainless steel 304 # |
| Working head diameter | Φ90 mm |
| Working head minimum / maximum immersion liquid height | 50/236 mm |
| Stator standard configuration | 5 mm2 20mm2 50mm2 |
| Treatment capacity (H2O) | 800~60000 ml |
| Maximum processing viscosity | 8000 mPa.s |
| Allow the ambient temperature | No more than 40 ℃ |
| Relative humidity | less than 80% |
| Overall dimensions | 250×350×720 mm |
| Machine weight | 10.8 kg (gross weight:12.0 kg) |

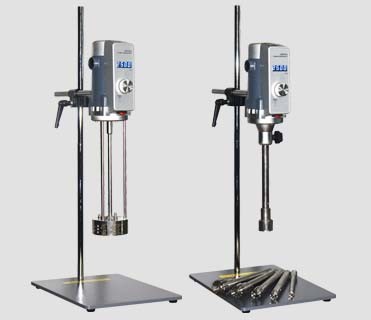

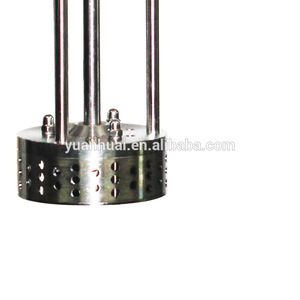

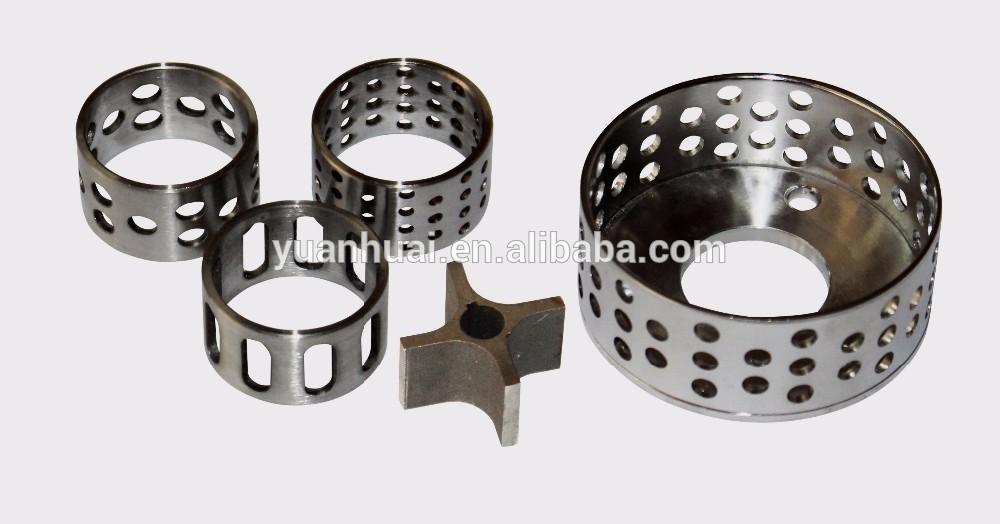

Different work head of high shear homogenizer

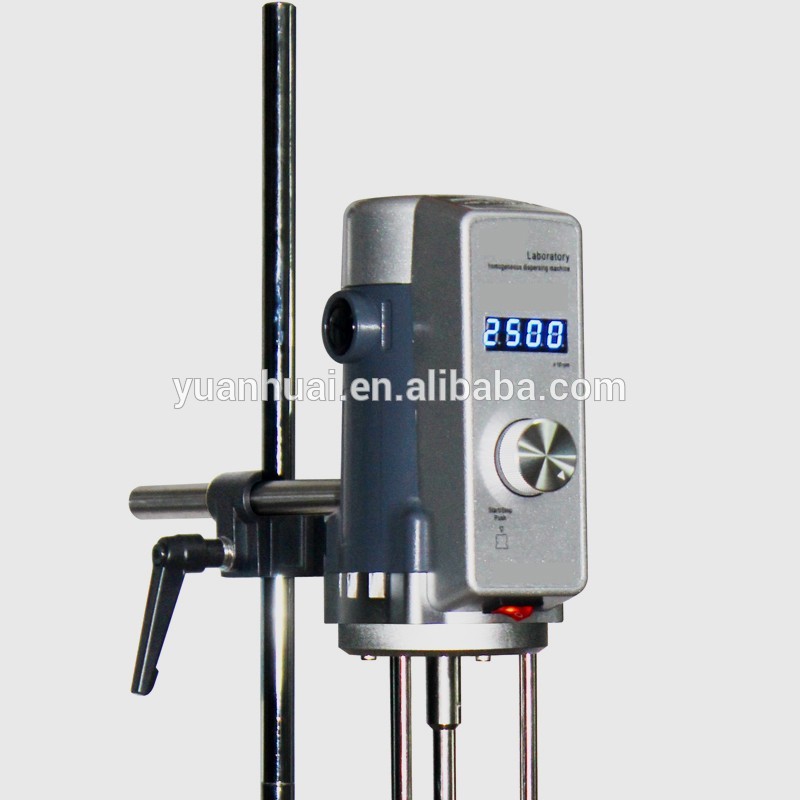

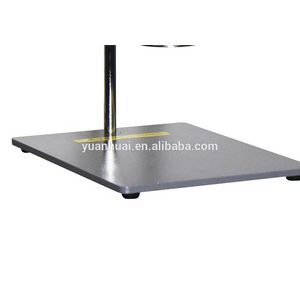

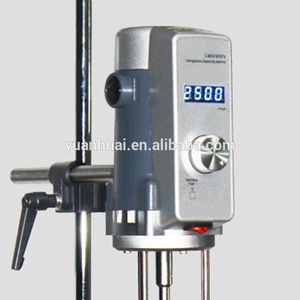

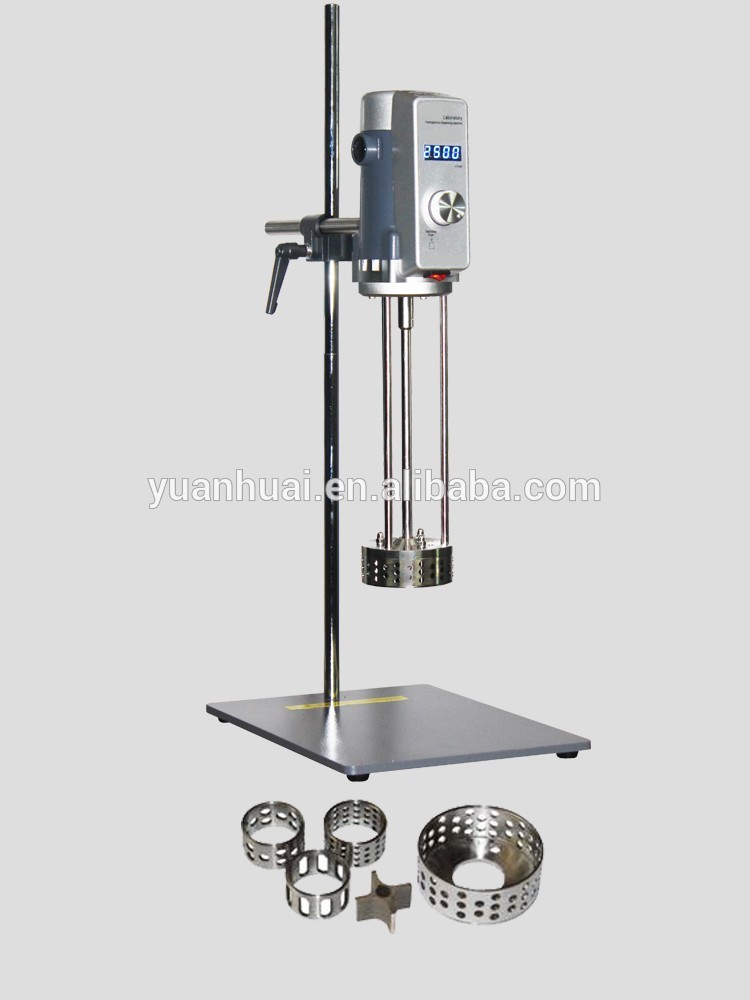

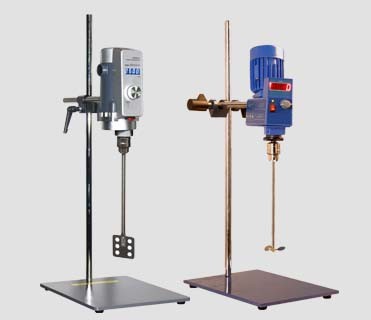

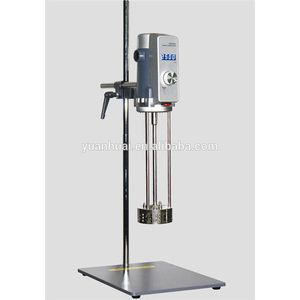

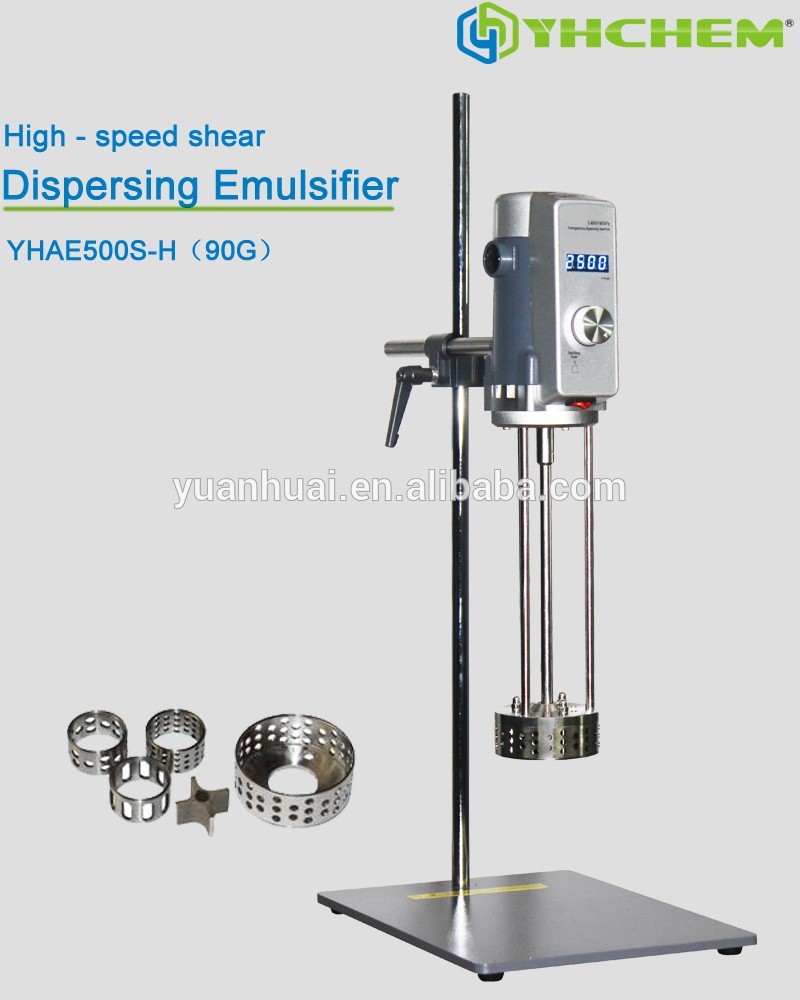

Different views of high shear homogenizer
Pre-Sales Service
*Inquiry and consulting support.
* Quick response with detailed quotation
and production solution as clients' requirement
* Confirm price, quantity, shipment, lead time and
payment terms.
* Make order and sealed PI. (Trade assurance order
is recommended to new clients for securing
payment safety)
After-Sales Service
* 1 year complimentary warranty
* Training how to install the machine and how to
operatate
* Free lifetime maintenance service and 24-hour
technical support
* Engineers available to service machinery overseas
* Reliable quality and thoughtful after sale service
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
Flexible and multiply shipping methods for on-time shipment:
* We have good cooperation with many internationl express companies such as DHL/ UPS/ FedEx/ TNT
and other, as well as large shipping companies to provide air shipping and sea shipping.
* We can also arrange global shipment as clients' requirement.
