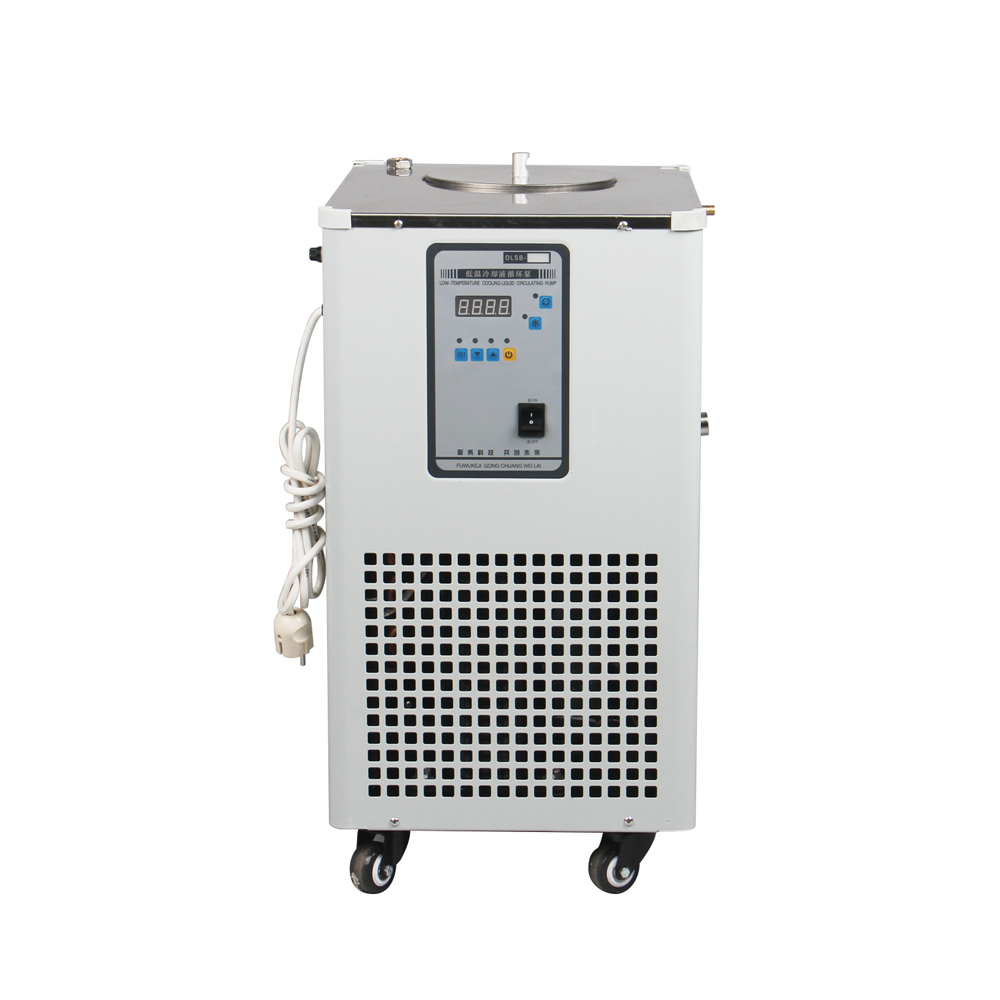

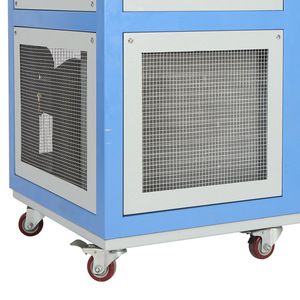

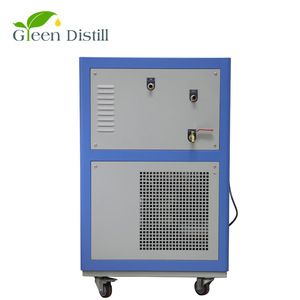

Integrated heating and cooling lab circulating chiller

The basic principle of a circulating chiller is that the temperature of a system or object is governed by the heat flow into it and the heat flow out of it.

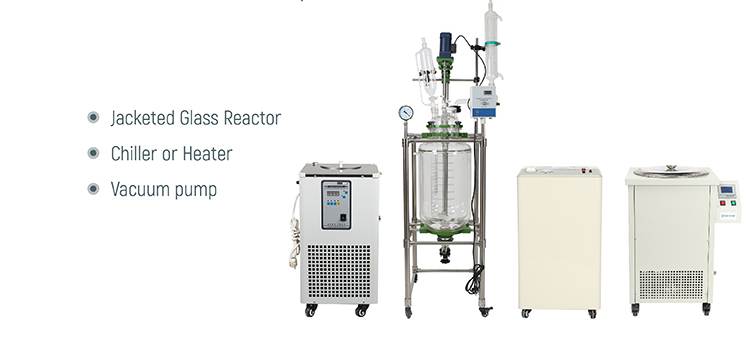

Chilling circulators are suitable for temperature control of externally connected applications. With an open reservoir design, the users have option to insert objects like samples, sensors, etc. directly into the thermostat bath. The equipment come with long-life bath vessels made out of high quality stainless steel and have circulation connections on the sides as standard configuration. They are ideal equipment for cooling lab equipments like rotary evaporators, glass reactors, wiped film evaporators, etc.

Available Models of Circulating Chiller

Features of Circulating Chiller

• Wide working temperature range with cooling and heating function, temperature range: -25~200℃.
• With 2pcs of LED display controller, can show the setting temperature & actual value, and alarm value for over temperature. 3. Efficient fast, simple topping up liquid.
• Ensure fast cooling at high temperature and can achieve 200℃ ~ -20℃ temperature control continuously.
• HR series heating & cooling circulator cycle system is closed; there is no oil mist and water vapor happen, so as to assure the lab safety and heat transfer fluid lifetime.
• HR series heating & cooling circulator use copeland brand compressor, circulation pump, stable performance and reliable quality.
• Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
• Use the same kind of heat conducting in the whole heating-cooling cycle when control heat conducting medium temperature.
• High-lift design and meet the long-distance transportation of heat conducting medium.

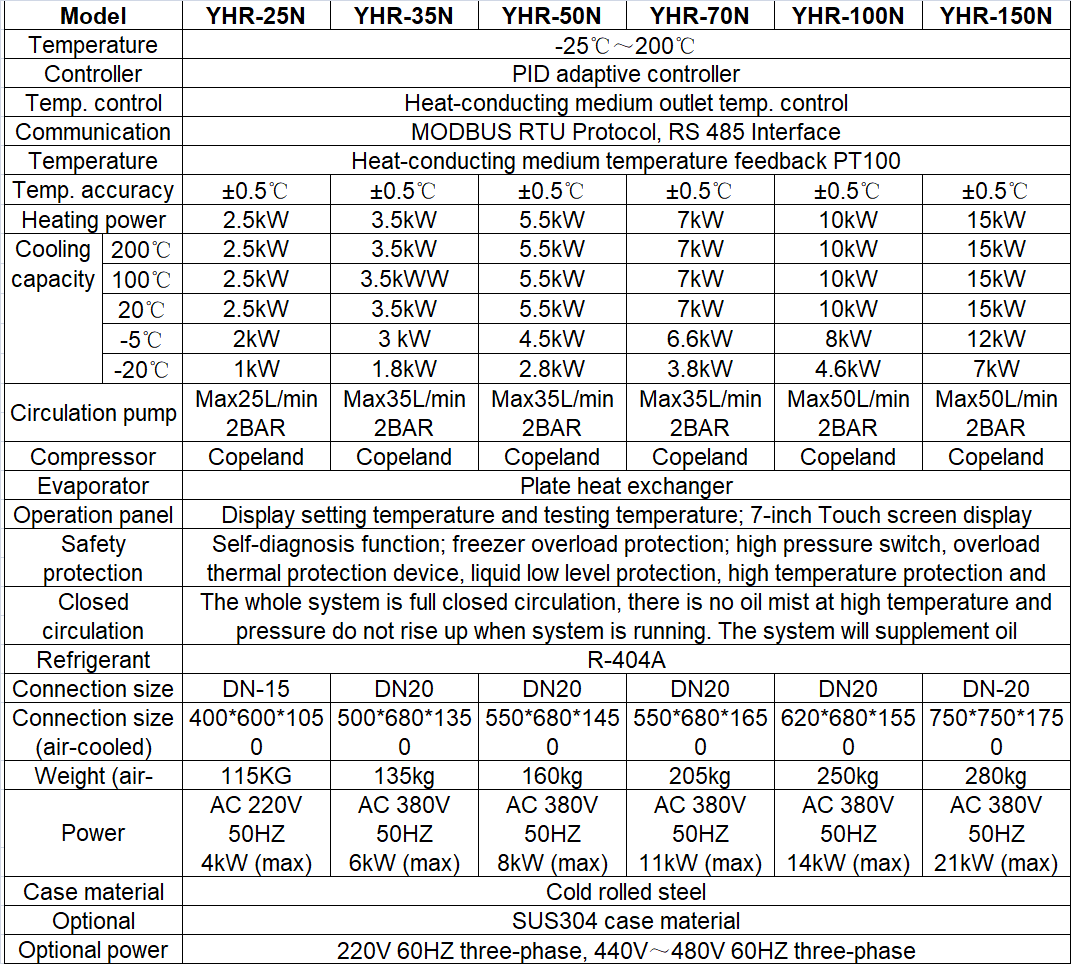

Specifications of Circulating Chiller
