20L Chemical Rotary Evaporator for Alcohol distillation

Rotary Evaporator is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations.

Technical Feature

  • New
  • Distillation
  • Electric
  • Rotary
  • Shaanxi, China (Mainland)
  • TOPTION
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~6

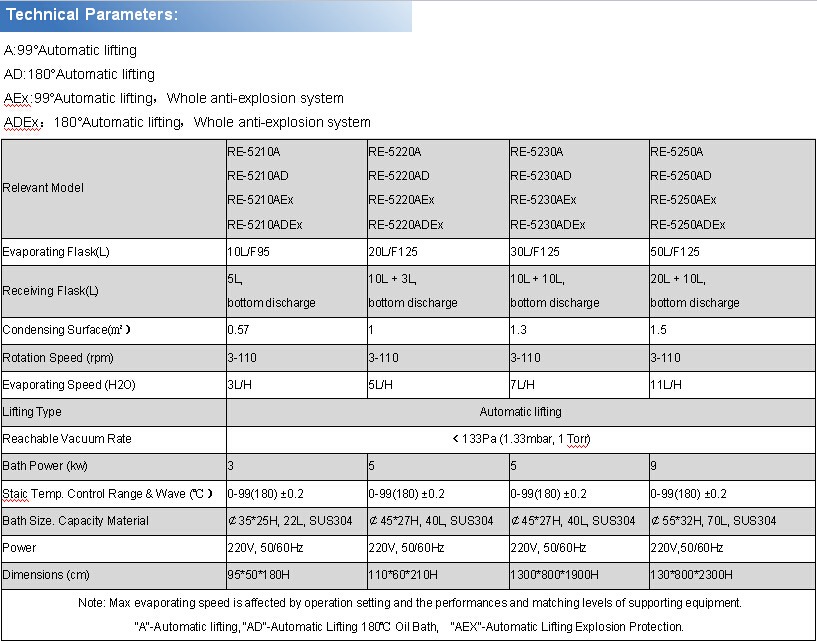

PRIMARY PARAMETERS

Condition
New
Application
Distillation
Power Source
Electric
Process
Rotary
Place of Origin
Shaanxi, China (Mainland)
Brand Name
TOPTION
Model Number
RE-5220
Voltage
220V/50HZ
Power(W)
5000W
Dimension(L*W*H)
110*60*210 cm
Weight
150KG
Certification
ISO,CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Name
20L Lab Rotary Evaporator
Evaporating Flask(L)
20L/F125
Receiving Flask(L)
10L + 3L, bottom discharge
Condensing Surface(u33a1)
1
Rotation Speed (rpm)
3-110
Evaporating Speed (H2O)
5L/H
Lifting Type
Automatic lifting
Reachable Vacuum Rate
<133Pa (1.33mbar, 1 Torr)
Staic Temp. Control Range & Wave (u2103)
0-99(180) u00b10.2
Bath Size. Capacity Material
45*27H, 40L, SUS304

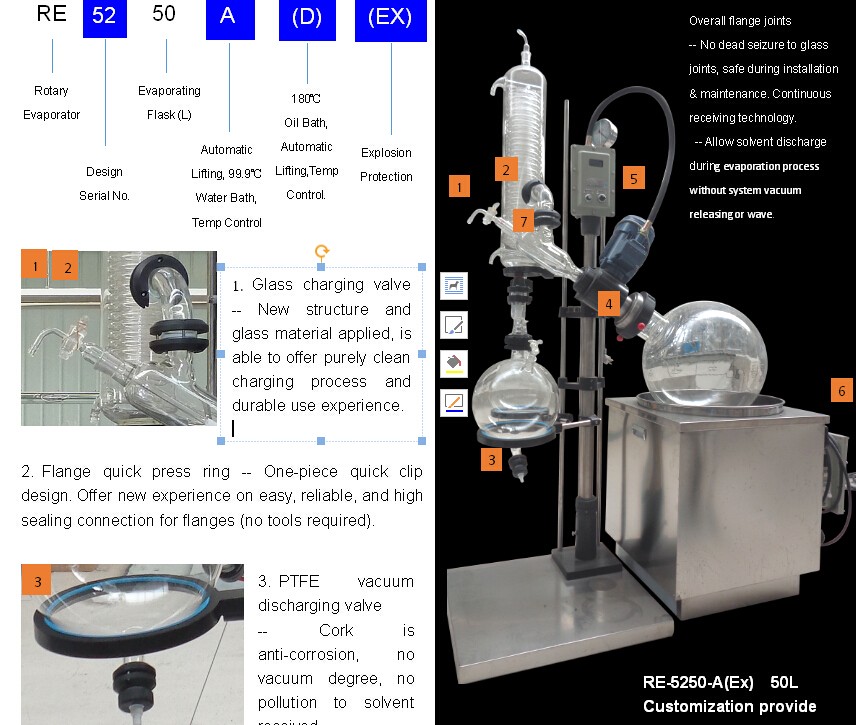

DETAIL DESCRIPTION

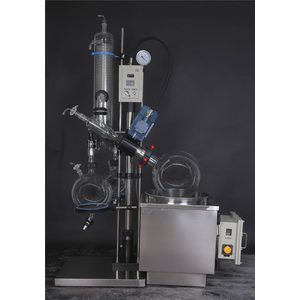

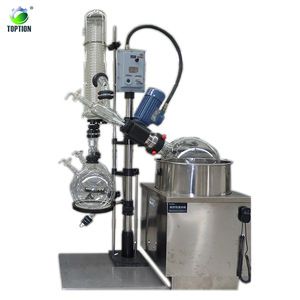

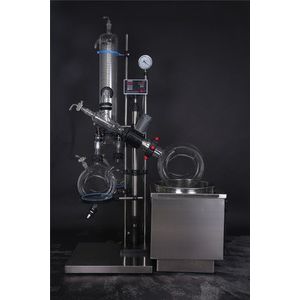

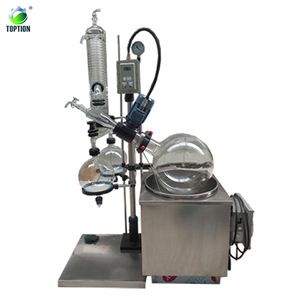

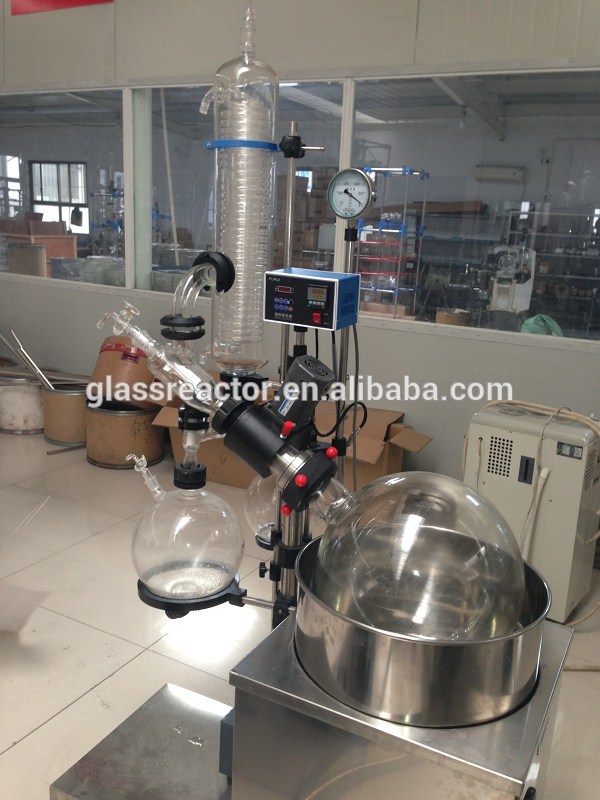

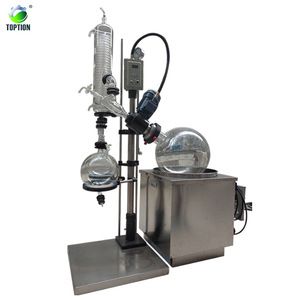

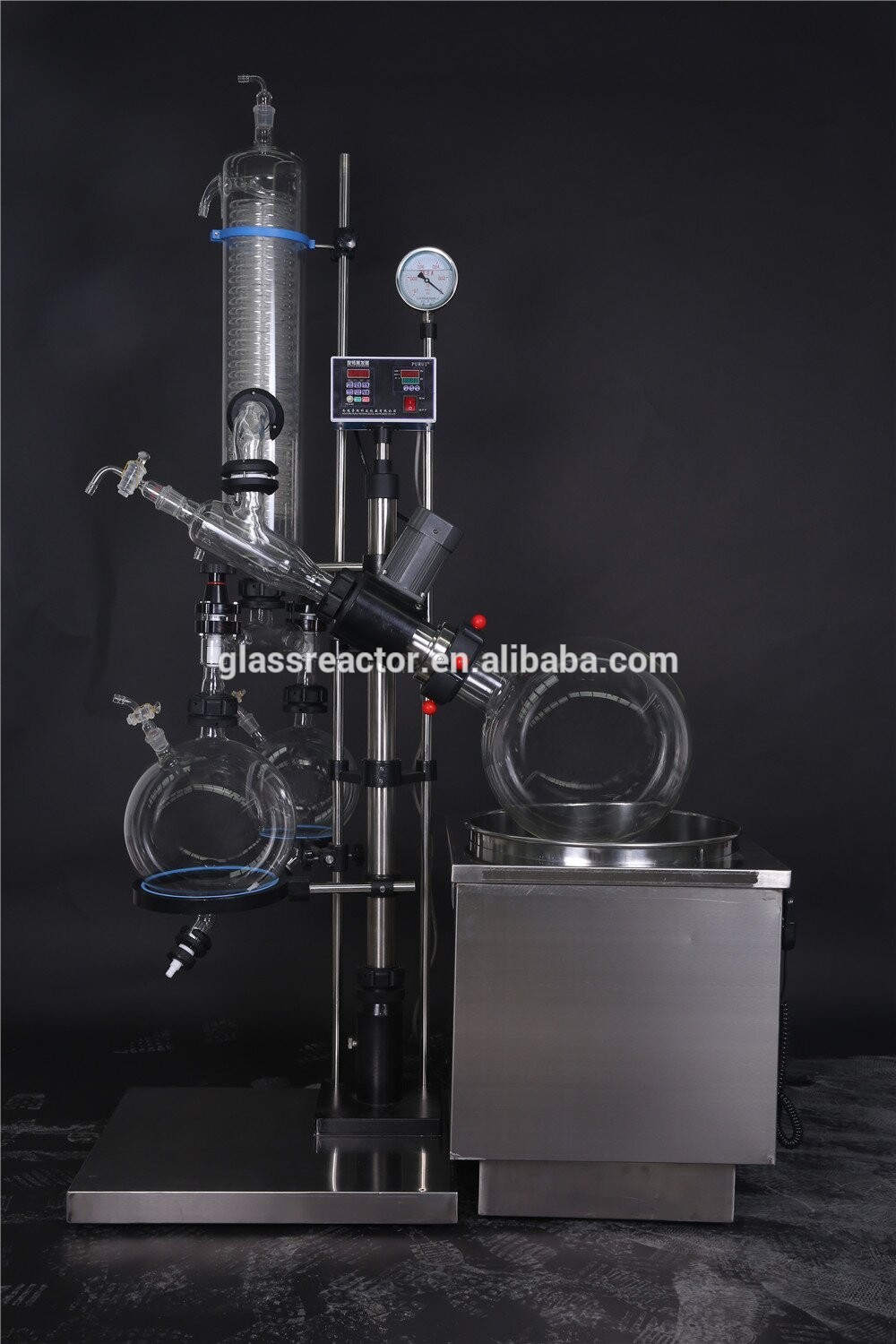

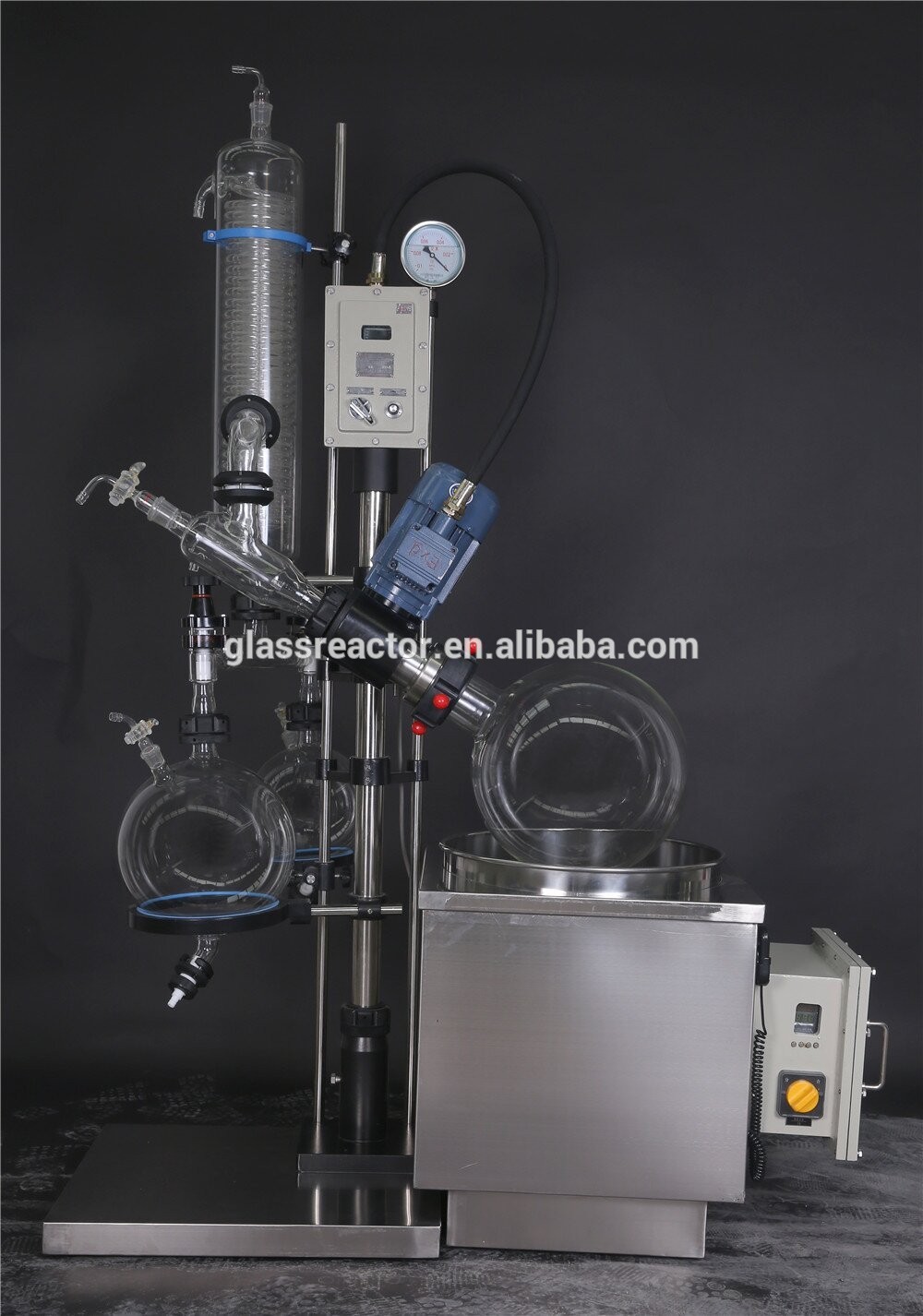

 latest 20L rotary evaporator with water bath

Discription

Rotary Evaporator is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations.



Rotary evaporator is mainly used for pharmaceutical, chemical and bio−pharmaceutical industry concentration, crystallization, drying, separation and dissolution of coal recovery. The principle is: in a vacuum condition, constant temperature heating, to rotate bottles constant rotation, the material in the sidewall formation of large area thin film, high evaporation. Solubilization by high glass condenser vapor cooling, recovery in the collection bottle, greatly improve the efficiency of evaporation, particularly easy to use in high−temperature decomposition of the variability of biological products Purifying





Key Features of Rotary Evaporator With Water Bath 20L china



Rocker plate button: toggle main board under the Ministry of pressure rise, toggle press the host fall under the subordinates. With ring nuts: smooth rotation automatically fasten rotating bottle, reverse rotation axis of rotation speed shifting. Stepless speed regulation.





Packaging & Shipping

Packaging

-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shippment

-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.


Certifications

 ISO9001:2008 & CE quality certification, products' quality management system, for every delivery instrument, we have professional quality manager team to cheak, then sign product certification and warranty card. Protect your research and business safe.


Our Services

1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.

2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

contact

Any inquire, please feel free to contact me by any of bellowing ways:

E-mail:windy at toption-china.com

Skype: mswindycheung

what's app/mobile: 0086 18291838761



FAQ for Evaporator

1. What's the max temperature?
For water bath, the temperature can be 99℃

And for oil bath, the temperature can be 170


2. How many kinds of your glass reactor?
Two kinds: rotary evaporator with water bath and rotary evaporator with oil bath.

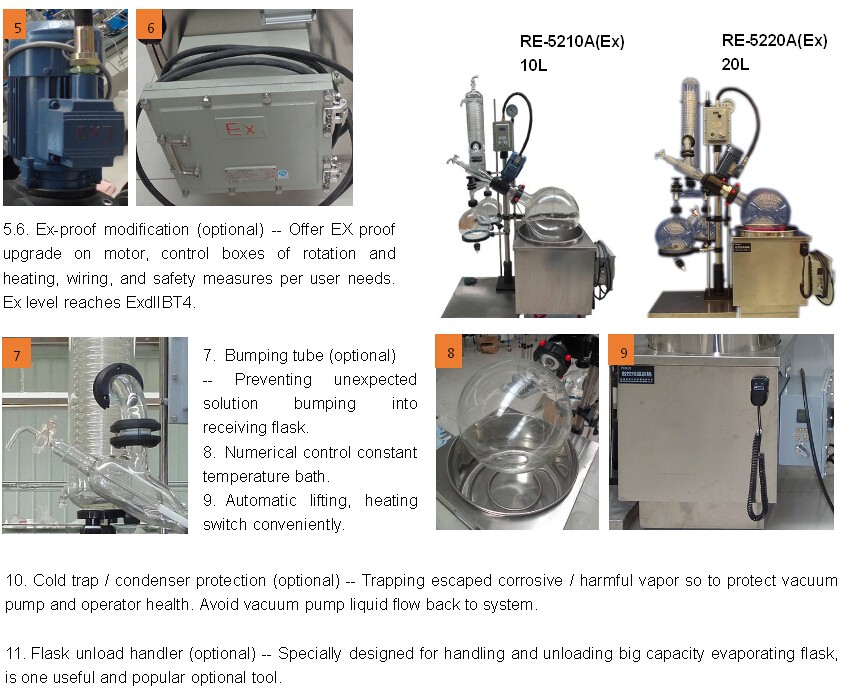

Explosion proof  function also can be customized.



3. What's the size do you have for glass reactor?

We can supply 250ml 500ml 1L 2L 3L 5L 10L 20L 30L 50L rotary evaporator.


4. Can you offer the supporting facilities?
Yes, we can offer you the vacuum, cooling system as per your request.



5. what kind of payment you accept?

Normally we accept payment by T/T, PayPal, Western Union, Trade Assurance.

To protect customer's payment security, Trade Assurance is highly recommended.







If you want to know more details about lab Rotary Evaporator, please contact me and click the "here" now ~
