Advanced Pvc Pipe Extrusion Line With CE grp/frp wet process adding sand pipe production line

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition

New

Application

Pipe

Plastic Processed

PVC

Screw Design

Double-screw

Automatic Grade

Full automatic of pvc water pipe extrusion line

Place of Origin

Jiangsu, China (Mainland)

Brand Name

FAYGO PLAST

Model Number

SJSE04 High Quality Pvc Extrusion Line

Voltage

changable

Power(W)

18.5-90 kw

Dimension(L*W*H)

20-32m

Weight

depend on your choice

Certification

CE,ISO9001

After-sales Service Provided

Engineers available to service machinery overseas

Name

Advanced Pvc Pipe Extrusion Line With CE Certifaction Approved

Extruder Model

Twin Screw Extruder SJSZ51 65 80 92

Process material

PVC resin compound

Cooling unit

with water spray nozzle and air dryer

Pipe Range

12-630mm of High Quality Pvc Extrusion Line

Packing

Fumigation free wood case packed

Application Field

water sewage,supply,electric Conduit

Main Motor

Siemens

Screw and barrel material

38CrMoAlA

Inverter

ABB

DETAIL DESCRIPTION

Product Description

Advanced Pvc Pipe Extrusion Line With CE Certifaction Approved

1. Features -->> High Quality Pvc Extrusion Line

1) This High Quality Pvc Extrusion Line is widely used for producing pvc water supply pipe,drainage pipe and high voltage cable protection pipe.With CPVC pipe mold ,it could also produce CPVC pipe.it is consist of SJSZ series extruder ,mold,vacuum tank,spraying cooling tank, haul-off,cutting machine,stacker, and can produce PVC pipe from mixed powder directly.

2) The High Quality Pvc Extrusion Line uses special designed screw and mould ,which makes it easy forming ,even plasticization,high capacity,stable running and easy operation.

2.PVC Pipe Production Line Process flow -->> High Quality Pvc Extrusion Line

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

3.Technical Parameter-->> High Quality Plastic Machine -->> High Quality Pvc Extrusion Line

Extruder model	SJSZ51/105	SZSJ65/132	SJSZ80/156	SJSZ92/188
Max.Diameter(mm)	75mm	200mm	315mm	630mm
Motor power(kw)	18.5kw	37kw	55kw	90kw
Drawing machine(m/min)	0.5-10 m/min	0.5-8 m/min	0.5-6 m/min	0.5-4 m/min
Total length (m)	20 m	25 m	28 m	32 m
Output (Kg/H )	80-120 kg/h	180-250kg/h	280-350kg/h	500-600kg/h

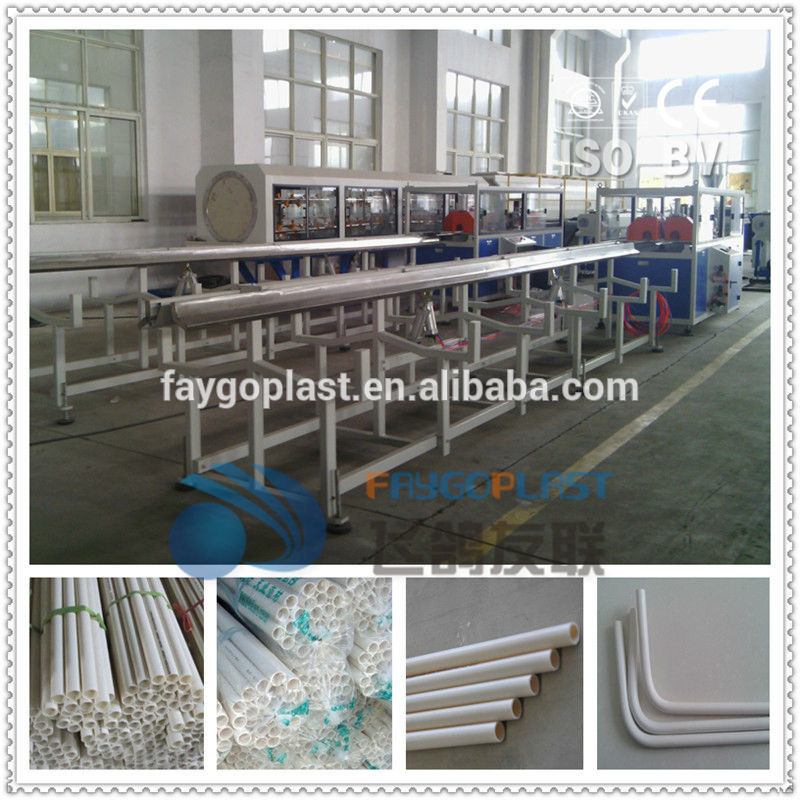

The Pictures Of Our Machine As Follows:

Advanced Pvc Pipe Extrusion Line With CE Certifaction Approved

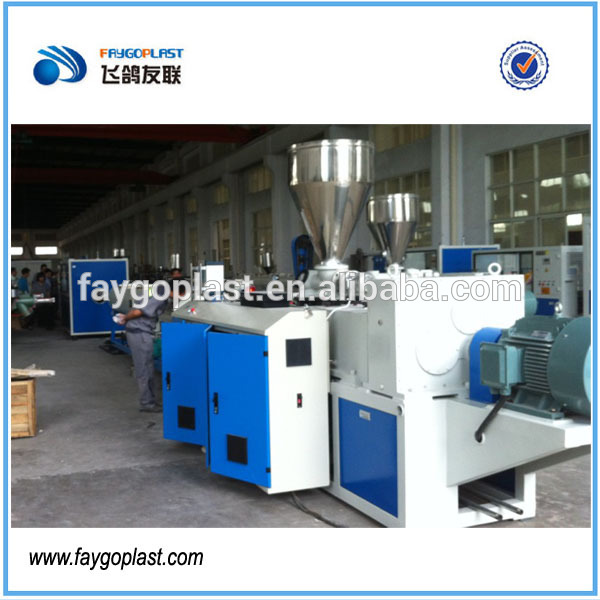

SJSZ series extruder

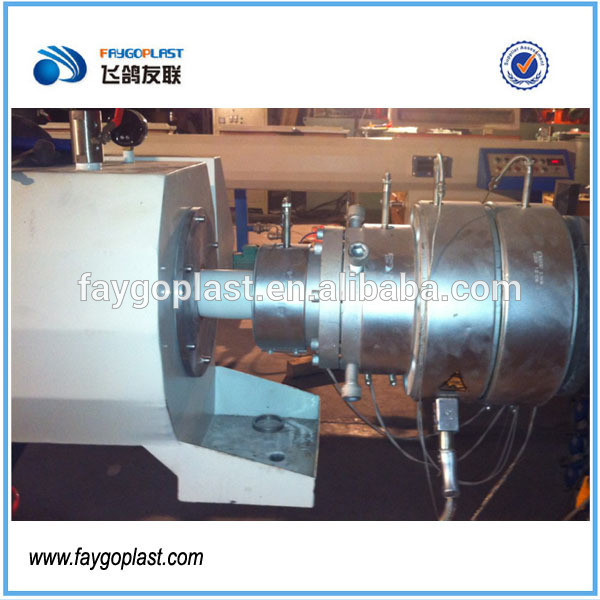

Pvc pipe Mold the dameter is up to you.

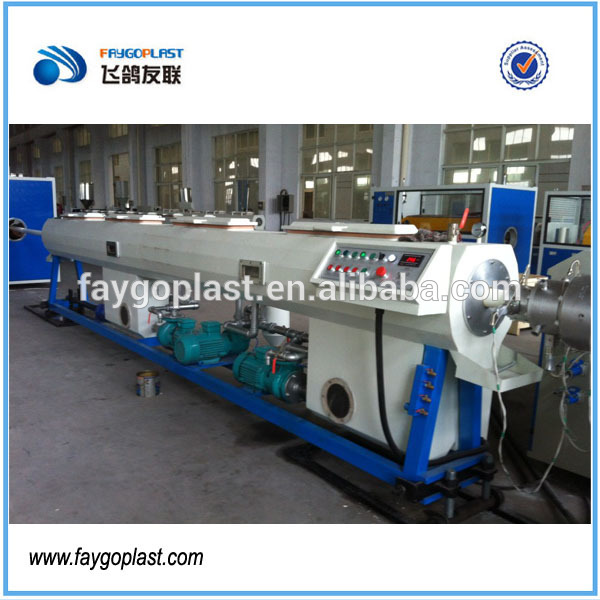

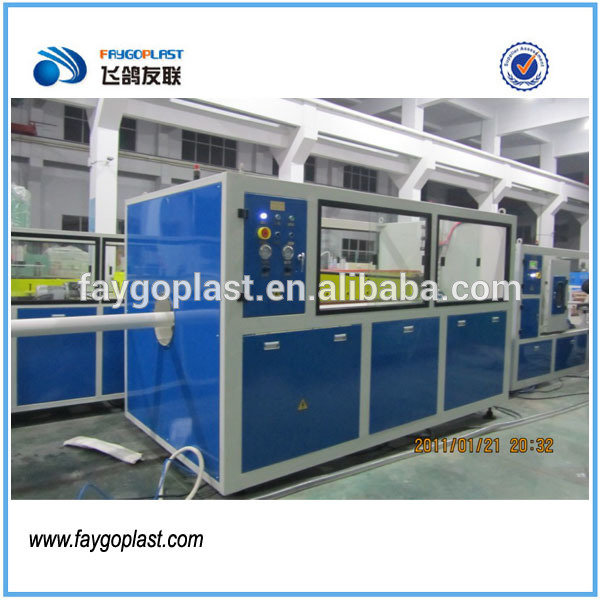

Vacuum Calibration Tank with visible stainless steel structure, With two-stage vacuum system in vacuum calibration tank for large diameter pipe, With accurate water level & water temperature automatic control system, With stable recycle liquid filter system.

Haul off Machine Separate speed regulation and flexible hauling method, high-reliable transmission system ensures the high efficiency and high quality normal extrusion. Special integral transmission unit avoids asynchrony of individual transmission, Advanced four connecting rod structure makes self-centering of haul-off's locating, accurate pressure regulating system makes hauling power adjustable.

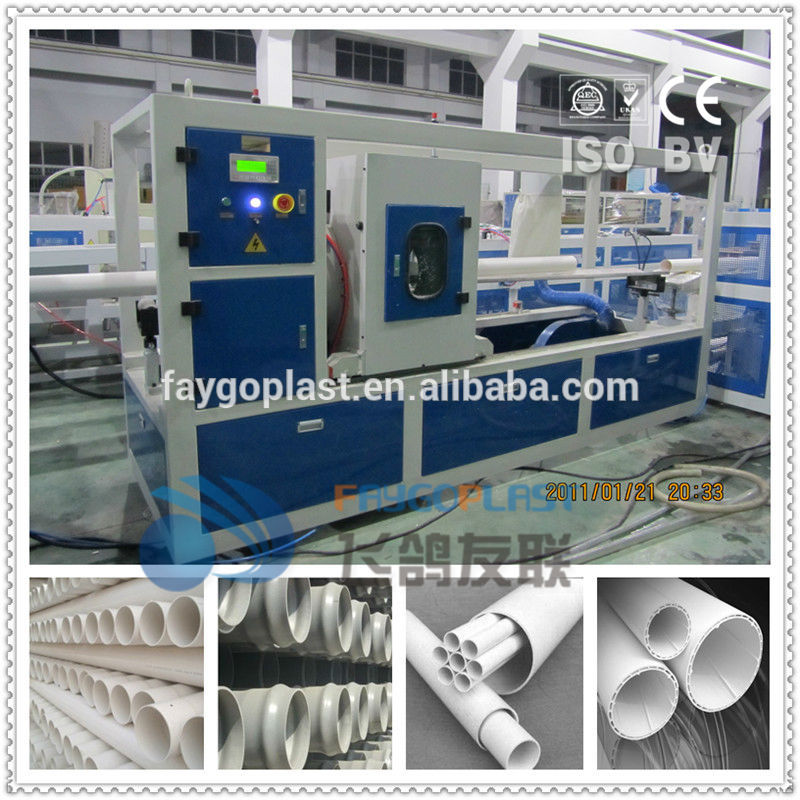

Cutting machineFull-hydraulic design ensures flexible pressure in cutting state of pipes, Unique power input system ensures high reliability of planetary unit, With ultra silent & enforced sucking system, auto angle chamfer function.

Stacker
