About Us
Jiangsu Faygo Union Machinery Co., Ltd.
Faygo Plast
1. It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines,plastic production line.
2.Our plastic extrusion lines based on Plastic Extruders:Single Screw Extruder,Conical Twin Screw Extruder and Parallel Twin Screw Extruder.
3.Our plastic making machine can make many kinds of plastic productions like:PVC pipe,CPVC pipe,PE/HDPE/PE-RT pipe,PP-R pipe,plastic foamed profile,WPC profile and panel,wood plastic composite and so on.
4.Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.
5.We provide plastic machine which can make Agriculture pipe,machines to produce pellet,laminating machine,wooden window frames machine.Our machine can make 3D printer material.
6.Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.
extruder hopper dryer

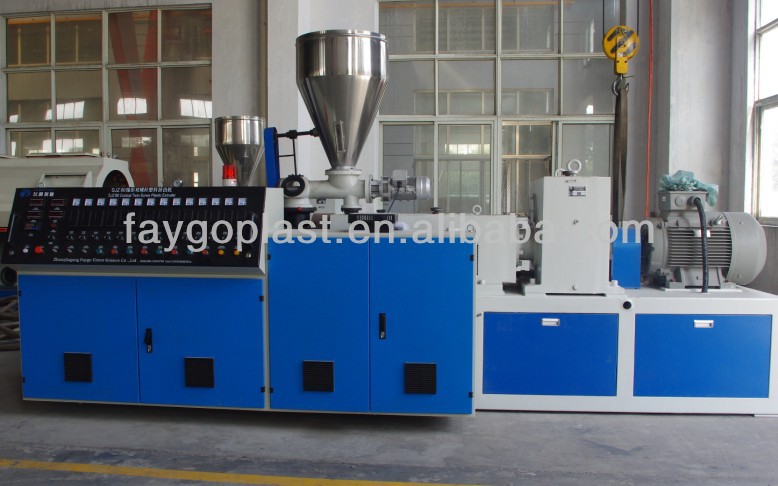

SJZ-92 Conical Twin-Screw Extruder/twin screw plastic extruder
Screw and Barrel | 800~900HV Barrel Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate Nitriding Layer Thickness:0.5~0.7mm Surface Rigidity:800~900HV |
Screw Diameter | Φ92/188mm |
Effectual Working Length of Screw | 2540mm |
Speed of Screw | 1~36rpm |
Main Motor Power | 90KW |
Main Motor Timing Method | 90KW ABB inverter |
Force Feeder Motor Power | 0.75KW |
Force Feeder Motor Timing | 0.75KW ABB inverter |
| Barrel Heating Method | Foundry Aluminum Heater, include force cooling fan, |
| Barrel Heating Power | 75KW |
| Capacity | 380~700kg/h |
| Main Electrical Equipment | Japanese OMRON Temperature Control Meter,Siemens Contactor, Shanghai TAYEE Button and Indicator Light, Suzhou ChuangShuan digital display meter |
extruder hopper dryer
Conical twin screw plastic extruder:
Features Specifications:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
All SJZ Series Conical Twin-Screw Extruder Technical Parameter:
Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
Max. Rotating speed(rpm) | 40 | 38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
Capacity(kg/h) | 80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
extruder hopper dryer
Plastic Pipe Extruder/Plastic Extruders:
Different types of extruders With different sorts of molds and auxiliary machines,
it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.
It can also extrude PP.PE pipe at high speed by changing special barrel.
Computer control or conventional control is optional.
According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.
It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.
It can bear larger extruding pressure.
What's the use of our Conical Twin-Screw Extruder?
1.Use for PVC/CPVC pipe production line,making PVC/CPVC pipes.

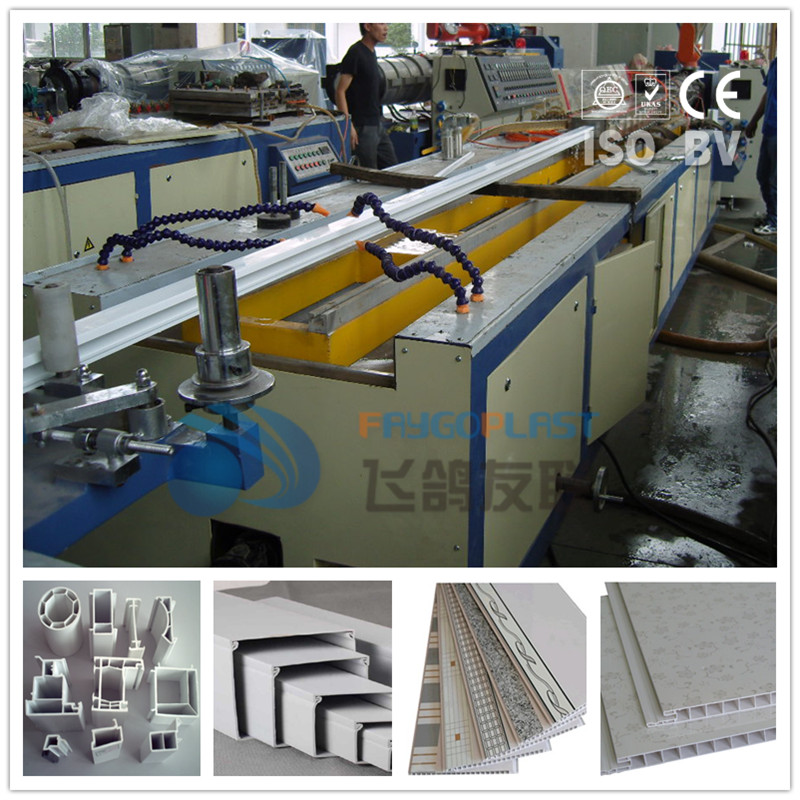

2.Use for PVC profile&foame extrusion line,making PVC window profile&foamed.
3.Use for WPC (Wooden Plastic) panel extrusion line,making WPC profile/panel products.
4.Use for PVC/WPC Granules production line,it is suitable for pelletizing PVC,WPC material.
5.And lots of plastic extrustion line,making many plastic products.
We can provide all these Plastic Extruction Line!
And engineers available to service machinery overseas !
wood case & plastic film packing

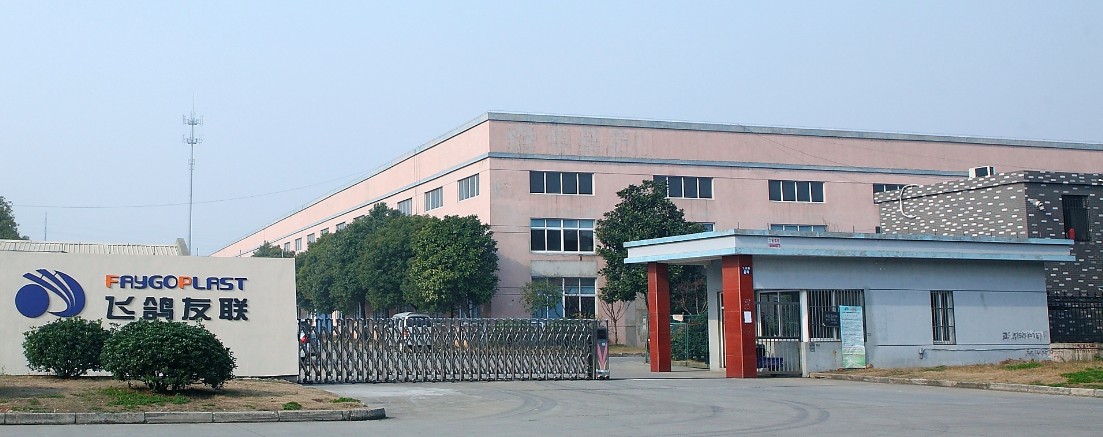

Factory
If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, we will provide long-term technical assistance.
Workers must operate the machines according to the design of the machine. Faygo Machinery will not be responsible for accidents which are caused by improper operation of workers.
What can we bring you?
1.High-quality equipment and highly competitive market prices can bring you more profits.
2. More than 15 years of plastic extrusion machine industry experience, can solve the various problems in the work. Improve machine efficiency for you.
3. More than 15 years of plastic extrusion machine industry experience, has a good supply system, can provide you one-stop service with the pre-sale , sale and after sale service. Save your purchasing cost and maintenance costs
