factory supply activated carbon water treatment dosing system
Product Description

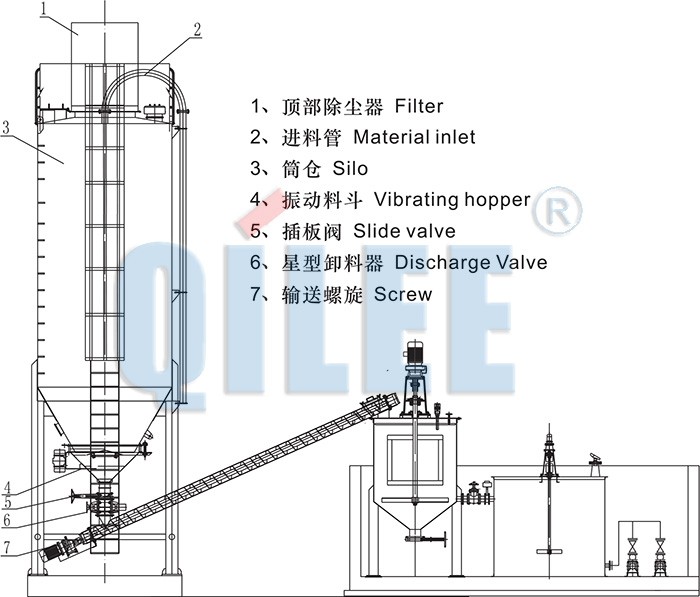

Powder dissolving system Features:
Adaptable for industry applications for large quantity of dry chemical (such as lime)
Pneumatic transported to life the chemical by chemical conveyor against free dust
Silo volume: 10~100m3
Dosing quantity: 50~2000L/h dry power

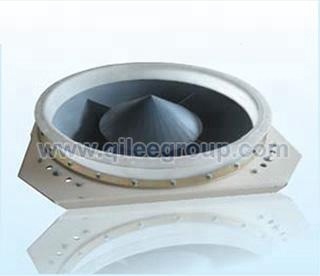

Equipped bin bottom activation device
Equipped powder metering and transporting device
Equipped bag filter
Material of construction: carbon steel epoxy Painted (stainless steel is as option)
Option: inlet water control unit, lime dissolving tank and mixed, etc.
| Specification | Silo | Screw | Dissolving tank | Total powder | Floor area |
| Capacity(m3) | Diameter/Height | Treating Capacity(kg/h) | Diameter/Height | kw | Length*Width |
| QT-10 | 1.9m/8.0m | 1-50 | 1m/1.3m | 6 | 5.0m*3.0m |
| QT-20 | 2.5m/8.0m | 5-100 | 1.7m/1.5m | 8 | 6.0m*3.5m |
| QT-30 | 2.9m/8.5m | 10-200 | 2.0m/1.8m | 10 | 8.0m*4.0m |
| QT-50 | 2.9m/11m | 50-500 | 2.4m/2.2m | 14 | 10.0m*5.0m |
| QT-70 | 4.0m/11m | 100-1000 | 2.6m/2.5m | 20 | 12.0m*6.0m |
| QT-100 | 5.0m/11m | 200-1500 | 3.0m/3.0m | 25 | 13.0m*6.0m |
| QT-150 | 6.0m/11m | 200-2000 | 3.0m/3.0m | 28 | 13.0m*8.0m |
| QT-200 | 6.0m/13m | 200-3000 | 3.0m/3.0m | 30 | 13.0m*8.0m |
| QT-300 | 8.0m/13.5m | 500-5000 | 3.0m/3.0m | 30 | 15.0m*8.0m |
Product Accessories:
