Easy Control Cattle Feed Crusher Mixer with High Quality
1. Brief Introduction of Feed Crusher Mixer
Our animal feed crusher & mixers are popularly used by some big feed processing factories. With the advanced design, reasonable arrangement, reliable performance, convenient maintenance, the final products of the this machine has the quality of even ingredients, high productivity, less-taking space, labor-saving and less production on dusts and also good sealing. With reasonable price and perfect after-sale service,this machine is the best choice for the animal raiser to making fortune.
2. Principle of Work
1). This machine can be divided into two parts, a crushing structure and a material structure
2) .The crushing structure:There are two ways to input the materials: automatically or manually. When the raw materials were put into the crushing room, with the beating of the hammer leaf and the scrubbing of the air, the raw materials will be crushed into mealiness or graininess. Then under the effect of the centrifugal air, the meanliness or the graininess will get in to the A impeller casing through the sieve pore.
3). The materials mixing structure: with the whirling of the thruster, the materials will be transferred into the material pipeline by the B hammer room by force. There, the materials will be lifted to the top of the room and be totally mixed up and down and spinned from left to right via the air. Therefore, the materials can be evenly mixed which is quite ideal.
3. Technology Parameter
Parameter/Model | LB-1000/500 |
Crushing Power | Three phase,380V,50HZ |
7.5kw | |
Mixing Power
| Three phase,380V,50HZ |
3kw | |
Capacity(kg/h) | 1000kg/h 500kg/h |
Dimension (m) | 1.65*1.25*2.7m |
Weight(kg) |
|

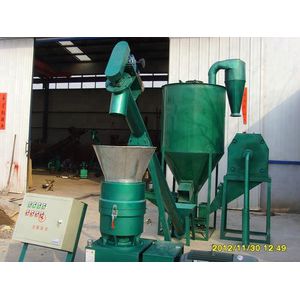

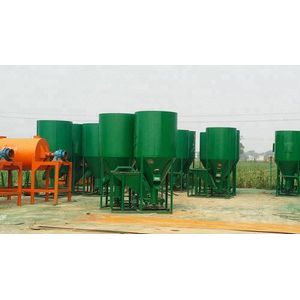

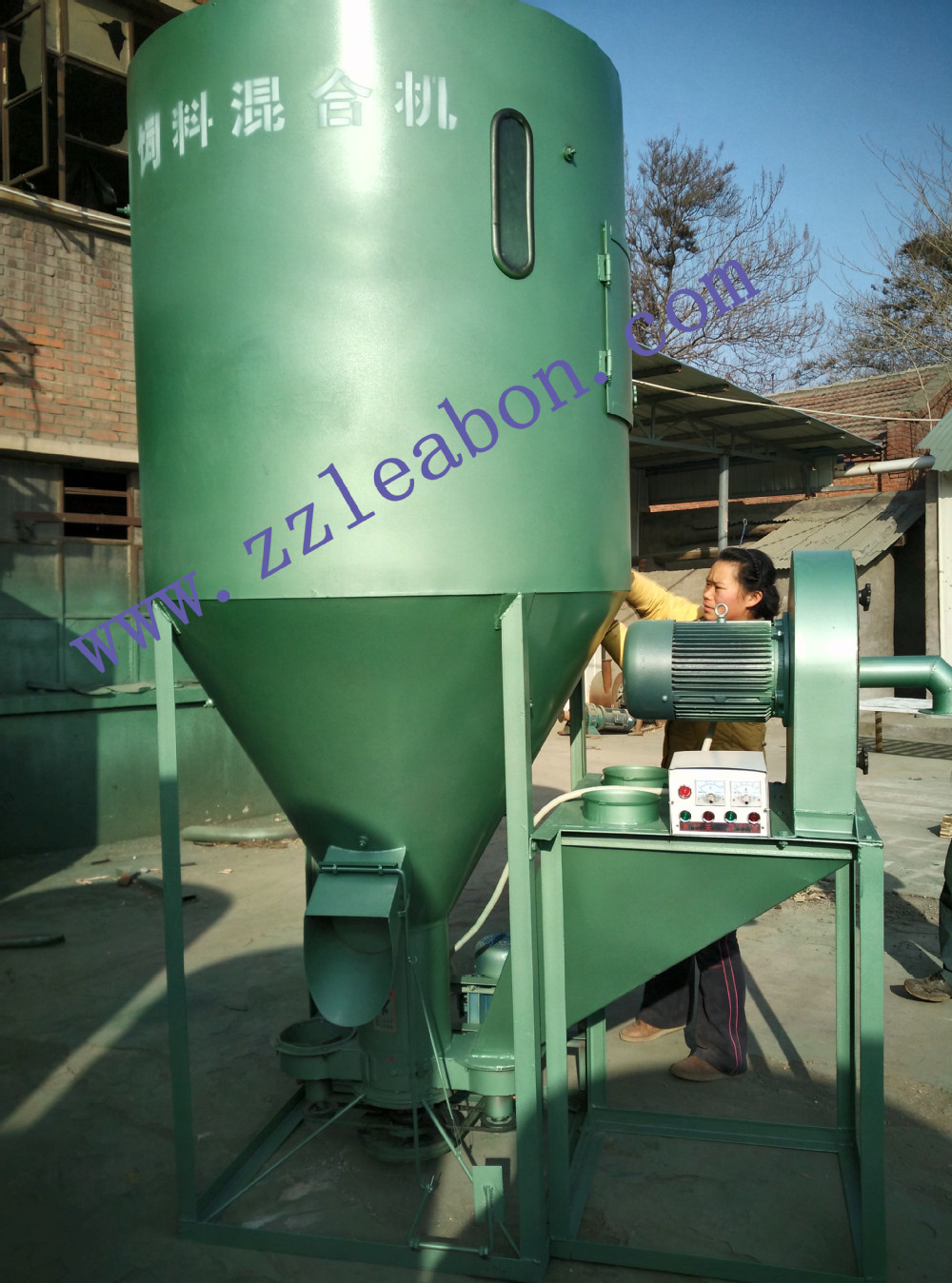

4. The Pictures Show of Feed Crusher Mixetr
