1. Modified starch, also called starch derivatives, are prepared by physically, enzymatically, or chemically treating native starch, thereby changing the properties of the starch. Our company machines can make modified starch with screws extrusion method. The finished product is also called pregelatinization starch, which can be used in food, pharmaceuticals, paper, building material, casting, oil drilling industry. This production line includes mixing, extruding, drying and conveying system. The extruder has one couple of high hardness alloy steel screws.
2. The model is TSE65-D, the output is 120-150kg/h.
3. Extruder screws quantity is two.
4. The main body material is stainless steel, which is easy to be cleaned.
5. The screws material is 38CrMoAl, which is wear-resisting.
6. The processing line needs two workers to operate.
7. We advice the plant area is no less than 100 square meters, the length is no less than 20 meters.
8. Process flow: (Raw material)---mixing---extruding & puffing---conveying---drying--- milling---(packing)

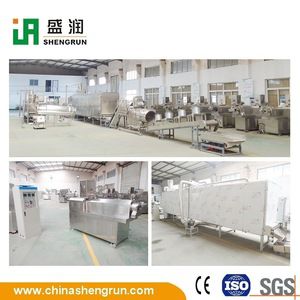

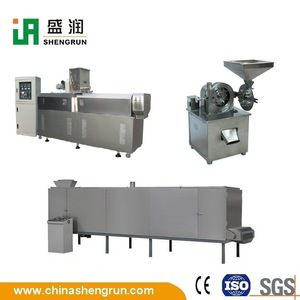

9. Equipments: Mixer---Extruder---Air conveyer---Dryer--- Grinder---(Packing machine)
10. The temperature and rotating speed can be controlled and adjusted.
11. The processing line has self-cleaning function.
12. Parameters:
Equipment name | Mixer | Extruder | Air conveyer | Dryer | Grinder |
Model | BFJ | TSE65-PS | FSJ | KX-3 | FSJ-480 |
Total power (kw) | 3 | 35 | 0.75 | 40 | 18 |
Actual Power (kw) | 2 | 24 | 0.5 | 25 | 15 |
Output(kg/h) | 150 | 120-150 | 150 | 150 | 500 |
Size (m) | 1.0×0.7×1.4 | 2.6×0.9×1.9 | 2.5×0.6×0.6 | 5.0×1.3×2.7 | 0.9×0.8×2 |
1 The warranty period is one year.
2 Our service is turn-key mode, which includes installment, debugging and train.
3 Supply quick-wear part and general tool.
4 Supply the basic formula of raw materials.
Jinan Shengrun Machinery Co., Ltd. is a professional manufacturer of extrusion machinery.
Inside package is plastic film,outside package is wooden case,which is seaworth.
