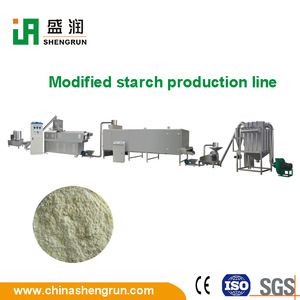

Twin Screw Extruding Denaturated Starch Machine

This production line can make modified starch, denatured starch,  pre gel starch by changing different designed barrel and screws of double screw extruder.

Technical Feature

  • Shandong, China (Mainland)
  • Shengrun
  • TSE85-D
  • Other
  • Engineers available to service machinery overseas
  • twin screw extruding denaturated starch machine
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$6~70

PRIMARY PARAMETERS

Place of Origin
Shandong, China (Mainland)
Brand Name
Shengrun
Model Number
TSE85-D
Type
Other
After-sales Service Provided
Engineers available to service machinery overseas
Name
twin screw extruding denaturated starch machine
Output
350-500kg/hr
Screws quantity
2
Maibody material
Stainless steel
Screws material
Hard-wearing alloy steel
Total actual power
152kw

DETAIL DESCRIPTION

Brief introduction

This production line can make modified starch, denatured starch,  pre gel starch by changing different designed barrel and screws of double screw extruder. Through extruding, inflating, drying, crushing. Modified starch is widely used in textile, food process, oil drilling, paper, construction industries etc.



Details

1. The model is TSE85-D, the output is 350-500kg/h.

2. Extruder screws quantity is two.

3. The main body material is stainless steel, which is easy to be cleaned.

4. The screws material is 38CrMoAl, which is wear-resisting.

5. The processing line needs two workers to operate.

6. We advice the plant area is no less than 125 square meters, the length is no less than 25 meters.

7. Process flow: (Raw material)---mixing---conveying---conditioning---extruding & puffing---conveying---drying--- (milling---packing)

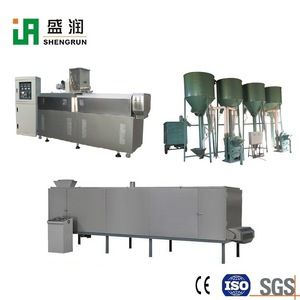

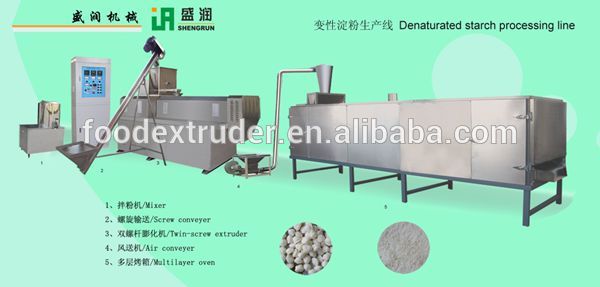

8.  Equipments: Mixer---Screw conveyer---Conditioner---Extruder---Air conveyer---Dryer--- (Grinder---Packing machine)



9. The temperature and rotating speed can be controlled and adjusted.

10. The processing line has self-cleaning function.



Service

1 The warranty period is one year.

2 Our service is turn-key mode, which includes installment, debugging and train.

3 Supply quick-wear part and general tool.

4 Supply the basic formula of raw materials.



Parameters



Equipment name

Mixer

Screw conveyer

Conditioner

Extruder

Model

BFJ

LXSL

TZQ

TSE85-PS

Total power (kw)

5

0.75

4

110

Actual Power (kw)

3

0.5

2.8

80

Output (kg/h)

600

600

600

350-500

Size (m)

1.0×0.7×1.4

3.3×0.8×2.3

1.9×1.1×2.2

3.6×1.0×2.0



Equipment name

Air conveyer

Dryer

Grinder

Model

FSJ

KX-7

FSJ-480

Total power (kw)

2.2

60

18

Actual Power (kw)

0.75

50

15

Output (kg/h)

600

600

500

Size (m)

2.5×0.6×0.6

8×1.3×2.7

0.9×0.8×2







qualification





  Packing and delivery

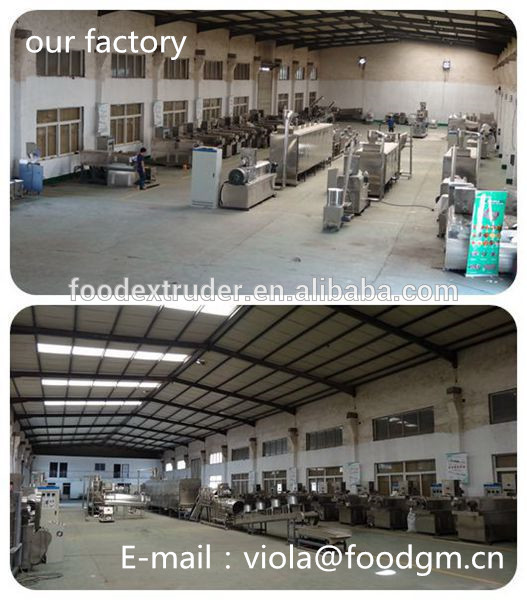

factory







Welcome to contact us!



Jinan Shengrun Machinery Co.,Ltd.



Mobile:0086 18853155219

Skype:Viola Zhang




starch production line converted starch production line pregelatinized starch production line pre-gelatinized starch production line starch derivatives production line extruding modified starch production line extruding denaturated starch production line extruding converted starch production line extruding pregelatinized starch production line
