screws extruding denaturated starch production line

Inside package is plastic film,outside package is wooden case,which is seaworth.

Technical Feature

  • Shandong, China (Mainland)
  • SHENGRUN
  • TSE85-D
  • modified starch machine
  • Engineers available to service machinery overseas
  • 1 year
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Shandong, China (Mainland)
Brand Name
SHENGRUN
Model Number
TSE85-D
Type
modified starch machine
After-sales Service Provided
Engineers available to service machinery overseas
warranty
1 year
manager
MS Yolanda Zhang
output
350-500kg/h
material
stainless steel
motors
all brands(based on your requirement)
processing type
screw type extrusion
heating type
electric

DETAIL DESCRIPTION



Product Description

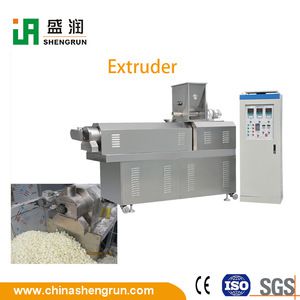

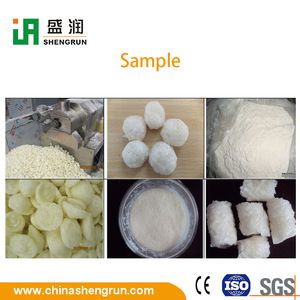

1. Modified starch, also called starch derivatives, are prepared by physicallyenzymatically, or chemically treating native starch, thereby changing the properties of the starch. Our company machines can make modified starch with screws extrusion method. The finished product is also called pregelatinization starch, which can be used in food, pharmaceuticals, paper, building material, casting, oil drilling industry. This production line includes mixing, extruding, drying and conveying system. The extruder has one couple of high hardness alloy steel screws.



2. The model is TSE85-D, the output is 350-500kg/h.



3. Extruder screws quantity is two.



4. The main body material is stainless steel, which is easy to be cleaned.



5. The screws material is 38CrMoAl, which is wear-resisting.



6. The processing line needs two workers to operate.



7. We advice the plant area is no less than 125 square meters, the length is no less than 25 meters.



8. Process flow: (Raw material)---mixing---conveying---conditioning---extruding & puffing---conveying---drying--- (milling---packing)

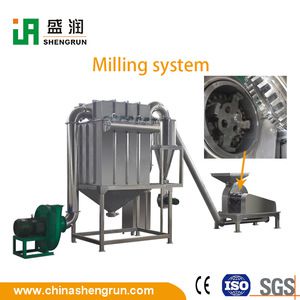

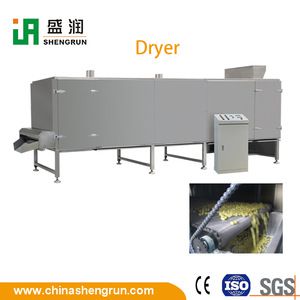

9. Equipments: Mixer---Screw conveyer---Conditioner---Extruder---Air conveyer---Dryer--- (Grinder---Packing machine)



10. The temperature and rotating speed can be controlled and adjusted.



11. The processing line has self-cleaning function.





 Parameters:



Equipment name

Mixer

Screw conveyer

Conditioner

Extruder

Model

BFJ

LXSL

TZQ

TSE85-PS

Total power (kw)

5

0.75

4

110

Actual Power (kw)

3

0.5

2.8

80

Output (kg/h)

600

600

600

350-500

Size (m)

1.0×0.7×1.4

3.3×0.8×2.3

1.9×1.1×2.2

3.6×1.0×2.0







Equipment name

Air conveyer

Dryer

Grinder

Model

FSJ

KX-7

FSJ-480

Total power (kw)

2.2

60

18

Actual Power (kw)

0.75

50

15

Output (kg/h)

600

600

500

Size (m)

2.5×0.6×0.6

8×1.3×2.7

0.9×0.8×2











Our Services

1.The warranty period is one year.

2. Our service is turn-key mode, which includes installment, debugging and train.

3.Supply quick-wear part and general tool.

4.Supply the basic formula of raw materials.

 packaging

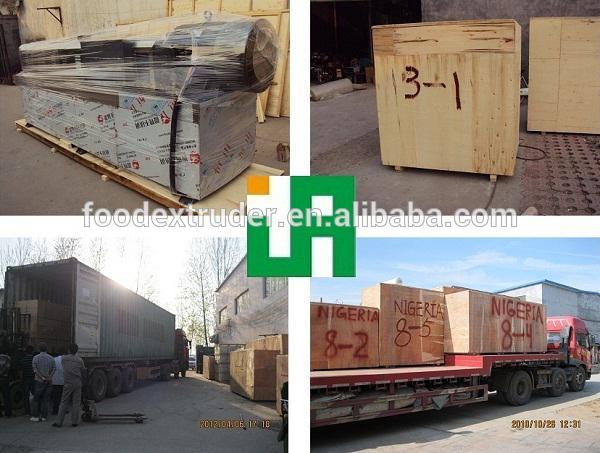

Inside package is plastic film,outside package is wooden case,which is seaworth.



Company Information

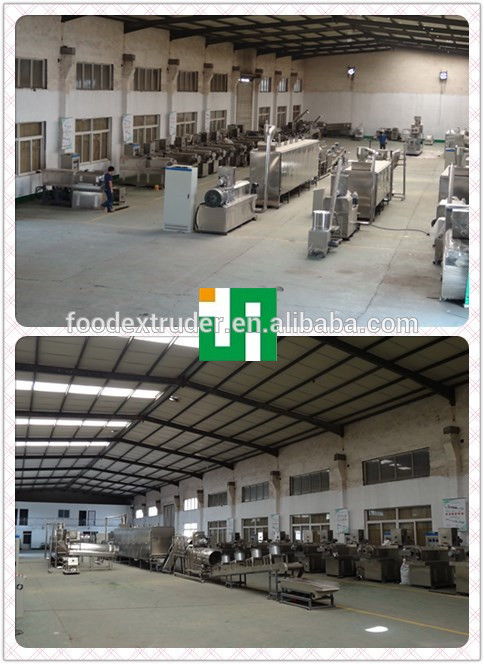

Jinan Shengrun Machinery Co., Ltd. is a professional manufacturer of extrusion machinery.
