Brief Description

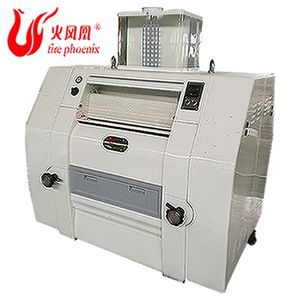

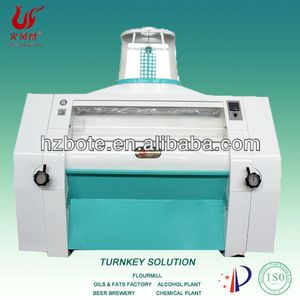

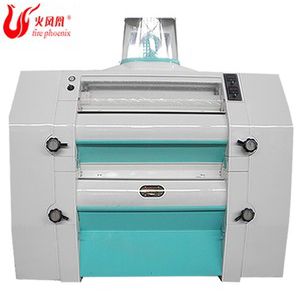

• Flour milling machine model FMFQ is a big production milling equipment.It is usually used in large flour production line.
• It capacity is 10 tons to 60 tons per day
• It is not a complete processing line.So, need to configure other equipments.It usually used in 50 tons to 300 tons processing factory.

 Technology

• This series has the following distinctive characteristics:
• The feeding is completed automatically in the simplest way, which significantly free workers from high workload while flour milling is nonstop.
• Pneumatic conveying reduces dust pollution and improves the environment.
• The ground stock temperature is reduced, while flour quality is improved.
• Easy to operate and maintain.
• It works for maize milling, wheat milling and cereal grain milling by change the different sieve cloths of flour extractor.
• It can produce high quality flour by separate the hulls.
• New design roll feeding guarantee a better free flowing of material.

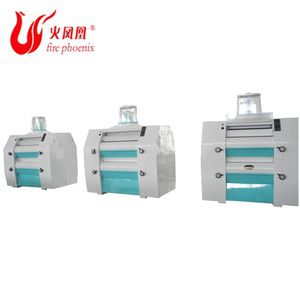

• NO.	Model	Output(T/D)	Weight(KG)	Power(Kw)	Outside(mm)
  1	FMFQ 250-500	20	2000	5.5	1450*1330*1300
  2	FMFQ 250-600	30	2400	5.5	1450*1330*1400
  3	FMFQ 250-800	40	2800	7.5	1450*1330*1600
  4	FMFQ 250-1000	50	3100	7.5	1450*1330*1850
  5	FMFQ 250-1250	60	3450	7.5	1450*1330*2050

• Item	Model: FMFQ 250-500,600,800,1000,1250
  Roller's Diameter/Enth (mm)	250/500, 250/600, 250/800, 250/1000, 250/1250
  Fast Milers Speed (r/min)	300-500
  Speed Ratio Fast Roller To Slow Roller (mm)	1:2.5, 1:2, 1:1.25
  Raw Material Cozing Roller's Diameter (mm)	φ75
  Rotation Speed Of Rw Material Clozing Roller's (Mpa)	30-660

Features

• The lower half of the machine uses the high-strength cast iron, the upper part is made of high quality steel by laser cutting carbon dioxide protection welding, with good stability, good cushioning effect.
•  Pneumatic pressure automatic control, pulse signal. Unique hanging servo feeding mechanism. The stroke valve imports U.S. Parker products, so it has a high sensitivity, the unit can achieve centralized control.
• Achieving the best grinding effect with cylinder feeding tube of acrylic high transparent Plexiglass.
• Roller through strict quality inspection and the dynamic balance treatment, no vibration, low noise, smooth operation.
• Roller bearings with Swedish SKF, and installed Swedish special butter, low noise, long service life.
• The parts surface of flour milling machine adopts the pure manganese black phosphate treatment, covers a protective film so that it is bright and not fade.
• The painting of mechanical housing surface uses the automotive paint, so that the whole is delicate and beautiful.

 Accessories

• We choose the top Accessories to make sure the machine is strong and durable.
• Our core components adopt premium brands and materials to extend the use of machines

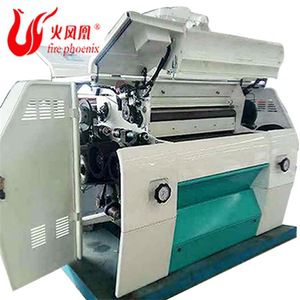

• Roller level placement on the load-bearing beam, bearing beam for grinding stress, self sustaining the whole tube beam under the maximum load can still keep the lowest noise and vibration, core milling equipment with unique rolled away from the suction technique, thus has good grinding effect.
• The centrifugal sleeve of the grinding roller clutch is made of high quality green tin and the wear-resisting copper , which makes it flexible and easy to die in operation.
• It is used to adjust the core and adjust the nut of the screw. Mill trip valve "park" of America, its high sensitivity, can realize central control unit to other pneumatic components adopt "the dirk" products, each machine is equipped with two sets of high quality oil and water separator automatically collect air and water are automatic lubrication to extend the service life of pneumatic components.
• The grinding roller blade is used to Special blade for grinding roller scraper,and the metal brush rack is equipped with miniature cylinder. It can be adjusted automatically without manual adjustment.
• The grinding roller bearing adopts Swedish "SKF", among which 25-50 and 25-60 mill bearing are used for chinese-foreign joint venture 22314 bearing.The grinding machine oil is used in the use of guangzhou "YaTu" brand car special metal seven in the water mist dusting, the clean room after the spraying directly to the oven to make the grinding machine look beautiful and not discolored.
• The grinding roller pedestal (bearing seat) adopts high strength ductile cast iron casting for wear-resisting and durable. All the standard parts are made of 8.8-magnitude and 12.9 high strength galvanized parts to ensure the connection is reliable and non-corrosive.

Application

This series of products has been widely used in large wheat, corn, maize,soybean, oats, barley, hummus, etc. automatically processing line.

• Wheat storage  →→→ (silos, or warehouse)
• Cleaning system  →→→ (sifter, destoner, separator, magnet, scourer, etc)
• Dampening   →→→  (dampener, conditioning silos, etc)
• Milling system →→→ (roller mill, plan sifter, purifier, impact detacher, etc.)
• Flour pressure and blending system →→→ (if need)
• Flour packing and stacking →→→  (automatic packing machine,stacking machine)

 Finished Products

Production rate: (production rate varies with the quality of maize)

Company Information

Hanzhong Burt Machinery Co.Ltd is a professional manufacturer. Our group product flour milling machine, wheat washing machine and many types food

or seed dryer almost 30 years.Our products have a number of patents and certification.  Our products always export to western Asia, Africa, South America

and dozens of other countries.We have a perfect overseas service system and team.If we are lucky enough to cooperate, we can solve the after-sales problem

quickly and professionally.

We have advanced technology research and development team, and have obtained ISO9001 product certification and many technical patents.

Exihition

Our company has participated in the Canton fair several times, the sino-kazakhstan trade conference and other large international conferences,

and has received wide recognition and support from customers

 Customers feedback:

1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free long distance shipping management from seller's factory to named place by buyer;
5. Free maintenance and operating training personally;
6. Free new production techniques and formulas;
7. Provide online video inspection before delivery.Remote client display details for the upcoming machine.
8. Provide 1 year complete warranty and life-time maintenance service
