Wholesale professional technical support grain dryer/wheat dryer machine
Brief Description
- Intelligent operating system.Hot air, material temperature and moisture online automatic monitoring, with safety linkage device, full touch screen setting, simple operation and clear operation.
- Multi-functional body design, suitable for drying of rice, wheat, corn, seeds and rice cake.
- Adopt large air flow fan, dust removal device, and high drying efficiency.
- It can provide a variety of heat sources such as rice husk, coal, diesel, natural gas and electric heat energy, heating the hot air heating time, and no pollution to the grain and the baked raw food.
Main technical parameter
Serial number | Item | Unit
| Technical parameter | |
1 | Model | / | 5HXG-100,120,150 | |
2 | Type | / | Batch circulation grain dryer | |
3 | Handling capacity (Moisture content of 22-24% of the maximum processing capacity) | t | Rice 10,12,15 | |
4 | Dimension (length×width×heighth) | mm | 4100*2400*7500 4100*2400*8500 4100*2400*9500 | |
5 | Machine quality | kg | 2500,2800,3300 | |
6 | Combustion engine | / | Gun type spray | |
7 | Lighting mode of combustion engine | / | Automatic lighting | |
8 | Fuel | / | 0#(diesel) | |
9 | Combustion consumption | kg/h | 7.0-13.6 | |
10 | Exhaust fan type | / | Centrifugal
| |
11 | The air volume of exhaust fan | m³/h | 10800 | |
12 | Automatic control and safety equipment | / | Automatic moisture meter, temperature control, air pressure switch, motor overload protection automatic shutdown | |
13 | Matched power | Grain discharge motor | kw | 0.015 |
Fan motor | 4 | |||
Dusting motor | 0.09 | |||
On the auger motor | 1.5 | |||
Under the auger motor | 0.75 | |||
Circulation motor | 0.1 | |||
14 | Voltage | v | 380 | |
15 | Drying capacity | t%/h | Rice 8-10 Wheat 7-10 | |
16 | nonuniformity of drying | % | ≤1.0 | |
17 | Breakage rate appreciation | % | ≤0.5 | |
18 | Crack rate | % | ≤3.0 |

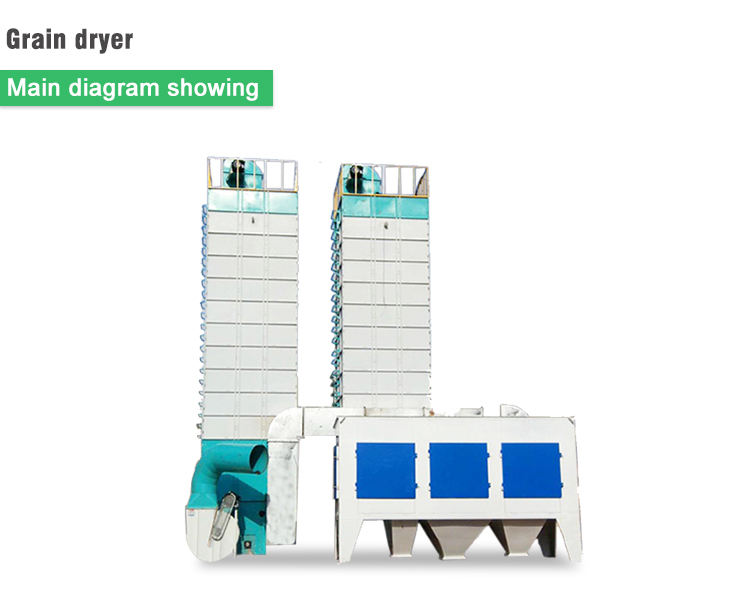

The structure of grain dryer
Feature
We can meet your any special requirements, such as: Add insulation. Use special heat source
(biomass, rice husk, diesel, coal, electric, steam, etc.), special designed, Special accessories, etc.
We can make your own custom equipment for you.
- Details are thoughtful, Small footprint
- Low temperature cycling
- Less crushed phenomenon, low crackle ratio
- Galvanized design, Durable quality
- Easy installation, operation and maintainance
- Available drying for many different material
- Professional after sales service with technical support
- Batch type recirculating or continuous system

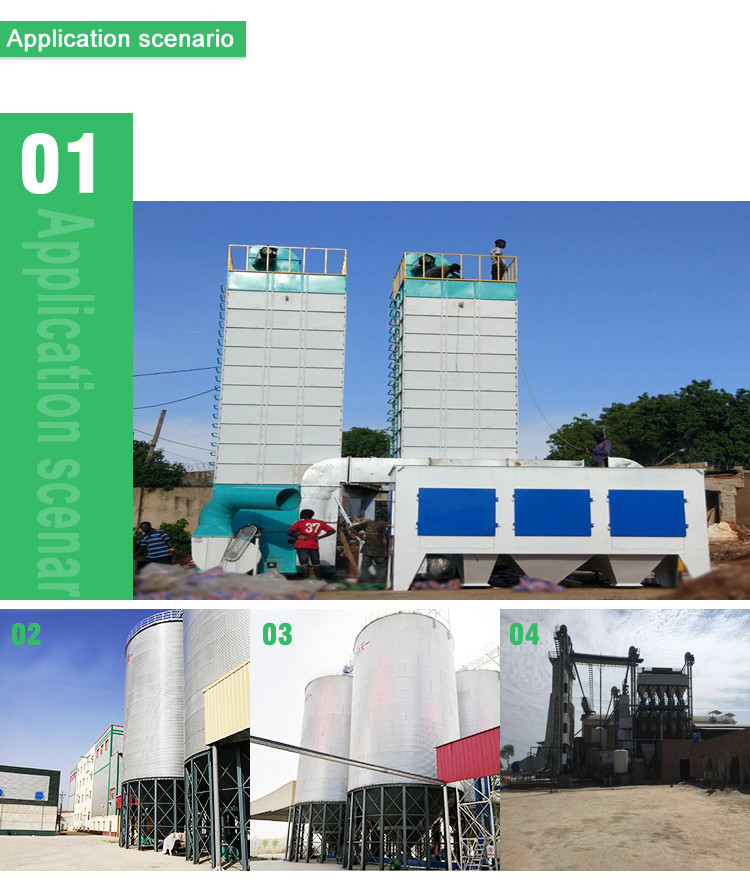

Application
Paddy dryer is suitable for efficient drying all cereals, grains, beans and seeds of all crops such as maize, coffee bean, wheat, rice, barely, millets, sunflower seed, soybean, oil seeds ,rice etc. It is suitable to all kinds of farm and rice processing factory.
Company Information
Hanzhong Burt Machinery Co.Ltd is a professional manufacturer. Our group product flour milling machine, wheat washing machine and many types food
or seed dryer almost 30 years.Our products have a number of patents and certification. Our products always export to western Asia, Africa, South America
and dozens of other countries.We have a perfect overseas service system and team.If we are lucky enough to cooperate, we can solve the after-sales problem
quickly and professionally.
We have advanced technology research and development team, and have obtained ISO9001 product certification and many technical patents.
Exihition
Our company has participated in the Canton fair several times, the sino-kazakhstan trade conference and other large international conferences,
and has received wide recognition and support from customers
Customers feedback:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free long distance shipping management from seller's factory to named place by buyer;
5. Free maintenance and operating training personally;
6. Free new production techniques and formulas;
7. Provide online video inspection before delivery.Remote client display details for the upcoming machine.
8. Provide 1 year complete warranty and life-time maintenance service
