Brief Description

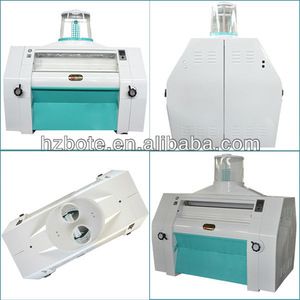

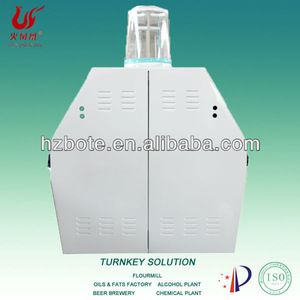

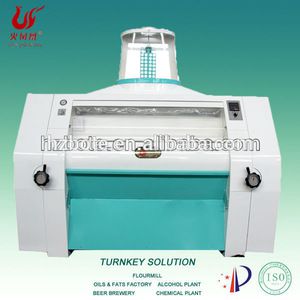

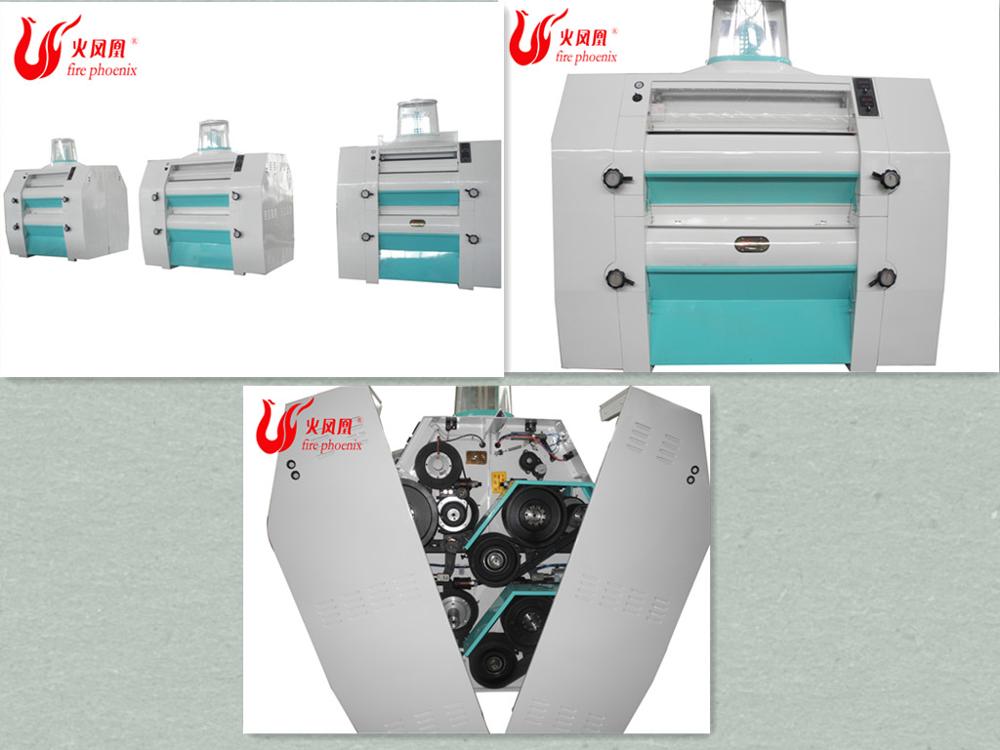

1.Flour milling machine model FMFQ is a big production milling equipment.It is usually used in large flour production line.

2.It capacity is 10 tons to 60 tons per day

3.It is not a complete processing line.So, need to configure other equipments.It usually used in 50 tons to 300 tons processing factory.

Technology

This series has the following distinctive characteristics:

1. The feeding is completed automatically in the simplest way, which significantly free workers from high workload while flour milling is nonstop.

2. Pneumatic conveying reduces dust pollution and improves the environment.

3. The ground stock temperature is reduced, while flour quality is improved.

4. Easy to operate and maintain.

5. It works for maize milling, wheat milling and cereal grain milling by change the different sieve cloths of flour extractor.

6. It can produce high quality flour by separate the hulls.

7. New design roll feeding guarantee a better free flowing of material.

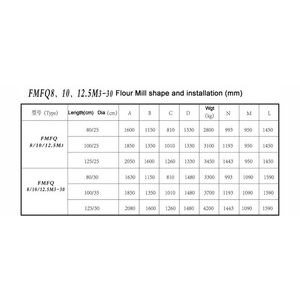

• NO.	Model	Output(T/D)	Weight(KG)	Power(Kw)	Outside(mm)
  1	FMFQ 250-500	20	2000	5.5	1450*1330*1300
  2	FMFQ 250-600	30	2400	5.5	1450*1330*1400
  3	FMFQ 250-800	40	2800	7.5	1450*1330*1600
  4	FMFQ 250-1000	50	3100	7.5	1450*1330*1850
  5	FMFQ 250-1250	60	3450	7.5	1450*1330*2050

• Item	Model: FMFQ 250-500,600,800,1000,1250
  Roller's Diameter/Enth (mm)	250/500, 250/600, 250/800, 250/1000, 250/1250
  Fast Milers Speed (r/min)	300-500
  Speed Ratio Fast Roller To Slow Roller (mm)	1:2.5, 1:2, 1:1.25
  Raw Material Cozing Roller's Diameter (mm)	φ75
  Rotation Speed Of Rw Material Clozing Roller's (Mpa)	30-660

 Features

1. The lower half of the machine uses the high-strength cast iron, the upper part is made of high quality steel by laser cutting carbon

dioxide protection welding, with good stability, good cushioning effect.

2. Pneumatic pressure automatic control, pulse signal. Unique hanging servo feeding mechanism. The stroke valve imports U.S. Parker products,

so it has a high sensitivity, the unit can achieve centralized control.

3. Achieving the best grinding effect with cylinder feeding tube of acrylic high transparent Plexiglass.

4. Roller through strict quality inspection and the dynamic balance treatment, no vibration, low noise, smooth operation.

5. Roller bearings with Swedish SKF, and installed Swedish special butter, low noise, long service life.

6. The parts surface of flour milling machine adopts the pure manganese black phosphate treatment, covers a protective film so that it is bright and not fade.

7. The painting of mechanical housing surface uses the automotive paint, so that the whole is delicate and beautiful.

Accessories

1.We choose the top Accessories to make sure the machine is strong and durable.

2.Our core components adopt premium brands and materials to extend the use of machines

Application

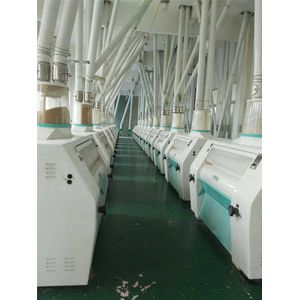

This series of products has been widely used in large wheat, corn, maize,soybean, oats, barley, hummus, etc. automatically processing line.

• wheat storage  →→→ (silos, or warehouse)
• Cleaning system  →→→ (sifter, destoner, separator, magnet, scourer, etc)
• Dampening   →→→  (dampener, conditioning silos, etc)
• Milling system →→→ (roller mill, plan sifter, purifier, impact detacher, etc.)
• Flour pressure and blending system →→→ (if need)
• Flour packing and stacking →→→  (automatic packing machine,stacking machine)

Our Services

1. The supply of the complete equipment of the workshop and the installation of the equipment;

2. Supply of electric control equipment in the workshop;

The design of the whole set of process design drawings;

Technical consulting and technical services;

The warranty period of the product shall be one year;

3. The buyer shall be responsible for the indoor and external electrical wiring, threading pipe, line installation, equipment hoisting, installation of technical staff pay, air tickets and accommodation.

Company Information

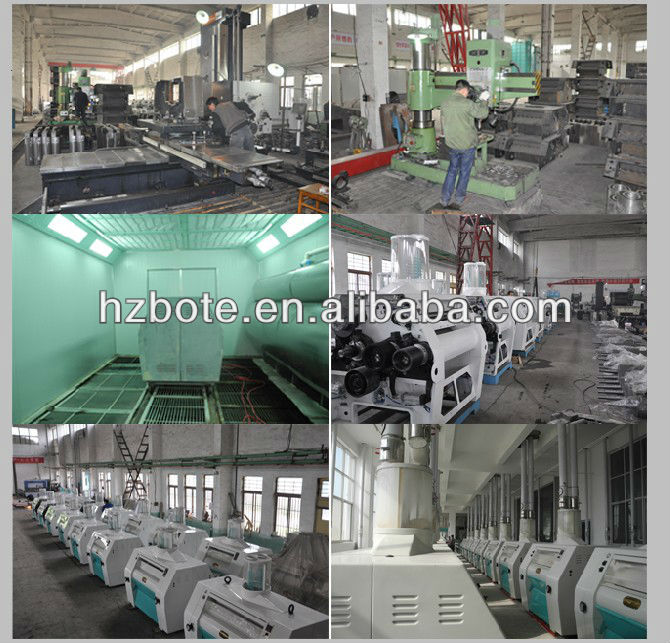

Hanzhong Burt Machinery Co.Ltd is a professional manufacturer. Our group product flour milling machine, wheat washing machine and many types food

or seed dryer almost 30 years.Our products have a number of patents and certification.  Our products always export to western Asia, Africa, South America

and dozens of other countries.We have a perfect overseas service system and team.If we are lucky enough to cooperate, we can solve the after-sales problem

quickly and professionally.

Exihition

Our company has participated in the Canton fair several times, the sino-kazakhstan trade conference and other large international conferences,

and has received wide recognition and support from customers

Certifications

We have advanced technology research and development team, and have obtained ISO9001 product certification and many technical patents.
