Brief introduction of peanut butter production line

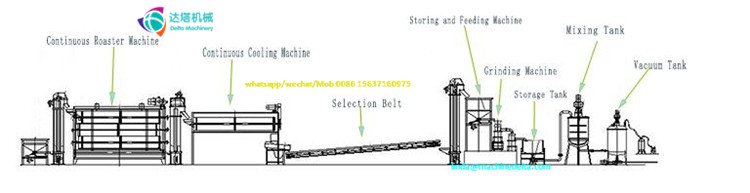

This peanut butter production processing line was designed by reference of the foreign tech. It is consisted of feed elevator, continuous roaster, conveyor, cooling machine, decorticating machine, sorting conveyor, grinding machines, pump, storage slot, cooling machine, mixing machine, vacuum deair, etc. It has advantages of high automation, easy-operating integrated control, stable performance, high product quality, etc.
Introduction of Automatic peanut butter production line

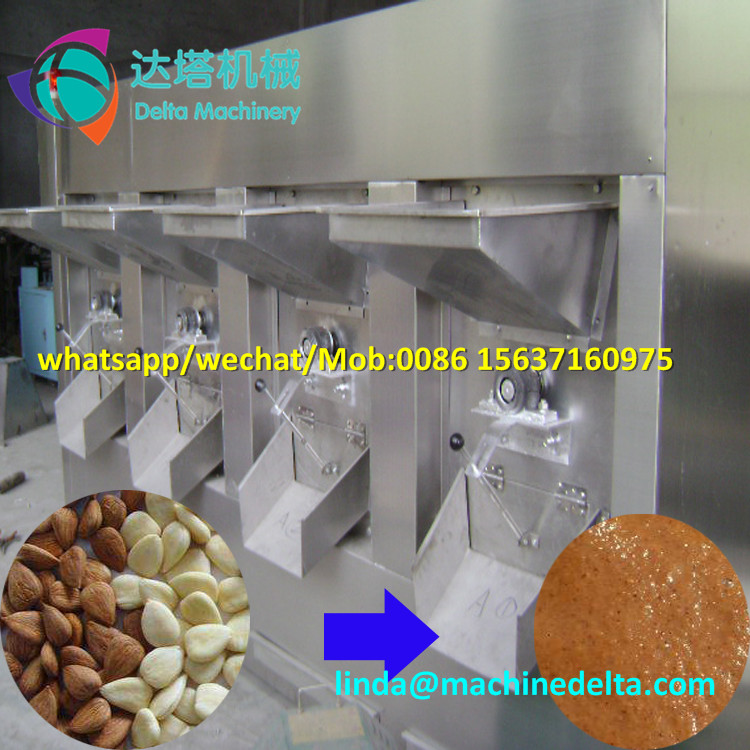

Peanut/Almond Butter Making Machine-----Roasting:
Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells.
Peanut/Almond Butter Making Machine-----Cooling:
Peanut will be send cooling belt to cool.

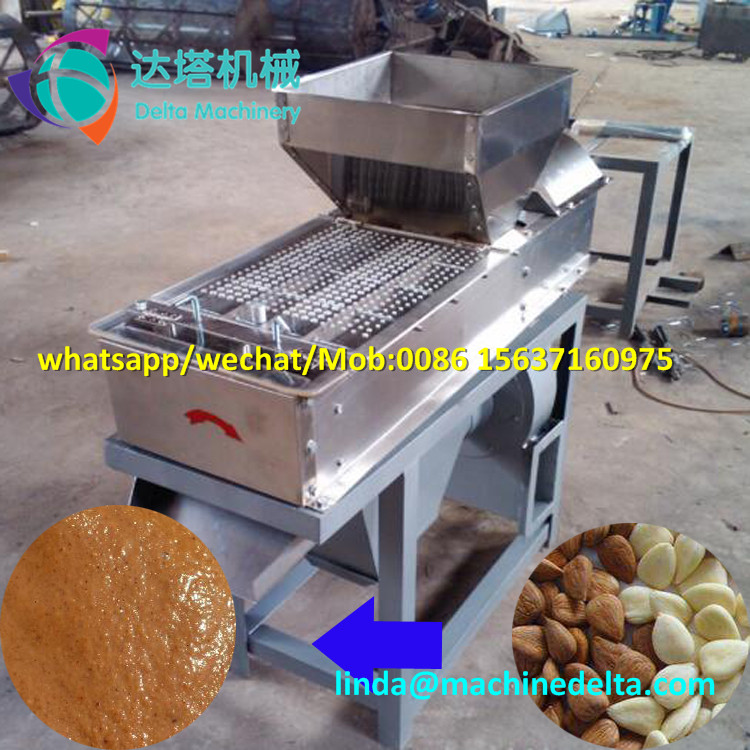

Peanut/Almond Butter Making Machine-----Peeling:
Put the roasted peanuts into peeler to take off the red skin, the double rollers will rub the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted not blanched peanut kernel is picked up by manual or mechanical.
Peanut/Almond Butter Making Machine-----Primary grinding:
Using steel grinder to make the first grinding.

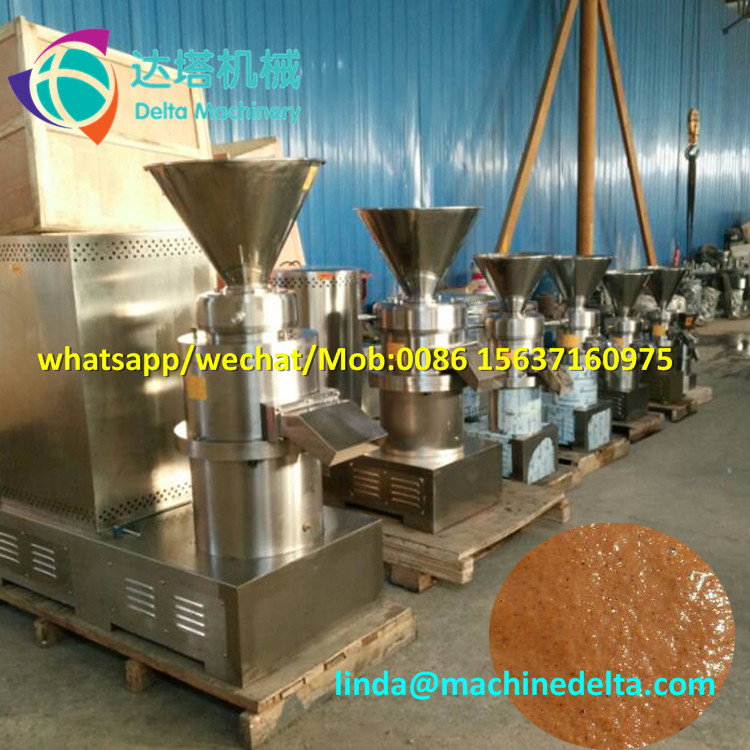

Peanut/Almond Butter Making Machine-----Second grinding:
Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.
Peanut/Almond Butter Making Machine-----Mixing:
Make the butter more homogeneous.
Peanut/Almond Butter Making Machine-----Cooling:
The butter through second grinding should be cooled immediately. The temperature should go down 45C.
Peanut/Almond Butter Making Machine-----Gas removing:
Take out the air from peanut butter.
Peanut/Almond Butter Making Machine-----Storage tank:
Settling down in the storage tank till the temperature drop to air temperature.
Technical parameter of peanut butter production line
Name | Description |
Peanut/almond roasting machine | Capacity:100-150kg/h Power:1.1kw Size:2800*1500*1800mm |
Peanut/almond cooling machine | Capacity:100-200kg/h Power:1.1kw Size:5000*900*850mm |
Dry way red skin peeling machine | Capacity:200-250kg/h Power:0.37+0.55kw Size:1100*500*1100mm |
Peanut/almond grinding machine | Capacity:150-200kg/h Power:11kw Size:1000*500*1000mm |
Paste pump | Power:0.75kw |
Mixing tank | Power:3kw |
Paste cooling machine | Power:1.1kw Size:2800*450*1000mm |
Filling machine | Size:600-800*1500 |

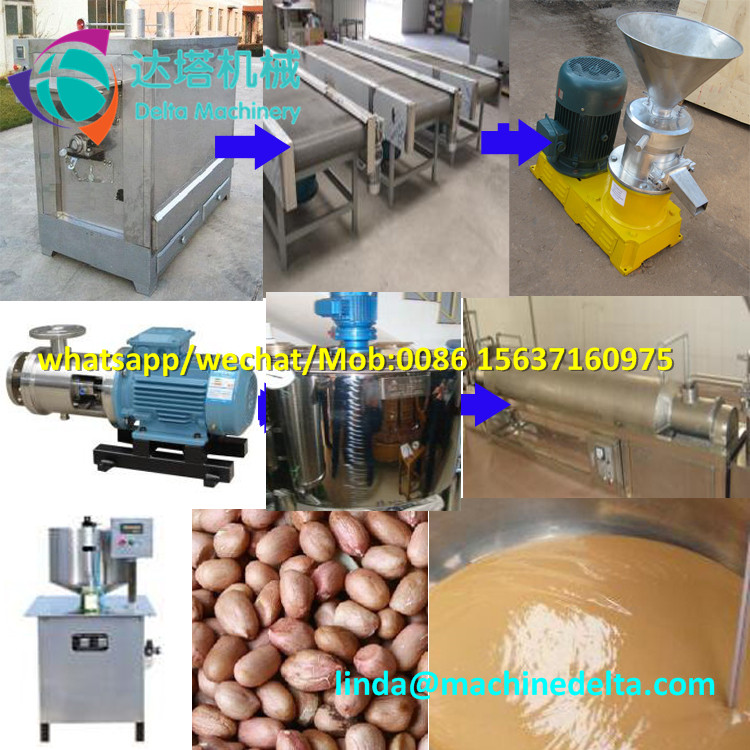

Photos show of peanut/almond processing production line

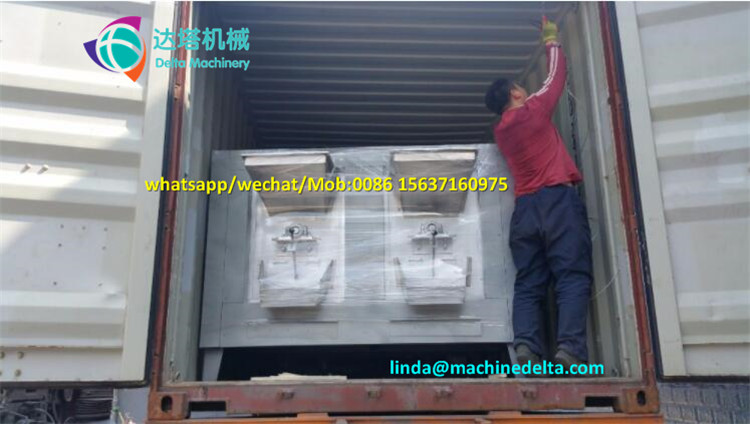

Goods will be wrapped in plastic film first before packing, which is to avoid moisture on the sea. and then put into plywood case which is free of fumigation with export package standard.
Our services of Delta machinery | |
| before sale | a)24 hours online,by mail or on online chatting. b)professionally recommend the suitable machine.
|
| on sale | a)test the machine to make sure it is in good condition. b)Record its photo,testing video for your check. c)Pack it firmly in export standard. d)Ship it with help of experienced shipping line,update the shipping time and arrival time. e)Send all documents for your customs clearance.
|
| after sale | a)provide user manual in English,necessary video of maintaining,installation or operation. b)24 hours online instruction patiently. c)Spare parts provided for lifespan. |
Frequency Asked Questions by Worldwide clients of Delta Machinery |
Q1:How long will it take to get the machine? A:Production time takes about 7-15 working days.please tell us your sea port,we will check the shipping time within 5 minutes. |
Q2:how can i pay? A:TT,Western union,LC at sight,alibaba trade assurance,moneygram,etc. |
Q3:what is the mode of transport? A:by sea,by air,or by courier(DHL,Fedex,EMS,TNT).we are doing cooperation with experienced shipping lines which provide the best price and services so that the most convenient and most suitable ways with minimum cost will be advised. |
Q4:What’s your Guarantee time? A:Machine will be carefully checked and tested before delivery to make sure it is in good condition when it is in your hands.user manual,operation video,etc.will be provided to ensure you have a good knowledge of running the machine in right way.guarantee time is 1 year in condition of non-human or non-malfunction damage.spare parts was provided for lifespan. |
