Specifications:
Diameter dimension: ≤ 4m
Length: ≤ 12m
Work mediator : water ,acid, alkali and other chemicals corrosive liquids.
Tank color : natural or blue (customize color available)
| FRP Fiberglass tank filament winding machine | |||
| Equipment No Item Name | FWWS-2500 | FWWS-4000 | FWWS-10000 |
| Tank diameter,IDmm | Φ500-Φ2500 | Φ800-Φ4000 | Φ4000-Φ10000 |
| Product length,mm | ≤12000 | ≤12000 | ≤12000 |
| Winding angle | 45 º90 º | 45 º90 º | 45 º90 º |
| Max weight of product ,kg | 8500 | 12000 | 28000 |
| Rotating speed of main shaft ,r/min | ≤45 | ≤35 | ≤18 |
| Transmission method | Pinion and rack | Pinion and rack | Pinion and rack |
| Control method | manual /semi automatic/ automatic | manual/semi automatic/ automatic | manual/semi automatic/ automatic |
| Coordinate speed of vehicle ,m/min | 45 | 45 | 45 |
| Precision of lining up yarn ,mm | ±1 | ±1 | ±1 |
| Repositioning accuracy ,mm | 0.2 | 0.2 | 0.2 |
| Max speed of pulling yarn ,m/min | 90 | 90 | 90 |
| Max width of yarn tape ,mm | 200 | 200 | 200 |
| Winding type | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction |
| Winding roving capacity,each | 60 | 60 | 60 |
| Resin type | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. |
| Yarn framea kind of inner pulling yarn | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type |
| Impregnation groove,stainless steel | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation |
| Production capacity ,kg/h | 800 | 1200 | 2000 |
| Total installed capacity , kw | 10.5 | 12.5 | 18.5 |
| Areas covered by production linelength × width × heightm | 18×9×2.5 | 18×9×3 | 20×15×7 |
1.Introduction:

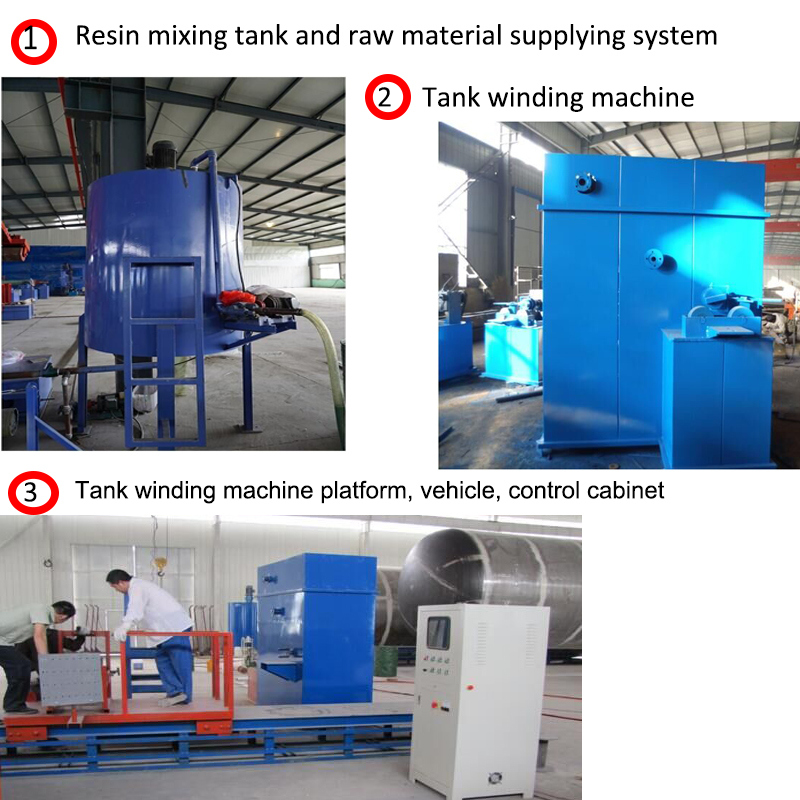

FRP water tank winding machine be constituted by three main parts:
1) Automatic resin supplying system

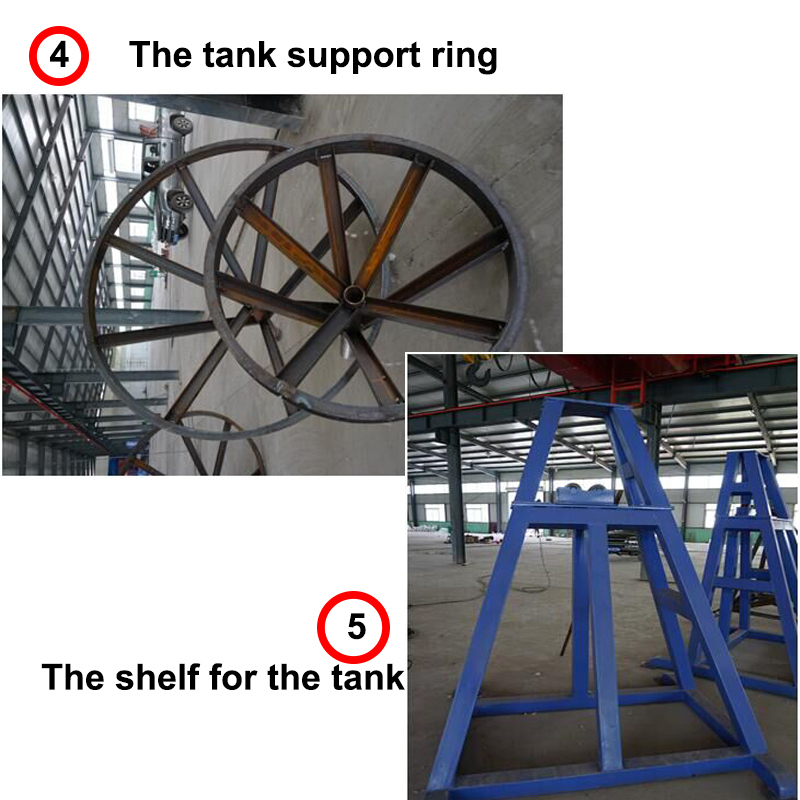

2) The tank winding machine,include the winding platform,the venicle with the resin tank,the main machine head,the triangular support,the yarn stand,the support ring.
3) The PLC control cabinet.
2.Specification
1) Computer controlled
2) English version software
3) CNC winding method
4) High Precisi
FAQ
Q: Are you a trading company or a manufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q:Have you some videos where we can see the line producing?
A: Yes, we can provide some videos
