Specifications:
Diameter dimension: ≤ 4m
Length: ≤ 12m
Work mediator : water ,acid, alkali and other chemicals corrosive liquids.
Tank color : natural or blue (customize color available)
| FRP Fiberglass tank filament winding machine | |||
| Equipment No Item Name | FWWS-2500 | FWWS-4000 | FWWS-10000 |
| Tank diameter,IDmm | Φ500-Φ2500 | Φ800-Φ4000 | Φ4000-Φ10000 |
| Product length,mm | ≤12000 | ≤12000 | ≤12000 |
| Winding angle | 45 º90 º | 45 º90 º | 45 º90 º |
| Max weight of product ,kg | 8500 | 12000 | 28000 |
| Rotating speed of main shaft ,r/min | ≤45 | ≤35 | ≤18 |
| Transmission method | Pinion and rack | Pinion and rack | Pinion and rack |

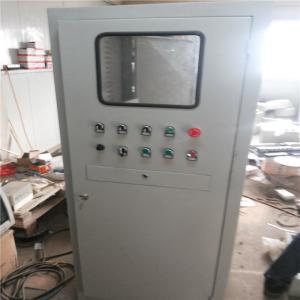

| Control method | manual /semi automatic/ automatic | manual/semi automatic/ automatic | manual/semi automatic/ automatic |
| Coordinate speed of vehicle ,m/min | 45 | 45 | 45 |
| Precision of lining up yarn ,mm | ±1 | ±1 | ±1 |
| Repositioning accuracy ,mm | 0.2 | 0.2 | 0.2 |
| Max speed of pulling yarn ,m/min | 90 | 90 | 90 |
| Max width of yarn tape ,mm | 200 | 200 | 200 |
| Winding type | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction |
| Winding roving capacity,each | 60 | 60 | 60 |
| Resin type | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. |
| Yarn framea kind of inner pulling yarn | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type |
| Impregnation groove,stainless steel | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation |
| Production capacity ,kg/h | 800 | 1200 | 2000 |
| Total installed capacity , kw | 10.5 | 12.5 | 18.5 |
| Areas covered by production linelength × width × heightm | 18×9×2.5 | 18×9×3 | 20×15×7 |
Advantages:
Have the virtue of pressure proof, corrosion resistance, anti-aging, long working life and so on...
And having the characteristics of light weight , high strength ,impermeable, heat insulation, insulation, non-toxic and smooth surface and so on.
1. light weight, high strength,
2. impermeable , heat insulation.,
3. non-toxic and smooth surface,
4. corrosion-resistant and pressurization,
5. Aging-resistant and long service life
FAQ
Q: Are you a trading company or a manufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q:Have you some videos where we can see the line producing?
A: Yes, we can provide some videos
