FRP Mesh Type Grating Machine Production Line

GRP Grating machineWe are professional FRP grating and grating machine manufacturer with more than 10 years of experience, all of our productions are strictly run under ISO 9001 Quality Control System. Our grating machine has the advantage of high qu

Technical Feature

  • Tianjin, China
  • 10 Sets Per Month
  • T/T, Money Gram
  • Producing Grating
  • Multi-Screw
  • Automatic
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
1220*3660*50
Name
FRP Grating Machine
Warranty
1 Year
Use
Produce FRP Gratings
Operation
Automatic
After Sales Service
Engineers Available to Service Machine Oversea
Advantages
Fast Heating, Strong Operability
Grating Panel Thickness
25cm, 38cm, 40cm, 50cm, etc
Trademark
SR
Transport Package
Container
Specification
1220*3660
Origin
Hebei
HS Code
84778000

DETAIL DESCRIPTION

GRP Grating machine

We are professional FRP grating and grating machine manufacturer with more than 10 years of experience, all of our productions are strictly run under ISO 9001 Quality Control System. Our grating machine has the advantage of high quality and acceptable price
Working principle:

2.2kw motor, 10t hydraulic force, Water heating or electric heating,
FRP Mesh Type Grating Machine Production Line


Produce process:

Material mixing- slip FRP materials-mold- solidify- mold release
Welcome to visit our factory. We can show you the produce process.

Specifications:

Weight: 3.5t, 4.5t
Material: 45#steel
Automatic operation
fast heating
Strong operability
Convenient installation
Easy to operate, install and maintain

Accessories:

Hydraulic lift, pump

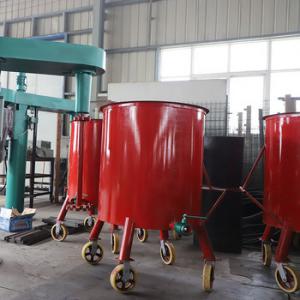

Resin mixer
Polishing machine
Cutting machine
Resin Bucket
FRP Mesh Type Grating Machine Production Line


The advantages of grating machine that it produce:

Light weight
Anticorrosive and burn resistant
Non-slip
Insulated
Impact resistance
Aging resistance
Easy to cut
Good appearance
Long service life
Good mechanical property.

FRP Mesh Type Grating Machine Production Line


                                                   Common size for your reference

Item no.
Height(mm)Mesh Size
(mm)
Standard Panel Sizes(mm)Bar Thickness
(top/bottom-mm)
Open AreaWeight
(kg/m2)
11350.8×50.83660×12206.4 / 5.476%5.5
21525.4×25.4 / 50.8×50.83660×12206.2 / 557%7.2
31538.1×38.13660×12256.3 / 5.2696.5
41520×20 / 40×404047×12476.35 / 5.34711.5
52038.1×38.13665×12256.3 / 5699.3
62012.8×12.8×12.8 / 38.5×38.53434×9707.2 / 6.42718.5
72538.1×38.13665×12256.35 / 56912.3
82540×404047×10076.35 / 57012.2
92519×19 / 38×384005×12206.4 / 54415.5
102525×100(Bearing bars to run width direction)3007×10099.4 / 8(length)
6.4 / 5(width)
6713.8
112525.4×101.6(Bearing bars to run width direction)3660×12207 / 56713
1225101.6×25.4(Bearing bars to run length direction)3665×12257 / 56713.1
133038.1×38.14008×15256.6 / 56814.6
143040×404047×10076.6 / 56914.2
153020×20 / 40×404047×12477 / 54218.1
163012.7×12.7×12.7 / 38×384040×12207 / 53023.5
173026×26 / 52×524011×11506.5/55613.6
183838.1×38.13969×15257 / 56619.2
193840×404047×10077 / 56718.8
2038152.4×25.4(Bearing bars to run length direction)3665×12267 / 5(length)
9 / 7(width)
6820.4
2138101.6×38.1(Bearing bars to run length direction)3660×12207 / 57614.5
223819×19 / 38.1×38.14045×12207 / 54023.5
233820×20 / 40×404047×12477 / 54222
244040×404047×12477 / 56720
2540220×602207×15077 / 5859.5
264020×20 / 40×404047×12077 / 54223.7
275050.7×50.73660×12258.3 / 56921.5
285050.7×50.73660×12258.8 / 568%23.5
295025.35×25.35 / 50.7×50.73660×12208 / 647%26
3050152.4×38.1(Bearing bars to run length direction)3660×12209 / 772%20.8
315038.1×38.13665×122511.5 / 94840.5
326338.1×38.13660×12209 / 5.858%38.5
336338.1×38.13670×123012 / 946%52


L×W×H(mm×mm×mm)Center Distance(mm×mm)Tendons relief(mm)Module(mm)
1220×3660×3838.1×38.1738.5-41
1220×3660×3038.1×38.1730.5-32
1220×3660×2538.1×38.16.825.5-27
1220×3660×5050.7×50.77.550.5-52
1000×4038×3838.1×38.1738.5-41
1000×4038×2538.1×38.16.825.5-27
We also can make the machine according to your demand size.
 We have manufactured FRP grating machine for many years. And our machine has been exported to many countries. Satisfying customer's demand is our responsibility and we will try our best to satisfy customers by our high quality, competitive price and good service.
If you by our machine, we train you free in factory. Besides the grating machine, we also offer you the auxiliary equipment, such as polishing machine, boiler, and resin tank and so on.
The machine fabrication, the modules with chrome, to protect the modules surface.
We have professional team to produce the best quality machine for our customers.
